RadSplitter Hover image issue.

2 posts, 0 answers
  1. Robert Dennyson
    Robert Dennyson avatar
    11 posts
    Member since:
    May 2010

    Posted 19 Oct 2010 Link to this post

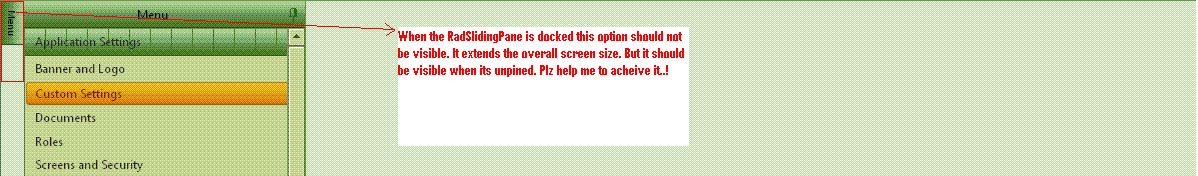

    I'm using RadSplitter with radslidingpane.  I have the following issue with these controls. I have attached screen of my issue. Plz provide the solution.

    Thanks in advance
  2. Dobromir
    Dobromir avatar
    1633 posts

    Posted 22 Oct 2010 Link to this post

    Hi Robert,

    RadSplitter does not offer the required functionality out of the box. However, you can achieve the required result by manually resizing the tab container and the sliding zone during the OnBeforeDock / OnBeforeUndock RadSlidingPane's client-side events, e.g.:
    <telerik:RadSplitter ID="RadSplitter1" runat="server">
        <telerik:RadPane ID="RadPane1" runat="server" Width="22px">
            <telerik:RadSlidingZone ID="RadSlidingZone1" runat="server">
                <telerik:RadSlidingPane ID="RadSlidingPane1" runat="server" OnClientBeforeDock="OnClientBeforeDock"
        <telerik:RadSplitBar ID="RadSplitBar1" runat="server">
        <telerik:RadPane ID="RadPane2" runat="server">
    <script type="text/javascript">
        function OnClientBeforeDock(sender, eventArgs)
            var slidingZone = $find('<%=RadSlidingZone1.ClientID %>'); //get reference to the sliding zone
            sender.getTabContainer().style.width = "0px";
            slidingZone.get_element().style.width = "0px";
        function OnClientBeforeUndock(sender, eventArgs)
            var slidingZone = $find('<%=RadSlidingZone1.ClientID %>'); //get reference to the sliding zone
            sender.getTabContainer().style.width = "22px";
            slidingZone.get_element().style.width = "22px";
            var parentPane = $find('<%=RadPane1.ClientID %>');

    All the best,
    the Telerik team
