RadSplitter Height 100% is not working as expected

2 posts, 0 answers
  1. Itl
    Itl avatar
    6 posts
    Member since:
    Oct 2010

    Posted 26 Apr 2011 Link to this post

    I am experiencing problem with RadSplitter by setting height to 100%
    To demonstrate the issue, I created  a simple project - but I can not include a zip file here!

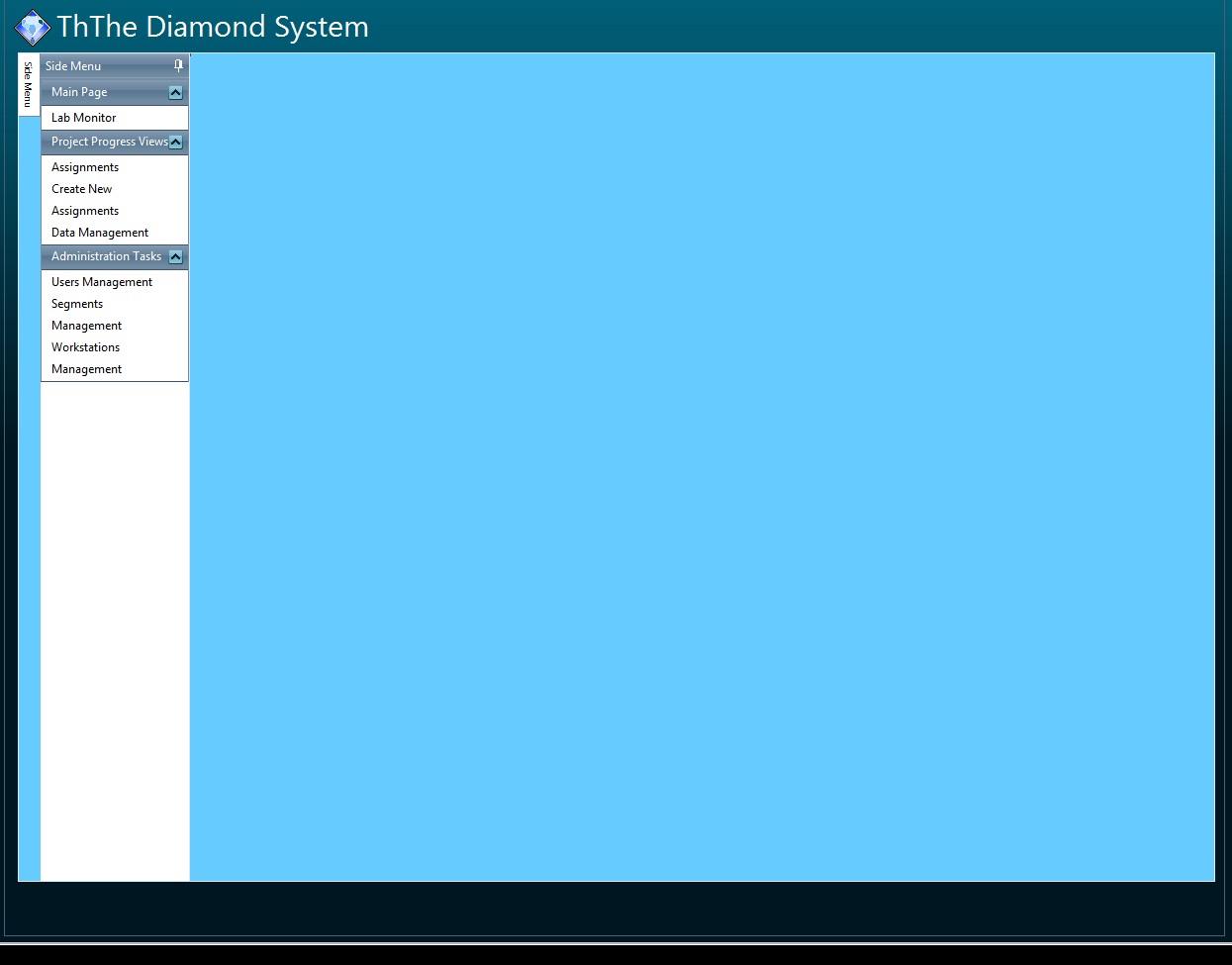

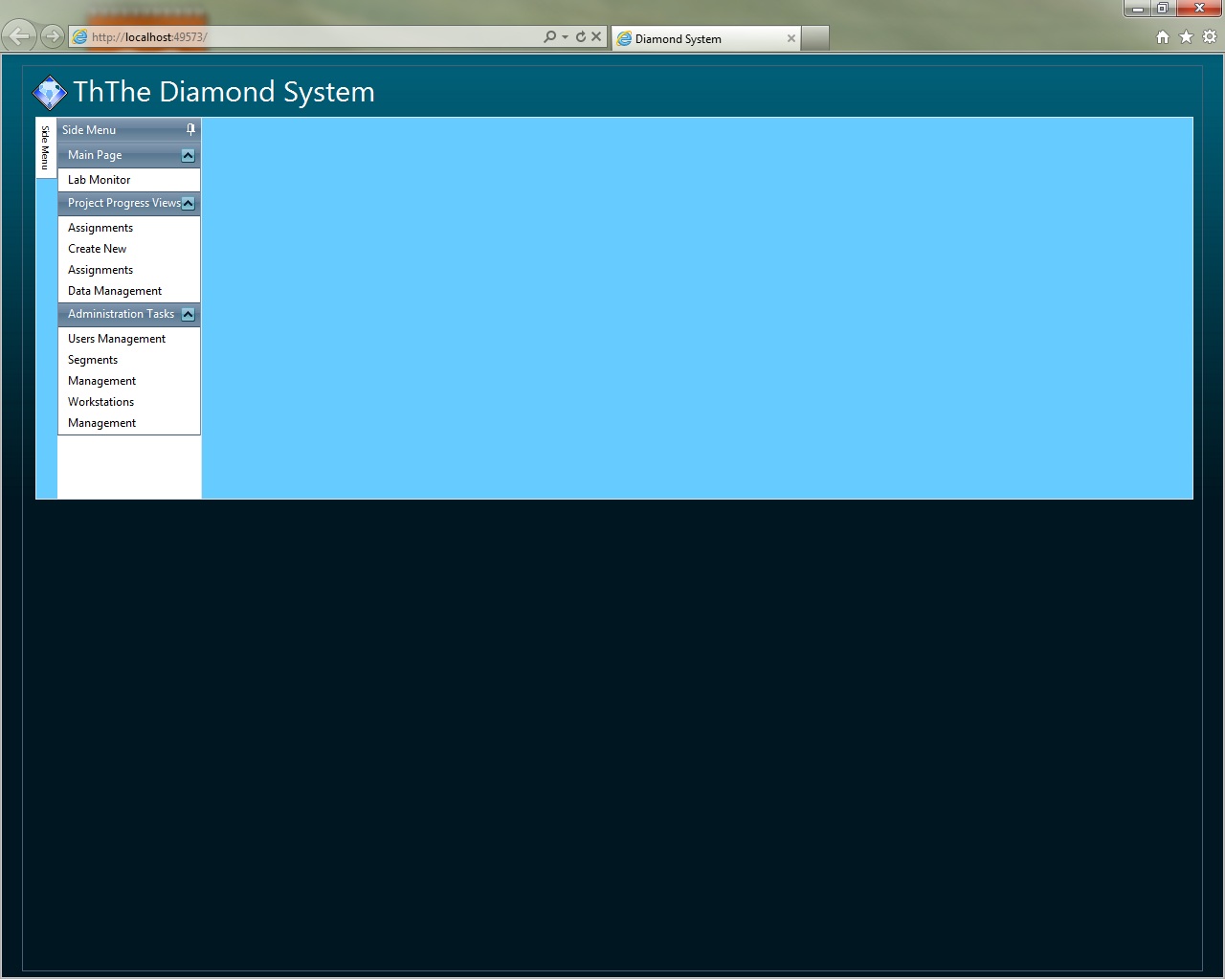

    Some times the height is ok, but generally after pressing F5 (refresh), it takes a wrong size. In my production project i getting wrong size always.
    I analyzed html and find that when splitter have a wrong size, it has the following inlize css style:
    <div id="ctl00_MainSplitter" style="width: 1210px; height: 400px;" control="[object Object]">

    I tried to use all kinds of tricks, but it not working for me, can somebody help me with this issue?

    Here Master Page Code:
    <%@ Master Language="C#" AutoEventWireup="true" CodeBehind="TreePartMaster.Master.cs" Inherits="Intel.Diamond.Web.TreePartMaster" %>
    <%@ Register Assembly="Telerik.Web.UI" Namespace="Telerik.Web.UI" TagPrefix="telerik" %>
    <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd">
    <html xmlns="http://www.w3.org/1999/xhtml" xml:lang="en">
    <head id="masterHead" runat="server">
        <meta http-equiv="X-UA-Compatible" content="IE=8" />
        <title>Diamond System</title>
        <link href="~/Styles/Site.css" rel="stylesheet" type="text/css" />
        <telerik:RadStyleSheetManager ID="masterRadStyleSheetManager" runat="server" CdnSettings-TelerikCdn="Auto" ClientIDMode="Inherit" />
        <script type="text/javascript">
            function OnBodyStart() {
                //Calculate Width and Height
                var myWidth = 0, myHeight = 0;
                if (typeof (window.innerWidth) == 'number') {
                    myWidth = window.innerWidth;
                    myHeight = window.innerHeight;
                } else if (document.documentElement && (document.documentElement.clientWidth || document.documentElement.clientHeight)) {
                    //IE 6+ in 'standards compliant mode'
                    myWidth = document.documentElement.clientWidth;
                    myHeight = document.documentElement.clientHeight;
                } else if (document.body && (document.body.clientWidth || document.body.clientHeight)) {
                    //IE 4 compatible
                    myWidth = document.body.clientWidth;
                    myHeight = document.body.clientHeight;
                //Update style vars with new width and height
                var b, p, m;
                b = parseInt(myHeight * 0.95) + "px";
                p = parseInt(myHeight * 0.97) + "px";
                m = parseInt(myHeight * 0.87) + "px";
                changecss(".body", "height", b);
                changecss(".page", "height", p);
                changecss(".main", "height", m);
                //            var ScreenWidth = document.forms[0].item("_ScreenWidth");
                //            var ScreenHeight = document.forms[0].item("_ScreenHeight");
                //            ScreenWidth.value = document.documentElement.clientWidth
                //            ScreenHeight.value = document.documentElement.clientHeight;
            function changecss(theClass, element, value) {
                var cssRules;
                var added = false;
                for (var S = 0; S < document.styleSheets.length; S++) {
                    if (document.styleSheets[S]['rules']) {
                        cssRules = 'rules';
                    } else if (document.styleSheets[S]['cssRules']) {
                        cssRules = 'cssRules';
                    } else {
                        //no rules found... browser unknown
                    for (var R = 0; R < document.styleSheets[S][cssRules].length; R++) {
                        if (document.styleSheets[S][cssRules][R].selectorText == theClass) {
                            if (document.styleSheets[S][cssRules][R].style[element]) {
                                document.styleSheets[S][cssRules][R].style[element] = value;
                                added = true;
                    if (!added) {
                        try {
                            document.styleSheets[S].insertRule(theClass + ' { ' + element + ': ' + value + '; }', document.styleSheets[S][cssRules].length);
                        } catch (err) {
                            try { document.styleSheets[S].addRule(theClass, element + ': ' + value + ';'); } catch (err) {
        <asp:ContentPlaceHolder ID="HeadContent" runat="server">
            <telerik:RadCodeBlock ID="RadCodeBlock1" runat="server">
                <style type="text/css">
                        position: relative;
                <style type="text/css">
                    html, body, form
                        height: 100%;
                        margin: 0px;
                        padding: 0px;
                        overflow: hidden;
                        height: 100% !important;
    <body class="body" onload="OnBodyStart();">
        <form id="masterForm" runat="server">
        <telerik:RadScriptManager ID="masterRadScriptManager" runat="server">
                <%--Needed for JavaScript IntelliSense in VS2010--%>
                <%--For VS2008 replace RadScriptManager with ScriptManager--%>
                <asp:ScriptReference Assembly="Telerik.Web.UI" Name="Telerik.Web.UI.Common.Core.js" />
                <asp:ScriptReference Assembly="Telerik.Web.UI" Name="Telerik.Web.UI.Common.jQuery.js" />
                <asp:ScriptReference Assembly="Telerik.Web.UI" Name="Telerik.Web.UI.Common.jQueryInclude.js" />
        <telerik:RadFormDecorator runat="server" ID="LabFormDecorator" DecoratedControls="All"
            Skin="WebBlue" />
        <telerik:RadAjaxManager ID="masterRadAjaxManager" runat="server" DefaultLoadingPanelID="AjaxDefaultLoadingPanel">
        <div class="page">
            <div class="header">
                <div class="title">
                    <table id="tbHeaderLayout">
                            <td style="vertical-align: top;">
                                <asp:Image ID="DiamondLogo" runat="server" ImageUrl="~/Images/DmSystemLogo.gif" Height="40px"
                                    BorderStyle="None" />
                            <td style="vertical-align: top;">
                                <label style="color: White; font-size: 30px">
                                    ThThe Diamond System
                <div class="loginDisplay">
            <div class="main">
            <asp:UpdatePanel runat="server" ID="updatePnl" style="height:100%;">
                <telerik:RadSplitter ID="MainSplitter" runat="server" Width="100%"
                    Height="100%" BackColor="#66CCFF">
                    <telerik:RadPane ID="SideSplitterPane" runat="server" Width="15%">
                        <telerik:RadSlidingZone ID="MainSlidingZone" runat="server" DockedPaneId="SideBarSlidingPane"
                            <telerik:RadSlidingPane ID="SideBarSlidingPane" runat="server" Title="Side Menu">
                                <telerik:RadPanelBar ID="SideBarMenu" runat="server" Width="100%" Height="100%">
                                        <telerik:RadPanelItem runat="server" NavigateUrl="~/Views/Segments.aspx" PreventCollapse="True"
                                            Text="Main Page">
                                                <telerik:RadPanelItem runat="server" NavigateUrl="~/Views/Monitor/LabInfo.aspx" Text="Lab Monitor">
                                        <telerik:RadPanelItem runat="server" PreventCollapse="True" Text="Project Progress Views">
                                                <telerik:RadPanelItem runat="server" NavigateUrl="~/Views/Tasks/TasksList.aspx" Text="Assignments">
                                                <telerik:RadPanelItem runat="server" NavigateUrl="~/Views/Tasks/CreateNewTask.aspx"
                                                    Text="Create New Assignments">
                                                <telerik:RadPanelItem runat="server" NavigateUrl="~/Views/Tasks/DataManagement.aspx"
                                                    Text="Data Management">
                                        <telerik:RadPanelItem runat="server" PreventCollapse="True" Text="Administration Tasks">
                                                <telerik:RadPanelItem runat="server" NavigateUrl="~/Views/Management/Users.aspx"
                                                    Text="Users Management">
                                                <telerik:RadPanelItem runat="server" NavigateUrl="~/Views/Management/Segments.aspx"
                                                    Text="Segments Management">
                                                <telerik:RadPanelItem runat="server" NavigateUrl="~/Views/Management/Workstations.aspx"
                                                    Text="Workstations Management">
                    <telerik:RadPane ID="BodySplitterPane" runat="server" Width="85%" CssClass="RadPaneLocationFix">
                        <asp:ContentPlaceHolder ID="MainContent" runat="server" />
        <div class="clear">
            <telerik:RadAjaxLoadingPanel ID="AjaxDefaultLoadingPanel" runat="server" Width="100%"
                Height="100%" HorizontalAlign="Center">
        <input type="hidden" name="_ScreenWidth" id="_ScreenWidth" runat="server" value="1024" />
        <input type="hidden" name="_ScreenHeight" id="_ScreenHeight" runat="server" value="640" />

    Master Page .cs

    using System;
    using System.Collections.Generic;
    using System.Linq;
    using System.Web.Security;
    using Telerik.Web.UI;
    namespace Intel.Diamond.Web
        public partial class TreePartMaster : System.Web.UI.MasterPage
            protected void Page_Load( object sender, EventArgs e )
                        if (!Page.IsPostBack)
                    } while (false);
                catch (Exception ex)
                    string msg = ex.Message;
            private void SetUpSideBarMenu()
                //MainSplitter.Width = new Unit( ScreenWidth * 0.95, UnitType.Pixel );
                //MainSplitter.Height = new Unit( ScreenHeight * 0.91, UnitType.Pixel );
                //SideBarSlidingPane.Width = new Unit( ScreenWidth * 0.15, UnitType.Pixel );
                //SideBarSlidingPane.Height = new Unit( ScreenHeight * 0.90, UnitType.Pixel );
                //SideBarMenu.Width = new Unit( ScreenWidth * 0.15, UnitType.Pixel );
                SideBarMenu.Items[0].Enabled = true;
                SideBarMenu.Items[1].Enabled = true;
                SideBarMenu.Items[2].Enabled = true;
                SideBarMenu.Items[0].Expanded = true;
                SideBarMenu.Items[1].Expanded = true;
                SideBarMenu.Items[2].Expanded = true;

    The Default Page is Empty

    <%@ Page Title="" Language="C#" MasterPageFile="~/TreePartMaster.Master" AutoEventWireup="true" CodeBehind="Default.aspx.cs" Inherits="TesterWebApp.Default" %>
    <asp:Content ID="Content1" ContentPlaceHolderID="HeadContent" runat="server">
    <asp:Content ID="Content2" ContentPlaceHolderID="MainContent" runat="server">


  2. Dobromir
    Dobromir avatar
    1633 posts

    Posted 27 Apr 2011 Link to this post

    Hi George,

    In the provided MasterPAge markup I noticed that you are setting the height of the RadSplitter's parent <div> (<div class="main">) during the <body>'s onload event. This event is fired when the page is fully loaded (including images, etc), while RadSplitter size is calculated before that.

    I would recommend you to use jQuery's $(document).ready() method to execute function setting size to the RadSplitter parent elements, e.g.:
    <script type="text/javascript">

    If this does not solve the issue, could you please open a formal support ticket and attach a sample project reproducing the problem so we can examine and debug it locally?

    the Telerik team
