RadSplitter did not work in DotNetNuke site

4 posts, 0 answers
  1. Hong
    Hong avatar
    15 posts
    Member since:
    Apr 2009

    Posted 04 May 2009 Link to this post

    I have a horizontal RadSplitter in a DotNetNuke site, it can not be expanded/collapsed correctly even after I set height to 100% for all parent items. I appreciate if you could have a look at my DNN module at the following site:
    http://dev.barbourconsulting.com/dnn/Default.aspx
    username: userHR
    password: userHR123
    After login, click Human Resources tab, then select any employee by clicking "Edit" link button, you will see how my RadSplitter works. Any suggestion is greatly appreciated.

  2. Svetlina Anati
    Admin
    Svetlina Anati avatar
    2795 posts

    Posted 06 May 2009 Link to this post

    Hello Hong,

    Basically, this problem can occur in case you have incorrectly configured the splitter and its sizes, e.g the sum of the heights of all the RadPanes is bigger than the height of the splitter itself. In case you have set size equal to 100% for the panes, please remove it because in this case if the first pane should be 100%, there is no space left for the others.

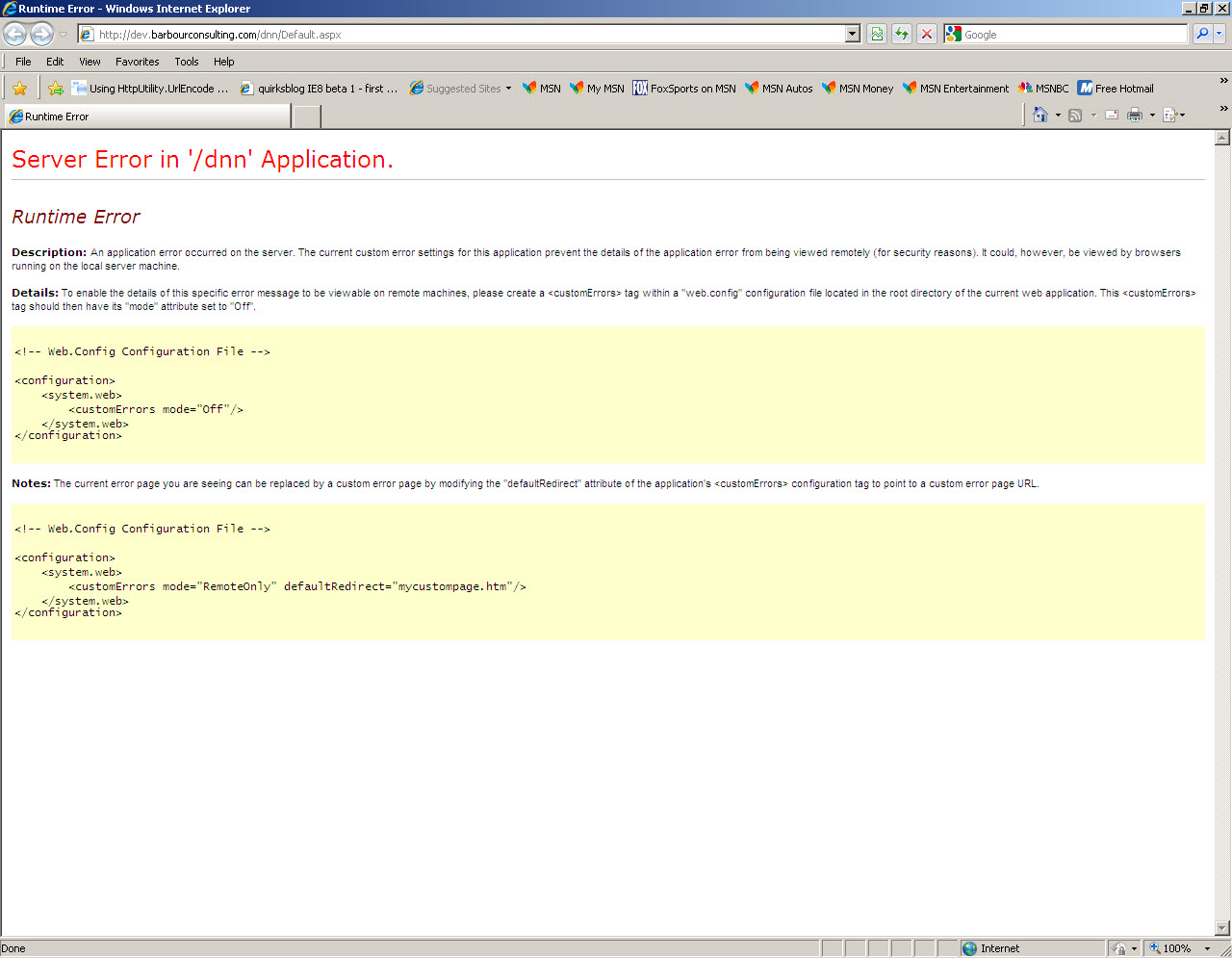

    In case you cannot find the incorrect size and you need further assistance, please either fix the provided live  url (I am getting an error when loading the page - see the attached screenshot for your reference) or best - prepare a sample, fully runnable reproduction demo, open a new support ticket and send it to me along with detailed reproduction steps and explanations. Once I am able to examine the setup, I will help you fix the problem.

    Greetings,
    Svetlina
    the Telerik team

    Instantly find answers to your questions on the new Telerik Support Portal.
    Check out the tips for optimizing your support resource searches.
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Hong
    Hong avatar
    15 posts
    Member since:
    Apr 2009

    Posted 07 May 2009 Link to this post

    Yes, my DNN site does not work now because of the low disk space. Anyway, I created a simple DNN Module with a RadSplitter for your review. When the Height of splitter is set to a value of "px", it worked fine, however, it does not work for the "100%" height. How do I set height of the splitter's parent?

    <%@ Control language="vb" Inherits="YourCompany.Modules.ModuleName1.ViewModuleName1" AutoEventWireup="false" Explicit="True" Codebehind="ViewModuleName1.ascx.vb" %>
    <%@ Register TagPrefix="dnn" TagName="Audit" Src="~/controls/ModuleAuditControl.ascx" %>
    <%@ Register Assembly="Telerik.Web.UI" Namespace="Telerik.Web.UI" TagPrefix="telerik" %>

    <telerik:RadSplitter ID="RadSplitter1" runat="server" Orientation = "Horizontal" Height = "100%" Width = "100%">
    <telerik:RadPane ID = "topPane" runat = "server" Scrolling = "None">
    Top Pane<br /><br /><br /><br /><br />
    </telerik:RadPane>
    <telerik:RadSplitBar ID = "bar" runat = "server" CollapseMode = "Both" />
    <telerik:RadPane ID = "bottomPane" runat = "server" Scrolling = "None">
    Bottom Pane<br /><br /><br /><br /><br />
    </telerik:RadPane>
    </telerik:RadSplitter>





  5. Svetlina Anati
    Admin
    Svetlina Anati avatar
    2795 posts

    Posted 11 May 2009 Link to this post

    Hello Hong,

    The provided code works fine when placed in a standard page. However, when having a DNN module and also custom CSS, wrappers are added and that is why I need a live url to examine what is actually rendered on the page.

    This being said, I would like to either send me a live url where I can examine the issue or save the page source (right-click->View Source), open a new support ticket and send it to me. Another option is to examine yourself all the parent elements of the splitter by using the IEDevToolBar or FireBug tools and find the elements which does not have explicit size set.

    Sincerely yours,
    Svetlina
    the Telerik team
