RadSplitButtonElement brighter than other button elements using Telerik's themes

2 posts, 1 answers
  1. Antoine
    Antoine avatar
    5 posts
    Member since:
    Nov 2012

    Posted 12 Feb 2013 Link to this post

    I've having some trouble trying to display a RadSplitButtonElement as item of a RibbonBarGroup.
    I'm expecting the RadSplitButtonElement to use the same backgound/foreground color as the
    other types of buttons once I've applied any of the following themes:
    . office2010black
    . office2007blue...

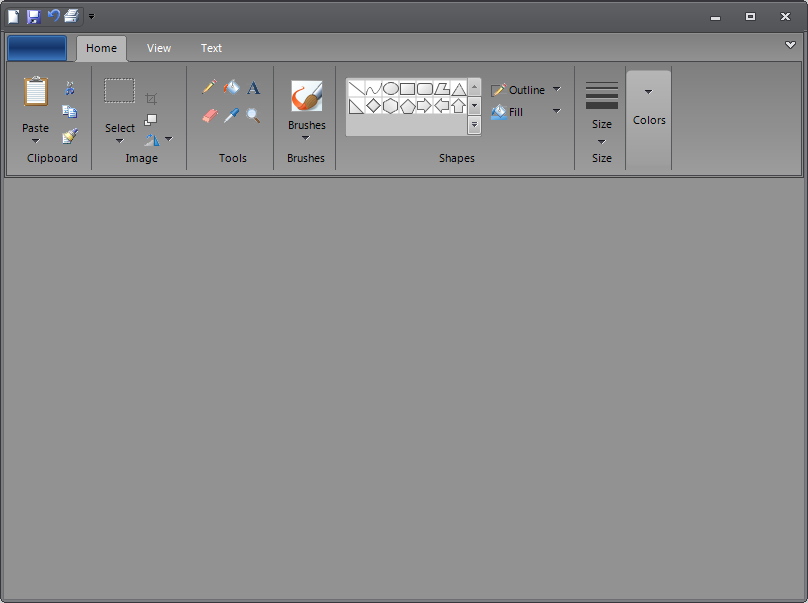

    As shown in the attached pictures, the element is painted using a brighter color than the other
    elements, even when being inactive (which makes it really really visible in my GUI)

    I cannot figure out if this may be considered as a bug or was really designed to be displayed like this.
    What would you recommend to get the RadSplitButtonElement being displayed with the same default
    settings than the other button elements ? Should I build a custom version of the office theme ?
    Override a custom RadSplitButton ?

    Moreover, as pictured in file inactivesplitofficeblack2010_after, the font color of the split button
    remains dark blue once i've applied the office2007blue theme and came back to the office2010black theme.
    This issue can also be reproduced with the telerik theme viewer which came with the Q3 2012 release.

    Is that already a known issue ?

    Thanks a lot,
    Antoine.
  2. Answer
    Peter
    Admin
    Peter avatar
    1148 posts

    Posted 15 Feb 2013 Link to this post

    Hello Antoine,

    Thank you for writing.

    I can confirm that the RadSplitButtonElements are rendered with the default color from the theme not with the ribbon color -  I have logged this in our Public Issue Tracking System - PITS. You can track its progress on the following link - Pits Issue.

    I would like to recommend to use a RadDropDownButtonElement instead of RadSplitButtonElements.
    The RadSplitButtonElements renders correctly with Ribbon Color - please, refer to the attached screenshot.

    I have also updated your Telerik points for bringing this to our attention.

    I hope this helps.

    All the best,
    Peter
    the Telerik team
    Q3'12 SP1 of RadControls for WinForms is out now. See what's new.
