radscheduler Q2sp1 labels not appearing on appointments in month and timeline view

3 posts, 0 answers
  1. Kyri
    Kyri avatar
    10 posts
    Member since:
    Sep 2008

    Posted 11 Aug 2010 Link to this post

    I am curently working on a winforms promotions module and i am using the scheduler control to display all the promotions that are occuring on certain dates for all our locations. The appointments are added to the control when the form that the control belongs to loads.

    my code for creating the appointments is as follows

    private void getAppointments()
                   DataTable getPromoDates = getPromoTab.Tables["PROMOTION_ADVICE_HEADERS"].Copy();
                   DataTable getPromoColours = getPromoTab.Tables["PROMOTION_TYPES"].Copy();
                   for (int i = 0; i < getPromoDates.Rows.Count; i++)
                       Appointment myAppoint = new Appointment((DateTime)getPromoDates.Rows[i]["START_DATE"], (DateTime)getPromoDates.Rows[i]["END_DATE"]);
    //the summary of the appointment is the promo tables primary key
                       myAppoint.Summary = getPromoDates.Rows[i]["PA_ID"].ToString();
                           //lookup the promo type and set the background of the appointment (custom backgrounds are defined elsewhere)
                           int getColour = int.Parse(getPromoDates.Rows[i]["PROMO_TYPE"].ToString());
                           var getBackCol = from o in getPromoColours.AsEnumerable() where int.Parse(o.Field<decimal>("PT_ID").ToString()) == getColour select new { colourNum = o.Field<decimal>("COLOR_ID") };
                           myAppoint.BackgroundId = int.Parse(getBackCol.ElementAt(0).colourNum.ToString());
                       catch (FormatException ex)
                           myAppoint.BackgroundId = 99;
                       string isprocessed = "Finalised";
                       if (getPromoDates.Rows[i]["Processed"].ToString() == "N")
                           isprocessed = "Open";
                       myAppoint.Visible = true;
                         //set the location attribute of the appointment to some meaningful string describing aspects of the promotion
                        myAppoint.Location = getPromoDates.Rows[i]["DESCRIPTION"].ToString() + " - " + ((DateTime)getPromoDates.Rows[i]["START_DATE"]).ToShortDateString() + " - " + ((DateTime)getPromoDates.Rows[i]["END_DATE"]).ToShortDateString();
                       myAppoint.Location = myAppoint.Location + " " + isprocessed;
                       myAppoint.Description = myAppoint.Location;
                   radScheduler1.AutoSize = true;
                   radScheduler1.BackColor = Color.LemonChiffon;
                   radToolStripLabelElement2.Text = radScheduler1.ActiveView.StartDate.ToLongDateString() + " - " + radScheduler1.ActiveView.EndDate.ToLongDateString();
               catch (Exception ex)

    radScheduler1.ActiveViewType = SchedulerViewType.Month;




    // radScheduler1.ActiveViewType = SchedulerViewType.Week;




    SchedulerMonthView myMonthView = new SchedulerMonthView(DateTime.Now, true);


    myMonthView.EnableWeeksHeader =




    myMonthView.WeekCount = 1;

    myMonthView.HeaderFormat =




    myMonthView.ShowHeader =




    myMonthView.ShowWeeksHeader =




    radScheduler1.ShowAppointmentStatus =











    //SchedulerWeekView myMonthView = new SchedulerWeekView();



    radScheduler1.ActiveView = myMonthView;


    radToolStripLabelElement1.Text =


    " ".PadRight(400, ' ');


    radToolStripLabelElement2.Text = radScheduler1.ActiveView.StartDate.ToLongDateString() +


    " - " + radScheduler1.ActiveView.EndDate.ToLongDateString();


    radScheduler1.Width =


    this.Width - 10;


    radScheduler1.Height =


    this.Height - radToolStrip1.Height - 15 - radDateTimePicker1.Height;


    radSplitContainer1.Width =


    this.Width - 10;


    radSplitContainer1.Height =


    this.Height - radToolStrip1.Height - 15 - radDateTimePicker1.Height;


    radGridView1.Width =


    this.Width - 20;

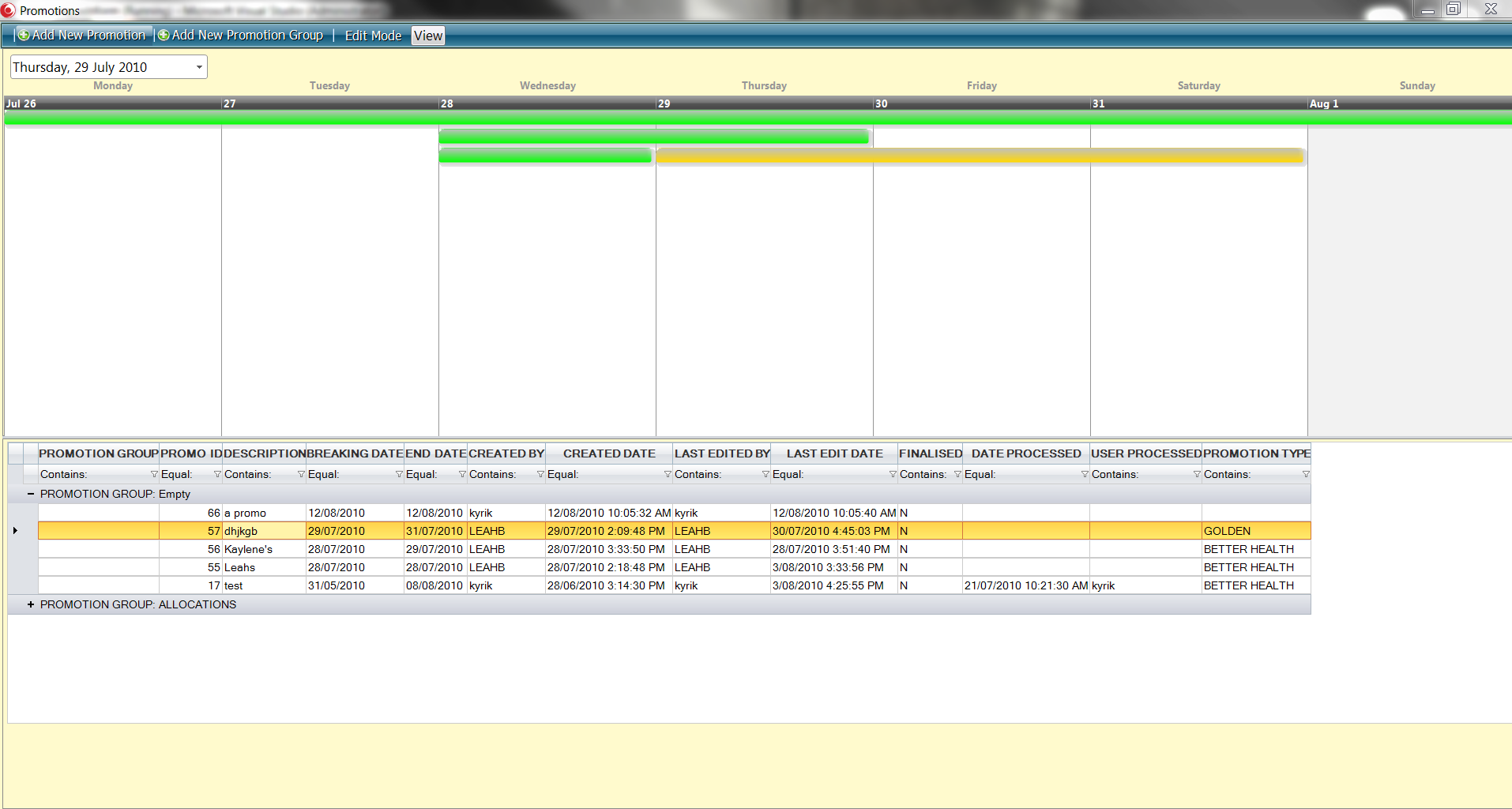

    So when i run this program, the appointents are created correctly with the right background colours but the appointments have no labels. See attached screenshot. capture.png. The exact same code on 2010Q2 produced screenshot capture2.png.
    Any ideas on how i can fix this? Also i could prefer to use the timeline view, the reason i used the month view was because in the Q1 release, i had the same issue as described above, but the monthview labeling worked but the timeline view didnt.
  2. Kyri
    Kyri avatar
    10 posts
    Member since:
    Sep 2008

    Posted 13 Aug 2010 Link to this post

    found the solution, you must explicetely set the fonts and colors for each custom appointmentbackgroundInfo
    AppointmentBackgroundInfo myABGI =  new AppointmentBackgroundInfo();
     myABGI.Id = k;
     myABGI.DisplayName =  s;
     myABGI.GradientStyle = Telerik.WinControls.GradientStyles.Glass;
     myABGI.BackColor = getCol;
     myABGI.Font = new System.Drawing.Font("SEGOE UI", 8.0f, FontStyle.Bold);
     myABGI.ForeColor = Color.Black;
     myABGI.BorderColor = Color.Black;
     myABGI.BorderBoxStyle = Telerik.WinControls.BorderBoxStyle.OuterInnerBorders;
     myABGI.BorderGradientStyle = Telerik.WinControls.GradientStyles.Solid;
     myABGI.GradientAngle = 270f;
     myABGI.ShadowStyle = ShadowStyles.None;
     //myABGI.ShadowWidth = 1;
  3. DevCraft R3 2016 release webinar banner
  4. Peter
    Peter avatar
    1148 posts

    Posted 17 Aug 2010 Link to this post

    Hi Kyri,

    Thank you for writing.

    The issue is caused by the Windows Regional Settings->Culture Decimal separator. In case the separator is a dot the problem does not occur. However, setting a symbol different than a dot will trigger the wrong behavior.

    This is a known issue and we will address it in our next internal build scheduled for this Friday. Please accept our apologies for the caused inconvenience.

    Do not hesitate to contact us if you have further questions.

    the Telerik team
