Radscheduler along with Radcalender

4 posts, 1 answers
  1. Divya
    Divya avatar
    47 posts
    Member since:
    Mar 2011

    Posted 24 May 2011 Link to this post

    Hi,

                I am using Radcalender and a radschedular i have 3 issues regarding these

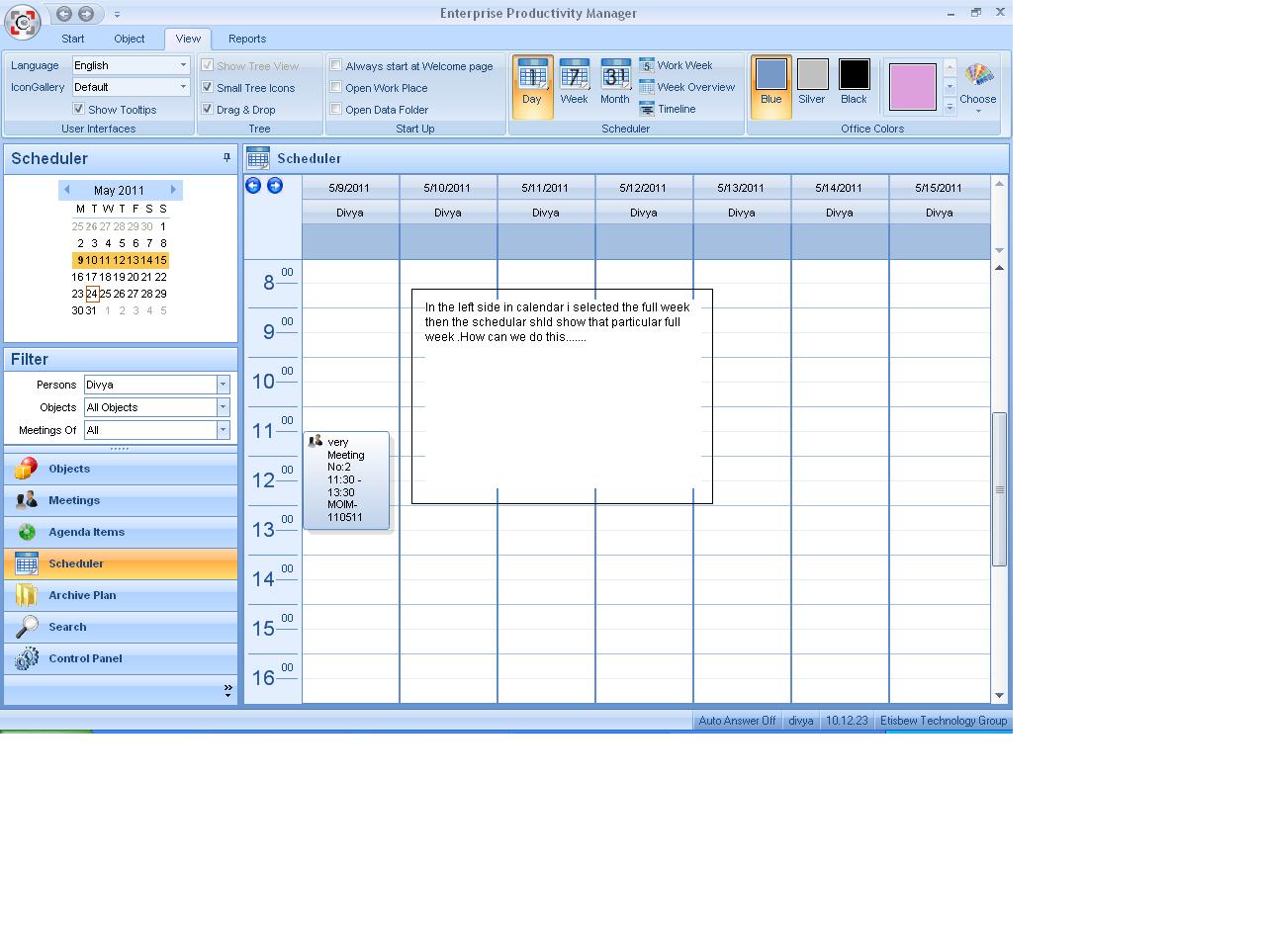

    1)In the radcalender if i select the full week then the radscheduler shld show the full week details as in screenshot.Please refer screenshot(schedular.jpg) .How can i do like this

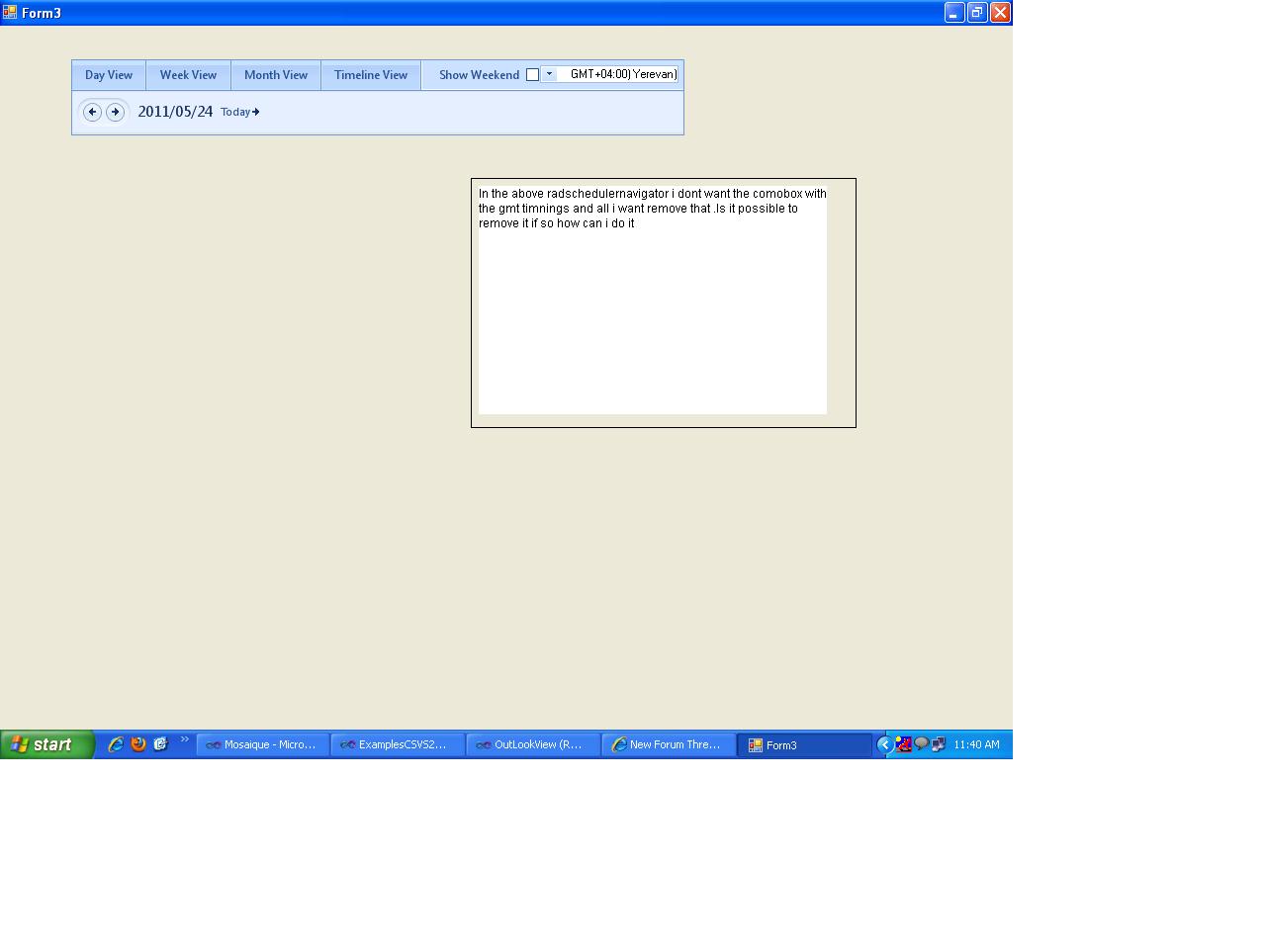

    2)Along with radscheduler i am using radschedulernavigator in that i want to remove a comobox showing the details og GMT timings of different countries  please refer screenshot(navigator.jpg)

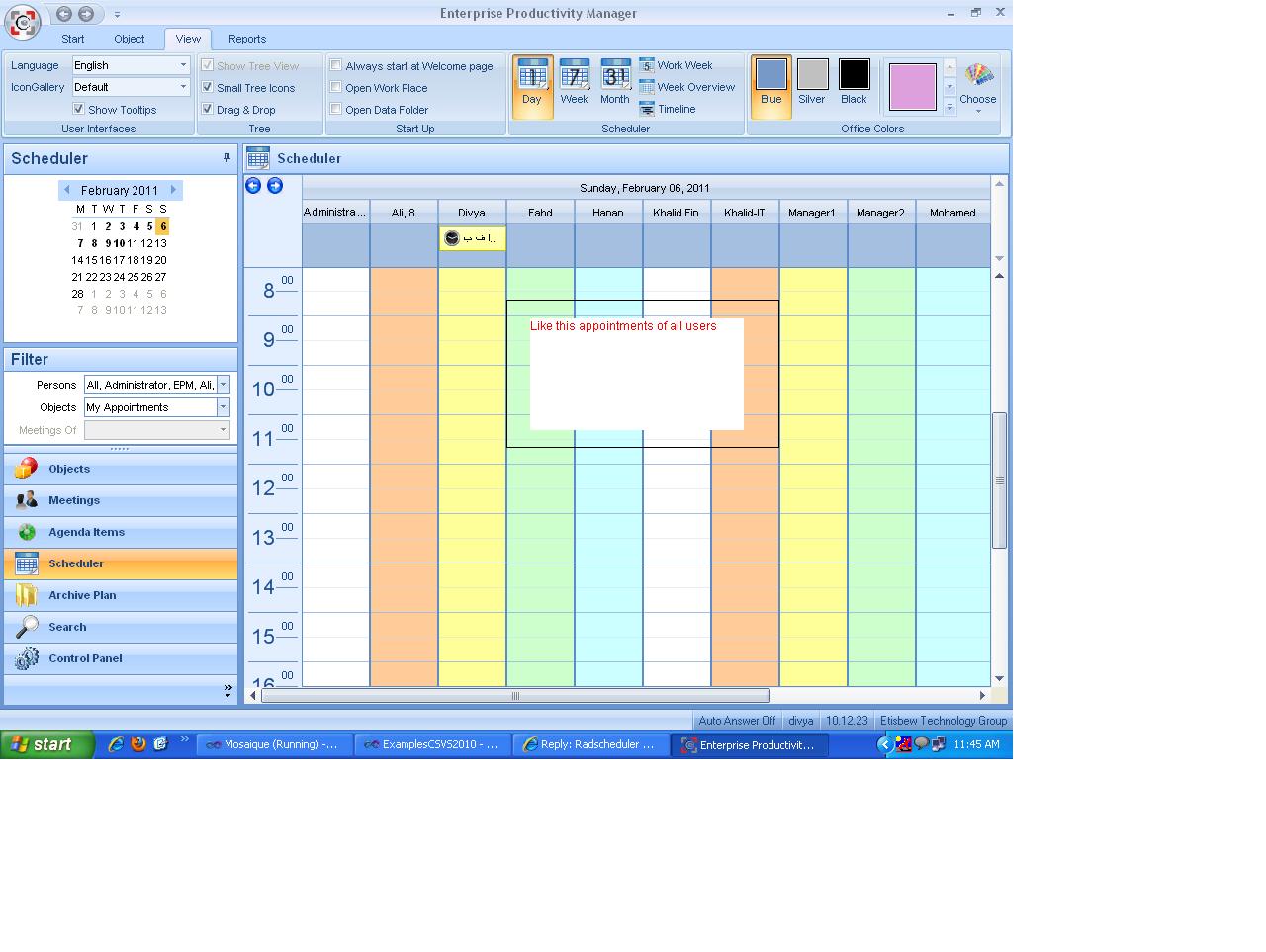

    3)How can i show the multiple users appointments in the schdular for example refer screenshot(multiple users)

    Thanks
    Divya
  2. Answer
    Ivan Todorov
    Admin
    Ivan Todorov avatar
    688 posts

    Posted 25 May 2011 Link to this post

    Hello Divya,

    Thank you for your questions.

    To achieve the first of your requirements, you should use RadCalendar with AllowMultipleSelect, AllowRowHeaderSelectors, ShowRowHeaders properties set to true. You should also subscribe to RadCalendar's SelectionChanged event and handle it the following way:
    private void radCalendar1_SelectionChanged(object sender, EventArgs e)
    {
        if(this.radCalendar1.SelectedDates.Count == 0)
            return;

        DateTime[] selectedDates = this.radCalendar1.SelectedDates.ToArray();
        Array.Sort(selectedDates);

        this.radScheduler1.ActiveView.StartDate = selectedDates[0];
    }

    In regards to your second requirement: in order to hide the timezone combo, you should set the following property:
    this.radSchedulerNavigator1.SchedulerNavigatorElement.TimeZonesDropDown.Visibility = ElementVisibility.Collapsed;

    I am not sure I understand your third requirement. From what I understand, you want to assign multiple resources to a single appointment. If this is correct, then you can check this knowledge base article. If this is not what you desire, please provide me with more details about this requirement, so I can provide you with adequate answer.

    I hope you find this useful. Feel free to contact me if you have any further questions.

    Regards,
    Ivan Todorov
    the Telerik team
    Q1’11 SP1 of RadControls for WinForms is available for download; also available is the Q2'11 Roadmap for Telerik Windows Forms controls.
  3. UI for WinForms is Visual Studio 2017 Ready
  4. Divya
    Divya avatar
    47 posts
    Member since:
    Mar 2011

    Posted 26 May 2011 Link to this post

    Hi

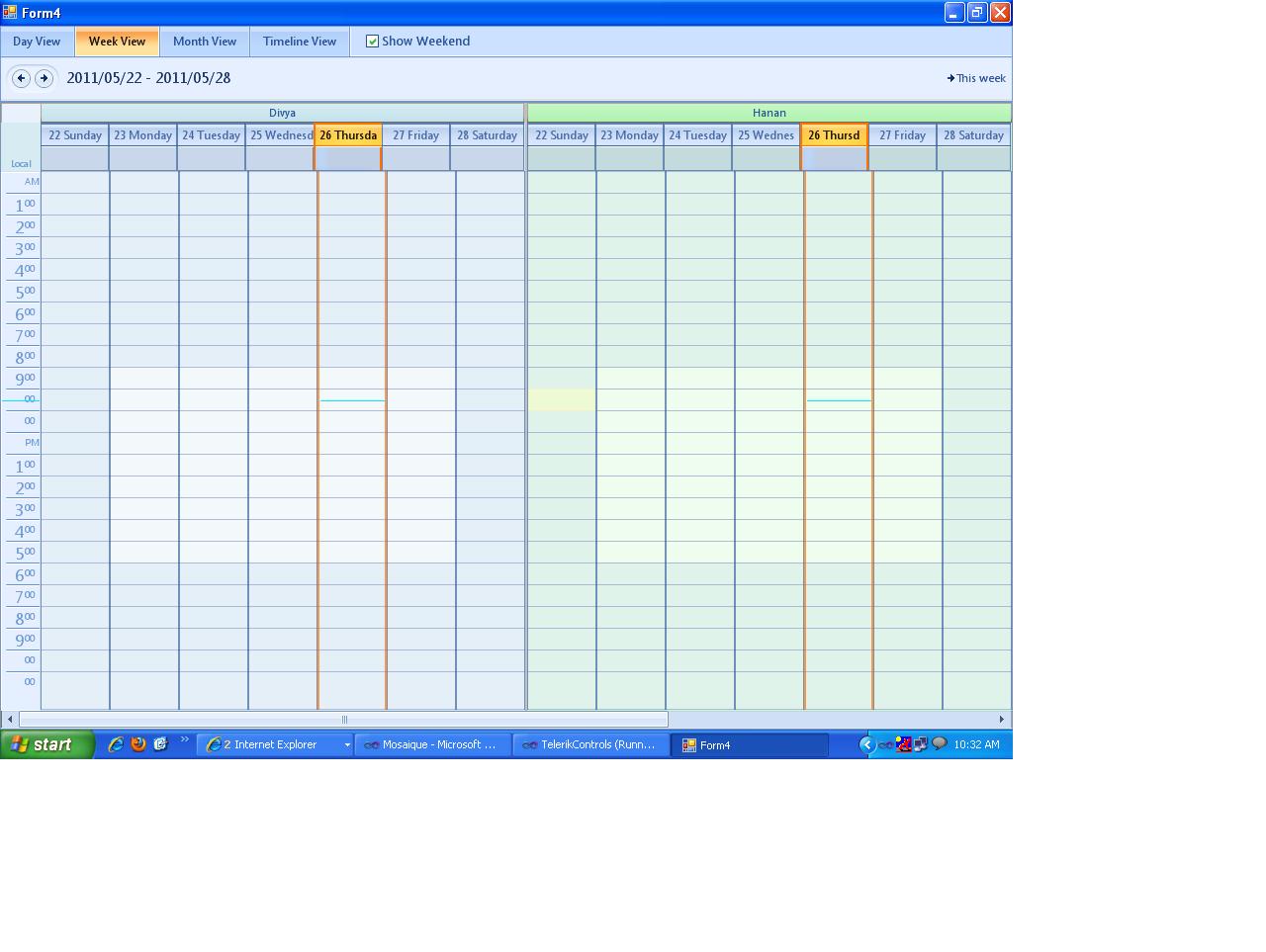

                 First and second requirements are fine working .But the third issue is not yet so i am explaining u some  details


    Instead of user coming up and days down i want like days up and the users down divided
    like
     22        23       24       25        26      27        28
    A B C   A B C   A B C   A B C   A B C   A B C  ABC

    this wany i want instead of
                     A                                     B                                             C
    22 23 24 25 26 27 28       22 23 24 25 26 27 28          22 23 24 25 26 27 28



    ABC  are users

  5. Ivan Todorov
    Admin
    Ivan Todorov avatar
    688 posts

    Posted 27 May 2011 Link to this post

    Hello Divya,

    Currently, RadScheduler does not have the option of showing resources for each date, hence resources can only be shown as they are on your screen shot. If more people ask for such functionality, we may consider implementing it in one of our next releases.

    Feel free to contact me if you have any further questions.

    Regards,
    Ivan Todorov
    the Telerik team
