RADRadialGauge on I.E. 7

4 posts, 0 answers
  1. Ambreen
    Ambreen avatar
    3 posts
    Member since:
    Jul 2010

    Posted 25 Jan 2013 Link to this post

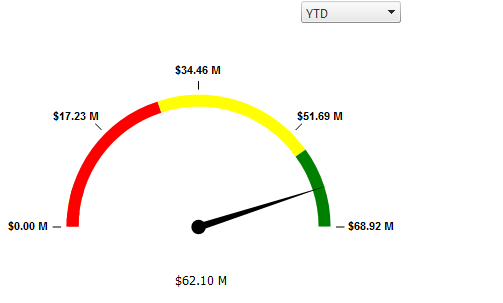

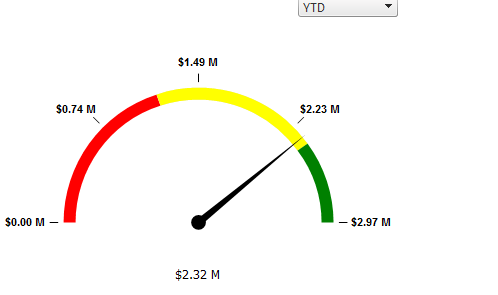

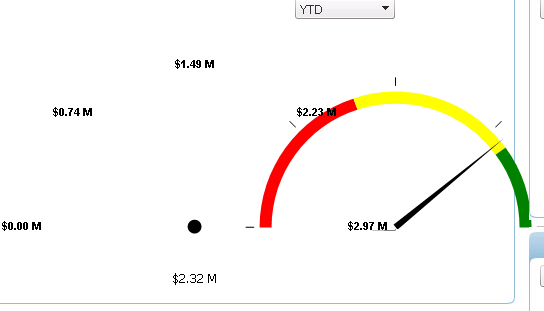

    I'm testing RADRadialGauge for ASP NET AJAX. It shows up corrcetly on I.E 8 and I.E. 9 but not on I.E. 7. Please check the attached files.
    Any sugesstions on how to get it fixed on I.E 7.

    Thanks,
    Ambreen
  2. Danail Vasilev
    Admin
    Danail Vasilev avatar
    1490 posts

    Posted 28 Jan 2013 Link to this post

    Hi Ambreen,

    RadHtmlChart and RadGauge share a common rendering mechanism - it uses JavaScript to render the image through vector graphics formats - SVG for modern browsers and VML for older ones. The behavior you describe has been observed under IE7 because the VML elements there inherit some CSS properties (e.g. text-align: center). You can adding a text-align: left to the gauge  to handle the CSS from your page:

    <telerik:RadRadialGauge ID="gActionReq" Skin="Telerik" runat="server" BackColor="White"
        Width="150px" Height="100px" Style="text-align: left;">
        <Scale MinorUnit="5" Max="60">
            <Ranges>
                <telerik:GaugeRange Color="LightGreen" To="20" />
                <telerik:GaugeRange Color="Yellow" From="20" To="40" />
                <telerik:GaugeRange Color="Red" From="40" To="60" />
            </Ranges>
        </Scale>
    </telerik:RadRadialGauge>



    Greetings,
    Danail Vasilev
    the Telerik team
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now.
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Ambreen
    Ambreen avatar
    3 posts
    Member since:
    Jul 2010

    Posted 28 Jan 2013 Link to this post

    Thank you so much, It worked.
    I have another question. Is there any way to label the pointer value and increase the thickness of the scale?

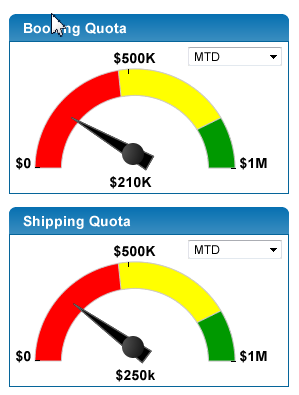

    Attached is desirable output.


    Regrads,
    Ambreen
  5. Danail Vasilev
    Admin
    Danail Vasilev avatar
    1490 posts

    Posted 30 Jan 2013 Link to this post

    Hi Ambreen,

    Both functionalities are not supported by the RadGauge, but they have already been logged as PITS items here and here. However, I cannot guarantee with any time bounds for their implementation as they should initially gain enough votes and then approval from our management. For the time being you can comment, monitor or raise their priority by voting on them.

    Regards,
    Danail Vasilev
    the Telerik team
