RadMenu Items are not displayed properly in RADGRID

3 posts, 0 answers
  1. Ajit
    Ajit avatar
    1 posts
    Member since:
    Nov 2013

    Posted 16 Nov 2013 Link to this post

    Hello Telerik Support Team,

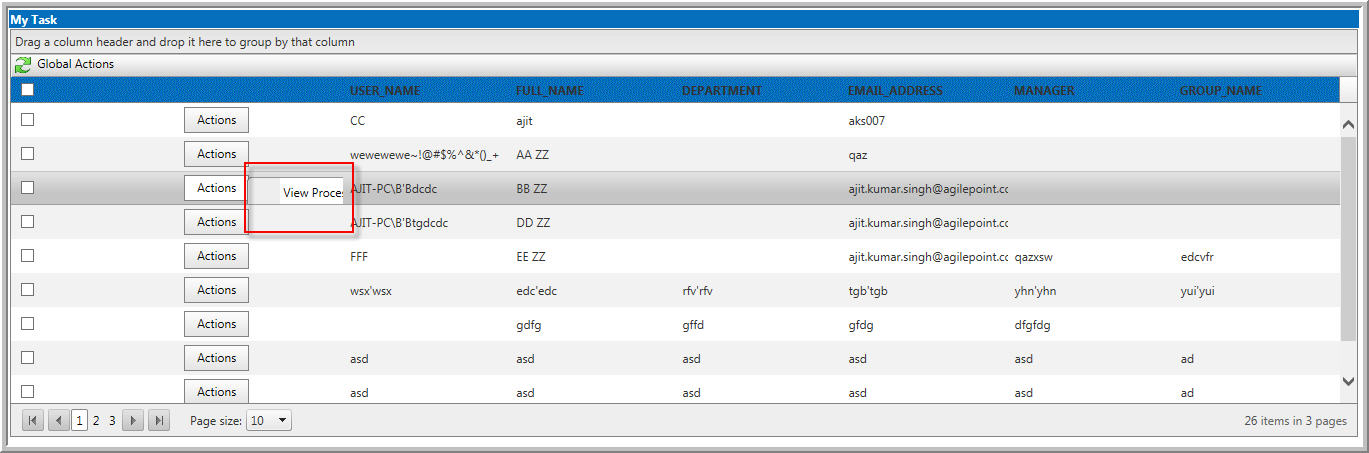

    Having some issues with RadMenu control. Please have a look on code block and attached screenshots.
    Issue – RadMenu items are not displayed properly in RadGrid. No idea how it’s taking grid row’s height and width. I have tried to override RadMenu css but still same issues.

    Regards,

    Ajit Singh

    ----------------  ASPX and CSS CODE-----------------------

    <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="WebApplication6.WebForm1" %>
    <%@ Register assembly="Telerik.Web.UI" namespace="Telerik.Web.UI" tagprefix="telerik" %>

    <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

    <html xmlns="http://www.w3.org/1999/xhtml">
    <head runat="server">
        <title></title>
        <style type="text/css">
            .MasterTable_Default caption {
                color: red;
                background-color:Black;
                text-align:left;
            }
            .leftNavigatorstlye-Link
            {
                background-color:#0071bc;
                font-size: 12px;
                text-decoration: none;
                font-family: Segoe UI, Helvetica, Garuda, Arial, sans-serif;
                font-weight: bold;
                color:White;
            }
            .RadGrid_Default .rgHeader,
            .RadGrid_Default th.rgResizeCol
            {
             background:url('Grid/headers.gif') repeat-x #434343 !important;
                font-size: 12px !important;
                text-decoration: none !important;
                font-family: Segoe UI, Helvetica, Garuda, Arial, sans-serif !important;
                font-weight: bold !important;
                color:White !important;
            }
    </style>
    </head>
    <body>

        <form id="form1" runat="server">
        <asp:ScriptManager ID="ScriptManager1" runat="server">
        </asp:ScriptManager>
        <div>
        <table id="maintable" runat="server" style="width:100%;border-spacing:0;border-collapse:separate;">
            <tr><td class="leftNavigatorstlye-Link">My Task</td></tr>
            <tr>
                <td>
                    <telerik:RadGrid ID="RadGrid1" DataSourceID="SqlDataSource1" AllowMultiRowSelection="True"
                        runat="server" AllowSorting="True" GridLines="None" AllowPaging="True" CellSpacing="0"
                            ShowGroupPanel="True" onitemcommand="RadGrid1_ItemCommand"  >
                        <MasterTableView CommandItemDisplay="Top"  CssClass="MasterTable_Default" HeaderStyle-CssClass="rgHeader" TableLayout="Fixed" >
                            <CommandItemTemplate>
                                <asp:LinkButton ID="LinkButton6" runat="server" CommandName="Rebind">
                                    <img style="border:0px; height:22px;width:22px;" alt="" src="RefreshList.gif" />
                                </asp:LinkButton>
                                <asp:LinkButton ID="LinkButton1" runat="server" CommandName="Rebind">
                                    Global Actions
                                </asp:LinkButton>
                                <br />
                            </CommandItemTemplate>
                            <Columns>
                                <telerik:GridClientSelectColumn UniqueName="ClientSelectColumn">
                                </telerik:GridClientSelectColumn>
                                <telerik:GridTemplateColumn>
                                    <ItemTemplate>
                                        <telerik:RadMenu ID="RadMenu1" runat="server" EnableRoundedCorners="true" EnableShadows="true"
                                            ExpandAnimation-Type="None" CollapseAnimation-Type="None" ExpandDelay="0" CollapseDelay="0"  >
                                            <Items>
                                                <telerik:RadMenuItem Text="Actions" Selected="false">
                                                    <GroupSettings ExpandDirection="Right"  />
                                                    <Items >
                                                        <telerik:RadMenuItem Text="View Process" />
                                                        <telerik:RadMenuItem Text="Cancel Task" />
                                                        <telerik:RadMenuItem Text="Reassign task" />
                                                        <telerik:RadMenuItem Text="Create Linked Work Item" />
                                                    </Items>
                                                </telerik:RadMenuItem>
                                            </Items>
                                        </telerik:RadMenu>
                                    </ItemTemplate>
                                </telerik:GridTemplateColumn>
                            </Columns>
                        </MasterTableView>
                        <ClientSettings EnableRowHoverStyle="true" AllowDragToGroup="True">
                            <Selecting AllowRowSelect="True"></Selecting>
                            <Scrolling AllowScroll="True" UseStaticHeaders="True" />
                        </ClientSettings>
                    </telerik:RadGrid>
                </td>
            </tr>
        </table>
    <asp:SqlDataSource ID="SqlDataSource1" runat="server"
            ConnectionString="<%$ ConnectionStrings:ConnectionString %>"
            SelectCommand="SELECT [USER_NAME],[FULL_NAME],[DEPARTMENT],[EMAIL_ADDRESS],[MANAGER],[GROUP_NAME] FROM [tUsers]"></asp:SqlDataSource>
    <br /><br />

    </div>
        </form>
    </body>
    </html>

    --------------------------------  CODE BEHIND------------------------
    using System;
    using System.Collections.Generic;
    using System.Linq;
    using System.Web;
    using System.Web.UI;
    using System.Web.UI.WebControls;
    using Telerik.Web.UI;

    namespace WebApplication6
    {
        public partial class WebForm1 : System.Web.UI.Page
        {
            protected void Page_Load(object sender, EventArgs e)
            {

            }

            protected void RadGrid1_ItemCommand(object sender, Telerik.Web.UI.GridCommandEventArgs e)
            {
                if (e.CommandName == "Rebind")
                {
                    RadGrid1.Rebind();
                }

            }
        }
    }





  2. Princy
    Princy avatar
    17421 posts
    Member since:
    Mar 2007

    Posted 18 Nov 2013 Link to this post

    Hi Ajit,

    I was able to reproduce the issue. Please try setting TableLayout as Auto and UseStaticHeaders as false. Setting these properties I was able to view the Menu Items.

    Thanks,
    Princy
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. SHUAN
    SHUAN avatar
    1 posts
    Member since:
    Nov 2011

    Posted 20 Nov 2013 Link to this post

    Thanks Princy... it's working as expected now...
