RadMaskedNumericInput: Position of caret on focus

2 posts, 1 answers
  1. Fabrice
    Fabrice avatar
    22 posts
    Member since:
    Jan 2015

    Posted 29 Feb Link to this post

    I have a question regarding a GridViewMaskedInputColumn with a MaskType = MaskType.Numeric with a short width, so I'll place this question under this forum.

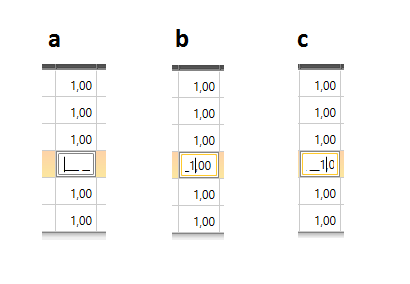

    When I focus on the cell the caret seems to be placed at the beginning of the content, and (a) happens (see attached file). I wanted to achieve something like (b).



    I inherited GridViewMaskedInputColumn and if I do:



    public class SomeGridViewMaskedInputColumn : GridViewMaskedInputColumn
        {
            public override FrameworkElement CreateCellEditElement(GridViewCell cell, object dataItem)
            {
                var elem = (RadMaskedNumericInput)base.CreateCellEditElement(cell, dataItem);
                elem.GotFocus += Elem_GotFocus;

                // I tried SetCaretToEndOfTextOnFocus(elem, true); but it doesnt work for some reason
                return elem;
            }

            private void Elem_GotFocus(object sender, RoutedEventArgs e)
            {
                var control = ((RadMaskedNumericInput)sender);
                control.SelectionStart = control.Text.IndexOf(",");
            }
        }



    (c) happens. In fact, (b) looks only achievable if i set SelectionStart to control.Text.Length and then press left 2 times (in this case, because i have 2 decimal places). Is there a better way of doing this?





  2. Answer
    Dinko
    Admin
    Dinko avatar
    206 posts

    Posted 03 Mar Link to this post

    Hi Fabrice,

    The approach that you have implemented in your application is suitable. Another one that you can try is to subscribe to the PreparedCellForEdit event of the RadGridView. Then you can set the start position of the caret when you focus the RadMaskedNumericInput control. You can check the code snippet below:
    <telerik:RadGridView PreparedCellForEdit="Grid_PreparedCellForEdit" />

    private void Grid_PreparedCellForEdit(object sender, GridViewPreparingCellForEditEventArgs e)
    {
        RadMaskedNumericInput input = e.EditingElement as RadMaskedNumericInput;
        input.SelectionStart = input.Text.IndexOf(".");
    }

    Hope this information is helpful.

    Regards,
    Dinko
    Telerik
