RadHtmlChart - Line chart graph not coming up

Thread is closed for posting
2 posts, 0 answers
  1. Neetha
    Neetha avatar
    36 posts
    Member since:
    Feb 2014

    Posted 14 Apr 2014 Link to this post

    I am having issue with  showing  line chart graph. Here is my code:

     <telerik:RadHtmlChart runat="server" ID="RadHtmlChart1"  >
                   <PlotArea>
                        <Series>
                             <telerik:ScatterLineSeries Name="Bookings" DataFieldX="MetricMonth"  DataFieldY="BookingsValue">
                                  <TooltipsAppearance DataFormatString="{0}" />
                                  <LabelsAppearance Visible="false">
                                  </LabelsAppearance>
                             </telerik:ScatterLineSeries>
                             <telerik:ScatterLineSeries Name="Shipments" DataFieldX="MetricMonth"  DataFieldY="ShipmentsValue">
                                  <TooltipsAppearance DataFormatString="{0}" />
                                  <LabelsAppearance Visible="false">
                                  </LabelsAppearance>
                             </telerik:ScatterLineSeries>
                        </Series>
                        <XAxis DataLabelsField="MetricMonth" />
                        <YAxis>
                         <LabelsAppearance  DataFormatString="{0}" />
                        </YAxis>
                   </PlotArea>
                   <ChartTitle Text="Monthly Performance">
                   </ChartTitle>
        </telerik:RadHtmlChart>

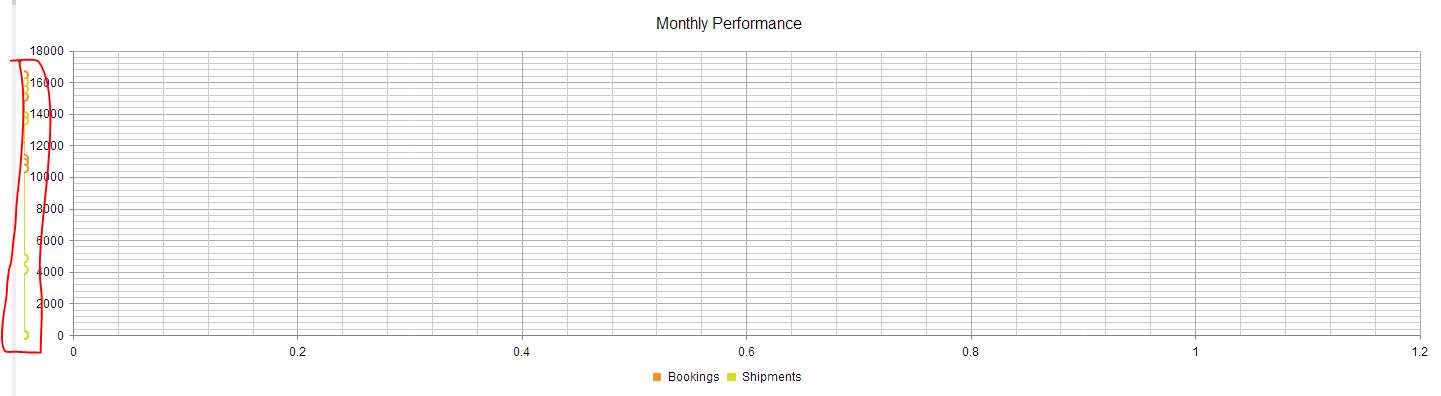

    Binding data in code behind. Attached data values and output. Xaxis should show metric month values and yaxis should show Bookings and Shipments value.
    Please let me know what i am missing. I have to show to two line graphs  for shipments and bookings with attached data.

  2. Neetha
    Neetha avatar
    36 posts
    Member since:
    Feb 2014

    Posted 14 Apr 2014 in reply to Neetha Link to this post

    Got it. Change Scatterlines series to Line series and it worked.
