RadGridView scrolling issue when using data bound and unbound column

2 posts, 0 answers
  1. Pradeep Chandraker
    Pradeep Chandraker avatar
    7 posts
    Member since:
    Mar 2010

    Posted 08 Apr 2010 Link to this post

    Hi,

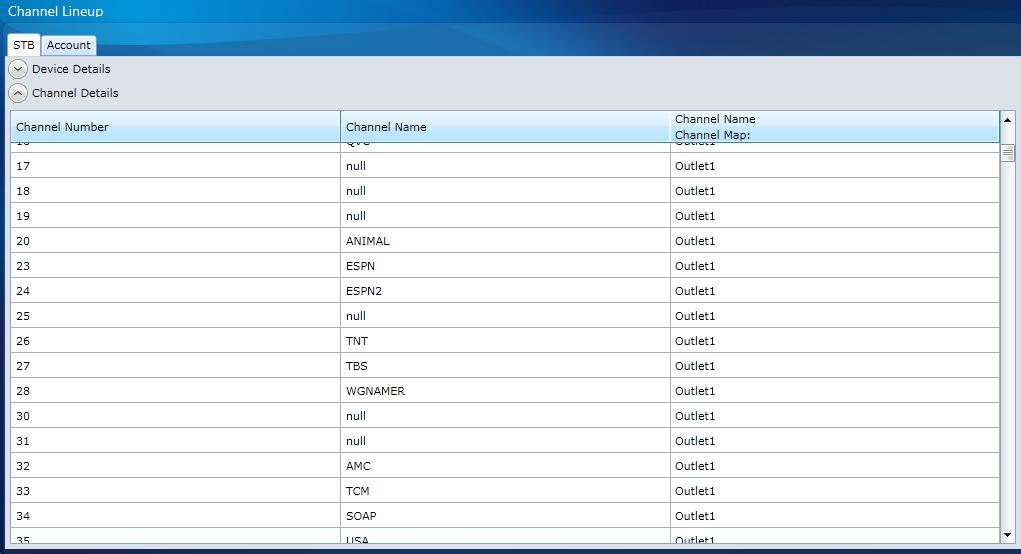

    I am getting issue with RadGridView when I am using data bound and unbound column both in the grid. As per the requirement first two columns "Channel Number" and "Channel Name" will be data bound (means I am assing the datasource for these columns), and the 3rd column is having the static value. When I am running the application the I records the showing correctly, but when I try to scroll down in the grid it hangs for 2-3 seconds (some time more) and then it actually scrolls down. Please  help me on this. I have attached the screen print of this grid.

    Here is the complete xaml code:
    Note: I have used 4 grid in below code the grid name I have issue is "ChannelDetail"



    <



    navigation:RadTabControl





    x:Name="RadTabChannelLineup" Margin="2,2,2,2"





    DisplayMemberPath="Content"





    ScrollMode="Viewport"













    Background="#dde1ea"













    BorderThickness="0 1 0 0"













    BorderBrush="#cfd4da"





    SelectionChanged="RadTabChannelLineup_SelectionChanged"













    BackgroundVisibility="Collapsed"





    controls:StyleManager.Theme="Office_Blue">















    <navigation:RadTabItem Header="STB" Margin="0,0,0,0" Height="24">















    <Grid Margin="0,0,0,0" >















    <Grid.RowDefinitions>















    <RowDefinition Height="Auto" />















    <RowDefinition Height="*" />















    </Grid.RowDefinitions>















    <controls:RadExpander ExpandDirection="Down" Grid.Row="0" Header="Device Details" controls:StyleManager.Theme="Vista">















    <controls:RadExpander.Content>















    <grid:RadGridView x:Name="DeviceDetail" AutoGenerateColumns="False" IsFilteringAllowed="False" Margin="0"













    CanUserReorderColumns="False" CanUserFreezeColumns="False"





    ShowGroupPanel="False" controls:StyleManager.Theme="Vista" Height="130"













    ColumnWidth="*">















    <grid:RadGridView.Columns>















    <grid:GridViewDataColumn Header="Outlet" DataMemberBinding="{Binding Outlet}" />















    <grid:GridViewDataColumn Header="Manufacturer" DataMemberBinding="{Binding Manufacturer}" />















    <grid:GridViewDataColumn Header="Model" DataMemberBinding="{Binding DeviceModel}" />















    <grid:GridViewDataColumn Header="Mac Address" DataMemberBinding="{Binding SetTopBoxMacAddress}" />















    <grid:GridViewDataColumn Header="Serial#" DataMemberBinding="{Binding BoxSerialNumber}" />















    <grid:GridViewDataColumn Header="Box Identifier" DataMemberBinding="{Binding BoxIdentifier}" />















    <grid:GridViewDataColumn Header="Cable Card MAC Address" DataMemberBinding="{Binding CableCardMacAddress}" />















    <grid:GridViewDataColumn Header="Cable Card Serial#" DataMemberBinding="{Binding CableCardSerialNumber}" />















    </grid:RadGridView.Columns>















    </grid:RadGridView>















    </controls:RadExpander.Content>















    </controls:RadExpander>















    <controls:RadExpander ExpandDirection="Down" Grid.Row="1" Header="Channel Details" IsExpanded="True" controls:StyleManager.Theme="Vista">















    <controls:RadExpander.Content>















    <Grid Margin="0,0,0,0">















    <Grid.Resources>















    <Style x:Key="ChannelDetailRowStyle" TargetType="gridView:GridViewRow">















    <Setter Property="MinHeight" Value="22" />















    <Setter Property="Height" Value="22" />















    </Style>















    </Grid.Resources>















    <grid:RadGridView x:Name="ChannelDetail" IsReadOnly="True" AutoGenerateColumns="False" CanUserFreezeColumns="False"





    ShowGroupPanel="False" IsFilteringAllowed="False" RowIndicatorVisibility="Collapsed"





    controls:StyleManager.Theme="Vista" IsBusy="True" Margin="3,3,3,3" ColumnWidth="*">















    <grid:RadGridView.Columns>















    <grid:GridViewDataColumn DataMemberBinding="{Binding ChannelNumber}">















    <grid:GridViewDataColumn.Header>















    <StackPanel Orientation="Vertical">















    <TextBlock Text="Channel Number" TextWrapping="Wrap" />















    </StackPanel>















    </grid:GridViewDataColumn.Header>















    </grid:GridViewDataColumn>















    <grid:GridViewDataColumn DataMemberBinding="{Binding ChannelName}" >















    <grid:GridViewDataColumn.Header>















    <StackPanel Orientation="Vertical">















    <TextBlock Text="Channel Name" TextWrapping="Wrap" />















    </StackPanel>















    </grid:GridViewDataColumn.Header>















    </grid:GridViewDataColumn>















    <grid:GridViewDataColumn UniqueName="Outlet1">















    <grid:GridViewDataColumn.Header>















    <StackPanel Orientation="Vertical">















    <TextBlock Text="Channel Name" TextWrapping="Wrap" />















    <TextBlock Text="Channel Map:" TextWrapping="Wrap" />















    </StackPanel>















    </grid:GridViewDataColumn.Header>















    <grid:GridViewDataColumn.CellTemplate>















    <DataTemplate>















    <TextBlock Text="Outlet1" />















    </DataTemplate>















    </grid:GridViewDataColumn.CellTemplate>















    </grid:GridViewDataColumn>















    </grid:RadGridView.Columns>















    </grid:RadGridView>















    </Grid>















    </controls:RadExpander.Content>















    </controls:RadExpander>















    </Grid>















    </navigation:RadTabItem>















    <navigation:RadTabItem Header="Account">















    <Grid>















    <Grid.RowDefinitions>















    <RowDefinition Height="Auto" />















    <RowDefinition Height="*" />















    </Grid.RowDefinitions>















    <controls:RadExpander ExpandDirection="Down" Header="Available packages" IsExpanded="True" Grid.Row="0" controls:StyleManager.Theme="Vista">















    <controls:RadExpander.Content>















    <grid:RadGridView Name="PackageGrid" Height="150" AutoGenerateColumns="False" IsFilteringAllowed="False"













    CanUserReorderColumns="False" CanUserFreezeColumns="False" RowIndicatorVisibility="Collapsed"













    ShowGroupPanel="False" Margin="0" controls:StyleManager.Theme="Vista"













    IsBusy="True" IsReadOnly="True">















    <grid:RadGridView.Columns>















    <grid:GridViewColumn>















    <grid:GridViewColumn.Header>















    <StackPanel>















    <CheckBox Name="ChkPackageAll" />















    </StackPanel>















    </grid:GridViewColumn.Header>















    <grid:GridViewColumn.CellTemplate>















    <DataTemplate>















    <StackPanel>















    <CheckBox Name="ChkPackage" />















    </StackPanel>















    </DataTemplate>















    </grid:GridViewColumn.CellTemplate>















    </grid:GridViewColumn>















    <grid:GridViewDataColumn Header="Package" DataMemberBinding="{Binding Name}" UniqueName="PackageName" />















    </grid:RadGridView.Columns>















    </grid:RadGridView>















    </controls:RadExpander.Content>















    </controls:RadExpander>















    <controls:RadExpander ExpandDirection="Down" Header="Channel list" Grid.Row="1" IsExpanded="True" controls:StyleManager.Theme="Vista">















    <controls:RadExpander.Content>















    <grid:RadGridView Name="PackageChannelGrid" AutoGenerateColumns="False" IsFilteringAllowed="False"













    CanUserReorderColumns="False" CanUserFreezeColumns="False" RowIndicatorVisibility="Collapsed"













    ShowGroupPanel="False" Margin="0" controls:StyleManager.Theme="Vista"













    IsBusy="True" IsReadOnly="True">















    <grid:RadGridView.Columns>















    <grid:GridViewDataColumn Header="Channel Number" DataMemberBinding="{Binding ChannelNumber}" UniqueName="ChannelNumber" />















    <grid:GridViewDataColumn Header="Channel Name" DataMemberBinding="{Binding ChannelName}" UniqueName="ChannelName" />















    </grid:RadGridView.Columns>















    </grid:RadGridView>















    </controls:RadExpander.Content>















    </controls:RadExpander>















    </Grid>















    </navigation:RadTabItem>















    </navigation:RadTabControl>



  2. Pradeep Chandraker
    Pradeep Chandraker avatar
    7 posts
    Member since:
    Mar 2010

    Posted 08 Apr 2010 Link to this post

    Hi,

    I got the solution for this. When I am removing UniqueName attribute from 3rd column, the grid is working fine. Though this is point of research for Telerik team.

    Thanks,
    Pradeep
