RadGrid With Custom Dropdown Filter Not Working Properly

10 posts, 1 answers
  1. Virgil Rodriguez
    Virgil Rodriguez avatar
    70 posts
    Member since:
    Oct 2008

    Posted 20 Jul Link to this post

    Hello Telerik,

    I was able to implement the Filter with MS DropdownList Instead of Textbox solution posted in the Telerik Help Site.

    However, I am stumped as to why the dropdown filter works on some entries but not on some. See image below:

    Below is how I declared my RadGrid in my .ASPX page:

    <telerik:RadGrid ID="rgOT_Classifications"
                        runat="server"
                        Skin="Default"
                        GridLines="both"
                        BorderStyle="NotSet"
                        BorderColor="#336699"
                        BorderWidth="3"
                        PageSize="3"
                        Width="100%"
                        AllowPaging="true"
                        AllowFilteringByColumn="true"
                        AutoGenerateColumns="false"
                        AllowSorting="true"
                        ShowStatusBar="true"
                        AllowAutomaticDeletes="false"
                        AllowAutomaticInserts="false"
                        ItemStyle-BackColor="#f0f8ff"
                        AlternatingItemStyle-BackColor="White"
                        AllowAutomaticUpdates="false">
                        <PagerStyle Mode="NextPrevAndNumeric" />
                        <MasterTableView Width="100%" DataKeyNames="CLASSIFICATION" TableLayout="Auto" Caption="<strong><big>CLASSIFICATIONS</big></strong>"
                            CommandItemDisplay="Top" EditMode="EditForms" ExpandCollapseColumn-ButtonType="pushButton" AllowMultiColumnSorting="true"
                            Name="Classifications" ShowHeadersWhenNoRecords="true">
                            <CommandItemTemplate>
                                <table width="98%" style="margin:10px auto;">
                                    <tr>
                                        <td align="left" style="vertical-align:middle;">
                                            <asp:ImageButton ID="ImageButton1" runat="server" ImageUrl="~/images/add.png" CommandName="InitInsert" ImageAlign="Middle"/>
                                            <asp:LinkButton id="btnAddNewRecord" runat="server" CommandName="InitInsert" Font-Size="10" style="vertical-align:middle;"
                                                            ToolTip="Click to add a new Classification.">Add New Record
                                            </asp:LinkButton>
                                        </td>
                                        <td align="right">
                                            <div title="Click to clear the current filter criteria." style="float:left;">
                                                <asp:ImageButton ID="ImageButton2" runat="server" ImageUrl="~/images/clearfilter.gif" CommandName="ClearFilter" ImageAlign="Middle"/>
                                                <asp:LinkButton id="btnClearFilter"  Font-Size="10" style="vertical-align:middle;"
                                                                runat="server" CommandName="ClearFilter">Clear Filter
                                                </asp:LinkButton>
                                            </div>
                                            <div title="Click to reload data into the grid." style="float:right;">
                                                <asp:ImageButton ID="ImageButton3" runat="server" ImageUrl="~/images/Refresh.gif" CommandName="Refresh" ImageAlign="Middle"/>
                                                <asp:LinkButton style="vertical-align:middle;" id="btnRefresh"  Font-Size="10"
                                                                runat="server" CommandName="Refresh">Refresh
                                                </asp:LinkButton>
                                            </div>
                                        </td>
                                    </tr>
                                </table>
                            </CommandItemTemplate>
                            <Columns>
                                <telerik:GridEditCommandColumn UniqueName="Edit" ItemStyle-HorizontalAlign="center">
                                </telerik:GridEditCommandColumn>
                                <telerik:GridBoundColumn DataField="CLASSIFICATION" HeaderText="Classification" UniqueName="CLASSIFICATION"
                                    AutoPostBackOnFilter="true" CurrentFilterFunction="Contains" ShowFilterIcon="false">
                                </telerik:GridBoundColumn>
                                <custom:MyCustomFilteringColumn HeaderText="CLASS 1" DataField="CLASSIFICATION" UniqueName="CLASS1" AutoPostBackOnFilter="false" DataType="System.String" CurrentFilterFunction="Contains" >
                                </custom:MyCustomFilteringColumn>
                                <telerik:GridButtonColumn ButtonType="LinkButton" CommandName="Delete" Text="Delete" UniqueName="DeleteColumn" ItemStyle-HorizontalAlign="center">
                                </telerik:GridButtonColumn>
                            </Columns>
                            <EditFormSettings UserControlName="~/maintenance/Edit_OT_Classifications.aspx"
                                              EditFormType="WebUserControl"
                                              PopUpSettings-Modal="true"
                                              PopUpSettings-Width="35%"
                                              >
                            </EditFormSettings>
                        </MasterTableView>
        </telerik:RadGrid>

    It's odd that there is no pattern as to why some dropdown entries work and some don't. If you could create it on your end and let me know if it worked for you or not and if you have a solution for this.

    Thanks,

    Virgil



  2. Virgil Rodriguez
    Virgil Rodriguez avatar
    70 posts
    Member since:
    Oct 2008

    Posted 20 Jul in reply to Virgil Rodriguez Link to this post

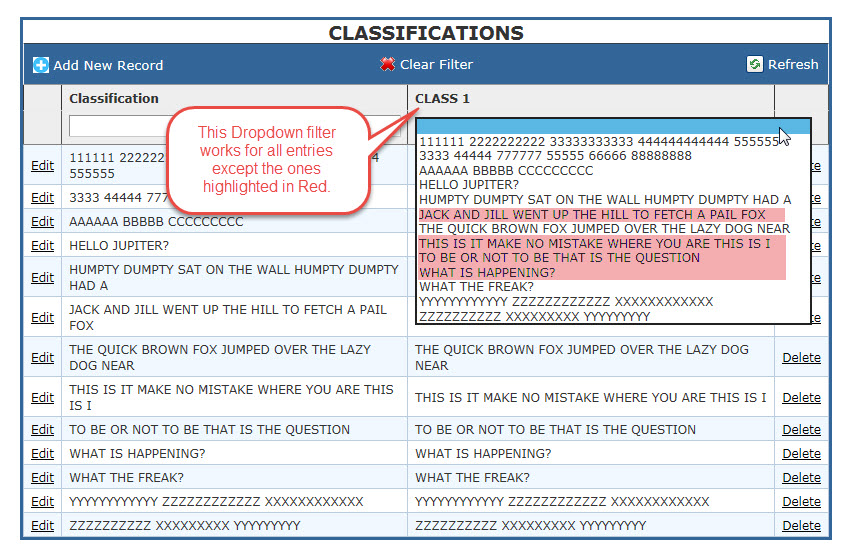

    I pasted the image (screenshot) but for some reason it didn't show up, so I'm attaching it.
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Virgil Rodriguez
    Virgil Rodriguez avatar
    70 posts
    Member since:
    Oct 2008

    Posted 21 Jul in reply to Virgil Rodriguez Link to this post

    In addition, if I replace the DropDownList() control with a RadComboBox() and utilize the AllowCustomText() feature, how do I make the TextChanged event work?

    Thank you.

  5. Viktor Tachev
    Admin
    Viktor Tachev avatar
    1488 posts

    Posted 25 Jul Link to this post

    Hi Virgil,

    The filter value should be applied for all items in the dropdown control. Would you check the browser console and see if there are any errors listed there?

    As for your other query. When you use RadComboBox instead of a DropDownList you can still use the OnSelectedIndexChanged event to apply the filtering.

    An alternative approach you can use to have a dropdown control as filter is to add a filter template for the grid. Check out the following example that illustrates the approach.



    Regards,
    Viktor Tachev
    Telerik by Progress
    Do you need help with upgrading your ASP.NET AJAX, WPF or WinForms projects? Check the Telerik API Analyzer and share your thoughts.
  6. Virgil Rodriguez
    Virgil Rodriguez avatar
    70 posts
    Member since:
    Oct 2008

    Posted 25 Jul in reply to Viktor Tachev Link to this post

    Thanks Victor.

    I have tested it again and found no errors in the browser console. I am really at a loss why this is happening.

    Have you tested it on your end? If so, can you send small project showing that it works?

    That would be very much appreciated.



    Best regards,

    Virgil



  7. Viktor Tachev
    Admin
    Viktor Tachev avatar
    1488 posts

    Posted 28 Jul Link to this post

    Hi Virgil,

    I tested the behavior and it is working as expected on my end. I am attaching a sample WebSite project as reference. Give it a try and see how it works for you.

    Let me know what needs to be changed in the sample so that the behavior you are seeing is replicated.

    Regards,
    Viktor Tachev
    Telerik by Progress
    Do you need help with upgrading your ASP.NET AJAX, WPF or WinForms projects? Check the Telerik API Analyzer and share your thoughts.
  8. Virgil Rodriguez
    Virgil Rodriguez avatar
    70 posts
    Member since:
    Oct 2008

    Posted 28 Jul in reply to Viktor Tachev Link to this post

    I will try the sample project and let you know the results.

    Thank you for this Viktor!





  9. Virgil Rodriguez
    Virgil Rodriguez avatar
    70 posts
    Member since:
    Oct 2008

    Posted 28 Jul in reply to Viktor Tachev Link to this post

    Hi Viktor,

    Okay I tried the sample project, but I had to do the following:

    1. First convert the code from "C#" to "VB".
    2. Got rid of anything that's related to SQL Server Express - because I don't have SQL Server Express.
    3. Created my own static table reflecting the data and records of my initial post.

    The conversion went well and I was able to build and execute the project without any errors.

    However, I still had the same WEIRD, really WEIRD results. The filter worked for all records EXCEPT for the following entries:

    • THIS IS IT MAKE NO MISTAKE WHERE YOU ARE THIS IS I
    • TO BE OR NOT TO BE THAT IS THE QUESTION
    • WHAT IS HAPPENING?
    • JACK AND JILL WENT UP THE HILL TO FETCH A PAIL OF

    Finally, I have changed DropDownList and instead used RadComboBox - with the same results! I feel I will become famous for discovering these 4 entries that JUST WON'T WORK.

    Can you please implement the AllowCustomText() feature of the RadComboBox and make the filter work when TextChanged event work or SelectedIndexChanged events are triggered?



    Many thanks in advance.



    Virgil



    Here is the _Default.ASPX:

    <%@ Page Language="VB" AutoEventWireup="true" CodeFile="_Default.aspx.vb" Inherits="MyStuff.MyRadGrid" %>
    <%@ Register Namespace="MyStuff" TagPrefix="custom" %>

    <!DOCTYPE html>

    <head runat="server">
        <title></title>
        <style type="text/css">
        </style>
    </head>
    <body>
        <form id="form1" runat="server">
            <telerik:RadScriptManager runat="server" ID="RadScriptManager1">
            </telerik:RadScriptManager>

            <telerik:RadScriptBlock runat="server" ID="RadCodeBlock1">
                <script type="text/javascript">

                </script>

            </telerik:RadScriptBlock>

            <telerik:RadGrid
                ID="RadGrid1" runat="server"
                AllowFilteringByColumn="True"
                AllowPaging="True" PageSize="20"
                OnItemCommand="RadGrid1_ItemCommand">
                <MasterTableView
                    AutoGenerateColumns="False"
                    CommandItemDisplay="Top">
                    <CommandItemTemplate>
                        <asp:LinkButton runat="server" ID="LinkButton1"
                            Text="Clear Filters"
                            CommandName="ClearFilters" />
                    </CommandItemTemplate>
                    <Columns>
                        <telerik:GridBoundColumn
                            CurrentFilterFunction="Contains"
                            HeaderText="CLASSIFICATION"
                            DataField="CLASSIFICATION"
                            UniqueName="CLASSIFICATION" />
                        <custom:MyCustomFilteringColumn
                            HeaderText="CLASS1"
                            DataField="CLASS1"
                            UniqueName="CLASS1" />
                    </Columns>
                </MasterTableView>
            </telerik:RadGrid>
        </form>
    </body>
    </html>



    Here is the _Default.ASPX.VB:

    Imports System.Collections.Generic
    Imports System.Configuration
    Imports System.Data
    Imports System.Data.OleDb
    Imports System.Data.SqlClient
    Imports System.Globalization
    Imports System.Linq
    Imports System.Threading
    Imports System.Web
    Imports System.Web.UI
    Imports System.Web.UI.WebControls
    Imports Telerik.Web.UI

    Namespace MyStuff

        Partial Public Class MyRadGrid
            Inherits System.Web.UI.Page

            Private staticTable As DataTable
            Protected Sub Page_Load(sender As Object, e As EventArgs)
                staticTable = CreateStaticTable()
                RadGrid1.DataSource = staticTable
                For Each column As GridBoundColumn In RadGrid1.MasterTableView.Columns
                    If TypeOf column Is MyStuff.MyCustomFilteringColumn Then
                        TryCast(column, MyStuff.MyCustomFilteringColumn).ListDataSource = GetFilterStaticTable(column.DataField)
                        TryCast(column, MyStuff.MyCustomFilteringColumn).FilterWidth = Unit.Percentage(99)
                    End If
                Next
            End Sub

            Function CreateStaticTable() As DataTable
                Dim table As New DataTable

                table.Columns.Add("CLASSIFICATION", GetType(String))
                table.Columns.Add("CLASS1", GetType(String))

                table.Rows.Add("111111 2222222222 33333333333 444444444444 555555", "111111 2222222222 33333333333 444444444444 555555")
                table.Rows.Add("AAAAAA BBBBB CCCCCCCCC", "AAAAAA BBBBB CCCCCCCCC")
                table.Rows.Add("HELLO PLANET NIBIRU", "HELLO PLANET NIBIRU")
                table.Rows.Add("HUMPTY DUMPTY SAT ON THE WALL HUMPTY DUMPTY HAD A", "HUMPTY DUMPTY SAT ON THE WALL HUMPTY DUMPTY HAD A")
                table.Rows.Add("KUMUSTA ANDROMEDA ?", "KUMUSTA ANDROMEDA ?")
                table.Rows.Add("THE QUICK BROWN FOX JUMPED OVER THE LAZY DOG NEAR", "THE QUICK BROWN FOX JUMPED OVER THE LAZY DOG NEAR")
                table.Rows.Add("__THIS IS IT MAKE NO MISTAKE WHERE YOU ARE THIS IS I", "THIS IS IT MAKE NO MISTAKE WHERE YOU ARE THIS IS I")
                table.Rows.Add("__TO BE OR NOT TO BE THAT IS THE QUESTION", "TO BE OR NOT TO BE THAT IS THE QUESTION")
                table.Rows.Add("__WHAT IS HAPPENING?", "WHAT IS HAPPENING?")
                table.Rows.Add("WHAT THE FREAK?", "WHAT THE FREAK?")
                table.Rows.Add("XXXXXXXXXXX YYYYYYYYYYYY ZZZZZZZZZZZZ", "XXXXXXXXXXX YYYYYYYYYYYY ZZZZZZZZZZZZ")
                table.Rows.Add("YYYYYYYYYYYY ZZZZZZZZZZZZ XXXXXXXXXXXX", "YYYYYYYYYYYY ZZZZZZZZZZZZ XXXXXXXXXXXX")
                table.Rows.Add("ZZZZZZZZZZ XXXXXXXXX YYYYYYYYY", "ZZZZZZZZZZ XXXXXXXXX YYYYYYYYY")
                table.Rows.Add("__JACK AND JILL WENT UP THE HILL TO FETCH A PAIL OF", "JACK AND JILL WENT UP THE HILL TO FETCH A PAIL OF")
                table.Rows.Add("HUMPTY DUMPTY SAT ON A WALL. HUMPTY DUMPTY HAD A", "HUMPTY DUMPTY SAT ON A WALL. HUMPTY DUMPTY HAD A")

                Return table
            End Function
            Private Function GetFilterStaticTable(Field As String) As DataTable
                Dim dtDistinct As DataTable = New DataTable
                dtDistinct = staticTable.DefaultView.ToTable(True, Field)
                Return dtDistinct
            End Function
            Protected Sub RadGrid1_ItemCommand(source As Object, e As GridCommandEventArgs)
                If e.CommandName = "ClearFilters" Then
                    For Each column As GridColumn In RadGrid1.MasterTableView.Columns
                        column.CurrentFilterFunction = GridKnownFunction.NoFilter
                        column.CurrentFilterValue = [String].Empty
                    Next
                    RadGrid1.MasterTableView.FilterExpression = [String].Empty
                    RadGrid1.MasterTableView.Rebind()
                End If
            End Sub
        End Class


    End Namespace



    Here is the MyCustomFilteringColumn.VB :

    Imports System.Collections.Generic
    Imports System.Linq
    Imports System.Web
    Imports System.Web.UI
    Imports System.Web.UI.WebControls
    Imports Telerik.Web.UI

    Namespace MyStuff

        Public Class MyCustomFilteringColumn : Inherits GridBoundColumn
            Private m_listDataSource As Object = Nothing
            Private _filterWidth As Unit = Nothing

            'RadGrid calls this method when it initializes the controls inside the filtering item cells

            Public Property FilterWidth As Unit
                Get
                    Return _filterWidth
                End Get
                Set(ByVal value As Unit)
                    _filterWidth = value
                End Set
            End Property

            Protected Overrides Sub SetupFilterControls(cell As TableCell)
                MyBase.SetupFilterControls(cell)
                cell.Controls.RemoveAt(0)

                Dim list As New RadComboBox()
                list.ID = "list" + Me.DataField
                list.AutoPostBack = True
                AddHandler list.SelectedIndexChanged, AddressOf list_SelectedIndexChanged

                cell.Controls.AddAt(0, list)
                cell.Controls.RemoveAt(1)
                list.DataTextField = Me.DataField
                list.DataValueField = Me.DataField
                list.DataSource = Me.ListDataSource
                list.Width = _filterWidth

            End Sub
            Private Sub list_SelectedIndexChanged(sender As Object, e As EventArgs)

                Dim filterItem As GridFilteringItem = TryCast(TryCast(sender, RadComboBox).NamingContainer, GridFilteringItem)

                If Me.DataType = System.Type.[GetType]("System.Int32") OrElse Me.DataType = System.Type.[GetType]("System.Int16") OrElse Me.DataType = System.Type.[GetType]("System.Int64") Then
                    filterItem.FireCommandEvent("Filter", New Pair("EqualTo", Me.UniqueName))
                Else
                    ' treat everything else like a string
                    filterItem.FireCommandEvent("Filter", New Pair("Contains", Me.UniqueName))
                End If
            End Sub
            Public Property ListDataSource() As Object
                Get
                    Return Me.m_listDataSource
                End Get
                Set
                    m_listDataSource = value
                End Set
            End Property
            'RadGrid calls this method when the value should be set to the filtering input control(s)
            Protected Overrides Sub SetCurrentFilterValueToControl(cell As TableCell)
                MyBase.SetCurrentFilterValueToControl(cell)
                Dim list As RadComboBox = DirectCast(cell.Controls(0), RadComboBox)

                If Me.CurrentFilterValue <> String.Empty Then
                    list.SelectedValue = Me.CurrentFilterValue
                End If
            End Sub
            'RadGrid calls this method to extract the filtering value from the filtering input control(s)
            Protected Overrides Function GetCurrentFilterValueFromControl(cell As TableCell) As String
                Dim list As RadComboBox = DirectCast(cell.Controls(0), RadComboBox)
                Return list.SelectedValue
            End Function
            Protected Overrides Function GetFilterDataField() As String
                Return Me.DataField
            End Function
        End Class
    End Namespace



    Here is the web.config:

    <?xml version="1.0" encoding="UTF-8"?>
    <!--
      For more information on how to configure your ASP.NET application, please visit
      -->
    <configuration>
      <appSettings>
        <add key="webpages:Enabled" value="true" />
      </appSettings>
      <connectionStrings>
      </connectionStrings>
      <!--
        For a description of web.config changes for .NET 4.5 see http://go.microsoft.com/fwlink/?LinkId=235367.

        The following attributes can be set on the <httpRuntime> tag.
          <system.Web>
            <httpRuntime targetFramework="4.5" />
          </system.Web>
      -->
      <system.web>

        <customErrors mode="Off" />
        <compilation debug="true" targetFramework="4.5">
          <assemblies>
          </assemblies>
        </compilation>
        <httpRuntime maxRequestLength="2097151" requestValidationMode="2.0" />
        <pages validateRequest="false" controlRenderingCompatibilityVersion="4.0">
          <controls>
            <add tagPrefix="telerik" assembly="Telerik.Web.UI" namespace="Telerik.Web.UI" />
          </controls>
        </pages>
        <httpHandlers>
          <add path="Telerik.Web.UI.WebResource.axd" type="Telerik.Web.UI.WebResource" verb="*" validate="false" />
        </httpHandlers>
      </system.web>
      <system.webServer>
        <validation validateIntegratedModeConfiguration="false" />

        <handlers>
          <add name="Telerik_Web_UI_WebResource_axd" verb="*" preCondition="integratedMode" path="Telerik.Web.UI.WebResource.axd" type="Telerik.Web.UI.WebResource" />
        </handlers>
      </system.webServer>
    </configuration>



  10. Answer
    Viktor Tachev
    Admin
    Viktor Tachev avatar
    1488 posts

    Posted 02 Aug Link to this post

    Hi Virgil,

    Thank you for the runnable sample. I ran it and was able to run it and find the cause of the behavior.

    By default the RadGrid has set of predefined strings that are marked as "illegal" for filtering. These strings include keywords that can be used with malicious intentions. This is why the filter expression will exclude them by default and the filter will not be applied.

    All four of the values that are not working with filtering have one thing in common. They all have contain such "illegal strings". You can see them highlighted below:

    • THIS IS IT MAKE NO MISTAKE WHERE YOU ARE THIS IS I
    • TO BE OR NOT TO BE THAT IS THE QUESTION
    • WHAT IS HAPPENING?
    • JACK AND JILL WENT UP THE HILL TO FETCH A PAIL OF

    In order to change the behavior you can modify the default IllegalStrings property. Check out the code snippet below that outlines the approach:

    Protected Sub Page_Load(sender As Object, e As EventArgs) Handles Me.Load

        GridFilterFunction.IllegalStrings = New String() {" LIKE ", ">", "<", "<>", " NULL "}

        For Each column As GridBoundColumn In RadGrid1.MasterTableView.Columns
            If TypeOf column Is MyStuff.MyCustomFilteringColumn Then
                TryCast(column, MyStuff.MyCustomFilteringColumn).ListDataSource = GetFilterStaticTable(column.DataField)

            End If
        Next
    End Sub



    Regards,
    Viktor Tachev
    Telerik by Progress
    Do you need help with upgrading your ASP.NET AJAX, WPF or WinForms projects? Check the Telerik API Analyzer and share your thoughts.
  11. Virgil Rodriguez
    Virgil Rodriguez avatar
    70 posts
    Member since:
    Oct 2008

    Posted 12 Aug in reply to Viktor Tachev Link to this post

    That solves it !

    Thank you very much Viktor Tachev.



    All the best,

    Virgil



Back to Top
UI for ASP.NET Ajax is Ready for VS 2017
