RadGrid FilterType="HeaderContext" does not allow filter

6 posts, 0 answers
  1. Corey
    Corey avatar
    5 posts
    Member since:
    Mar 2013

    Posted 18 Feb Link to this post

    I can get the menu to show up with the checkboxes for the OnFilterCheckListItemsRequested.

    However when you select any of the checkboxes you are not able to click "filter" button and the "show rows with value that" drop down box is disabled.  The button highlights but no click action or postback.

    however if i use the "checkbox" or "combine" for the FilterType it works when selecting items from the list.

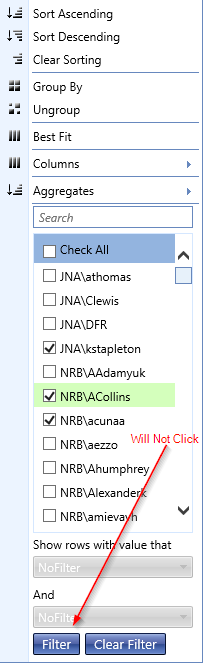

    attached is my radgrid code and a screenshot of the menu.

    <telerik:RadGrid ID="RadGrid1" AllowFilteringByColumn="True" runat="server" FilterType="
           AllowPaging="True" OnFilterCheckListItemsRequested="RadGrid1_FilterCheckListItemsRequested"
           Height="100%"  AllowSorting="True"
           ShowGroupPanel="True" EnableGroupsExpandAll="True" EnableHeaderContextMenu="True"
           EnableHierarchyExpandAll="True" ShowFooter="True" ShowStatusBar="True"
           PageSize="500" OnInfrastructureExporting="RadGrid1_InfrastructureExporting"
           EnableHeaderContextAggregatesMenu="True"
           FilterMenu-EnableAutoScroll="False" FilterMenu-EnableImageSprites="True" FilterMenu-EnableRootItemScroll="True"
           FilterMenu-EnableSelection="True" FilterMenu-EnableTextHTMLEncoding="True"
           FilterMenu-ShowToggleHandle="True" MasterTableView-AllowFilteringByColumn="True"
           MasterTableView-EnableGroupsExpandAll="True" MasterTableView-EnableHeaderContextAggregatesMenu="True"
           MasterTableView-EnableHeaderContextFilterMenu="True" MasterTableView-EnableHeaderContextMenu="True"
           MasterTableView-EnableHierarchyExpandAll="True" MasterTableView-RetrieveDataTypeFromFirstItem="True"
           RegisterWithScriptManager="True" PagerStyle-PageSizeControlType="RadComboBox" ClientSettings-AllowColumnHide="True"
           ClientSettings-AllowColumnsReorder="True" ClientSettings-AllowDragToGroup="True"
           ClientSettings-AllowKeyboardNavigation="True" ClientSettings-AllowRowsDragDrop="True"
           ClientSettings-EnableRowHoverStyle="True" FilterMenu-AppendDataBoundItems="True">
            <CommandItemStyle />
            <ExportSettings ExportOnlyData="True" IgnorePaging="True" Excel-Format="Xlsx">
            </ExportSettings>
            <ClientSettings AllowDragToGroup="false" Resizing-AllowColumnResize="true" AllowColumnHide="True"AllowColumnsReorder="True" AllowRowHide="True" AllowRowsDragDrop="True" ReorderColumnsOnClient="True" Animation-AllowColumnReorderAnimation="False" Animation-AllowColumnRevertAnimation="False" DataBinding-EnableCaching="True" Resizing-AllowResizeToFit="True" Resizing-EnableRealTimeResize="True" Scrolling-AllowScroll="False" Scrolling-SaveScrollPosition="True">
                <Scrolling AllowScroll="True" UseStaticHeaders="True" />

            </ClientSettings>
            <MasterTableView CommandItemDisplay="Top" Width="100%" EnableGroupsExpandAll="True"EnableHeaderContextAggregatesMenu="True">
                <CommandItemSettings ShowAddNewRecordButton="False" ShowExportToCsvButton="True" ShowExportToExcelButton="True"ShowRefreshButton="True" />
            </MasterTableView>
            <FilterMenu CssClass="RadFilterMenu_CheckList">
            </FilterMenu>
        </telerik:RadGrid>





    Code Behind

    Protected Sub RadGrid1_FilterCheckListItemsRequested(sender As Object, e As GridFilterCheckListItemsRequestedEventArgs)
        Dim DataField As String = TryCast(e.Column, IGridDataColumn).GetActiveDataField()

        e.ListBox.DataSource = GetDataTableFromCacheOrDatabase(DataField)
        e.ListBox.DataKeyField = DataField
        e.ListBox.DataTextField = DataField
        e.ListBox.DataValueField = DataField
        e.ListBox.DataBind()
    End Sub


    Private Sub RadGrid1_ColumnCreated(sender As Object, e As GridColumnCreatedEventArgs) Handles RadGrid1.ColumnCreated

        e.Column.FilterCheckListEnableLoadOnDemand = True

    End Sub


  2. Corey
    Corey avatar
    5 posts
    Member since:
    Mar 2013

    Posted 18 Feb Link to this post

    This is for the Excel-Like Filtering Context Menu
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Viktor Tachev
    Admin
    Viktor Tachev avatar
    1488 posts

    Posted 22 Feb Link to this post

    Hello Corey,

    Please set the EnableHeaderContextFilterMenu property for RadGrid to true and see if it makes a difference.

    Also, try to define the columns in the markup and check how the behavior changes.


    Regards,
    Viktor Tachev
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  5. Corey
    Corey avatar
    5 posts
    Member since:
    Mar 2013

    Posted 22 Feb Link to this post

    As per my markup i already posted I have EnableHeaderContextFilterMenu set to true.  They Columns are dynamically populated and change so statically setting them is not an option.
  6. Corey
    Corey avatar
    5 posts
    Member since:
    Mar 2013

    Posted 22 Feb Link to this post

    Using a new test.aspx page using this code i still get the same issue.

    <telerik:RadGrid ID="RadGrid1" AllowFilteringByColumn="True" runat="server" FilterType="HeaderContext"
        AllowPaging="True" OnFilterCheckListItemsRequested="RadGrid1_FilterCheckListItemsRequested"
        DataSourceID="SqlDataSource1" EnableHeaderContextFilterMenu="true">
        <CommandItemStyle />
        <MasterTableView DataSourceID="SqlDataSource1" AutoGenerateColumns="False" DataKeyNames="No" EnableHeaderContextMenu="true">
            <Columns>
                <telerik:GridBoundColumn DataField="No"
                    FilterControlAltText="Filter No column" HeaderText="No" ReadOnly="True"
                    SortExpression="CustomerID" UniqueName="CustomerID">
                </telerik:GridBoundColumn>
                <telerik:GridBoundColumn DataField="Customer"
                    FilterControlAltText="Filter Customer column" HeaderText="Customer" SortExpression="Customer"
                    UniqueName="ContactName">
                </telerik:GridBoundColumn>
            </Columns>
        </MasterTableView>
        <FilterMenu CssClass="RadFilterMenu_CheckList">
        </FilterMenu>
    </telerik:RadGrid>







    Partial Class test
        Inherits System.Web.UI.Page


        Protected Sub RadGrid1_FilterCheckListItemsRequested(sender As Object, e As GridFilterCheckListItemsRequestedEventArgs)
            Dim DataField As String = TryCast(e.Column, IGridDataColumn).GetActiveDataField()
            e.ListBox.DataSource = GetDataTable(DataField)
            e.ListBox.DataKeyField = DataField
            e.ListBox.DataTextField = DataField
            e.ListBox.DataValueField = DataField
            e.ListBox.DataBind()
        End Sub

        Private Sub RadGrid1_DataBound(sender As Object, e As EventArgs) Handles RadGrid1.DataBound
            For Each col As GridColumn In RadGrid1.Columns
                If TypeOf col Is GridBoundColumn Then
                    col.FilterCheckListEnableLoadOnDemand = True
                    col.AutoPostBackOnFilter = True
                    col.HeaderStyle.ForeColor = Color.Red
                End If
                If TypeOf col Is GridTemplateColumn Then
                    col.FilterCheckListEnableLoadOnDemand = True
                    col.HeaderStyle.ForeColor = Color.Pink
                End If
            Next
        End Sub

        Private Sub test_Load(sender As Object, e As EventArgs) Handles Me.Load
            Dim strOrig As String = "SELECT username, AD_Name, Last_Login FROM dbo.Live_Reports_Users"
            Dim leftString = strOrig.Substring(strOrig.IndexOf("FROM") + 0)
            Dim SQL_ReWrite = "Select " + "something " + leftString
            Label1.Text = SQL_ReWrite

        End Sub

        Public Function GetDataTable(field As String) As DataTable
            Dim query As String = String.Format("SELECT     No, Customer FROM         dbo.FiveDayReport", field)

            Dim ConnString As [String] = ConfigurationManager.ConnectionStrings("GQTS_BearingQIData").ConnectionString
            Dim conn As New SqlConnection(ConnString)
            Dim adapter As New SqlDataAdapter()
            adapter.SelectCommand = New SqlCommand(query, conn)

            Dim myDataTable As New DataTable()

            conn.Open()
            Try
                adapter.Fill(myDataTable)
            Finally
                conn.Close()
            End Try

            'Return myDataTable
            Dim distinctDT As DataTable = myDataTable.DefaultView.ToTable(True, field)
            Return distinctDT.Select("", field).CopyToDataTable
        End Function

    End Class

  7. Viktor Tachev
    Admin
    Viktor Tachev avatar
    1488 posts

    Posted 23 Feb Link to this post

    Hello Corey,

    As discussed in the support ticket we have logged the issue and the developers will investigate what is causing the behavior.

    You can monitor the status of the item it our Ideas & Feedback Portal by following the link below.



    Regards,
    Viktor Tachev
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
