RadElementHierarchyEditor

2 posts, 0 answers
  1. Assan
    Assan avatar
    1 posts
    Member since:
    Mar 2016

    Posted 19 Mar Link to this post

    Im use this function for editing the style (ex color, font) of radelement

    RadElementHierarchyEditor

    http://www.telerik.com/products/winforms/element-hierarchy-editor.aspx

    Now i need to change the color of form element but radform does not have RadElementHierarchyEditor

    How to change the color Green to Red for example?

    I found several solutions in our forum, but all change the "theme", not only the color.

    I develop many applications in C #. Net for Windows Forms and am considering the purchase of various frameworks, according to the most changeable.

  2. Dess
    Admin
    Dess avatar
    1609 posts

    Posted 21 Mar Link to this post

    Hello Assan,

    Thank you for writing.

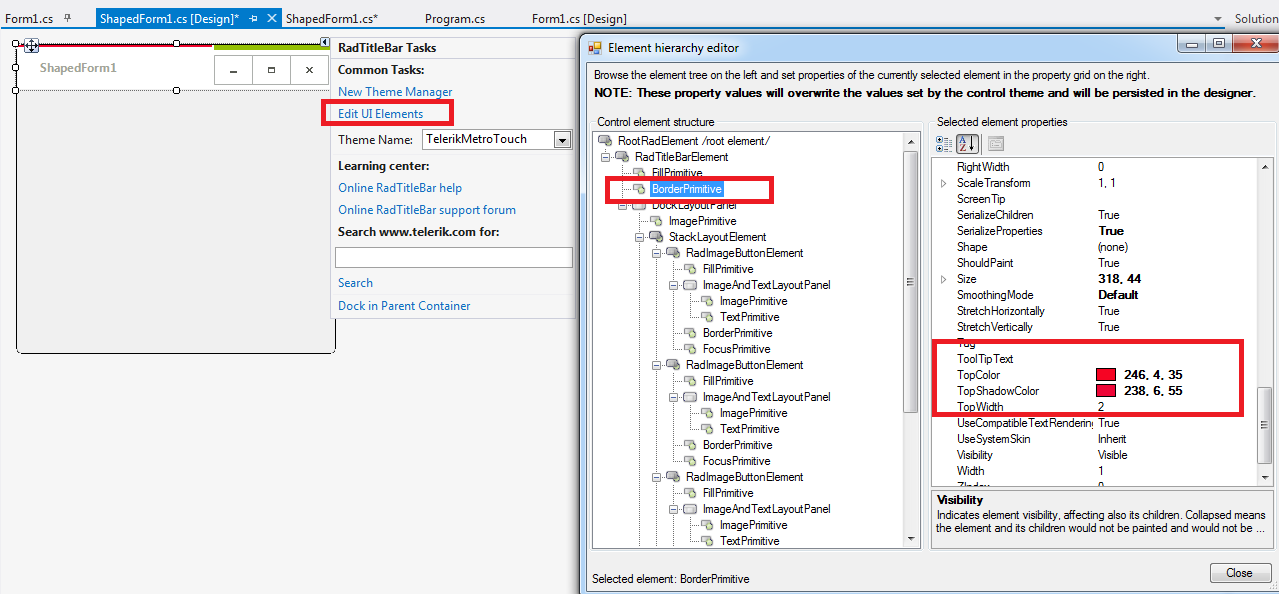

    I suggest using RadTitleBar with ShapedForm. It should be easy to customize the RadTitleBar using the SmartTag >> Edit UI elements and change the top border color (see the attached screenshot). The green thick line above the system buttons comes from the BackgroundShape applied to the StackLayoutElement that holds the system buttons. In order to customize it, you can manipulate the RadTitleBar.TitleBarElement.SystemButtons.BackgroundShape property at run time.

    I hope this information helps. Should you have further questions I would be glad to help.

    Regards,
    Dess
    Telerik
