RadDocking - pin/unpin bug...

2 posts, 1 answers
  1. Rob
    Rob avatar
    238 posts
    Member since:
    Jan 2009

    Posted 17 Aug 2012 Link to this post

    Hello,

    I have discovered a problem with the RadDock control using the xaml below.  It's a simple layout with a single bottom panel and two side panels.

    1 - Unpin all the panes.

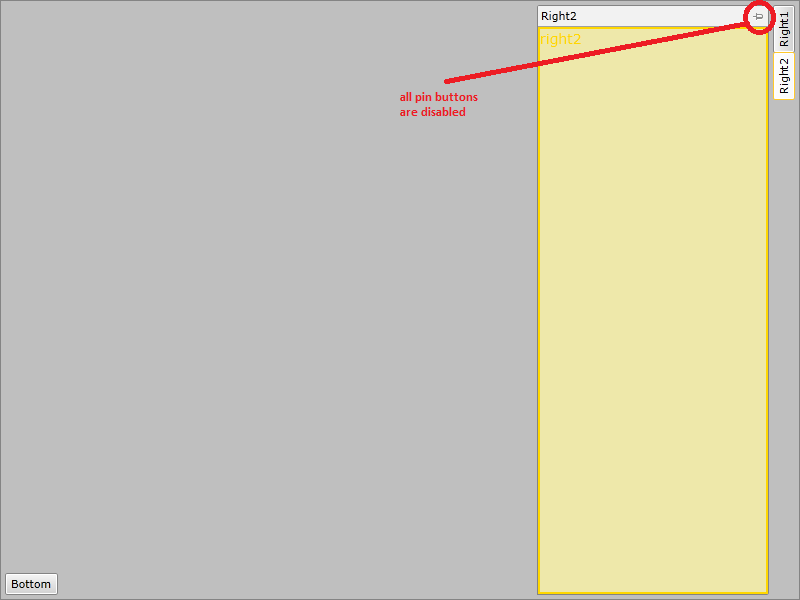

    2 - Hover any of the tabs to open the collapsed pane and notice that you are not able to pin them (the pin button is disabled!)...

    I have noticed that if you click on the tabs to open a panel instead of just hovering, and then hover one of the other tabs, the pin button suddenly becomes enabled.... also weird...

    <telerik:RadDocking>
       <telerik:RadSplitContainer x:Name="RightContainer" InitialPosition="DockedRight">
          <telerik:RadPaneGroup x:Name="grpRight" TabOrientation="Horizontal" TabStripPlacement="Bottom">
             <telerik:RadPane x:Name="paneRight1" Title="Right1" Header="Right1" CanUserPin="True" CanUserClose="False" CanFloat="False" CanDockInDocumentHost="False" ContextMenuTemplate="{x:Null}">
                <Border Background="YellowGreen" BorderBrush="Green" BorderThickness="2">
                   <TextBlock Text="right1" Foreground="Green" FontSize="14" />
                </Border>
             </telerik:RadPane>
             <telerik:RadPane x:Name="paneRight2" Title="Right2" Header="Right2" CanUserPin="True" CanUserClose="False" CanFloat="False" CanDockInDocumentHost="False" ContextMenuTemplate="{x:Null}">
                <Border Background="PaleGoldenrod" BorderBrush="Gold" BorderThickness="2">
                   <TextBlock Text="right2" Foreground="Gold" FontSize="14" />
                </Border>
             </telerik:RadPane>
          </telerik:RadPaneGroup>
       </telerik:RadSplitContainer>
       <telerik:RadSplitContainer x:Name="BottomContainer" InitialPosition="DockedBottom">
          <telerik:RadPaneGroup x:Name="grpBottom">
             <telerik:RadPane x:Name="paneBottom" Title="Bottom" Header="Bottom" CanUserPin="True" CanUserClose="False" CanFloat="False" CanDockInDocumentHost="False" ContextMenuTemplate="{x:Null}">
                <Border Background="Pink" BorderBrush="Red" BorderThickness="2">
                   <TextBlock Text="bottom" Foreground="Red" FontSize="14" />
                </Border>
             </telerik:RadPane>
          </telerik:RadPaneGroup>
       </telerik:RadSplitContainer>
    </telerik:RadDocking>

    EDIT - I forgot to mention, that I'm using version "2012.1.528.1040".

  2. Answer
    Georgi
    Admin
    Georgi avatar
    347 posts

    Posted 21 Aug 2012 Link to this post

    Hello Rob,

    As you can see in the attached video the issue is fixed in the Q2 2012 release. So you can download the 2012.2.607.1040 version of the assemblies from here.
    It will be great if you can check it out and let us know if everything works for you.

    Regards,
    Georgi
    the Telerik team
