RadComboBox Skin Artifacts

3 posts, 0 answers
  1. Mike
    Mike avatar
    15 posts
    Member since:
    Nov 2013

    Posted 09 Jan 2014 Link to this post

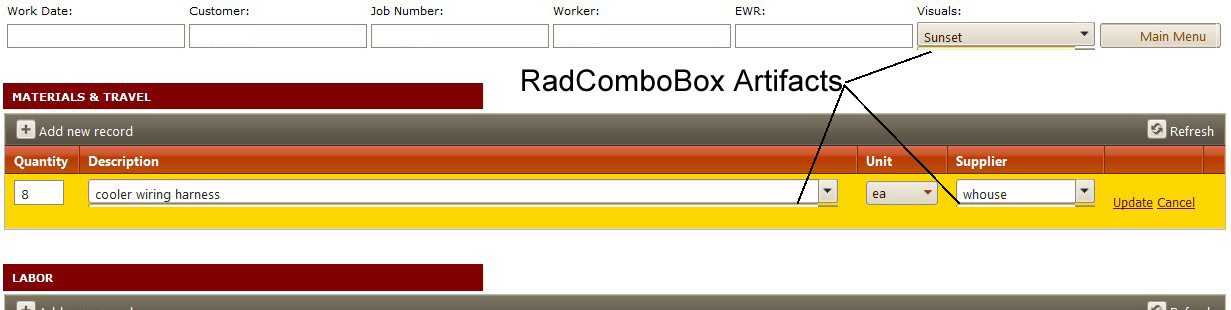

    when changing skins my radcombobox's are drawn with a line under them??  (see attached image)

    metro and metro touch skins are rendered properly but skins like outlook, sunset have the extra line.

  2. Shinu
    Shinu avatar
    17764 posts
    Member since:
    Mar 2007

    Posted 09 Jan 2014 Link to this post

    Hi Mike,

    Unfortunately I couldn't replicate the issue at my end. Please have a look into the following sample code snippet which works fine at my end.

    <asp:Label ID="Label1" runat="server" Text="Select Skin">
    <telerik:RadComboBox ID="RadComboBox1" runat="server" EmptyMessage="--Select--" AutoPostBack="true"
            <telerik:RadComboBoxItem Text="Sunset" />
            <telerik:RadComboBoxItem Text="Outlook" />
            <telerik:RadComboBoxItem Text="Metro" />
            <telerik:RadComboBoxItem Text="MetroTouch" />
    <telerik:RadComboBox ID="RadComboBox2" runat="server" Skin="Default">
            <telerik:RadComboBoxItem Text="Item1" />
            <telerik:RadComboBoxItem Text="Item2" />
            <telerik:RadComboBoxItem Text="Item3" />
            <telerik:RadComboBoxItem Text="Item4" />

    protected void RadComboBox1_SelectedIndexChanged(object sender, Telerik.Web.UI.RadComboBoxSelectedIndexChangedEventArgs e)
        RadComboBox2.Skin = e.Text;

    Please provide your full code with CSS if it doesn't help.
  3. DevCraft R3 2016 release webinar banner
  4. Ivan Zhekov
    Ivan Zhekov avatar
    538 posts

    Posted 10 Jan 2014 Link to this post

    Hello, Mike.

    The distortions you are seeing are caused by one of three reasons:

    1) You have zoomed the page
    FIX: reset zoom level

    2) You are using an older versions of the controls with RadFormDecorator on the page (that's for some time now)
    FIX: upgrade to a newer version

    3) You have global styles applied for the input elements or more specifically input type text elements which break the dimensions of the combobox.
    FIX: find the styles in question and tweak them so they don't apply to RadComboBox

    In all cases, it's better to use the newest possible version.
