radchart two series (one in the middle of another)

Thread is closed for posting
4 posts, 0 answers
  1. Roberto
    Roberto avatar
    5 posts
    Member since:
    Jun 2010

    Posted 11 Dec 2012 Link to this post

    Hi Everyone!

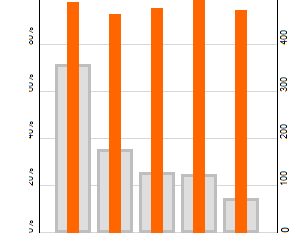

    I'm trying to make a chart and I'm afraid that it's not possible or I'm doing something bad. Basicly I want to do a chart something like that:

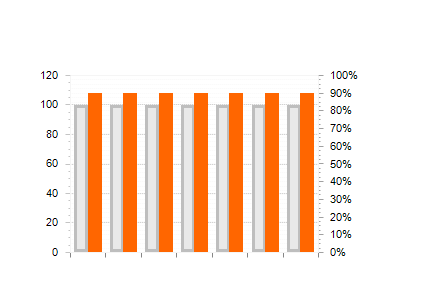

    And I got something like that:



    As you can see I can not begin the orange bar in the middle of the grey bar. Anyone knows if it's possible?

    Thanks in advance
  2. Shinu
    Shinu avatar
    17764 posts
    Member since:
    Mar 2007

    Posted 12 Dec 2012 Link to this post

    Hi,

    Try setting BarOverLapPercent and BarWidthPercent properties to achieve your scenario.
    aspx:
    <telerik:RadChart ID="RadChart1" SkinsOverrideStyles="True" runat="server">
        <Appearance BarOverlapPercent="80">
        </Appearance>
        <telerik:ChartSeries Name="Series 1" >
            <Appearance BarWidthPercent="50">
               <FillStyle MainColor="Blue">
               </FillStyle>
            </Appearance>
            ............
       </telerik:ChartSeries>
    </telerik:RadChart>

    Thanks,
    Shinu.
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Roberto
    Roberto avatar
    5 posts
    Member since:
    Jun 2010

    Posted 12 Dec 2012 Link to this post

    Thanks Shinu,

    that works!
  5. mike Lundgren
    mike Lundgren avatar
    12 posts
    Member since:
    Jan 2005

    Posted 30 Jan 2013 Link to this post

    Hello!
    I was wondering if it is possible to achieve this exact behavior on a RadHtmlChart as I can't find any "BarOverlapPercent" for it under appearance?

    Greetings Mike
