RadChart: Reference line not visible for 1 bar on x-axis

Thread is closed for posting
8 posts, 0 answers
  1. Priyanka
    Priyanka avatar
    4 posts
    Member since:
    Jul 2011

    Posted 29 Aug 2011 Link to this post

    Hi,

    I am using two series on a single radchart:
    Series 1: Bar
    Series 2: Line (for reference)

    Code:
    /// <summary>
        /// This function creates the refernce line series of RadChart
        /// </summary>
        /// <param name="averageDailyMtdGoal">Average of Daily Goals of the date</param>
        private void CreateReferenceLine(double y)
        {
            // Setting properties of refernce line series
            ChartSeries referenceSeries = radChart.Series[1];
            referenceSeries.Appearance.LineSeriesAppearance.PenStyle = System.Drawing.Drawing2D.DashStyle.Dash;
            referenceSeries.Appearance.LineSeriesAppearance.Width = 1;
            referenceSeries.Items.Add(new ChartSeriesItem(0, y));
            referenceSeries.Items.Add(new ChartSeriesItem(radChart.Series[0].Items.Count + 0.5, y));
            referenceSeries.DefaultLabelValue = averageDailyMtdGoal.ToString() + "%";
            referenceSeries.Appearance.LabelAppearance.Visible = true;
            referenceSeries.Appearance.FillStyle.MainColor = Color.Red;
        }

    PFA snapshots of two cases:

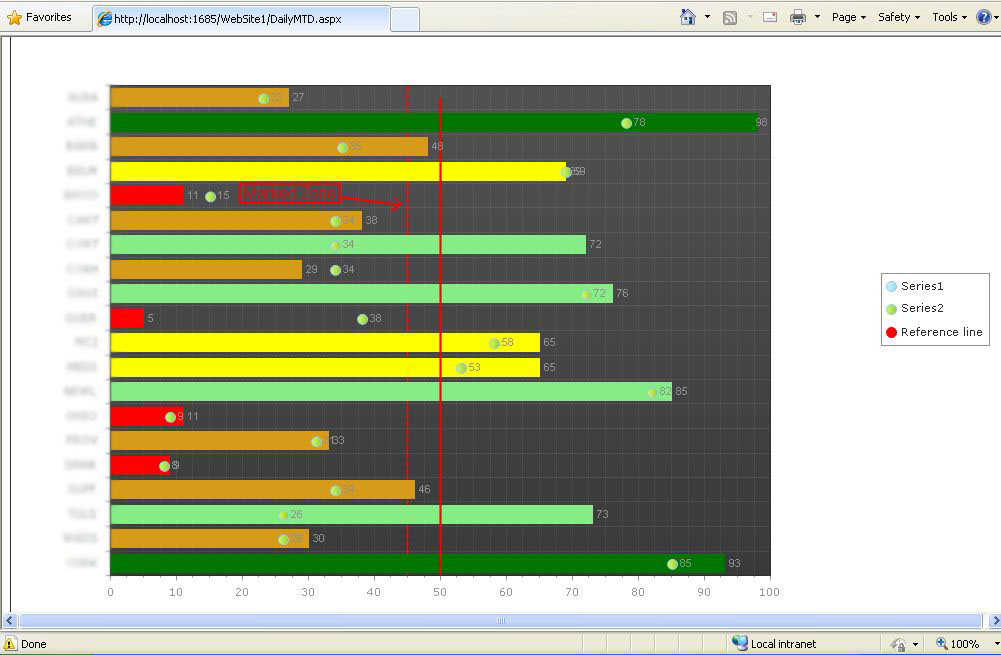

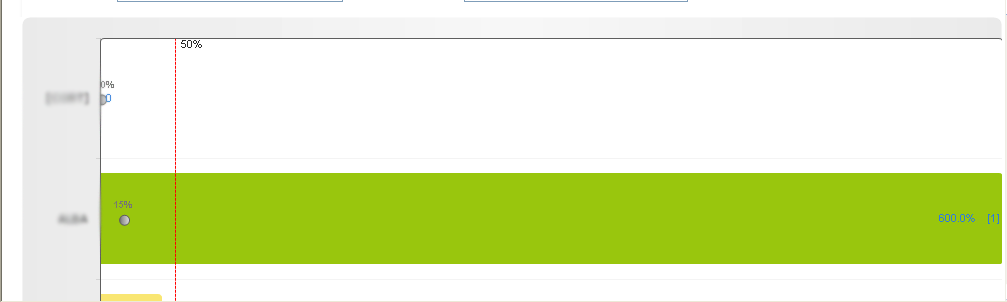

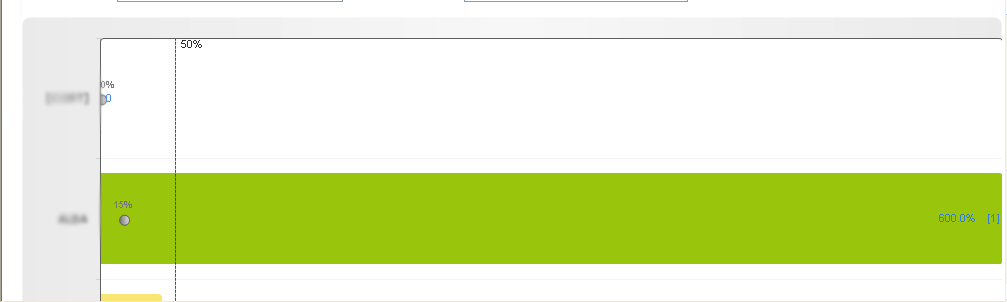

    Case 1: Snapshot ReferenceLine_Visible.png: when there are more than one bars, the reference line is visible, which is an expected functionality.

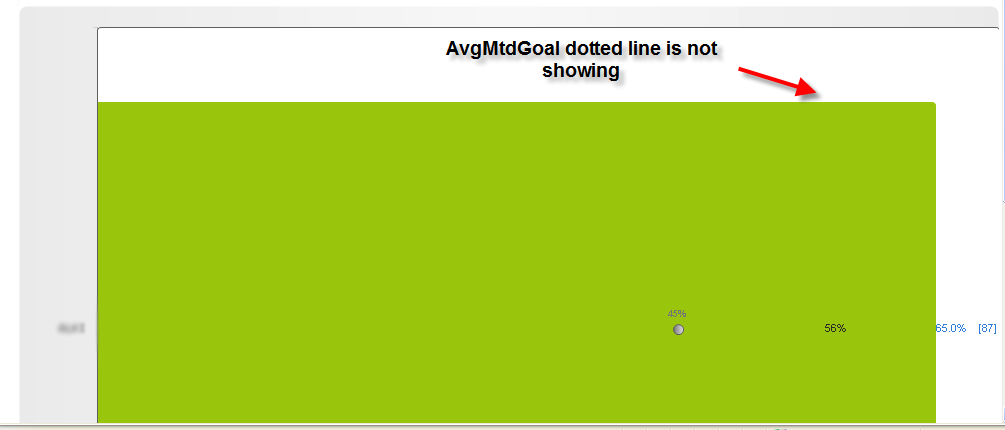

    Case 2: Snapshot Reference line_Not visible.png: shows the case when there is only one bar on the x-axis. It does not show the reference line.

    I want to show the reference line in both the cases. Please help.

    Thanks & Regards,
    Priyanka Sethi
