RadarChart - Setting line thickness and color

5 posts, 0 answers
  1. George
    George avatar
    62 posts
    Member since:
    Sep 2008

    Posted 30 May 2014 Link to this post

    Hi again,

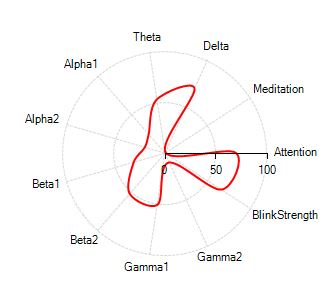

    I have successfully implemented a radar area line chart as per attached image. I have the following questions:

    (a) How I can programmatically change the thickness of the displayed line?

    (b) How I can change the colour of each category line depending on the value, e.g. value =100 will be red, value =10 will be blue and so on.

    Regards,


    George
  2. Dimitar
    Admin
    Dimitar avatar
    1411 posts

    Posted 04 Jun 2014 Link to this post

    Hello George,

    Thank you for writing.

    1. You can change the line thickness and color by changing the BorderColor and BorderWidth properties:
    RadarLineSeries series = new RadarLineSeries();
    series.Spline = true;

    series.BorderColor = Color.DarkKhaki;
    series.BorderWidth = 5;

    2. If you want to change the grid lines color you can just set the grids ForeColor property:
    PolarGrid grid = this.radChartView1.Area.GetGrid<PolarGrid>();
    grid.ForeColor = Color.Red;

    However you cannot set different color for each line. In this case I want to suggest you to set some custom background to the chart:
    radChartView1.ChartElement.Image = Image.FromFile(@"C:\myImage.png");

    Please let me know if there is something else I can help you with.

    Regards,
    Dimitar
    Telerik
