Rad-Chart Custom legend problem

3 posts, 0 answers
  1. Akshay
    Akshay avatar
    11 posts
    Member since:
    Mar 2012

    Posted 18 Jun 2012 Link to this post

    Hi

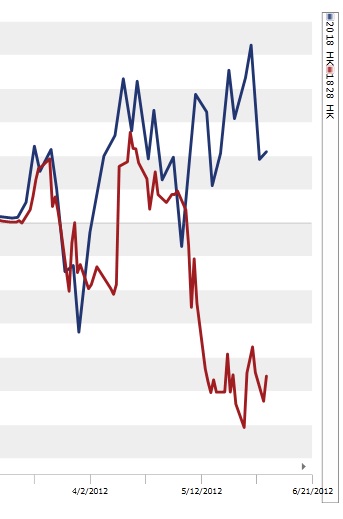

    In RadChart, I am using a cutom legend style. But I am facing certain issues in the UI. The border of the chart cuts through the labels on X-Axis.

    I am using the following style in legend.
    <LinearGradientBrush x:Key="LegendItemMarkerMask"
                            EndPoint="0.5,1"
                            StartPoint="0.5,0">
            <GradientStop Color="#D8FFFFFF"
                        Offset="0.009" />
            <GradientStop Color="#66FFFFFF"
                        Offset="1" />
            <GradientStop Color="Transparent"
                        Offset="0.43" />
            <GradientStop Color="#7FFFFFFF"
                        Offset="0.42" />
        </LinearGradientBrush>
        <SolidColorBrush x:Key="LegendForeground"
                        Color="#FF000000" />
        <LinearGradientBrush x:Key="LegendBackground"
                            EndPoint="1.96,0.5"
                            StartPoint="-0.96,0.5">
            <GradientStop Color="#FFFFFF" />
            <GradientStop Color="#FFFFFF"
                        Offset="0.5" />
        </LinearGradientBrush>
        <SolidColorBrush x:Key="LegendItemMarkerMaskOpacityMask"
                        Color="#FF000000" />
        <SolidColorBrush x:Key="LegendItemMarkerMaskStroke"
                        Color="White" />
        <System:Double x:Key="LegendItemMarkerMaskStrokeThickness">1</System:Double>
        <SolidColorBrush x:Key="LegendItemMarkerMask2"
                        Color="Transparent" />
        <Style x:Key="ChartLegendItemStyle"
            TargetType="telerik:ChartLegendItem">
            <Setter Property="Foreground"
                Value="{StaticResource LegendForeground}" />
            <Setter Property="Padding"
                Value="0,0,0,0" />
            <Setter Property="Margin"
                Value="0,0,0,0" />
            <Setter Property="Template">
                <Setter.Value>
                    <ControlTemplate TargetType="telerik:ChartLegendItem">
                        <Grid x:Name="PART_MainContainer"
                            Background="{TemplateBinding Background}"
                            HorizontalAlignment="Stretch"
                            VerticalAlignment="Top">
                            <Grid.ColumnDefinitions>
                                <ColumnDefinition Width="Auto"/>
                                <ColumnDefinition />
                            </Grid.ColumnDefinitions>

                            <VisualStateManager.VisualStateGroups>
                                <VisualStateGroup x:Name="HoverStates">
                                    <VisualState x:Name="Normal">
                                        <Storyboard>
                                            <DoubleAnimation Duration="0.00:00:00.15"
                                                            To="1.0"
                                                            Storyboard.TargetProperty="Opacity"
                                                            Storyboard.TargetName="PART_MainContainer" />
                                        </Storyboard>
                                    </VisualState>
                                    <VisualState x:Name="Hovered">
                                        <Storyboard>
                                            <DoubleAnimation Duration="0.00:00:00.15"
                                                            To="1.0"
                                                            Storyboard.TargetProperty="Opacity"
                                                            Storyboard.TargetName="PART_MainContainer" />
                                        </Storyboard>
                                    </VisualState>
                                    <VisualState x:Name="Hidden">
                                        <Storyboard>
                                            <DoubleAnimation Duration="0.00:00:00.15"
                                                            To="0.15"
                                                            Storyboard.TargetProperty="Opacity"
                                                            Storyboard.TargetName="PART_MainContainer" />
                                        </Storyboard>
                                    </VisualState>
                                </VisualStateGroup>
                                <VisualStateGroup x:Name="SelectionStates">
                                    <VisualState x:Name="Unselected" />
                                    <VisualState x:Name="Selected">
                                        <Storyboard>
                                            <ObjectAnimationUsingKeyFrames Duration="0.00:00:00.05"
                                                                        Storyboard.TargetProperty="Stroke"
                                                                        Storyboard.TargetName="PART_LegendItemMarker">
                                                <DiscreteObjectKeyFrame KeyTime="0.00:00:00.0">
                                                    <DiscreteObjectKeyFrame.Value>
                                                        <SolidColorBrush Color="#B2000000" />
                                                    </DiscreteObjectKeyFrame.Value>
                                                </DiscreteObjectKeyFrame>
                                            </ObjectAnimationUsingKeyFrames>
                                            <ObjectAnimationUsingKeyFrames Duration="0.00:00:00.05"
                                                                        Storyboard.TargetProperty="StrokeThickness"
                                                                        Storyboard.TargetName="PART_LegendItemMarker">
                                                <DiscreteObjectKeyFrame KeyTime="0.00:00:00.0">
                                                    <DiscreteObjectKeyFrame.Value>
                                                        <System:Double>2</System:Double>
                                                    </DiscreteObjectKeyFrame.Value>
                                                </DiscreteObjectKeyFrame>
                                            </ObjectAnimationUsingKeyFrames>
                                            <ObjectAnimationUsingKeyFrames Duration="0.00:00:00.05"
                                                                        Storyboard.TargetProperty="StrokeThickness"
                                                                        Storyboard.TargetName="PART_SelectedState">
                                                <DiscreteObjectKeyFrame KeyTime="0.00:00:00.0">
                                                    <DiscreteObjectKeyFrame.Value>
                                                        <System:Double>0</System:Double>
                                                    </DiscreteObjectKeyFrame.Value>
                                                </DiscreteObjectKeyFrame>
                                            </ObjectAnimationUsingKeyFrames>
                                        </Storyboard>
                                    </VisualState>
                                </VisualStateGroup>
                            </VisualStateManager.VisualStateGroups>
                            <Path x:Name="PART_LegendItemMarker"
                                Height="8"
                                Margin="{TemplateBinding Margin}"
                                Style="{TemplateBinding ItemStyle}"
                                Stretch="Fill"
                                StrokeThickness="{TemplateBinding MarkerStrokeThickness}"
                                Width="8">
                                <Path.Data>
                                    <PathGeometry x:Name="PART_ItemMarkerGeometry" />
                                </Path.Data>
                            </Path>
                            <Path x:Name="PART_SelectedState"
                                Fill="{StaticResource LegendItemMarkerMask}"
                                Height="8"
                                Margin="{TemplateBinding Margin}"
                                OpacityMask="{StaticResource LegendItemMarkerMaskOpacityMask}"
                                Stretch="Fill"
                                Stroke="{StaticResource LegendItemMarkerMaskStroke}"
                                StrokeThickness="{StaticResource LegendItemMarkerMaskStrokeThickness}"
                                Width="8">
                                <Path.Data>
                                    <PathGeometry x:Name="PART_ItemMarkerMaskGeometry" />
                                </Path.Data>
                            </Path>
                            <Path Fill="{StaticResource LegendItemMarkerMask2}"
                                Height="8"
                                Margin="{TemplateBinding Margin}"
                                Stretch="Fill"
                                Width="8">
                                <Path.Data>
                                    <PathGeometry x:Name="PART_ItemMarkerMaskGeometry2" />
                                </Path.Data>
                            </Path>
                            <TextBlock x:Name="PART_TextBlock"
                                    Grid.Column="1"
                                    Foreground="{TemplateBinding Foreground}"
                                    Margin="{TemplateBinding Margin}"
                                    Padding="{TemplateBinding Padding}"
                                    Text="{TemplateBinding Label}" />
                        </Grid>
                    </ControlTemplate>
                </Setter.Value>
            </Setter>
        </Style>

        <SolidColorBrush x:Key="LegendBorderBrush"
                        Color="#FF848484" />
        <Thickness x:Key="LegendBorderThickness">1</Thickness>
        <telerik:MarkerShape x:Key="LegendItemMarkerShape">SquareRounded</telerik:MarkerShape>
        <telerik:TextToVisibilityConverter x:Key="textToVisibilityConverter" />
        <Style x:Key="ChartLegendStyle"
            TargetType="telerik:ChartLegend">
            <Setter Property="Foreground"
                Value="{StaticResource LegendForeground}" />
            <Setter Property="Background"
                Value="{StaticResource LegendBackground}" />
            <Setter Property="Padding"
                Value="0,0,0,0" />
            <Setter Property="Margin"
                Value="0.2,0.2,0.2,0.2" />
            <Setter Property="BorderBrush"
                Value="{StaticResource LegendBorderBrush}" />
            <Setter Property="BorderThickness"
                Value="{StaticResource LegendBorderThickness}" />
            <Setter Property="HeaderFontWeight"
                Value="Bold" />
            <Setter Property="HorizontalContentAlignment"
                Value="Stretch" />
            <Setter Property="VerticalContentAlignment"
                Value="Stretch" />
            <Setter Property="LegendItemMarkerShape"
                Value="{StaticResource LegendItemMarkerShape}" />
            <Setter Property="Template">
                <Setter.Value>
                    <ControlTemplate TargetType="telerik:ChartLegend">
                        <Border BorderBrush="{TemplateBinding BorderBrush}"
                            BorderThickness="{TemplateBinding BorderThickness}"
                            Background="{TemplateBinding Background}">
                            <telerik:LayoutTransformControl>
                                <telerik:LayoutTransformControl.LayoutTransform>
                                    <RotateTransform Angle="90"/>
                                </telerik:LayoutTransformControl.LayoutTransform>

                                <Grid Margin="{TemplateBinding Padding}">
                                    <Grid.RowDefinitions>
                                        <RowDefinition Height="Auto" />
                                        <RowDefinition Height="*" />
                                    </Grid.RowDefinitions>
                                    <ContentControl ContentTemplate="{TemplateBinding HeaderTemplate}"
                                            Content="{TemplateBinding Header}"
                                            Foreground="{TemplateBinding Foreground}"
                                            FontWeight="{TemplateBinding HeaderFontWeight}" />
                                    <ItemsPresenter HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}"
                                                Grid.Row="1"
                                                VerticalAlignment="{TemplateBinding VerticalContentAlignment}" />
                                </Grid>
                            </telerik:LayoutTransformControl>
                        </Border>
                    </ControlTemplate>
                </Setter.Value>
            </Setter>
            <Setter Property="ItemsPanel">
                <Setter.Value>
                    <ItemsPanelTemplate>
                        <telerik:RadWrapPanel Orientation="{Binding ItemsPanelOrientation}" />
                    </ItemsPanelTemplate>
                </Setter.Value>
            </Setter>
            <Setter Property="HeaderTemplate">
                <Setter.Value>
                    <DataTemplate>
                        <Grid>
                            <TextBlock FontSize="7"
                                       HorizontalAlignment="Left"
                                       Height="Auto"
                                       Padding="0,0,0,0"
                                       TextWrapping="Wrap"
                                       Text="{Binding}"
                                       Visibility="{Binding Converter={StaticResource textToVisibilityConverter}}"
                                       Width="Auto" />
                            </Grid>
                    </DataTemplate>
                </Setter.Value>
            </Setter>
        </Style>

    Any pointers?
  2. Lancelot
    Lancelot avatar
    251 posts
    Member since:
    Jul 2012

    Posted 20 Jun 2012 Link to this post

    Hi Akshay,

    I have run your template inside an example project and came up with a solution for you. The code is below uses your original Style and you can paste it directly in your app to test it for yourself.

    What I have done is create two Grid.ColumnDefinitions and assigned the Chart legend to the second column. You can set the column width explicitly, to *,  or Auto. I have set the second column definition's width to 30px for demonstration purposes to show that UI elements (if set to Stretch) will not overlap into another column. Then, I placed the chart legend into that column and the chart into the first column. If you follow my example you should not experience the problem any longer.

    Good Luck,
    Lancelot
