Problme with RadGrid databinding on host

4 posts, 0 answers
  1. حمید
    حمید avatar
    13 posts
    Member since:
    Dec 2015

    Posted 26 Apr Link to this post

    Hi Telerik

    I have radgrid that client binding to WCF (Ajax-enabled) service . that's fine work on locally but on host has problme and can't show data .

    please help me . i tired to do it ..

    thanks.



    <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="Default.aspx.cs" Inherits="Default" %>

    <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

    <head runat="server">
        <title></title>
        <telerik:RadStyleSheetManager id="RadStyleSheetManager1" runat="server" />
    </head>
    <body>
        <form id="form1" runat="server">
        <telerik:RadScriptManager ID="RadScriptManager1" runat="server">
            <Scripts>
                <asp:ScriptReference Assembly="Telerik.Web.UI" Name="Telerik.Web.UI.Common.Core.js" />
                <asp:ScriptReference Assembly="Telerik.Web.UI" Name="Telerik.Web.UI.Common.jQuery.js" />
                <asp:ScriptReference Assembly="Telerik.Web.UI" Name="Telerik.Web.UI.Common.jQueryInclude.js" />
            </Scripts>
        </telerik:RadScriptManager>
        <telerik:RadAjaxManager ID="RadAjaxManager1" runat="server">
        </telerik:RadAjaxManager>
        <div>
               <telerik:RadGrid ID="gvProvince" runat="server" AllowMultiRowSelection="True" AllowFilteringByColumn="True">
                       <MasterTableView AutoGenerateColumns="False" AllowSorting="True" AllowPaging="True" DataKeyNames="ProvinceId" ClientDataKeyNames="ProvinceId" AllowAutomaticDeletes="True">
                            <PagerStyle Mode="NextPrevAndNumeric" />
                            <Columns>
                                <telerik:GridBoundColumn DataField="RowNumber" HeaderText="row" SortExpression="RowNumber" UniqueName="RowNumber" AllowFiltering="False"></telerik:GridBoundColumn>
                                <telerik:GridBoundColumn DataField="ProvinceId" HeaderText="Province Id" SortExpression="ProvinceId" UniqueName="ProvinceId" AllowFiltering="False"></telerik:GridBoundColumn>
                                <telerik:GridTemplateColumn DataField="ProvinceName" HeaderText="Province Name" SortExpression="ProvinceName" UniqueName="ProvinceName"  AllowFiltering="False">
                                    <HeaderStyle HorizontalAlign="Center" VerticalAlign="Middle" />
                                    <ItemStyle HorizontalAlign="Center" VerticalAlign="Middle" />
                                    <ClientItemTemplate>
                                        #=ProvinceName#
                                    </ClientItemTemplate>
                                </telerik:GridTemplateColumn>
                            </Columns>
                        </MasterTableView>
                        <ClientSettings AllowColumnsReorder="True" AllowDragToGroup="True" ReorderColumnsOnClient="True" EnableRowHoverStyle="True">
                            <DataBinding FilterParameterType="Linq" Location="~/App/Services/ProvinceService.svc" ResponseType="JSONP" SelectMethod="GetProvinces" SortParameterType="Linq">
                            </DataBinding>
                            <Selecting AllowRowSelect="True"></Selecting>
                        </ClientSettings>
                    </telerik:RadGrid>
        </div>
        </form>
    </body>
    </html>



    using System;
    using System.Collections.Generic;
    using System.Linq;
    using System.Runtime.Serialization;
    using System.ServiceModel;
    using System.ServiceModel.Activation;
    using System.ServiceModel.Web;
    using System.Text;
    using RadTest.Models;
    using Telerik.Web.UI;

    namespace RadTest.App.Services
    {
        public class ProvinceInformation
        {
            public int ProvinceId { get; set; }
            public string ProvinceName { get; set; }
        }

        [DataContract]
        public class ProvinceInfoService
        {
            [DataMember]
            public int RowNumber { get; set; }
            [DataMember]
            public int ProvinceId { get; set; }
            [DataMember]
            public string ProvinceName { get; set; }
        }
        public class ResultDataProvince
        {
            public int Count { get; set; }
            public List<ProvinceInfoService> Data { get; set; }
        }

        [ServiceContract(Namespace = "")]
        [AspNetCompatibilityRequirements(RequirementsMode = AspNetCompatibilityRequirementsMode.Allowed)]
        public class ProvinceService
        {
            [OperationContract]
            public ResultDataProvince GetProvinces(int startRowIndex, int maximumRows, string sortExpression, string filterExpression)
            {
                var row = startRowIndex;

                using (var db = new persianEntities())
                {
                    var lst = (from province in db.Provinces
                               select new ProvinceInformation()
                               {
                                   ProvinceId = province.ProvinceId,
                                   ProvinceName = province.ProvinceName
                               }
                        ).OrderBy(p => p.ProvinceId);
                    var data = RadGrid.GetBindingData(lst, startRowIndex, maximumRows, sortExpression, filterExpression);
                    var result = new ResultDataProvince();
                    result.Data = data.Data.Select(p => new ProvinceInfoService()
                    {
                        ProvinceId = p.ProvinceId,
                        ProvinceName = p.ProvinceName

                    }).ToList().Select(p => new ProvinceInfoService()
                    {
                        RowNumber = ++row,
                        ProvinceId = p.ProvinceId,
                        ProvinceName = p.ProvinceName
                    }).ToList();

                    result.Count = data.Count;
                    return result;
                }
            }

        }
    }



    <?xml version="1.0"?>
    <configuration>
      <configSections>
        <!-- For more information on Entity Framework configuration, visit http://go.microsoft.com/fwlink/?LinkID=237468 -->
        <section name="entityFramework" type="System.Data.Entity.Internal.ConfigFile.EntityFrameworkSection, EntityFramework, Version=6.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" requirePermission="false"/>
      </configSections>
      <appSettings>
        <add key="Telerik.Skin" value="Default"/>
        <add key="Telerik.ScriptManager.TelerikCdn" value="Disabled"/>
        <add key="Telerik.StyleSheetManager.TelerikCdn" value="Disabled"/>
        <add key="Telerik.Web.UI.RenderMode" value="lightweight"/>
      </appSettings>
      <system.web>
        <compilation debug="true" targetFramework="4.5"/>
        <httpRuntime targetFramework="4.5"/>
        <pages>
          <controls>
            <add tagPrefix="telerik" namespace="Telerik.Web.UI" assembly="Telerik.Web.UI"/>
          </controls>
        </pages>
        <httpHandlers>
          <add path="ChartImage.axd" type="Telerik.Web.UI.ChartHttpHandler" verb="*" validate="false"/>
          <add path="Telerik.Web.UI.SpellCheckHandler.axd" type="Telerik.Web.UI.SpellCheckHandler" verb="*" validate="false"/>
          <add path="Telerik.Web.UI.DialogHandler.aspx" type="Telerik.Web.UI.DialogHandler" verb="*" validate="false"/>
          <add path="Telerik.RadUploadProgressHandler.ashx" type="Telerik.Web.UI.RadUploadProgressHandler" verb="*" validate="false"/>
          <add path="Telerik.Web.UI.WebResource.axd" type="Telerik.Web.UI.WebResource" verb="*" validate="false"/>
        </httpHandlers>
      </system.web>
      <system.webServer>
        <validation validateIntegratedModeConfiguration="false"/>
        <handlers>
          <remove name="ChartImage_axd"/>
          <add name="ChartImage_axd" path="ChartImage.axd" type="Telerik.Web.UI.ChartHttpHandler" verb="*" preCondition="integratedMode"/>
          <remove name="Telerik_Web_UI_SpellCheckHandler_axd"/>
          <add name="Telerik_Web_UI_SpellCheckHandler_axd" path="Telerik.Web.UI.SpellCheckHandler.axd" type="Telerik.Web.UI.SpellCheckHandler" verb="*" preCondition="integratedMode"/>
          <remove name="Telerik_Web_UI_DialogHandler_aspx"/>
          <add name="Telerik_Web_UI_DialogHandler_aspx" path="Telerik.Web.UI.DialogHandler.aspx" type="Telerik.Web.UI.DialogHandler" verb="*" preCondition="integratedMode"/>
          <remove name="Telerik_RadUploadProgressHandler_ashx"/>
          <add name="Telerik_RadUploadProgressHandler_ashx" path="Telerik.RadUploadProgressHandler.ashx" type="Telerik.Web.UI.RadUploadProgressHandler" verb="*" preCondition="integratedMode"/>
          <remove name="Telerik_Web_UI_WebResource_axd"/>
          <add name="Telerik_Web_UI_WebResource_axd" path="Telerik.Web.UI.WebResource.axd" type="Telerik.Web.UI.WebResource" verb="*" preCondition="integratedMode"/>
        </handlers>
      </system.webServer>
      <system.serviceModel>
        <behaviors>
          <endpointBehaviors>
            <behavior name="RadTest.App.Services.ProvinceServiceAspNetAjaxBehavior">
              <enableWebScript/>
            </behavior>
          </endpointBehaviors>
        </behaviors>
        <serviceHostingEnvironment aspNetCompatibilityEnabled="true" multipleSiteBindingsEnabled="true"/>
        <services>
          <service name="RadTest.App.Services.ProvinceService">
            <endpoint address="" behaviorConfiguration="RadTest.App.Services.ProvinceServiceAspNetAjaxBehavior" binding="webHttpBinding" contract="RadTest.App.Services.ProvinceService"/>
          </service>
        </services>
      </system.serviceModel>
      <connectionStrings>
        <add name="persianEntities" connectionString="metadata=res://*/Models.Persian.csdl|res://*/Models.Persian.ssdl|res://*/Models.Persian.msl;provider=System.Data.SqlClient;provider connection string="data source=x.x.x.x;initial catalog=xx;user id=xx;password=xx;MultipleActiveResultSets=True;App=EntityFramework"" providerName="System.Data.EntityClient"/>
      </connectionStrings>
      <entityFramework>
        <providers>
          <provider invariantName="System.Data.SqlClient" type="System.Data.Entity.SqlServer.SqlProviderServices, EntityFramework.SqlServer"/>
        </providers>
      </entityFramework>
    </configuration>











  2. Viktor Tachev
    Admin
    Viktor Tachev avatar
    1488 posts

    Posted 28 Apr Link to this post

    Hi,

    Ensure that the Web Service can be accessed when the application is hosted. Open the browser console by pressing F12 and see if there are any errors listed there.

    If the data is not displayed it is likely that there are errors that can point to what should be modified in order to retrieve the data.

    Regards,
    Viktor Tachev
    Telerik
    Do you need help with upgrading your ASP.NET AJAX, WPF or WinForms projects? Check the Telerik API Analyzer and share your thoughts.
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. حمید
    حمید avatar
    13 posts
    Member since:
    Dec 2015

    Posted 28 Apr in reply to Viktor Tachev Link to this post

    Hi

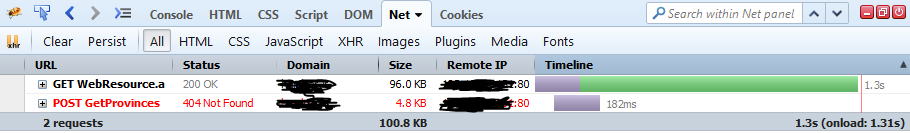

    I get this error



  5. Viktor Tachev
    Admin
    Viktor Tachev avatar
    1488 posts

    Posted 03 May Link to this post

    Hi,

    The error from the screenshot indicates that the GetProvinces method is not found. One possible reason for the error is an incorrect URL.

    Please check the error details for additional information. It will likely point to what is causing the issue.

    With that said, please note that configuring a Web Service and accessing the data from it is not related to our controls. Check out the following resources that address similar behavior.




    Regards,
    Viktor Tachev
    Telerik
    Do you need help with upgrading your ASP.NET AJAX, WPF or WinForms projects? Check the Telerik API Analyzer and share your thoughts.
