problem by raddock

5 posts, 0 answers
  1. ali
    ali avatar
    13 posts
    Member since:
    Dec 2010

    Posted 24 Feb 2011 Link to this post

    hi
    i locate raddock on form
    and add text to caption but i want set text align to right or center  not left
    i select image for raddock but not view image
    hot i select image as icon in raddock
  2. Emanuel Varga
    Emanuel Varga avatar
    1336 posts
    Member since:
    May 2010

    Posted 27 Feb 2011 Link to this post

    Hello Ali,

    Sadly i don't really understand what you want to accomplish here, can you please post some screenshots with the desired behavior?

    Best Regards,
    Emanuel Varga

    Telerik WinForms MVP
  3. UI for WinForms is Visual Studio 2017 Ready
  4. ali
    ali avatar
    13 posts
    Member since:
    Dec 2010

    Posted 27 Feb 2011 Link to this post

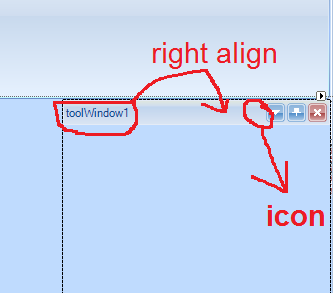

    i attached my screenshot for my question
  5. Emanuel Varga
    Emanuel Varga avatar
    1336 posts
    Member since:
    May 2010

    Posted 28 Feb 2011 Link to this post

    Hello ali,

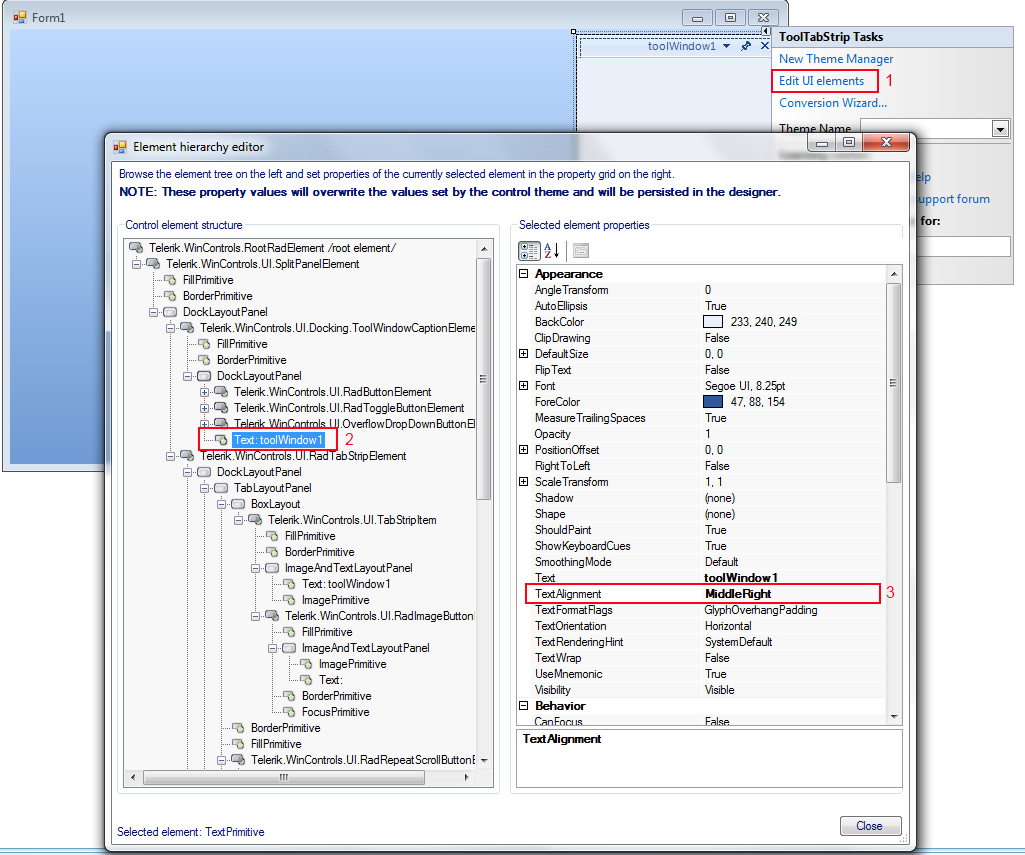

    If you want to do this from the designer, please take a look at the attached screenshot for the necessary steps.

    If you prefer doing it from code, please take a look at the following sample:
    private void SetTextAlignment(ToolTabStrip toolTabStrip, System.Drawing.ContentAlignment alignment)
    {
        var dockLayout = toolTabStrip.SplitPanelElement.Children[2] as DockLayoutPanel;
        var captionElement = dockLayout.Children[0] as ToolWindowCaptionElement;
        dockLayout = captionElement.Children[2] as DockLayoutPanel;
        var textPrimitive = dockLayout.Children[3] as TextPrimitive;

        textPrimitive.TextAlignment = alignment;
    }

    Hope this helps, if you have any other questions or comments, please let me know,

    Best Regards,
    Emanuel Varga
    Telerik WinForms MVP
  6. Richard Slade
    Richard Slade avatar
    3000 posts
    Member since:
    May 2009

    Posted 28 Feb 2011 Link to this post

    Hi Guys,

    There is an issue with the code here. It will be fine when initially seen, but if you try to drag the ToolWindow to a different position then the Text Alignment will reset back to the original value. I'd suggest a slightly different approach which will work for all dock positions (apart from floating).

    Please consider the following

    designer
    namespace RadControlsWinFormsApp1
    {
        partial class Form1
        {
            /// <summary>
            /// Required designer variable.
            /// </summary>
            private System.ComponentModel.IContainer components;

            /// <summary>
            /// Clean up any resources being used.
            /// </summary>
            /// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
            protected override void Dispose(bool disposing)
            {
                if (disposing && (components != null))
                {
                    components.Dispose();
                }
                base.Dispose(disposing);
            }

            #region Windows Form Designer generated code

            /// <summary>
            /// Required method for Designer support - do not modify
            /// the contents of this method with the code editor.
            /// </summary>
            private void InitializeComponent()
            {
                this.radDock1 = new Telerik.WinControls.UI.Docking.RadDock();
                this.documentContainer1 = new Telerik.WinControls.UI.Docking.DocumentContainer();
                this.toolWindow1 = new Telerik.WinControls.UI.Docking.ToolWindow();
                this.toolTabStrip1 = new Telerik.WinControls.UI.Docking.ToolTabStrip();
                ((System.ComponentModel.ISupportInitialize)(this.radDock1)).BeginInit();
                this.radDock1.SuspendLayout();
                ((System.ComponentModel.ISupportInitialize)(this.documentContainer1)).BeginInit();
                ((System.ComponentModel.ISupportInitialize)(this.toolTabStrip1)).BeginInit();
                this.toolTabStrip1.SuspendLayout();
                this.SuspendLayout();
                //
                // radDock1
                //
                this.radDock1.ActiveWindow = this.toolWindow1;
                this.radDock1.Controls.Add(this.documentContainer1);
                this.radDock1.Controls.Add(this.toolTabStrip1);
                this.radDock1.Dock = System.Windows.Forms.DockStyle.Fill;
                this.radDock1.DocumentManager.DocumentInsertOrder = Telerik.WinControls.UI.Docking.DockWindowInsertOrder.InFront;
                this.radDock1.IsCleanUpTarget = true;
                this.radDock1.Location = new System.Drawing.Point(0, 0);
                this.radDock1.MainDocumentContainer = this.documentContainer1;
                this.radDock1.Name = "radDock1";
                this.radDock1.Padding = new System.Windows.Forms.Padding(5);
                //
                //
                //
                this.radDock1.RootElement.MinSize = new System.Drawing.Size(25, 25);
                this.radDock1.Size = new System.Drawing.Size(541, 419);
                this.radDock1.SplitterWidth = 4;
                this.radDock1.TabIndex = 0;
                this.radDock1.TabStop = false;
                this.radDock1.Text = "radDock1";
                this.radDock1.TransactionCommitted += new Telerik.WinControls.UI.Docking.RadDockTransactionEventHandler(this.radDock1_TransactionCommitted);
                //
                // documentContainer1
                //
                this.documentContainer1.Location = new System.Drawing.Point(5, 5);
                this.documentContainer1.Name = "documentContainer1";
                //
                //
                //
                this.documentContainer1.RootElement.MinSize = new System.Drawing.Size(25, 25);
                this.documentContainer1.Size = new System.Drawing.Size(327, 409);
                this.documentContainer1.SizeInfo.SizeMode = Telerik.WinControls.UI.Docking.SplitPanelSizeMode.Fill;
                this.documentContainer1.SplitterWidth = 4;
                this.documentContainer1.TabIndex = 0;
                this.documentContainer1.TabStop = false;
                //
                // toolWindow1
                //
                this.toolWindow1.Location = new System.Drawing.Point(1, 24);
                this.toolWindow1.Name = "toolWindow1";
                this.toolWindow1.Size = new System.Drawing.Size(198, 383);
                this.toolWindow1.Text = "toolWindow1";
                //
                // toolTabStrip1
                //
                this.toolTabStrip1.Controls.Add(this.toolWindow1);
                this.toolTabStrip1.Location = new System.Drawing.Point(336, 5);
                this.toolTabStrip1.Name = "toolTabStrip1";
                //
                //
                //
                this.toolTabStrip1.RootElement.MinSize = new System.Drawing.Size(25, 25);
                this.toolTabStrip1.SelectedIndex = 0;
                this.toolTabStrip1.Size = new System.Drawing.Size(200, 409);
                this.toolTabStrip1.TabIndex = 1;
                this.toolTabStrip1.TabStop = false;
                //
                // Form1
                //
                this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 13F);
                this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
                this.ClientSize = new System.Drawing.Size(541, 419);
                this.Controls.Add(this.radDock1);
                this.Name = "Form1";
                this.Text = "Form1";
                this.Load += new System.EventHandler(this.Form1_Load);
                ((System.ComponentModel.ISupportInitialize)(this.radDock1)).EndInit();
                this.radDock1.ResumeLayout(false);
                ((System.ComponentModel.ISupportInitialize)(this.documentContainer1)).EndInit();
                ((System.ComponentModel.ISupportInitialize)(this.toolTabStrip1)).EndInit();
                this.toolTabStrip1.ResumeLayout(false);
                this.ResumeLayout(false);

            }

            #endregion

            private Telerik.WinControls.UI.Docking.RadDock radDock1;
            private Telerik.WinControls.UI.Docking.ToolWindow toolWindow1;
            private Telerik.WinControls.UI.Docking.DocumentContainer documentContainer1;
            private Telerik.WinControls.UI.Docking.ToolTabStrip toolTabStrip1;
        }
    }

    Form1.cs
    using System;
    using System.Collections.Generic;
    using System.ComponentModel;
    using System.Data;
    using System.Drawing;
    using System.Linq;
    using System.Text;
    using System.Windows.Forms;
    using Telerik.WinControls.UI.Docking;
    using Telerik.WinControls.Layouts;
    using Telerik.WinControls.Primitives;
    using Telerik.WinControls.UI;


    namespace RadControlsWinFormsApp1
    {
        public partial class Form1 : Form
        {
            public Form1()
            {
                InitializeComponent();
            }

            private void Form1_Load(object sender, EventArgs e)
            {
                this.SetTextAlignment(this.toolWindow1, ContentAlignment.MiddleRight);
            }

            private void SetTextAlignment(ToolWindow window, System.Drawing.ContentAlignment alignment)
            {
                 ((TextPrimitive)(window.DockTabStrip as ToolTabStrip).CaptionElement.Children[2].Children[3]).TextAlignment = alignment;
            }

            private void radDock1_TransactionCommitted(object sender, RadDockTransactionEventArgs e)
            {
                if (e.Transaction.AssociatedWindows.Count > 0)

                    if (e.Transaction.AssociatedWindows[0] is ToolWindow)
                    {
                        if (e.Transaction.AssociatedWindows[0].DockState != DockState.Hidden)

                            this.SetTextAlignment((ToolWindow)e.Transaction.AssociatedWindows[0], ContentAlignment.MiddleRight);

                    }
                }
            }

        }
    }

    I will also look at at floating state, and if I can address your question regarding the image. In the meantime, please let me know if you have any questions
    Richard
