PointShape is not available

Thread is closed for posting
3 posts, 0 answers
  1. Senthil
    Senthil avatar
    4 posts
    Member since:
    Oct 2011

    Posted 22 Nov 2011 Link to this post

    I've a telerik chart created in .xaml file and trying to set the Pointshape property to Diamond. But I don't see this property available for chart control. Am I missing something?

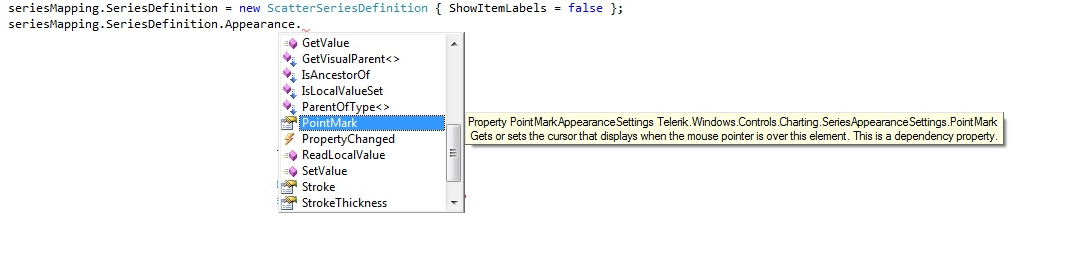

    Attached picture shows the available properties
  2. Senthil
    Senthil avatar
    4 posts
    Member since:
    Oct 2011

    Posted 22 Nov 2011 Link to this post

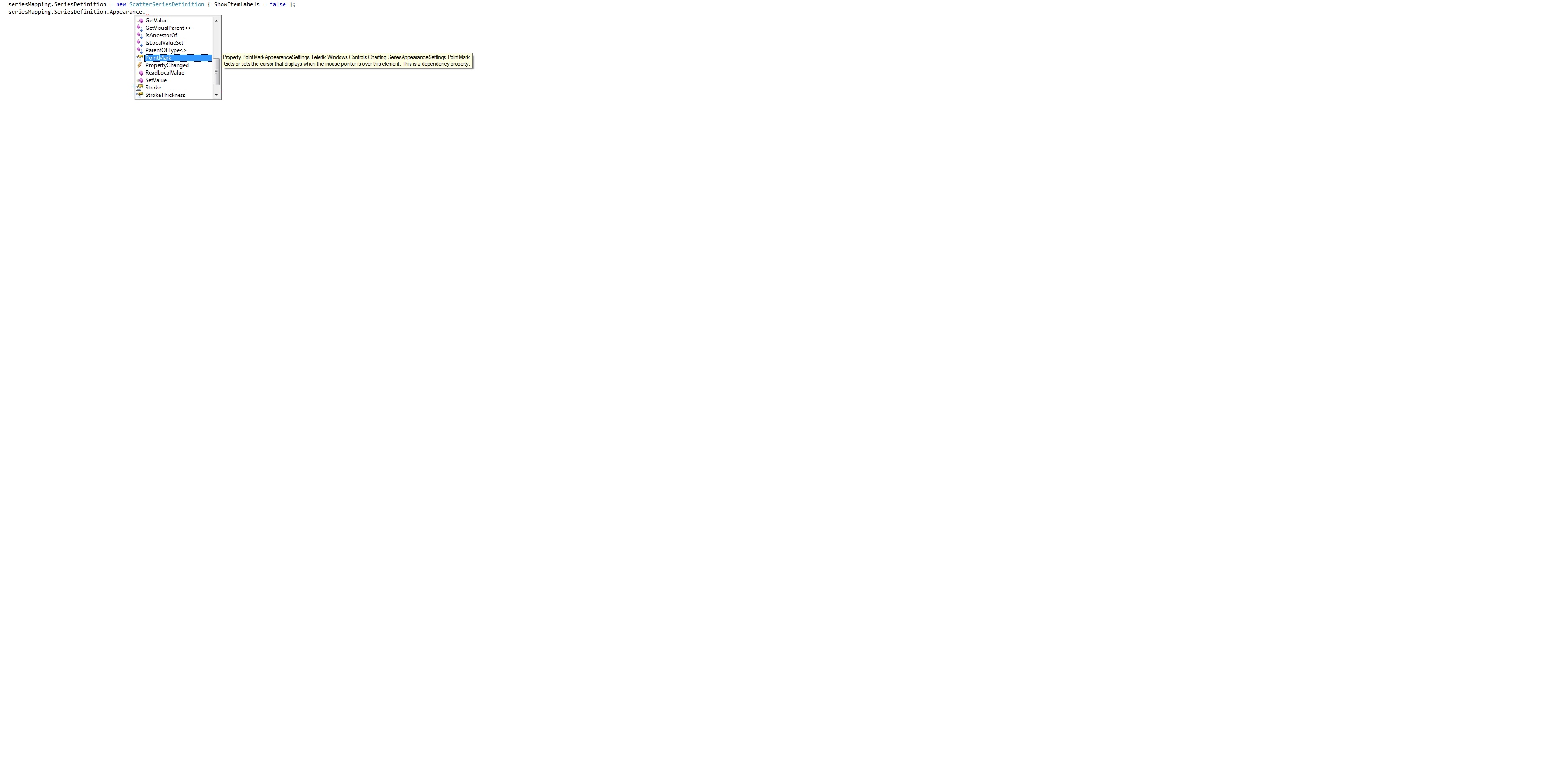

    Here is the screenshot of available properties for seriesDefinition.

  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Petar Marchev
    Admin
    Petar Marchev avatar
    968 posts

    Posted 25 Nov 2011 Link to this post

    Hello Senthil,

    To change the default Shape of a PointMark you can do this:
    seriesDefinition.Appearance.PointMark.Shape = Telerik.Windows.Controls.Charting.MarkerShape.Diamond;

    There is no PointShape property in our Silverlight chart. There is such a property in our chart for asp.net ajax.

    You can read about the features of the silverlight RadChart here.

    Greetings,
    Petar Marchev
    the Telerik team
