Placement of items on timeline

5 posts, 0 answers
  1. Barry
    Barry avatar
    90 posts
    Member since:
    Jul 2011

    Posted 06 Mar 2012 Link to this post

    I've just started using the timeline control, which is just what we've been wanting... but my question is: I have a lot of items being displayed on the timeline and it seems that these items are restricted to 5 lines/rows. I have the timeline control taking up half of the view so there is a lot more space (lines/rows) that the timeline could use to display the data, but it puts all items on the first 5 lines/rows. Is there any way to get the timeline to use all available space when laying out the items? When displaying a lot of data it would keep a lot of the items from overlapping.

    I've seen examples with more than 5 lines/rows, I just don't know how to get there...
  2. Tsvetie
    Admin
    Tsvetie avatar
    1517 posts

    Posted 06 Mar 2012 Link to this post

    Hello Barry,

    First of all, let me explain how the timeline orders the items - the items are sorted by StartDate first and then by Duration. Then, every item is positioned using the following logic - in case there is space for the item in the first row, it is positioned in the first row; if not, the item checks is there is space in the second row to show without overlapping other items; and so on. That is why, in case your items do not overlap, all will be positioned in the first row. In your particular case, five rows are enough in order to show all items and that is why, the timeline orders the items only in five rows. The basic idea behind this ordering, is that the items are displayed as close to the time line as possible.

    Currently, there is no easy way to influence the positioning algorithm but we are always looking for customer feedback. Can you explain you idea in greater detail - how do you expect the items to be positioned? It will be great if you can send us a couple of screenshots, demonstrating your idea as well.

    Greetings,
    Tsvetie
    the Telerik team
    Sharpen your .NET Ninja skills! Attend Q1 webinar week and get a chance to win a license! Book your seat now >>
  3. DevCraft banner
  4. Barry
    Barry avatar
    90 posts
    Member since:
    Jul 2011

    Posted 12 Mar 2012 Link to this post

    Tsvetie,

    What you say about the items being placed on the same row if they don't overlap only seems to hold true on certain zoom levels. When I populate data in my timeline and I zoom in to a weekly or daily view then the data is fine, nothing really overlaps. But when I scale back to a monthly view the data bunches up and overlaps in several places - and I don't even have a lot of data in the control. I guess that it could be all right... if users want to see the detail then they have to zoom in, but it seems like if the items are going to overlap they should be pushed to another row when the control zooms - but then you may end up having way too many rows if  you have a lot of data, so I don't know what the answer would be.

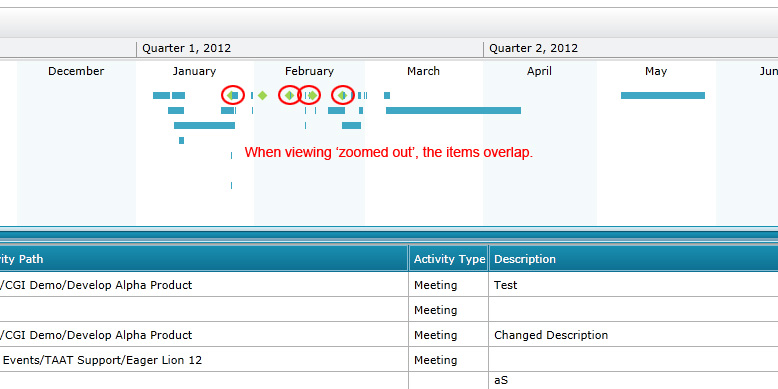

    Attached is a screenshot of the overlapping in the monthly view...
