Pass parameters to SignalR read method

10 posts, 1 answers
  1. Bernd
    Bernd avatar
    53 posts
    Member since:
    Feb 2013

    Posted 28 Jun Link to this post

    Hi all.

    I am looking for a way to pass filter criteria to my read method. E.g. the resource list, the startdate and the end date.
    There is a thread solving this for a SignalR bound grid. But I don't see how to do it with the scheduler

    Any ideas?

    Kind regards

    Bernd

  2. Answer
    Vladimir Iliev
    Admin
    Vladimir Iliev avatar
    2172 posts

    Posted 29 Jun Link to this post

    Hello,

    Currently we have no such example which we can provide, however the same approach can be used for the Scheduler as both widgets share same base DataSource. If you need to send additional parameters than you can define custom "ParameterMap" function and extend the "MyDataSourceRequest" object on the server side to include the desired additional parameters. Please check the example below:

    Custom ParameterMap:
    .Transport(tr => tr
        .ParameterMap("customParameterMap")
        .Promise("hubStart")

    function customParameterMap(data) {

        if (operation === "read") {
            var scheduler = $("#scheduler").data("kendoScheduler");
            var result = {
                start: scheduler.view().startDate(),
                end: scheduler.view().endDate(),
                //example filter:
                filter: {
                    "logic": "and",
                    "filters": [{
                        "logic": "and",
                        "filters": [{
                            "field": "RoomID",
                            "operator": "eq",
                            "value": 10
                        }]
                    }]
                }
            }
            return result;
        }

        return data;
    }

    Server side:
    //Extending the MyDataSourceRequest from Kendo DynamicLinq:
    public class MyDataSourceRequestExtended : MyDataSourceRequest
    {
        public DateTime start { get; set; }
        public DateTime end { get; set; }
    }


    public DataSourceResult Read(MyDataSourceRequestExtended request)
    {
        return taskService.Read()
            //fiter the events by the provided start / end times
            .Where(t => (t.Start >= request.start || t.Start <= request.start) && t.Start <= request.end && t.End >= request.start && (t.End >= request.end || t.End <= request.end) || t.RecurrenceRule != null)
            //apply the other filters
            .ToDataSourceResult(request.Take, request.Skip, request.Sort, request.Filter, request.Aggregates);
    }

    Regards,
    Vladimir Iliev
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  3. UI for ASP.NET MVC is VS 2017 Ready
  4. Bernd
    Bernd avatar
    53 posts
    Member since:
    Feb 2013

    Posted 29 Jun Link to this post

    Dear Vladimir.

    Besides the missing operation parameter in your function customParameterMap this works.

    Thank you
    Bernd

  5. Bernd
    Bernd avatar
    53 posts
    Member since:
    Feb 2013

    Posted 30 Jun in reply to Vladimir Iliev Link to this post

    Dear Vladimir.

    Having managed to submit the parameters I now get an exception.

    "Uncaught TypeError: Cannot read property 'getTimezoneOffset' of undefined"

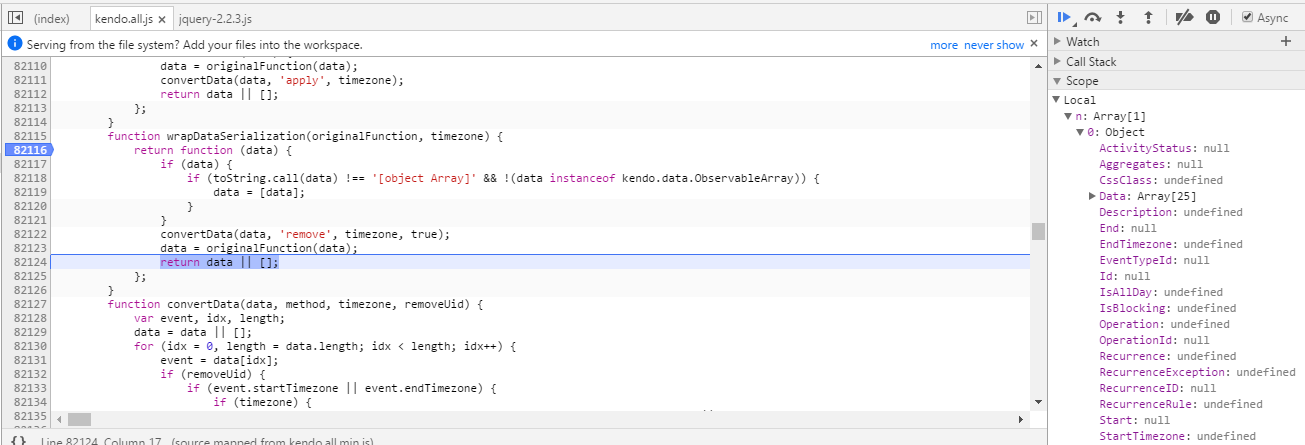

    It seems the returned data isn't parsed correctly. As you can see in the attached screenshot the model contains a field "Data" which contains my 25 events and the other fields are not initialized.

    Most probably my scheduler configuration is wrong, but I don't see what could be wrong.

    01.@(Html.Kendo().Scheduler<CalendarEventViewModel>()
    02.    .Name(componentName: "scheduler")
    03.    .Date(DateTime.Today)
    04.    .Height(height: 800)
    05.    .AllDaySlot(allDaySlot: false)
    06.    .Views(views => {
    07.        views.DayView(v => v.Selected(isSelected: true));
    08.        views.WeekView();
    09.        views.WorkWeekView();
    10.        views.AgendaView();
    11.    })
    12.    .Editable(editable => { editable.TemplateName(name: "CalendarEventEditorTemplate"); })
    13.    .Timezone("Etc/UTC")
    14.    .Events(e => {
    15.        e.Save(handler: "onSchedulerSave");
    16.        e.Edit(handler: "onSchedulerEdit");
    17.        e.MoveStart(handler: "onSchedulerMoveStart");
    18.        e.MoveEnd(handler: "onSchedulerMoveEnd");
    19.        e.ResizeStart(handler: "onSchedulerResizeStart");
    20.        e.ResizeEnd(handler: "onSchedulerResizeEnd");
    21.        e.DataBound(handler: "onSchedulerDataBound");
    22.    })
    23.    .Group(g => g.Resources(names: "Resources"))
    24.    .Resources(res => {
    25.        res.Add(m => m.WorkplaceId)
    26.        .Name(value: "Resources")
    27.        .Title(this.LocalResources(key: "Resources.Title"))
    28.        .DataTextField(field: "Text")
    29.        .DataValueField(field: "Value")
    30.        .DataColorField(field: "Color")
    31.        .DataSource(ds => ds.Read(read => read.Route(ResourceControllerRoute.GetRead, new RouteValueDictionary { { "culture", UICulture.ToLower() } }))); })
    32.    .DataSource(ds => ds
    33.            .SignalR()
    34.            .AutoSync(enabled: true)
    35.            .ServerFiltering(enabled: true)
    36.            .ServerPaging(enabled: true)
    37.            .Events(ev => ev.Push(handler: "onPush"))
    38.            .Transport(tr => tr
    39.                .ParameterMap(handler: "addSchedulerParameters")
    40.                .Promise(handler: "hubStart")
    41.                .Hub(handler: "schedulerHub")
    42.                .Client(c => c
    43.                    .Read(method: "readRanged")
    44.                    .Create(method: "create")
    45.                    .Update(method: "update")
    46.                    .Destroy(method: "destroy"))
    47.                .Server(s => s
    48.                    .Read(method: "readRanged")
    49.                    .Create(method: "create")
    50.                    .Update(method: "update")
    51.                    .Destroy(method: "destroy"))
    52.            )
    53.            .Schema(schema => schema
    54.                .Model(m => {
    55.                    m.Id(f => f.Id);
    56.                    m.Field(f => f.WorkplaceId);
    57.                    m.Field(f => f.Start);
    58.                    m.Field(f => f.End);
    59.                    m.Field(f => f.IsAllDay);
    60.                    m.Field(f => f.Title).DefaultValue(this.LocalResources(key: "OperationViewModel.Title.DefaultValue"));
    61.                    m.Field(f => f.RecurrenceRule);
    62.                    m.Field(f => f.Description);
    63.                    //m.RecurrenceId(f => f.Recurrence);
    64.                })
    65.            )
    66.            .Events(e => e.Error(handler: "error_handler"))
    67.    ).Deferred()
    68.)

    Any ideas what's wrong here?

    Regards

    Bernd

  6. Vladimir Iliev
    Admin
    Vladimir Iliev avatar
    2172 posts

    Posted 01 Jul Link to this post

    Hello Bernd,

    When you modify the response format you should modify the DataSource "Schema.Data" option which tells in which field of the response the records are held. Please check the example below:


    .Schema(schema => schema
        .Data("Data")
        .Total("Total")

    Regards,
    Vladimir Iliev
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  7. Bernd
    Bernd avatar
    53 posts
    Member since:
    Feb 2013

    Posted 01 Jul in reply to Vladimir Iliev Link to this post

    Thank you for your fast reply.

    The array is now converted. But the error is still the same. The debugger shows me the property names are PascalCase in the model. How can I tell the widget or the MVC wrapper to map the properties correctly?

  8. Vladimir Iliev
    Admin
    Vladimir Iliev avatar
    2172 posts

    Posted 04 Jul Link to this post

    Hi Bernd,

    This is a bit strange - the MVC wrapper should automatically map the the server model properties to the one required by the Scheduler. Could you please provide runable example where the issue is reproduced? This would help us pinpoint the exact reason for current behavior.

    Regards,
    Vladimir Iliev
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  9. Bernd
    Bernd avatar
    53 posts
    Member since:
    Feb 2013

    Posted 04 Jul in reply to Vladimir Iliev Link to this post

    Hi Vladimir.

    You already have one. Your own example.

    Now I know why you used

    model.Field("start", typeof(DateTime)).From("Start");

    in your example instead of just

    model.Field("Start");

    Would be nice if the MVC wrapper could handle this automagically as I expect it from using the ajax version. Maybe there is a difference in handlig

    Kind regards

    Bernd

  10. Vladimir Iliev
    Admin
    Vladimir Iliev avatar
    2172 posts

    Posted 05 Jul Link to this post

    Hello Bernd,

    Apologize that I missed this in the previously provided code samples - the SignalR builder inherits from the CustomDataSource builder and therefor it requires manually describing the field mapping. I would suggest to share your idea at KendoUI UserVoice to allow other users vote for it. Most voted ideas are included in next Kendo UI releases.

    Regards,
    Vladimir Iliev
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  11. Bernd
    Bernd avatar
    53 posts
    Member since:
    Feb 2013

    Posted 05 Jul in reply to Vladimir Iliev Link to this post

    Done: http://kendoui-feedback.telerik.com/forums/127393-kendo-ui-feedback/suggestions/15083931-signalr-map-the-required-scheduler-properties-in
