asked on 13 Jan 2014, 08:58 PM
Hi,

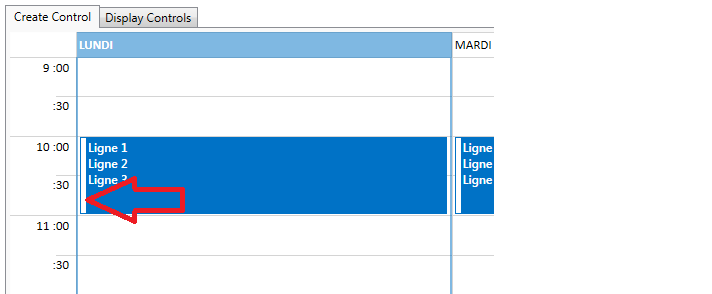

I create a custom data template for my appointments and I always have a vertical white bar at the left of each cell (picture enclosed). I would like to know if it's possible to remove it.
Thank's
Alain
I create a custom data template for my appointments and I always have a vertical white bar at the left of each cell (picture enclosed). I would like to know if it's possible to remove it.
Thank's
Alain
3 Answers, 1 is accepted
0
Hi Alain,
This is the default appearance of Appointments and it is intended by design. However you will be able to remove that line by modifying the AppointmentItem vertical and horizontal ControlTemplates, which are needed for the ViewDefinitions with a different orientation. You will need to move the border named PART_TimeMarker right above the rectangle named ReadOnlyVisual. I'm attaching a sample project which demonstrates the exact approach, I have done also some other arrangements of the elements in the template in order to align them correctly.
Hope this helps.
Regards,
Kalin
Telerik
This is the default appearance of Appointments and it is intended by design. However you will be able to remove that line by modifying the AppointmentItem vertical and horizontal ControlTemplates, which are needed for the ViewDefinitions with a different orientation. You will need to move the border named PART_TimeMarker right above the rectangle named ReadOnlyVisual. I'm attaching a sample project which demonstrates the exact approach, I have done also some other arrangements of the elements in the template in order to align them correctly.
Hope this helps.
Regards,
Kalin
Telerik
TRY TELERIK'S NEWEST PRODUCT - EQATEC APPLICATION ANALYTICS for WPF.
Learn what features your users use (or don't use) in your application. Know your audience. Target it better. Develop wisely.
Sign up for Free application insights >>
Learn what features your users use (or don't use) in your application. Know your audience. Target it better. Develop wisely.
Sign up for Free application insights >>
0
Christie Admin
Top achievements
Rank 1
Rank 1
answered on 08 Apr 2014, 09:05 PM
Hi Kalin,
since you last post, with the new version of Telerik, can we acheive this simply by using a property?
Thank's
Alain
since you last post, with the new version of Telerik, can we acheive this simply by using a property?
Thank's
Alain
0
Hi ,
We have no plans to implement such a property as the desired appearance can be easily achieved by modifying the AppointmentItem Template as demonstrated in the sample project from my previous post.
If you have any other questions let us know.
Regards,
Kalin
Telerik
We have no plans to implement such a property as the desired appearance can be easily achieved by modifying the AppointmentItem Template as demonstrated in the sample project from my previous post.
If you have any other questions let us know.
Regards,
Kalin
Telerik
