not display bus icon when runtime

Thread is closed for posting
3 posts, 0 answers
  1. Park
    Park avatar
    39 posts
    Member since:
    Sep 2010

    Posted 04 Feb 2012 Link to this post

    hi

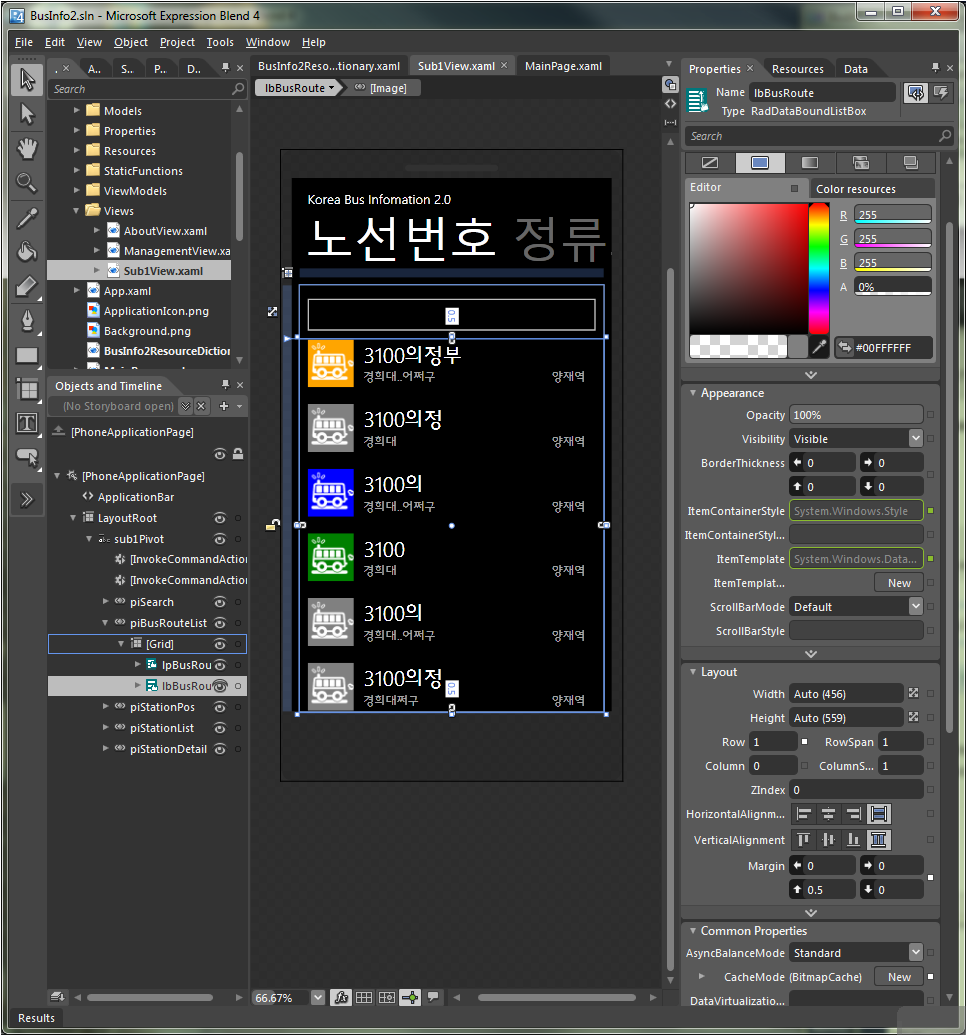

    display bus icon when design-time (look at att picture)

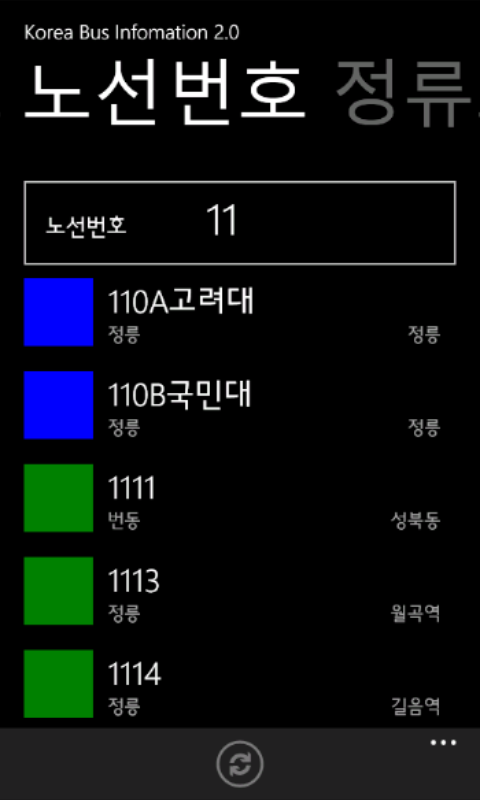

    but, run time it is not display
    what problem?

    <phone:PhoneApplicationPage
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:phone="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone"
        xmlns:shell="clr-namespace:Microsoft.Phone.Shell;assembly=Microsoft.Phone"
        xmlns:controls="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone.Controls"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:i="clr-namespace:System.Windows.Interactivity;assembly=System.Windows.Interactivity"
     xmlns:telerikPrimitives="clr-namespace:Telerik.Windows.Controls;assembly=Telerik.Windows.Controls.Primitives"
        xmlns:telerikDataControls="clr-namespace:Telerik.Windows.Controls;assembly=Telerik.Windows.Controls.Data"
        xmlns:kaki104_PhoneClassLibrary_Converters="clr-namespace:kaki104.PhoneClassLibrary.Converters;assembly=kaki104.PhoneClassLibrary"
        xmlns:telerik="clr-namespace:Telerik.Windows.Controls;assembly=Telerik.Windows.Core"
        xmlns:telerikInput="clr-namespace:Telerik.Windows.Controls;assembly=Telerik.Windows.Controls.Input"
        xmlns:bar="clr-namespace:BindableApplicationBar;assembly=BindableApplicationBar"
        x:Class="BusInfo2.Views.Sub1View"
        mc:Ignorable="d" d:DesignWidth="480" d:DesignHeight="728"
        SupportedOrientations="PortraitOrLandscape"  Orientation="Portrait"
        shell:SystemTray.IsVisible="False">

     <phone:PhoneApplicationPage.Resources>
      <kaki104_PhoneClassLibrary_Converters:RouteTypeToNameConverter x:Key="RouteTypeToNameConverter"/>
      <kaki104_PhoneClassLibrary_Converters:StationTpToTextConverter x:Key="StationTpToTextConverter"/>
     </phone:PhoneApplicationPage.Resources>
     <phone:PhoneApplicationPage.FontFamily>
      <StaticResource ResourceKey="KakiPhoneFontFamilyNormal"/>
     </phone:PhoneApplicationPage.FontFamily>

        <bar:Bindable.ApplicationBar>
            <bar:BindableApplicationBar >
             <bar:BindableApplicationBar.MenuItems>
              <bar:BindableApplicationBarMenuItem Text="결과목록 삭제" Command="{Binding DeleteCommand, Mode=OneWay}"  />
             </bar:BindableApplicationBar.MenuItems>
                <bar:BindableApplicationBarButton Text="새로고침"
                                                  IconUri="/Images/appbar.refresh.rest.png"
                                                  IsEnabled="{Binding IsRefresh, Mode=TwoWay, UpdateSourceTrigger=Explicit}"
                                                  Command="{Binding RefreshCommand, Mode=OneWay}" />
            </bar:BindableApplicationBar>
        </bar:Bindable.ApplicationBar>
        <!--Panorama-based applications should not show an ApplicationBar-->
     <phone:PhoneApplicationPage.FontSize>
      <StaticResource ResourceKey="PhoneFontSizeNormal"/>
     </phone:PhoneApplicationPage.FontSize>
     <phone:PhoneApplicationPage.Foreground>
      <StaticResource ResourceKey="PhoneForegroundBrush"/>
     </phone:PhoneApplicationPage.Foreground>
     <phone:PhoneApplicationPage.DataContext>
      <Binding Path="Sub1" Source="{StaticResource Locator}"/>
     </phone:PhoneApplicationPage.DataContext>
     <Grid x:Name="LayoutRoot">

      <controls:Pivot x:Name="sub1Pivot" Title="{Binding LocalizedResources.AppMainTitleLable, Source={StaticResource LocalizedStrings}}" FontFamily="{StaticResource KakiPhoneFontFamilyNormal}">
       <i:Interaction.Triggers>
        <i:EventTrigger EventName="SelectionChanged">
         <i:InvokeCommandAction Command="{Binding SelectionChangedCommand, Mode=OneWay}" CommandParameter="{Binding ElementName=sub1Pivot, Mode=OneWay}"/>
        </i:EventTrigger>
        <i:EventTrigger>
         <i:InvokeCommandAction Command="{Binding SelectionChangedCommand, Mode=OneWay}" CommandParameter="{Binding ElementName=sub1Pivot}"/>
        </i:EventTrigger>
       </i:Interaction.Triggers>

       <!--Panorama item one-->
       <controls:PivotItem x:Name="piSearch" Header="검색">
        <Grid>
         <Grid.RowDefinitions>
          <RowDefinition Height="Auto" MinHeight="31"/>
          <RowDefinition Height="Auto" MinHeight="70"/>
          <RowDefinition Height="Auto" MinHeight="41"/>
          <RowDefinition/>
         </Grid.RowDefinitions>
         <StackPanel d:LayoutOverrides="Height">
          <TextBlock Text="통합 검색" Style="{StaticResource KakiPhoneTextLargeStyle}" Margin="21,0,0,21"/>
          <TextBlock TextWrapping="Wrap" Text="노선번호로 검색시 숫자 2 ~ 4 자리를 입력, 정류소번호로 검색시 숫자 5자리만 입력, 정류소명칭 검색시 문자 2자리 이상 입력" Style="{StaticResource KakiPhoneTextMediumStyle}" Margin="21,0,0,21"/>
         </StackPanel>
         <StackPanel Orientation="Horizontal" Grid.Row="1">
          <TextBox TextWrapping="Wrap" Text="{Binding SSearchText, Mode=TwoWay}" Width="382" Height="72" Margin="0,0,0,-2"/>
          <Button Width="72" Height="72">
           <Button.Background>
            <ImageBrush ImageSource="/BusInfo2;component/Images/appbar.feature.search.rest.png" Stretch="None"/>
           </Button.Background>

           <i:Interaction.Triggers>
            <i:EventTrigger EventName="Click">
             <i:InvokeCommandAction Command="{Binding SearchCommand, Mode=OneWay}"/>
            </i:EventTrigger>
           </i:Interaction.Triggers>

          </Button>
         </StackPanel>
         <TextBlock TextWrapping="Wrap" Text="현재 설정된 지역은 서울 입니다." Grid.Row="2" Margin="8,21,0,21" Style="{StaticResource KakiPhoneTextSubtleStyle}"/>
         <telerikPrimitives:RadDataBoundListBox x:Name="lbSearchData" Grid.Row="3" EmptyContent="" ItemTemplate="{StaticResource RecentDataTemplate}" ItemsSource="{Binding SearchDataCollection}">
          <i:Interaction.Triggers>
           <i:EventTrigger EventName="ItemTap">
            <i:InvokeCommandAction Command="{Binding ItemTapCommand, Mode=OneWay}" CommandParameter="{Binding ElementName=lbSearchData}"/>
           </i:EventTrigger>
          </i:Interaction.Triggers>
         </telerikPrimitives:RadDataBoundListBox>
        </Grid>
       </controls:PivotItem>

       <controls:PivotItem x:Name="piBusRouteList" Header="노선번호">
        <Grid>
         <Grid.RowDefinitions>
          <RowDefinition Height="Auto"/>
          <RowDefinition />
         </Grid.RowDefinitions>
         <telerikInput:RadListPicker x:Name="lpBusRoute" VerticalAlignment="Stretch" ItemsSource="{Binding SearchBusRouteCollection}"
                                            PopupHeader="노선번호 검색기록" BorderThickness="2" ItemTemplate="{StaticResource RecentDataTemplate}" Style="{StaticResource RadListPickerStyle}">
          <i:Interaction.Triggers>
           <i:EventTrigger EventName="SelectionChanged">
            <i:InvokeCommandAction Command="{Binding SelectionChangedCommand, Mode=OneWay}" CommandParameter="{Binding ElementName=lpBusRoute}"/>
           </i:EventTrigger>
          </i:Interaction.Triggers>
         </telerikInput:RadListPicker>
         <telerikPrimitives:RadDataBoundListBox x:Name="lbBusRoute" ItemsSource="{Binding BusVM.BusRouteCollection}" EmptyContent="검색된 결과가 없습니다." ItemTemplate="{StaticResource BusRouteDataTemplate}" Margin="0,0.5,0,0" Grid.Row="1" ItemContainerStyle="{StaticResource TouchItemContainerStyle1}" CacheMode="BitmapCache">
          <i:Interaction.Triggers>
           <i:EventTrigger EventName="ItemTap">
            <i:InvokeCommandAction Command="{Binding ItemTapCommand, Mode=OneWay}" CommandParameter="{Binding ElementName=lbBusRoute}"/>
           </i:EventTrigger>
          </i:Interaction.Triggers>
         </telerikPrimitives:RadDataBoundListBox>
        </Grid>
       </controls:PivotItem>
       <controls:PivotItem x:Name="piStationPos" Header="정류소&amp;위치">
        <Grid>
         <Grid.RowDefinitions>
          <RowDefinition Height="Auto" />
          <RowDefinition/>
         </Grid.RowDefinitions>

         <telerikInput:RadListPicker x:Name="lpStationPos" VerticalAlignment="Stretch" ItemsSource="{Binding BusVM.BusRouteHistoryCollection}"
                                            PopupHeader="노선번호 검색기록" BorderThickness="2" ItemTemplate="{StaticResource BusRouteDataTemplate}" Style="{StaticResource RadListPickerStyle}">
          <i:Interaction.Triggers>
           <i:EventTrigger EventName="SelectionChanged">
            <i:InvokeCommandAction Command="{Binding SelectionChangedCommand, Mode=OneWay}" CommandParameter="{Binding ElementName=lpStationPos}"/>
           </i:EventTrigger>
          </i:Interaction.Triggers>
         </telerikInput:RadListPicker>

         <telerikPrimitives:RadDataBoundListBox x:Name="lbStationPos" Grid.Row="1" EmptyContent="검색된 결과가 없습니다." ItemsSource="{Binding BusVM.StationBusPosCollection}"
          ItemTemplate="{StaticResource StationPosDataTemplate}">
          <i:Interaction.Triggers>
           <i:EventTrigger EventName="ItemTap">
            <i:InvokeCommandAction Command="{Binding ItemTapCommand, Mode=OneWay}" CommandParameter="{Binding ElementName=lbStationPos}"/>
           </i:EventTrigger>
          </i:Interaction.Triggers>
         </telerikPrimitives:RadDataBoundListBox>
        </Grid>
       </controls:PivotItem>
       <controls:PivotItem x:Name="piStationList" Header="정류소명칭">
        <Grid>
         <Grid.RowDefinitions>
          <RowDefinition Height="Auto" MinHeight="118"/>
          <RowDefinition/>
         </Grid.RowDefinitions>

         <telerikInput:RadListPicker x:Name="lpStationName" VerticalAlignment="Stretch" ItemsSource="{Binding SearchStationNameCollection}"
                                            PopupHeader="정류소명칭 검색기록" BorderThickness="2" ItemTemplate="{StaticResource RecentDataTemplate}" Style="{StaticResource RadListPickerStyle}">
          <i:Interaction.Triggers>
           <i:EventTrigger EventName="SelectionChanged">
            <i:InvokeCommandAction Command="{Binding SelectionChangedCommand, Mode=OneWay}" CommandParameter="{Binding ElementName=lpStationName}"/>
           </i:EventTrigger>
          </i:Interaction.Triggers>
         </telerikInput:RadListPicker>

         <telerikPrimitives:RadDataBoundListBox x:Name="lbStationName" EmptyContent="검색된 결과가 없습니다." ItemsSource="{Binding BusVM.StationNameCollection}" ItemTemplate="{StaticResource StationNameDataTemplate}" Grid.Row="1">
          <i:Interaction.Triggers>
           <i:EventTrigger EventName="ItemTap">
            <i:InvokeCommandAction Command="{Binding ItemTapCommand, Mode=OneWay}" CommandParameter="{Binding ElementName=lbStationName}"/>
           </i:EventTrigger>
          </i:Interaction.Triggers>
         </telerikPrimitives:RadDataBoundListBox>
        </Grid>
       </controls:PivotItem>

       <!--Panorama item two-->
       <controls:PivotItem x:Name="piStationDetail" Header="정류소상세">
        <Grid>
         <Grid.RowDefinitions>
          <RowDefinition Height="Auto" MinHeight="110"/>
          <RowDefinition  />
         </Grid.RowDefinitions>

         <telerikInput:RadListPicker x:Name="lpStationDetail" ItemTemplate="{StaticResource StationDetailHeaderDataTemplate}"
          ItemsSource="{Binding BusVM.StationHistoryCollection}" Style="{StaticResource RadListPickerStyle}"
          PopupHeader="정류소 조회 기록" BorderThickness="2" Height="Auto">
          <i:Interaction.Triggers>
           <i:EventTrigger EventName="SelectionChanged">
            <i:InvokeCommandAction Command="{Binding SelectionChangedCommand, Mode=OneWay}" CommandParameter="{Binding ElementName=lpStationDetail}"/>
           </i:EventTrigger>
          </i:Interaction.Triggers>
         </telerikInput:RadListPicker>

         <telerikPrimitives:RadDataBoundListBox x:Name="lbStationDetail" Grid.Row="1" EmptyContent="검색된 결과가 없습니다."
                                                                 ItemsSource="{Binding BusVM.StationNoCollection}" ItemTemplate="{StaticResource StationNoRouteDataTemplate}" >
          <telerikPrimitives:RadContextMenu.ContextMenu>
           <telerikPrimitives:RadContextMenu Opening="RadContextMenu_Opening">
            <telerikPrimitives:RadContextMenuItem Content="즐겨찾기 추가" Command="{Binding AddFavoriteCommand, Mode=OneWay}" CommandParameter="{Binding RelativeSource={RelativeSource Self}}"/>
           </telerikPrimitives:RadContextMenu>
          </telerikPrimitives:RadContextMenu.ContextMenu>
         </telerikPrimitives:RadDataBoundListBox>
        </Grid>
       </controls:PivotItem>
      </controls:Pivot>


        </Grid>

    </phone:PhoneApplicationPage>



     <!--서브1,노선번호,버스노선 데이터 템플릿-->
     <DataTemplate x:Key="BusRouteDataTemplate">
                <Grid x:Name="TemplateLayoutRoot" MinWidth="430">
                    <Grid.ColumnDefinitions>
                        <ColumnDefinition Width="72"/>
                        <ColumnDefinition />
                    </Grid.ColumnDefinitions>
                 <Border Margin="0,0,3,0" Background="{Binding RouteType, Converter={StaticResource RouteTypeToColorConverter}}" Width="72" >
                  <Image Source="Images/icon99.png" />
                 </Border>
                 <StackPanel Grid.Column="1">
                  <TextBlock Text="{Binding BusRouteNm}" Style="{StaticResource KakiPhoneTextLargeStyle}"/>
                  <Grid >
                   <TextBlock Text="{Binding StartStationNm}" Style="{StaticResource KakiPhoneTextSubtleStyle}" HorizontalAlignment="Left"/>
                   <TextBlock Text="{Binding EndStationNm}" Style="{StaticResource KakiPhoneTextSubtleStyle}" HorizontalAlignment="Right" />
                  </Grid>
                 </StackPanel>
                </Grid>
     </DataTemplate>


  2. Park
    Park avatar
    39 posts
    Member since:
    Sep 2010

    Posted 07 Feb 2012 Link to this post

    Troubleshooting

    Change the path of the image file to try to resolve the binding

    <Image Source="Images/icon99.png" />
    to
    <Image Source="/BusInfo2;component/Images/icon99.png"/>

    The exact reason is unknown
    Perhaps the item template at run time in the interior will not find the path to the image equals
  3. Iestyn
    Iestyn avatar
    3 posts
    Member since:
    Jul 2012

    Posted 12 Apr 2012 Link to this post

    Hi

    sorry I'm a bit late to this but is your image Build action set as content or resource?
