Not able to see the kendo editor icon when deployed application on cloude

3 Answers 216 Views
Editor
This is a migrated thread and some comments may be shown as answers.
Mark
Top achievements
Rank 1
Mark asked on 17 Sep 2014, 11:46 AM
I have implemented Kendo Editor(MVC) in my application.Its working fine
on the local.But as When I upload my application on Cloude (Windows
Azure) I am not able to see tools ICON images.Please check with attached
Image.
I also Verified with Sprite.png but its exists on Cloude ,Still issue occurs.Here is below my code.


Layout.cshtml :
  @Styles.Render("~/bundles/KendoCss")
  @Scripts.Render("~/bundles/KendoJs")



Bundle.config :
  bundles.Add(new StyleBundle("~/bundles/KendoCss").Include(
                 "~/Styles/Kendo/kendo.common.min.css",
                  "~/Styles/Kendo/kendo.bootstrap.min.css",
                   "~/Styles/Kendo/kendo.dataviz.min.css",
                   "~/Styles/Kendo/kendo.dataviz.default.min.css"
                ));
            bundles.Add(new ScriptBundle("~/bundles/KendoJs").Include(
                  "~/Scripts/Kendo/kendo.all.min.js",
                            "~/Scripts/Kendo/kendo.web.min.js"


Editor.cshtml :
        @(Html.Kendo().EditorFor(m => m.Header)
          .HtmlAttributes(new { style = "width: 100%;height:Auto;" })
                   .Tools(tools => tools
                .Clear()
                .Bold().Italic().Underline().Strikethrough()
                .JustifyLeft().JustifyCenter().JustifyRight().JustifyFull()
                .InsertUnorderedList().InsertOrderedList()
                .Outdent().Indent()
                .CreateLink().Unlink()
                .InsertImage()
                .InsertFile()
                .SubScript()
                .SuperScript()
                .TableEditing()
                .ViewHtml()
                .Formatting()
                .FontName()
                .FontSize()
                .FontColor().BackColor()
              )
                      .Encode(false)
        )

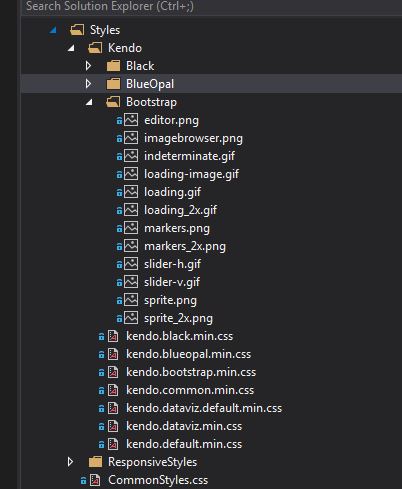

Also Please checked with attached folder structure and Output image.

3 Answers, 1 is accepted

Sort by
0
Mark
Top achievements
Rank 1
answered on 18 Sep 2014, 07:37 AM
It was an css image path issue on cloude.I resolved it.
I made change in Kendo.Bootstrap.min.css for the Sprite.png path.
Thanks
0
Thomas
Top achievements
Rank 1
answered on 14 Jul 2015, 06:44 AM

Hi,

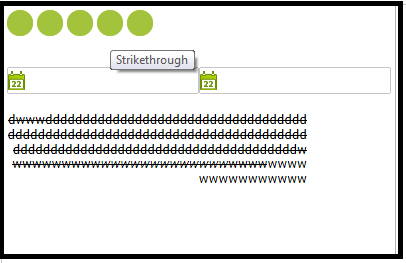

I am unable to view the bold,italics in my kendo editor. May I know th possible reasons for the same. Kindly check the image attached

0
Alex Gyoshev
Telerik team
answered on 16 Jul 2015, 06:49 AM

Hello Thomas,

Can you reproduce the problem in the online demos? If not, please provide a sample that shows the problem. You can check the browser developer tools' network panel to check what image path is requested.

Regards,
Alex Gyoshev
Telerik
