Not able to re-size a diagram shape above 10000

4 posts, 0 answers
  1. Jeevan
    Jeevan avatar
    5 posts
    Member since:
    Jan 2014

    Posted 05 May 2014 Link to this post

    Hi

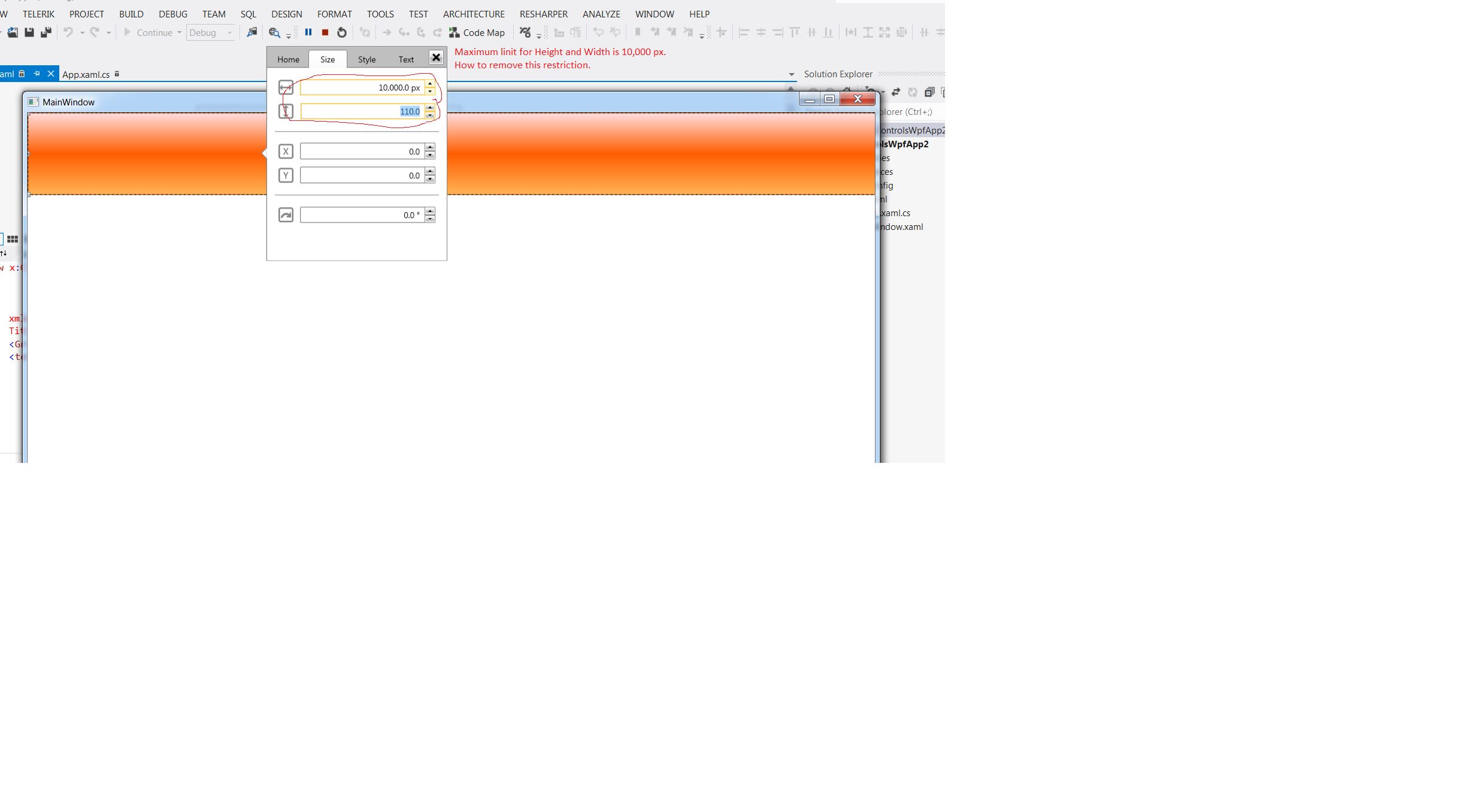

    We are using Diagram control and have Diagramshape inside this control. Now when we try to re-size this shape using SettingsPane the maximum width and height of the shape can reach only up to 10,000 and does not go beyond that.
    Is there some way by which we can get rid of any restriction on the size of diagramshape using SettingsPane.

    Regards
    JC
  2. Petar Mladenov
    Admin
    Petar Mladenov avatar
    2891 posts

    Posted 06 May 2014 Link to this post

    Hello Jeevan,

    We have set this limitation for performance purposes. If you set very big width / height to a Shape (which might happen by mistake , fast type in SettingsPane) the application might freeze. This issue actaully can be reproduced with setting big width / height to a Path which has StrokeDashArray set to "1 0".

    Could you please elaborate a bit more on your scenario ? Do you really need to set Sizes bigger than 10000 x 10000 ?

    Regards,
    Petar Mladenov
    Telerik
