Navigator plotting issue

7 posts, 0 answers
  1. Chance
    Chance avatar
    12 posts
    Member since:
    Mar 2014

    Posted 01 Aug 2014 Link to this post

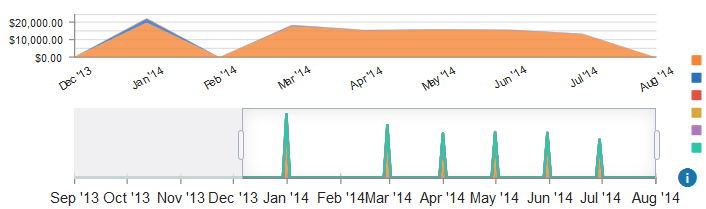

    I have a stock chart that renders fine but the navigator graph does not match the main graph.

    Both charts share the same series data.

    The navigator seems to want to draw the graph by days rather than months and does not connect the plot points.

    I have tried "missingValues: interpolate" but I only want the missing days to be handled and any missing months should go to zero on the valueAxis.

    I have also played with the "baseUnit, baseUnitStep and autoBaseUnitSteps" but these only seem to affect the categoryAxis not the way the draw is rendered.

    This is a stacked area chart and I want the navigator to match the main chart.

    Any ideas on what I am doing wrong?
  2. Chance
    Chance avatar
    12 posts
    Member since:
    Mar 2014

    Posted 01 Aug 2014 Link to this post

    Forgot to mention there is ONLY month data no days...
  3. Kendo UI is VS 2017 Ready
  4. Chance
    Chance avatar
    12 posts
    Member since:
    Mar 2014

    Posted 01 Aug 2014 Link to this post

    I figured it out!
    There was some existing code in the schema.parse setting zero value totals to null... oops.

    Here is my navigator settings for monthly plotting points in case it helps someone else:

    navigator: {
                           seriesDefaults: {
                               missingValues: "interpolate"
                           },
                           series: series,
                           pane: {
                               height: 50
                           },
                           select: {
                               from: beginDateRange,
                               to: endDateRange
                           },
                           categoryAxis: {
                              baseUnit: "months"
                          }
                       }



  5. Chance
    Chance avatar
    12 posts
    Member since:
    Mar 2014

    Posted 01 Aug 2014 Link to this post

    Ok I do have a question after all:
         How do I prevent the chart tooltip from showing the daily range values when sliding the navigator selector?

    I only want month increments not daily, the chart reflects this; just not the tooltip when sliding the navigator selector.

    Thanks in advance.
  6. T. Tsonev
    Admin
    T. Tsonev avatar
    2770 posts

    Posted 04 Aug 2014 Link to this post

    Hello,

    The tooltip format can be set to display only the months through navigator.hint.format:
          navigator: {
            hint: {
              format: "{0:MMM yyyy}"
            }
          }

    -- Live demo --

    We intend to make this redundant in future versions by automatically adjusting the hint format to the navigator range.

    Regards,
    T. Tsonev
    Telerik

    Join us on our journey to create the world's most complete HTML 5 UI Framework - download Kendo UI now!

  7. Chance
    Chance avatar
    12 posts
    Member since:
    Mar 2014

    Posted 04 Aug 2014 in reply to T. Tsonev Link to this post

    Thanks - missed that bit of documentation.
    I am showing quarterly data on default (3 months) and the end user can change the range, so I used the following formatting:

    format: "{0:MMM yyyy} - {1:MMM yyyy}"

    Working nicely now (I had just hid the hint via CSS) - thanks again.
  8. T. Tsonev
    Admin
    T. Tsonev avatar
    2770 posts

    Posted 05 Aug 2014 Link to this post

    Hi,

    You're welcome. I'm glad this helped.

    Regards,
    T. Tsonev
    Telerik

    Join us on our journey to create the world's most complete HTML 5 UI Framework - download Kendo UI now!
