Multiview calendar show 1 full year help needed

6 posts, 1 answers
  1. Josh
    Josh avatar
    23 posts
    Member since:
    Feb 2011

    Posted 25 Mar 2011 Link to this post

    Hey all,

    I have a multiview calendar that has 6 columns and 2 rows and I need to show January as the first month and December as the last month (for any selected year). I have set the rangemin to January 1st (selected year) and the rangemax to December 31st (selected year), however this does not cause January to be the first month, the first month is whatever the current month is (in this case March). So I tried setting the focusdate to January 1st (selected year) and that works, however it causes the calendar to look like January 1st is selected, which causes confusion because the user is looking at all of their scheduled working days for the year. I've tried to reset the focusdate to another date (that is a working day, thereby "hiding" the focusdate) within the selected year and that seems to work, however it seems like a workaround and I'm wondering if there is a better way to do what I'm doing.

    I would think there is an easy way to set the first/last displayed month without having to set the focusdate. If anyone knows how to do this please let me know.

    Also, how do I get rid of the border around today's date?

    Thanks!

    edit: Tried this, CalendarElement.Calendar.DefaultView.ViewStartDate = "1/1/" & GoalYear but that doesn't work either.

    edit2: The above code allows me to click on the calendar header and then I can see that "View" and select it, however I need it auto selected of course

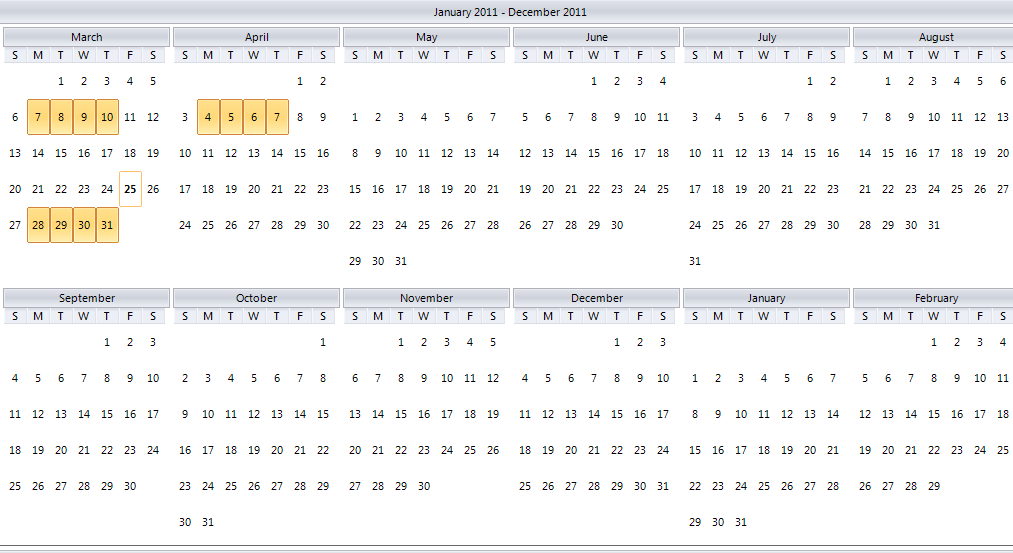

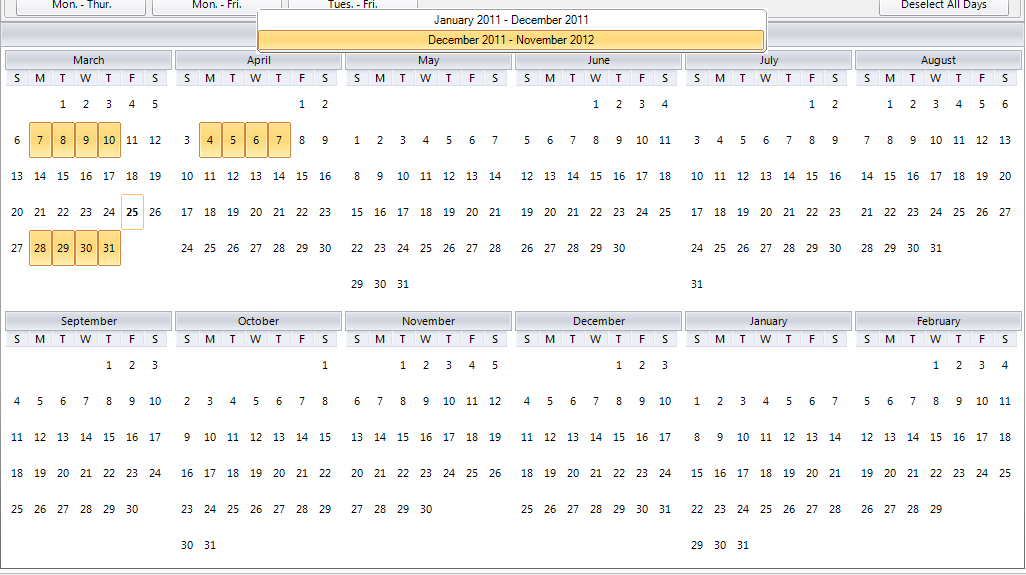

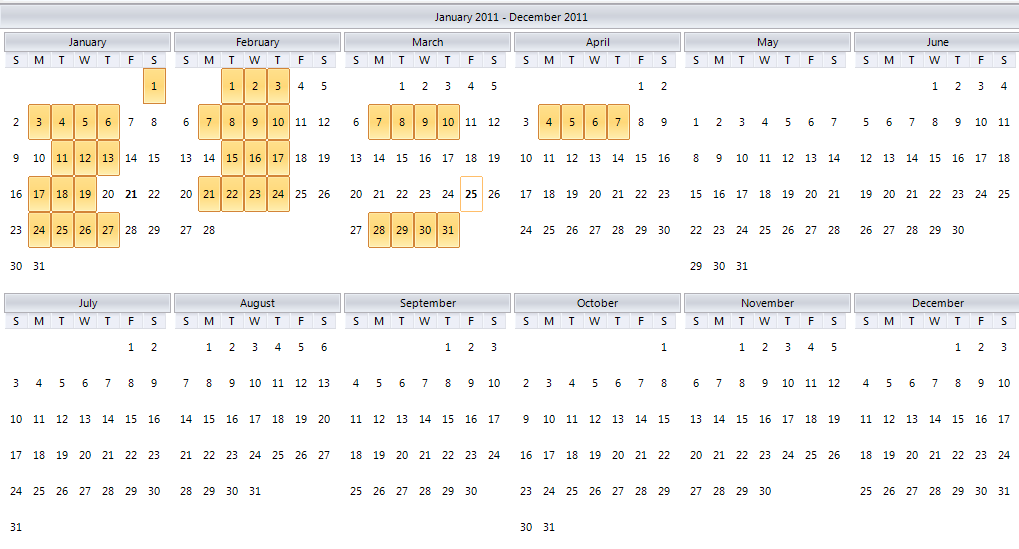

    edit3: Ok, I'm seeing really weird behavior. I'm attaching 3 screenshots to show, but basically when the form loads the header says "January 2011-December 2011", however the calendar's start at March 2011 (screenshot 1). When I click on the header I get 2? view options, "January 2011-December 2011" and "December 2011-November 2012" (screenshot 2). If I select "January 2011-December 2011" (which is what I want it to load as) then the result is screenshot 3, which is correct.
  2. Josh
    Josh avatar
    23 posts
    Member since:
    Feb 2011

    Posted 25 Mar 2011 Link to this post

    Here is the code I'm using:





    For Each oPageView As UI.RadPageViewPage In rpvProducers.Pages









    Dim oucProducerGoal As ucProducerGoals = oPageView.Controls("ucProducerGoals")





    oucProducerGoal.calWorkingDays.SelectedDates.Clear()



    oucProducerGoal.calWorkingDays.CalendarElement.Calendar.DefaultView.ViewStartDate =



    "1/1/" & GoalYear





    oucProducerGoal.calWorkingDays.CalendarElement.Calendar.DefaultView.ViewEndDate =



    "12/31/" & GoalYear





    oucProducerGoal.calWorkingDays.FocusedDate =



    "1/1/" & GoalYear





    oucProducerGoal.calWorkingDays.RangeMinDate =



    "1/1/" & GoalYear





    oucProducerGoal.calWorkingDays.RangeMaxDate =



    "12/31/" & GoalYear





    oucProducerGoal.txtDailyGoal.Text = FormatCurrency(0)



    cdvGoalDays.RowFilter =



    "GoalID = '" & cdvGoals(0)("GoalID").ToString & "' And PersonID = '" & oPageView.Tag.ToString & "'"







    If cdvGoalDays.Count > 0 Then



    cdvProduction.RowFilter =



    "ProducerID = '" & oPageView.Tag.ToString & "' And Date >= '1/1/" & GoalYear & " 00:00:00' And Date <= '12/13/" & GoalYear & " 23:59:59'"



    oucProducerGoal.txtDailyGoal.Text = FormatCurrency(cdvGoalDays(0)(



    "DailyGoal"))









    Dim dteWorkDays(cdvProduction.Count - 1) As Date







    Dim iDays As Integer = 0









    For Each drvProduction As DataRowView In cdvProduction





    dteWorkDays(iDays) = drvProduction(



    "Date")





    iDays += 1







    'oucProducerGoal.calWorkingDays.SelectedDate = drvProduction("Date")







    'oucProducerGoal.calWorkingDays.FocusedDate = drvProduction("Date")







    'Application.DoEvents()







    'oucProducerGoal.calWorkingDays.Refresh()







    Next







    'oucProducerGoal.calWorkingDays.FocusedDate = dteWorkDays(0)



    oucProducerGoal.calWorkingDays.SelectedDates.AddRange(dteWorkDays)

    oucProducerGoal.calWorkingDays.Refresh()





    End If







    Next



  3. UI for WinForms is Visual Studio 2017 Ready
  4. Emanuel Varga
    Emanuel Varga avatar
    1336 posts
    Member since:
    May 2010

    Posted 26 Mar 2011 Link to this post

    Hello,

    The property you should use is CurrentViewColumn, you can read more about these properties here.
    VB code:
    Private Function GetCalendarForYear(year As Integer) As RadCalendar
        Dim calendar = New RadCalendar()
        calendar.AllowMultipleView = True
        calendar.MultiViewColumns = 6
        calendar.MultiViewRows = 2
        calendar.RangeMinDate = New DateTime(year, 1, 1)
        calendar.RangeMaxDate = New DateTime(year, 12, 31)
        Dim today = DateTime.Now
        Dim colForCurrentDate = If(today.Month <= 6, today.Month - 1, today.Month - 7)
        Dim rowForCurrentDate = If(today.Month <= 6, 0, 1)
        calendar.CurrentViewColumn = colForCurrentDate
        calendar.CurrentViewRow = rowForCurrentDate
        Return calendar
    End Function

    C# code:
    private RadCalendar GetCalendarForYear(int year)
    {
        var calendar = new RadCalendar();
        calendar.AllowMultipleView = true;
        calendar.MultiViewColumns = 6;
        calendar.MultiViewRows = 2;
        calendar.RangeMinDate = new DateTime(year, 1, 1);
        calendar.RangeMaxDate = new DateTime(year, 12, 31);
        var today = DateTime.Now;
        var colForCurrentDate = today.Month <= 6 ? today.Month - 1 : today.Month - 7;
        var rowForCurrentDate = today.Month <= 6 ? 0 : 1;
        calendar.CurrentViewColumn = colForCurrentDate;
        calendar.CurrentViewRow = rowForCurrentDate;
        return calendar;
    }

    Basically you want that if the current month is <= 6 then the currentViewColumn should be the currentmonth - 1 and the row 0 or else the current view column should be current month - 7 and row 1.

    Hope this helps, if you have any other questions or comments, please let me know,

    Best Regards,
    Emanuel Varga

    Telerik WinForms MVP
  5. Josh
    Josh avatar
    23 posts
    Member since:
    Feb 2011

    Posted 26 Mar 2011 Link to this post

    Thanks Emanuel, still having problems though.

    So I made a test project and copied your code in, and it works when loading up 2011, but try sending 2010 in as the year. When I do that I get October 2010 - September 2011. No matter how I try changing the code I cannot get this to work so any additional help you can provide is greatly appreciated.

    Thanks!
  6. Answer
    Emanuel Varga
    Emanuel Varga avatar
    1336 posts
    Member since:
    May 2010

    Posted 28 Mar 2011 Link to this post

    Hello again Josh,

    If today is not in the desired interval you should set a focused date, here I've set the minimum date as the selected date.

    Private Function GetCalendarForYear(year As Integer) As RadCalendar
        Dim calendar = New RadCalendar()
        calendar.AllowMultipleView = True
        calendar.MultiViewColumns = 6
        calendar.MultiViewRows = 2
        calendar.RangeMinDate = New DateTime(year, 1, 1)
        calendar.RangeMaxDate = New DateTime(year, 12, 31)
        Dim today = DateTime.Now
        Dim colForCurrentDate As Integer = 0, rowForCurrentDate As Integer = 0
        If today.Year = year Then
            colForCurrentDate = If(today.Month <= 6, today.Month - 1, today.Month - 7)
            rowForCurrentDate = If(today.Month <= 6, 0, 1)
        Else
            calendar.FocusedDate = calendar.RangeMinDate
        End If

        calendar.CurrentViewColumn = colForCurrentDate
        calendar.CurrentViewRow = rowForCurrentDate
        Return calendar
    End Function

    Hope this helps, if you have any other questions or comments, please let me know,

    Best Regards,
    Emanuel Varga

    Telerik WinForms MVP
  7. Josh
    Josh avatar
    23 posts
    Member since:
    Feb 2011

    Posted 28 Mar 2011 Link to this post

    And there it is! Thanks so much Emanuel!
