Multiselect in MultiColumnComboBox

23 posts, 2 answers
  1. S
    S avatar
    16 posts
    Member since:
    Sep 2010

    Posted 01 Apr 2011 Link to this post

    Hi there @Telerik,
    I'm experiencing some troubles with the MultiColumnComboBox control.

    The following is my setup.
    1. I load lsits of small data transfer objects containing two fields: the name of an object and the selection state of this object (selected or not selected).
    2. In the nested RadGridView control I set AutoGenerateColumns to false and define two columns (one Checkbox column, which is editable, and one Texbox column, which is read-only). Both columns bind to the corresponding properties of the DTO.
    3. I bind the DataSource property of the MCCB control to one such list and the control displays the information properly.
    4. The nested RadGridView control has Multiselect set to true.

    Now the problems:
    1. Each click on a checkbox in the dropdown list closes the dropdown and does not let me check another field/row.
    2. The first click on a checkbox will not raise the ValueChanged event. The next click raises the event, but with the old value (the value
    prior the click).
    What I need ist to be able to multiselect checkboxes and then get their current values when the dropdown closes.

    What could be that wrong thing I'm doing, in order to get such musfunctioning?
    Please also advise how to workaround these problems.

    Many thanks in advance.

    Kind regards,
    Seilhardt Bogused
  2. Richard Slade
    Richard Slade avatar
    3000 posts
    Member since:
    May 2009

    Posted 01 Apr 2011 Link to this post

    Hello,

    As far as I'm aware, this is desired behavior. The RadMultiColumnCombo, like the RadDropDownList is expecting to have a single value selected which is why each click closes the drop down. In my view, you need to provide this functionality in a different control

    1: A RadListBox which allows for setting a selection mode of MultiSimple and MultiExtended. or...
    2: A RadGridView which will be the same functionality as you are looking to provide but without the drop down
    3: A RadTreeView with nodes at the same level and checkboxes turned on.

    Hope this helps
    Richard
  3. UI for WinForms is Visual Studio 2017 Ready
  4. S
    S avatar
    16 posts
    Member since:
    Sep 2010

    Posted 01 Apr 2011 Link to this post

    Thank you Richard for this quick answer,

    unfortunatelly it does not help me further. According to your information, there is no control ready to work as I'm expecting, so I need
    to program one of the existing controls to function as required...

    Would subclassing/overloading the MultiColumnComboBox help me? I mean are they internal properties or methods which control the
    behaviour of the dropdown container in a way I could use for the requested functionality?
    OR are there other standard Telerik controls which will allow attaching custom control for displaying as a dropdown?

    Many thanks in advance.

    Kind regards,
    Seilhardt Bogused.
  5. Richard Slade
    Richard Slade avatar
    3000 posts
    Member since:
    May 2009

    Posted 01 Apr 2011 Link to this post

    Hello,

    As the RadMultiColumnCombo has one field for a selected value (a DisplayMember and a ValueMember) then what would you be expecting as the selected item? Selecting multiple items usually happens in one of the controls that I have previously mentioned such as ListControl, GridView or TreeView.
    Regards,
    Richard
  6. S
    S avatar
    16 posts
    Member since:
    Sep 2010

    Posted 01 Apr 2011 Link to this post

    Hi Richard,

    It does not matter what the control's selection ist (in my case!) because I use the control bound to a list of DTOs. When e checkbox
    on the nested RadGridView changes its toggled state, the corresponding object's property gets toggled too. I need only the events
    "value(s) has been changed" and the "dropdown has been closed". The rest ist matter of simple LINQ.

    Kind regards,
    Seilhardt Bogused.
  7. Richard Slade
    Richard Slade avatar
    3000 posts
    Member since:
    May 2009

    Posted 01 Apr 2011 Link to this post

    Hello,

    You can use
    this.radMultiColumnComboBox1.DropDownClosing += new Telerik.WinControls.UI.RadPopupClosingEventHandler(radMultiColumnComboBox1_DropDownClosing);
     to capture when the drop down has closed and
    this.radMultiColumnComboBox1.MultiColumnComboBoxElement.SelectedValueChanged += new System.EventHandler(MultiColumnComboBoxElement_SelectedValueChanged);
     for selected value changed. Though I would still advise going with one of the other controls I mentioned.
    If you can tell me a bit more about your scenario, I will try and help.
    Richard
  8. S
    S avatar
    16 posts
    Member since:
    Sep 2010

    Posted 01 Apr 2011 Link to this post

    Thanks Richard,
    I'm already handling these events...

    My context is as follows:

    I do have a complex form where few RadGridView controls have been bound to diefferent lists of DTOs. The Usability Specification
    requires there is filtering capability where the user can select from a list of criteria which elements should be used for filtering in
    the bound lists (e.g. a ComboBox where the user can check more than one CheckBox to provide the filtering criteria selection).
    I can't do it with a flat ListBox or RadGridView because there's no enough place on the form (and besides of this, it would look
    ugly among the other controls on the form), so I need a dropdown where the list of CheckBoxes can be shown. This list should
    not close when the user selects the checkboxes, but should close when the dropdown looses the input focus.

    You already know the two problems I have with thie scenario...

    Many thanks in advance.

    Kind regards,
    Seilhardt Bogused
  9. Richard Slade
    Richard Slade avatar
    3000 posts
    Member since:
    May 2009

    Posted 01 Apr 2011 Link to this post

    Hello,

    The problem with this is that if you keep the drop down open when it shouldn't be, then the user can move the form and the grid part will stay where it is (it will not move with the drop down),

    I will look into a different way to achieve your functionality and let you know
    Regards,
    Richard
  10. Answer
    Richard Slade
    Richard Slade avatar
    3000 posts
    Member since:
    May 2009

    Posted 01 Apr 2011 Link to this post

    Hello,

    Ok, I've prepared you something using a RadSplitButton, a RadPanel and a RadGridView. The RadSplitButton contains an item that contains a panel that contains a RadGridView. This will allow you to leave it open and select what you need and then the button text will be set to the number of checked rows.

    Form1.Designer.cs
    namespace RadControlsWinFormsApp1
    {
        partial class Form1
        {
            /// <summary>
            /// Required designer variable.
            /// </summary>
            private System.ComponentModel.IContainer components;

            /// <summary>
            /// Clean up any resources being used.
            /// </summary>
            /// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
            protected override void Dispose(bool disposing)
            {
                if (disposing && (components != null))
                {
                    components.Dispose();
                }
                base.Dispose(disposing);
            }

            #region Windows Form Designer generated code

            /// <summary>
            /// Required method for Designer support - do not modify
            /// the contents of this method with the code editor.
            /// </summary>
            private void InitializeComponent()
            {
                this.office2010SilverTheme1 = new Telerik.WinControls.Themes.Office2010SilverTheme();
                this.radSplitButton1 = new Telerik.WinControls.UI.RadSplitButton();
                ((System.ComponentModel.ISupportInitialize)(this.radSplitButton1)).BeginInit();
                this.SuspendLayout();
                //
                // radSplitButton1
                //
                this.radSplitButton1.DefaultItem = null;
                this.radSplitButton1.Location = new System.Drawing.Point(48, 49);
                this.radSplitButton1.Name = "radSplitButton1";
                this.radSplitButton1.Size = new System.Drawing.Size(206, 24);
                this.radSplitButton1.TabIndex = 0;
                //
                // Form1
                //
                this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 13F);
                this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
                this.ClientSize = new System.Drawing.Size(432, 214);
                this.Controls.Add(this.radSplitButton1);
                this.Name = "Form1";
                this.Text = "radRibbonBar1";
                ((System.ComponentModel.ISupportInitialize)(this.radSplitButton1)).EndInit();
                this.ResumeLayout(false);
                this.PerformLayout();

            }

            #endregion

            private Telerik.WinControls.Themes.Office2010SilverTheme office2010SilverTheme1;
            private Telerik.WinControls.UI.RadSplitButton radSplitButton1;

        }
    }

    Form1.cs
    using System.Collections.Generic;
    using System.Windows.Forms;
    using Telerik.WinControls;
    using Telerik.WinControls.UI;
    using Telerik.WinControls.RadControlSpy;

    namespace RadControlsWinFormsApp1
    {
        public partial class Form1 : Form
        {
            private List<Person> people = new List<Person>();
            private RadPanel m_Panel;
            private RadGridView m_Grid;
            private System.Drawing.Size m_Size = new System.Drawing.Size(300, 200);

            public Form1()
            {
                InitializeComponent();

                people.Add(new Person("Richard", false));
                people.Add(new Person("Peter", true));
                people.Add(new Person("Chris", false));
                people.Add(new Person("Stew", true));
                people.Add(new Person("Bob", false));
                people.Add(new Person("Leisl", false));

                m_Grid = new RadGridView();
                m_Grid.AllowAddNewRow = false;
                m_Grid.EnableFiltering = true;
                m_Grid.ShowRowHeaderColumn = false;
                m_Grid.EnableGrouping = false;
                m_Grid.ShowFilteringRow = true;
                m_Grid.AutoSizeRows = true;
                m_Grid.DataBindingComplete += new GridViewBindingCompleteEventHandler(m_Grid_DataBindingComplete);

                m_Grid.DataSource = people;
                m_Panel = new RadPanel();
                m_Panel.Controls.Add(m_Grid);
                m_Grid.Dock = DockStyle.Fill;

                RadMenuItem item = new RadMenuItem();
                item.MaxSize = m_Size;
                this.radSplitButton1.Items.Add(item);
                this.radSplitButton1.DropDownButtonElement.DropDownMenu.PopupOpened += new RadPopupOpenedEventHandler(DropDownMenu_PopupOpened);
                this.radSplitButton1.DropDownButtonElement.DropDownMenu.PopupClosing += new RadPopupClosingEventHandler(DropDownMenu_PopupClosing);

                // force show to data bind
                this.radSplitButton1.DropDownButtonElement.ShowDropDown();
                this.radSplitButton1.DropDownButtonElement.HideDropDown();
            }

            void DropDownMenu_PopupClosing(object sender, RadPopupClosingEventArgs args)
            {
                m_Grid.EndEdit();
                SetButtonText();
            }

            void m_Grid_DataBindingComplete(object sender, GridViewBindingCompleteEventArgs e)
            {
                m_Grid.AutoSizeColumnsMode = GridViewAutoSizeColumnsMode.Fill;
                m_Grid.Columns["Name"].ReadOnly = true;
                m_Grid.Columns["HasBeard"].ReadOnly = false;
                m_Grid.Columns["Name"].BestFit();
                m_Grid.Columns["HasBeard"].BestFit();
                SetButtonText();
            }

            void DropDownMenu_PopupOpened(object sender, System.EventArgs args)
            {
                this.radSplitButton1.DropDownButtonElement.DropDownMenu.PopupElement.MaxSize = m_Size;

                this.radSplitButton1.Items.Clear();
                m_Panel.Size = m_Size;

                RadMenuItem item = new RadMenuItem();
                item.AutoSize = false;
                item.BackColor = System.Drawing.Color.Transparent;
                item.Size = m_Panel.Size;
                item.Alignment = System.Drawing.ContentAlignment.MiddleCenter;
                item.Children.Add(new RadHostItem(m_Panel));
                this.radSplitButton1.Items.Add(item);
            }

            private void SetButtonText()
            {
                int count = 0;
                foreach (GridViewRowInfo row in m_Grid.ChildRows)
                {
                    if (row is GridViewDataRowInfo)

                        if (((bool)row.Cells["HasBeard"].Value) == true)
                        {
                            count ++;
                        }
                    }

                }
                this.radSplitButton1.Text = count.ToString() + " people have beards";
            }


        }

        public class Person
        {
            public Person(string name, bool hasBeard)
            { this.Name = name; this.HasBeard = hasBeard; }

            public string Name
            { get; set; }

            public bool HasBeard
            { get; set; }
        }
    }

    It needs refactoring, but the basic functionality seems to be all there.
    and here is a small video of the functionality

    Hope this helps. Let me know if you have any questions
    RIchard
  11. S
    S avatar
    16 posts
    Member since:
    Sep 2010

    Posted 03 Apr 2011 Link to this post

    Thanks Richard,

    this really looks like what I need and I'll give it a try this Monday.
    What is more important, is the fact there would be no need of any other third party component, and I could use the existing Rad-Controls.

    I'll post my test results here, probably If I'm successful in implementing this functionality as UserControl I also will post the code here...

    Kind regards,
    Seilhardt Bogused
  12. Richard Slade
    Richard Slade avatar
    3000 posts
    Member since:
    May 2009

    Posted 04 Apr 2011 Link to this post

    Hello,

    Ok, no problem. I think this would be better as an Inherited control. If you need further help at all, just let me know. If you find this is a suitable solution for you, then please remember to mark as answer.

    Thanks
    Richard
  13. S
    S avatar
    16 posts
    Member since:
    Sep 2010

    Posted 04 Apr 2011 Link to this post

    Hi Richard,

    again many thanks for the really cool solution - it functions as you demonstrated.

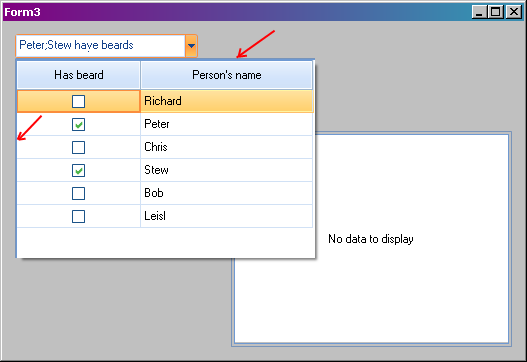

    The only caveat I still have is if it is possible to have a TextBox instead of the RadSplitButton? I want to write the names of the
    selected entries, separated by a smicolon, in a text box.
    I still have a workaround for this - I do schrink the RadSpinButton to show an image and the drop down arrow only and I do place
    a text box aside, I then modify your method SetButtonText to write the summary in the text box.
    Do you have an idea if it is possible to modify (or construct) a text box-based control to look like a dropdown combo and to function as in
    your solution?

    I've already marked your solution as answer.

    Kind regards,
    Seilhardt Bogused.
  14. Richard Slade
    Richard Slade avatar
    3000 posts
    Member since:
    May 2009

    Posted 04 Apr 2011 Link to this post

    Hello,

    Yes, this is quite straight forward to add a TextBoxElement to the RadSplitButton. I have altered my original sample as below.

    using System.Collections.Generic;
    using System.Windows.Forms;
    using Telerik.WinControls;
    using Telerik.WinControls.UI;
    using Telerik.WinControls.RadControlSpy;

    namespace RadControlsWinFormsApp1
    {
        public partial class Form1 : Form
        {
            private List<Person> people = new List<Person>();
            private RadPanel m_Panel;
            private RadGridView m_Grid;
            private RadTextBoxElement m_TextBox;
            private System.Drawing.Size m_Size = new System.Drawing.Size(300, 200);

            public Form1()
            {
                InitializeComponent();

                RadControlSpyForm form = new RadControlSpyForm();
                form.Show();

                m_TextBox = new RadTextBoxElement();
                m_TextBox.TextBoxItem.ReadOnly = true;


                people.Add(new Person("Richard", false));
                people.Add(new Person("Peter", true));
                people.Add(new Person("Chris", false));
                people.Add(new Person("Stew", true));
                people.Add(new Person("Bob", false));
                people.Add(new Person("Leisl", false));

                m_Grid = new RadGridView();
                m_Grid.AllowAddNewRow = false;
                m_Grid.EnableFiltering = true;
                m_Grid.ShowRowHeaderColumn = false;
                m_Grid.EnableGrouping = false;
                m_Grid.ShowFilteringRow = true;
                m_Grid.AutoSizeRows = true;
                m_Grid.DataBindingComplete += new GridViewBindingCompleteEventHandler(m_Grid_DataBindingComplete);

                m_Grid.DataSource = people;
                m_Panel = new RadPanel();
                m_Panel.Controls.Add(m_Grid);
                m_Grid.Dock = DockStyle.Fill;

                RadMenuItem item = new RadMenuItem();
                item.MaxSize = m_Size;
                this.radSplitButton1.Items.Add(item);
                this.radSplitButton1.DropDownButtonElement.DropDownMenu.PopupOpened += new RadPopupOpenedEventHandler(DropDownMenu_PopupOpened);
                this.radSplitButton1.DropDownButtonElement.DropDownMenu.PopupClosing += new RadPopupClosingEventHandler(DropDownMenu_PopupClosing);

                // force show to data bind
                this.radSplitButton1.DropDownButtonElement.ShowDropDown();
                this.radSplitButton1.DropDownButtonElement.HideDropDown();
            }

            private void Form1_Load(object sender, System.EventArgs e)
            {
                // add a textbox element to the SplitButton
                m_TextBox.AutoSize = false;
                m_TextBox.Size = new System.Drawing.Size(this.radSplitButton1.DropDownButtonElement.ActionButton.Size.Width, this.radSplitButton1.DropDownButtonElement.ActionButton.Size.Height + 1);
                this.radSplitButton1.DropDownButtonElement.ActionButton.Children.Add(m_TextBox);
            }

            void DropDownMenu_PopupClosing(object sender, RadPopupClosingEventArgs args)
            {
                m_Grid.EndEdit();
                SetText();
            }

            void m_Grid_DataBindingComplete(object sender, GridViewBindingCompleteEventArgs e)
            {
                m_Grid.AutoSizeColumnsMode = GridViewAutoSizeColumnsMode.Fill;
                m_Grid.Columns["Name"].ReadOnly = true;
                m_Grid.Columns["HasBeard"].ReadOnly = false;
                m_Grid.Columns["Name"].BestFit();
                m_Grid.Columns["HasBeard"].BestFit();
                SetText();
            }

            void DropDownMenu_PopupOpened(object sender, System.EventArgs args)
            {
                this.radSplitButton1.DropDownButtonElement.DropDownMenu.PopupElement.MaxSize = m_Size;

                this.radSplitButton1.Items.Clear();
                m_Panel.Size = m_Size;

                RadMenuItem item = new RadMenuItem();
                item.AutoSize = false;
                item.BackColor = System.Drawing.Color.Transparent;
                item.Size = m_Panel.Size;
                item.Alignment = System.Drawing.ContentAlignment.MiddleCenter;
                item.Children.Add(new RadHostItem(m_Panel));
                this.radSplitButton1.Items.Add(item);
            }

            private void SetText()
            {
                string people = "";
                foreach (GridViewRowInfo row in m_Grid.ChildRows)
                {
                    if (row is GridViewDataRowInfo)

                        if (((bool)row.Cells["HasBeard"].Value) == true)
                        {
                            people = people + row.Cells["Name"].Value.ToString() + ";";
                        }
                    }

                }

                if (people.Length > 0)
                {
                   people = people.Remove(people.Length-1, 1);
                   this.m_TextBox.Text = people + " have beards";
                }
                else
                {
                    this.m_TextBox.Text = "nobody has a beard";
                }

            }

        }

        public class Person
        {
            public Person(string name, bool hasBeard)
            { this.Name = name; this.HasBeard = hasBeard; }

            public string Name
            { get; set; }

            public bool HasBeard
            { get; set; }
        }
    }

    Hope that help, but let me know if you need more information
    Richard
  15. Richard Slade
    Richard Slade avatar
    3000 posts
    Member since:
    May 2009

    Posted 04 Apr 2011 Link to this post

    Hi,

    Here is also a slight improvement to remove the padding which makes the drop down look a little neater.

    void DropDownMenu_PopupOpened(object sender, System.EventArgs args)
    {
        this.radSplitButton1.DropDownButtonElement.DropDownMenu.PopupElement.MaxSize = m_Size;
        this.radSplitButton1.Items.Clear();
        m_Panel.Size = m_Size;
        RadMenuItem item = new RadMenuItem();
        item.AutoSize = false;
        Padding itemPadding = new System.Windows.Forms.Padding(0);
        item.Padding = itemPadding;
        item.BorderThickness = itemPadding;
        item.Size = m_Panel.Size;
        item.Alignment = System.Drawing.ContentAlignment.MiddleCenter;
        item.Children.Add(new RadHostItem(m_Panel));
        this.radSplitButton1.Items.Add(item);
    }

    Richard
  16. S
    S avatar
    16 posts
    Member since:
    Sep 2010

    Posted 05 Apr 2011 Link to this post

    Thanks Richard for this implementation!

    I've slightly adapted it to better suit my requirements, but even your original solution does schow left-side and top-side a 2 pixel
    (blue in my case, because of the default theme) borders. This is comming from the panel and GridView borders and I could not find
    property or setting which will disable them.

    My current workarround is to set the panel's Location to a point of (-1, -2). This is ugly solution, because I need to do pixel-magic
    in order to place the panel correctly in the dropdown container...

    Do you have a hint how to disable those borders?

    Many thanks in advance.

    Kind regards,
    Seilhardt Bogused
  17. Richard Slade
    Richard Slade avatar
    3000 posts
    Member since:
    May 2009

    Posted 05 Apr 2011 Link to this post

    Hello,

    Have you tried the amendment above? This removes the padding that may be what you are seeing.
    Regards,
    Richard
  18. S
    S avatar
    16 posts
    Member since:
    Sep 2010

    Posted 05 Apr 2011 Link to this post

    Hi Richard,

    thanks for the reminder, but I'm already using the improvement you suggested yesterday. The padding does not affect in any way the
    presence of the borders. I'm attaching screenshot of the form where you can see the effect.

    As I said, I've managed to overcome this situation using positioning outside the container (Location is -1, -2, the Size is the original m_Size with Height + 1), but this is ugly and not maintaineable.

    Your siggestions are much more than welcome.
    Many thanks in advance.

    Kind regards,
    Seilhardt Bogused.
  19. S
    S avatar
    16 posts
    Member since:
    Sep 2010

    Posted 05 Apr 2011 Link to this post

    Hi again,

    I've noticed I've commented out this code:

    RadControlSpyForm form = new RadControlSpyForm();
    form.Show();

    from your original solution. Could it be this mystic form, which I don't have, doing the special border thing?
    What form is RadControlSpyForm for and what is it doing?

    Many thanks in advance.

    Kind regards,
    Seilhardt Bogused


  20. Answer
    Richard Slade
    Richard Slade avatar
    3000 posts
    Member since:
    May 2009

    Posted 05 Apr 2011 Link to this post

    Hello,

    This is a little better. The panel is not actually needed, but it's not that that is causing the border. I have made it a little better but still not perfect. If I can get it spot on, I'll let you know.

    using System.Collections.Generic;
    using System.Windows.Forms;
    using Telerik.WinControls;
    using Telerik.WinControls.UI;

    namespace RadControlsWinFormsApp1
    {
        public partial class Form1 : Form
        {


            private List<Person> people = new List<Person>();
            private RadGridView m_Grid;
            private RadTextBoxElement m_TextBox;
            private System.Drawing.Size m_Size = new System.Drawing.Size(300, 200);

            public Form1()
            {
                InitializeComponent();


                m_TextBox = new RadTextBoxElement();
                m_TextBox.TextBoxItem.ReadOnly = true;


                people.Add(new Person("Richard", false));
                people.Add(new Person("Peter", true));
                people.Add(new Person("Chris", false));
                people.Add(new Person("Stew", true));
                people.Add(new Person("Bob", false));
                people.Add(new Person("Leisl", false));

                m_Grid = new RadGridView();
                m_Grid.AllowAddNewRow = false;
                m_Grid.EnableFiltering = true;
                m_Grid.ShowRowHeaderColumn = false;
                m_Grid.EnableGrouping = false;
                m_Grid.ShowFilteringRow = true;
                m_Grid.AutoSizeRows = true;
                m_Grid.DataBindingComplete += new GridViewBindingCompleteEventHandler(m_Grid_DataBindingComplete);

                m_Grid.DataSource = people;

                RadMenuItem item = new RadMenuItem();
                item.MaxSize = m_Size;
                this.radSplitButton1.Items.Add(item);
                this.radSplitButton1.DropDownButtonElement.DropDownMenu.PopupOpened += new RadPopupOpenedEventHandler(DropDownMenu_PopupOpened);
                this.radSplitButton1.DropDownButtonElement.DropDownMenu.PopupClosing += new RadPopupClosingEventHandler(DropDownMenu_PopupClosing);

                // force show to data bind
                this.radSplitButton1.DropDownButtonElement.ShowDropDown();
                this.radSplitButton1.DropDownButtonElement.HideDropDown();

                this.Load +=new System.EventHandler(Form1_Load);
            }

            private void Form1_Load(object sender, System.EventArgs e)
            {
                // add a textbox element to the SplitButton
                m_TextBox.AutoSize = false;
                m_TextBox.Size = new System.Drawing.Size(this.radSplitButton1.DropDownButtonElement.ActionButton.Size.Width, this.radSplitButton1.DropDownButtonElement.ActionButton.Size.Height + 1);
                this.radSplitButton1.DropDownButtonElement.ActionButton.Children.Add(m_TextBox);
            }

            void DropDownMenu_PopupClosing(object sender, RadPopupClosingEventArgs args)
            {
                m_Grid.EndEdit();
                SetText();
            }

            void m_Grid_DataBindingComplete(object sender, GridViewBindingCompleteEventArgs e)
            {
                m_Grid.AutoSizeColumnsMode = GridViewAutoSizeColumnsMode.Fill;
                m_Grid.Columns["Name"].ReadOnly = true;
                m_Grid.Columns["HasBeard"].ReadOnly = false;
                m_Grid.Columns["Name"].BestFit();
                m_Grid.Columns["HasBeard"].BestFit();
                SetText();
            }

            void DropDownMenu_PopupOpened(object sender, System.EventArgs args)
            {
                this.radSplitButton1.DropDownButtonElement.DropDownMenu.PopupElement.MaxSize = m_Size;
                this.radSplitButton1.Items.Clear();

                RadMenuItem item = new RadMenuItem();
                item.AutoSize = false;
                Padding itemPadding = new System.Windows.Forms.Padding(0);
                item.Padding = itemPadding;
                item.BorderPrimitive.BorderThickness = itemPadding;
                item.BorderPrimitive.TopWidth = 0;
                item.BorderPrimitive.ShouldPaint = false;
                item.Size = m_Size;


                item.Alignment = System.Drawing.ContentAlignment.MiddleCenter;
                item.Children.Add(new RadHostItem(m_Grid));
                this.radSplitButton1.Items.Add(item);

            }

            private void SetText()
            {
                string people = "";
                foreach (GridViewRowInfo row in m_Grid.ChildRows)
                {
                    if (row is GridViewDataRowInfo)
                    {
                        if (((bool)row.Cells["HasBeard"].Value) == true)
                        {
                            people = people + row.Cells["Name"].Value.ToString() + ";";
                        }
                    }

                }

                if (people.Length > 0)
                {
                    people = people.Remove(people.Length - 1, 1);
                    this.m_TextBox.Text = people + " have beards";
                }
                else
                {
                    this.m_TextBox.Text = "nobody has a beard";
                }

            }

        }

        public class Person
        {
            public Person(string name, bool hasBeard)
            { this.Name = name; this.HasBeard = hasBeard; }

            public string Name
            { get; set; }

            public bool HasBeard
            { get; set; }
        }
    }

    The RadControlSpy is a tool that allows you to view and alter the properties of control at runtime and is useful for debugging. Have a look at my blog post on RadControlSpy here
    Hope that helps
    Richard
  21. Jason
    Jason avatar
    24 posts
    Member since:
    Apr 2011

    Posted 04 Oct 2011 Link to this post

    Hi Richard,

    Thanks for the cool control. I'm trying to use this multiselect combobox as an inline control in a RadGrid. I'm using this in combination with the documentation at http://www.telerik.com/help/winforms/gridview-editors-using-custom-editors.html

    I'm having issues where after adding the data source for the m_Grid, the databinding event doesnt fire, and the grid still shows 0 columns, 0 rows. I'm still looking into it, but I was wondering if you could provide any assistance in this matter.It seems that I can't get the grid of the inline control to populate.

    Thanks,
    Jason
  22. Svett
    Admin
    Svett avatar
    728 posts

    Posted 06 Oct 2011 Link to this post

    Hello Jason,

    You do not need to create a custom editor to embed RadMultiColumnComboBox in RadGridView. You should use a GridViewMultiComboBoxColumn column. You can read more about it in the online documentation.

    Greetings,
    Svett
    the Telerik team

    Explore the entire Telerik portfolio by downloading the Ultimate Collection trial package. Get it now >>

  23. Jason
    Jason avatar
    24 posts
    Member since:
    Apr 2011

    Posted 07 Oct 2011 Link to this post

    But it's not a multicolumncombobox I need. I need this custom control (as described by Richard) that let's you select multiple items before closing. The multicolumncombobox doesn't allow this I thought.
  24. Svett
    Admin
    Svett avatar
    728 posts

    Posted 11 Oct 2011 Link to this post

    Hi Jason,

    The solution proposed by Richard is a good alternative based on RadControls for Winforms. If you need further assistance for adopting the solution in your project, feel free to ask in our forums.

    All the best,
    Svett
    the Telerik team

    Q2’11 SP1 of RadControls for WinForms is available for download (see what's new); also available is the Q3'11 Roadmap for Telerik Windows Forms controls.

Back to Top
UI for WinForms is Visual Studio 2017 Ready
