Multiple column charts align to a common legend

4 posts, 0 answers
  1. Regi
    Regi avatar
    5 posts
    Member since:
    Sep 2014

    Posted 26 Sep Link to this post

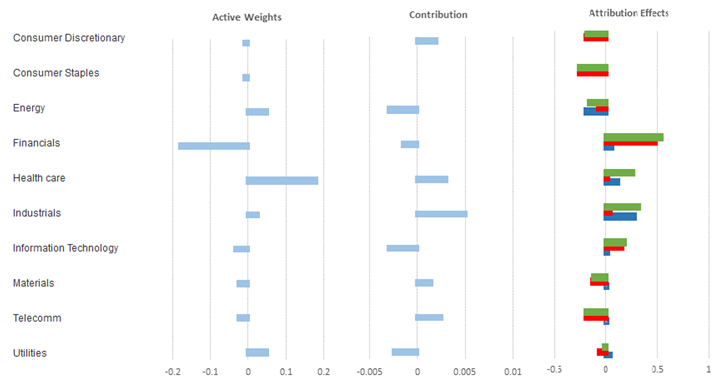

    What is the best type of chart to render the 3 graph samples in attached screenshot? Does column chart with a different orientation will do?

    Is there a way to align the 3 graphs to a common legend section as given in the screenshot?

  2. Eduardo Serra
    Admin
    Eduardo Serra avatar
    50 posts

    Posted 27 Sep Link to this post

    Hello Regi,

    The scenario you propose can be achieved with Kendo UI after some customization. I would recommend you to place three minimal charts of the same size next to each other; Take a look at this sample in the Kendo UI Dojo that shows something similar.

    I would also recommend placing custom labels placed to the left of the charts instead of using the default legend functionality; this way you will have more control over how the final product looks.

    I hope this helps!

    Regards,
    Eduardo Serra
    Telerik by Progress

    Get started with Kendo UI in days. Online training courses help you quickly implement components into your apps.

  3. Kendo UI is VS 2017 Ready
  4. Regi
    Regi avatar
    5 posts
    Member since:
    Sep 2014

    Posted 27 Sep in reply to Eduardo Serra Link to this post

    Thanks. I figured out in similar way.

    http://dojo.telerik.com/ajuzO/3

  5. Eduardo Serra
    Admin
    Eduardo Serra avatar
    50 posts

    Posted 28 Sep Link to this post

    Hello Regi,

    I'm glad you were able to implement the functionality you required.

    Since your application takes advantage of our Data Visualization suite, I encourage you to read 6 Rules for Awesome Data Visualizations with Kendo UI, a blog post that was recently written by a colleague of mine; take a look at it here.

    I hope this helps!

    Regards,
    Eduardo Serra
    Telerik by Progress

    Get started with Kendo UI in days. Online training courses help you quickly implement components into your apps.
