Multiple 3dbar series - same graph, different Z

5 posts, 1 answers
  1. Adam Petaccia
    Adam Petaccia avatar
    30 posts
    Member since:
    May 2010

    Posted 21 Jun 2010 Link to this post

    I saw http://www.telerik.com/community/forums/wpf/chart/is-z-axis-supported-by-3d-chart.aspx some time ago, which implies that Z-Axis is not only supported, but used by default (at least for line series). However, I can not achieve this behavior using 3d bar charts. I have constructed a simple chart using multiple series, as indicated in the aforementioned post.  However, the bars from different series are drawn beside each other (instead of behind eachother), just as would be if the graph were 2d.

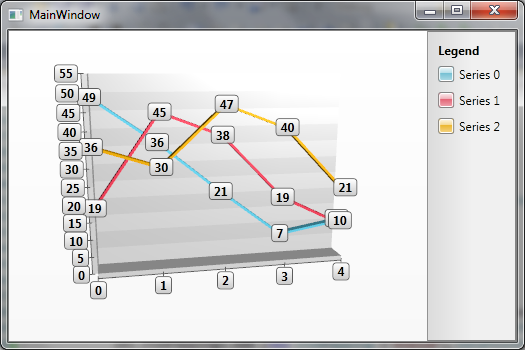

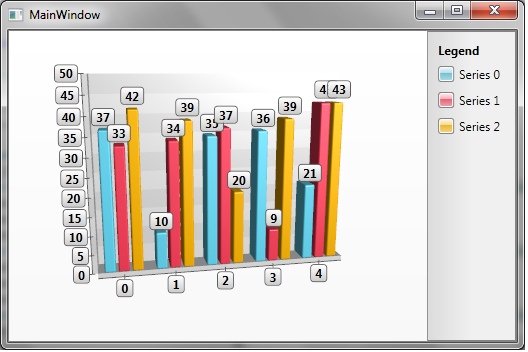

    Is using the Z-Axis no longer the default behavior? How would I achieve an effect similar to what I've described? The files attached are the charts that currently get generated. Lines do draw on top of each other (desired), but bar charts draw beside each other (not desired).
  2. Ves
    Admin
    Ves avatar
    2879 posts

    Posted 24 Jun 2010 Link to this post

    Hi Adam Petaccia,

    Unfortunately, Z axis is only used for line-like series for the moment and arranging the bars behind each other is not supported for the moment. Please, accept our apologies for the inconvenience.

    Best regards,
    Ves
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  3. UI for WPF is Visual Studio 2017 Ready
  4. Adam Petaccia
    Adam Petaccia avatar
    30 posts
    Member since:
    May 2010

    Posted 24 Jun 2010 Link to this post

    Is this suitable for a feature request?
  5. Answer
    Ves
    Admin
    Ves avatar
    2879 posts

    Posted 30 Jun 2010 Link to this post

    Hello Adam,

    We have actually considered this in the past, but we just dropped it from our plans. We did not really see any demand rate, so we focused on another features. I have logged it in our public issue tracking system so you can track it and vote for it:

    http://www.telerik.com/support/pits.aspx#/public/wpf/2582

    I have also updated your Telerik points.

    Kind regards,
    Ves
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  6. James
    James avatar
    5 posts
    Member since:
    May 2012

    Posted 08 May 2012 Link to this post

    If you are going to provide 3d objects... you need to be able to put them in the Z axis.
