    Hi all,

    When i mailMerge in header and footer areas and export with DocxFormatProvider or XamlFormatProvider. Header mergefields are empty. They can't save.
  2. serkan
    serkan avatar
    6 posts
    Member since:
    Jun 2014

    Posted 12 Feb 2015 Link to this post

    Hi,

    I am using the merge feature of the RichTextBox control for template documents. What I am trying to do is applying values provided by the system (my developed application) and let the end user fill other content within this document.

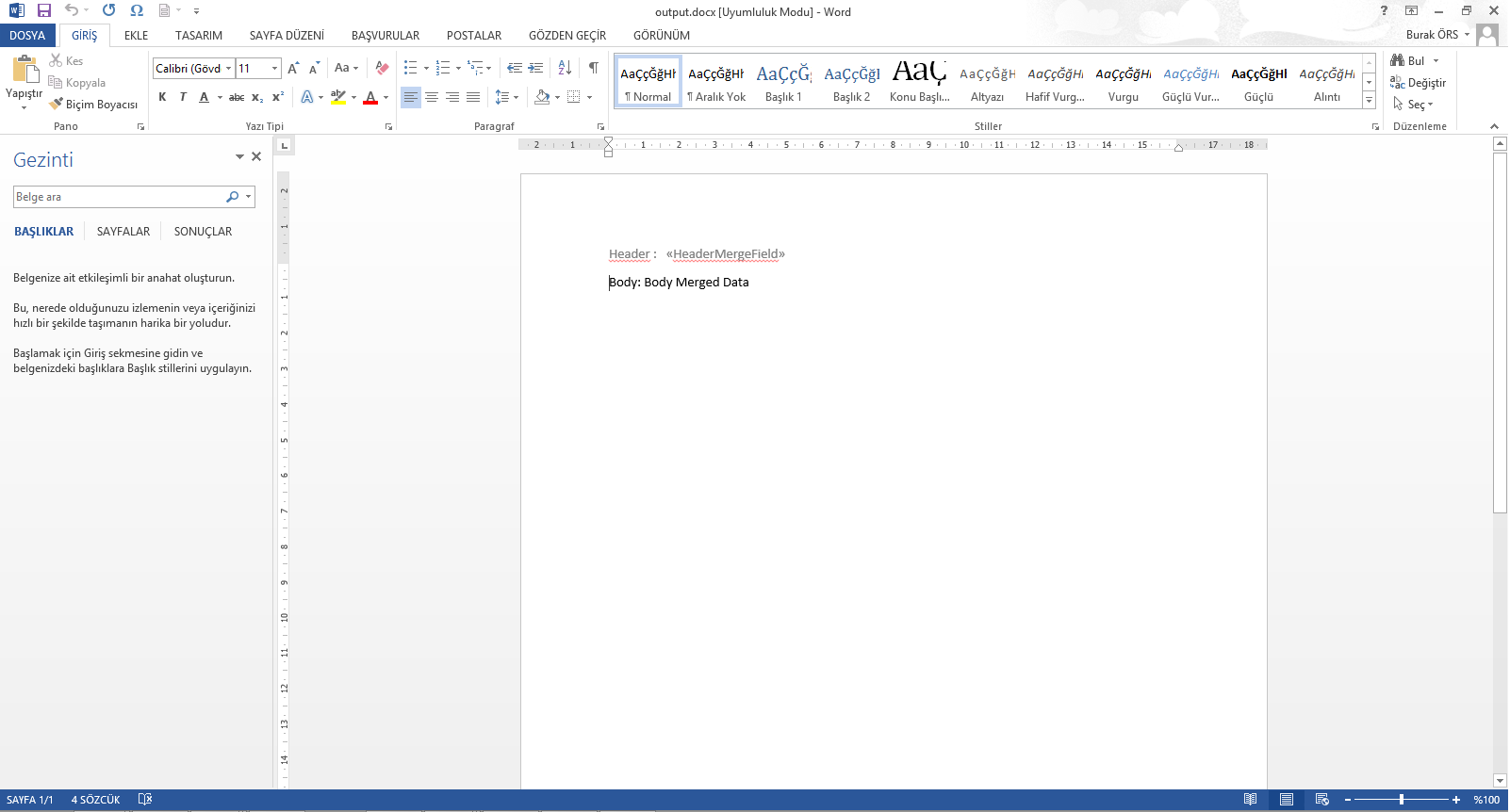

    If Merge Fields are used in the document, and when the values are applied, the result shows the values both in the header/footer and the body. When the Save as functionality of the richtextbox control is used and the exported document is opened in Microsoft Word, the values of header/footer are gone only values of merge fields in the body is stable.

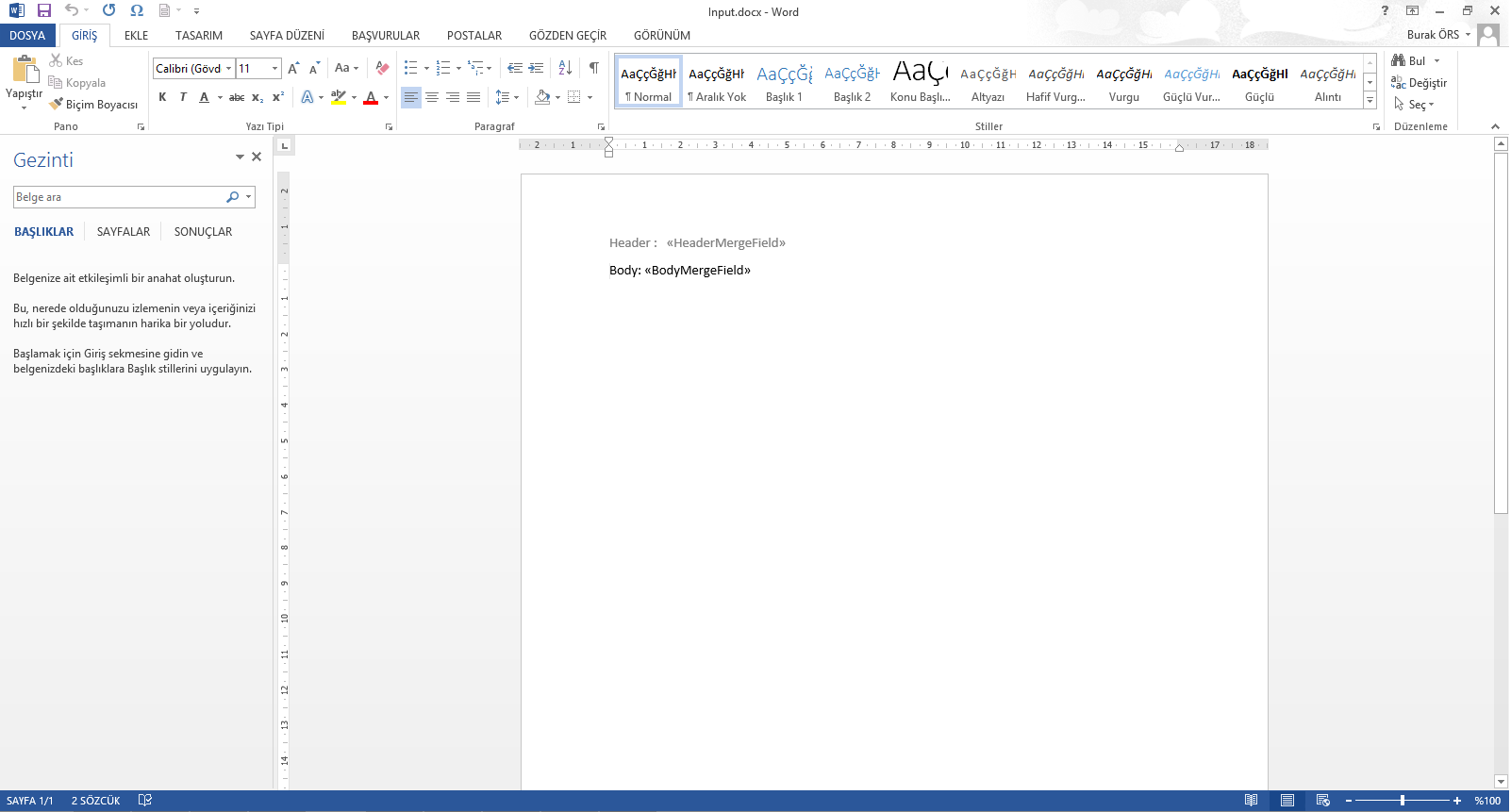

    I am attaching the sample code, template document and exported document to showcase the problem. Is it an expected behavior or is there an alternative solution?


    Main.cs
    using System;
    using System.Collections.Generic;
    using System.Data;
    using System.IO;
    using System.Linq;
    using System.Windows;
    using System.Windows.Controls;
    using Telerik.Windows.Controls;
    using Telerik.Windows.Controls.RibbonView;
    using Telerik.Windows.Documents;
    using Telerik.Windows.Documents.FormatProviders.OpenXml.Docx;
    using Telerik.Windows.Documents.Layout;
    using Telerik.Windows.Documents.Model;

    namespace DynamicMailMerge
    {
        /// <summary>
        /// Interaction logic for MainWindow.xaml
        /// </summary>
        public partial class MainWindow : Window
        {
            public MainWindow()
            {
                InitializeComponent();


                this.insertMergeFieldButton.DropDownOpening += InsertMergeFieldButton_DropDownOpening;

            }

            private void InsertMergeFieldButton_DropDownOpening(object sender, RoutedEventArgs e)
            {

                if (this.radRichTextBox.Document.MailMergeDataSource.ItemsSource == null)
                {
                    this.InitializeMailMergeDynamicSource();
                }

                CreateMergeFieldNames();

            }

            private void CreateMergeFieldNames()
            {
                if (this.radRichTextBox.Document.MailMergeDataSource.ItemsSource != null)
                {
                    StackPanel stackPanel = new StackPanel();

                    var enumerator = this.radRichTextBox.Document.MailMergeDataSource.ItemsSource.GetEnumerator();
                    enumerator.MoveNext();

                    MyDynamicObject myDynamicObject = enumerator.Current as MyDynamicObject;
                    if (myDynamicObject != null)
                    {
                        foreach (string fieldName in myDynamicObject.GetColumnNames())
                        {
                            RadRibbonButton fieldButton = new RadRibbonButton()
                            {
                                Text = fieldName,
                                Size = ButtonSize.Medium,
                                HorizontalAlignment = HorizontalAlignment.Stretch,
                                HorizontalContentAlignment = HorizontalAlignment.Left
                            };

                            fieldButton.Command = this.radRichTextBox.Commands.InsertFieldCommand;
                            fieldButton.CommandParameter = new MergeField() { PropertyPath = fieldName };

                            stackPanel.Children.Add(fieldButton);
                        }
                    }

                    enumerator.Reset();

                    stackPanel.Width = 140;
                    this.insertMergeFieldButton.DropDownContent = stackPanel;
                }
            }

            private void InitializeMailMergeDynamicSource()
            {
                List<MyDynamicObject> mailMergeSource = this.GetMailMergeSource(this.radRichTextBox.Document);
                this.radRichTextBox.Document.MailMergeDataSource.ItemsSource = mailMergeSource;
                this.radRichTextBox.Document.MailMergeDataSource.MoveToFirst();
                this.radRichTextBox.ChangeAllFieldsDisplayMode(FieldDisplayMode.Result);
            }

            private List<MyDynamicObject> GetMailMergeSource(RadDocument rad)
            {
                List<MyDynamicObject> mailMergeSource = new List<MyDynamicObject>();

                MyDynamicObject myDynamicObject = new MyDynamicObject();
                myDynamicObject.Set("HeaderMergeField", "Header Merged Data");
                myDynamicObject.Set("BodyMergeField", "Body Merged Data");
                mailMergeSource.Add(myDynamicObject);

                return mailMergeSource;
            }

            private void Button_Click(object sender, RoutedEventArgs e)
            {
                using (var outStream = new FileStream(@"c:\temp\sampleoutcode.docx", FileMode.Create))
                {
                    var provider = new DocxFormatProvider();
                    provider.Export(this.radRichTextBox.Document, outStream);
                }
            }


        }
    }

    MyDynamicObject.cs
    using System;
    using System.Collections.Generic;
    using System.Dynamic;
    using System.Linq;

    namespace DynamicMailMerge
    {
        public class MyDynamicObject : DynamicObject
        {
            private readonly Dictionary<string, object> dictionary = new Dictionary<string, object>();

            public int Count
            {
                get
                {
                    return this.dictionary.Count;
                }
            }

            public IEnumerable<String> GetColumnNames()
            {
                return this.dictionary.Keys;
            }

            public void Set(string propertyName, object value)
            {
                this.TrySetMember(new MySetMemberBinder(propertyName, false), value);
            }

            public object Get(string propertyName)
            {
                object result;

                this.TryGetMember(new MyGetMemberBinder(propertyName, false), out result);

                return result;
            }

            public override bool TryGetMember(GetMemberBinder binder, out object result)
            {
                string propertyName = binder.Name;
                return this.dictionary.TryGetValue(propertyName, out result);
            }

            public override bool TrySetMember(SetMemberBinder binder, object value)
            {
                string propertyName = binder.Name;
                this.dictionary[propertyName] = value;

                return true;
            }
        }
    }

    MyGetMemberBinder.cs
    using System;
    using System.Dynamic;
    using System.Linq;

    namespace DynamicMailMerge
    {
        public class MyGetMemberBinder : GetMemberBinder
        {
            public MyGetMemberBinder(string name, bool ignoreCase)
                : base(name, ignoreCase)
            {
            }

            public override DynamicMetaObject FallbackGetMember(DynamicMetaObject target, DynamicMetaObject errorSuggestion)
            {
                return target;
            }
        }
    }

    MySetMemberBinder.cs
    using System;
    using System.Dynamic;
    using System.Linq;

    namespace DynamicMailMerge
    {
        public class MySetMemberBinder : SetMemberBinder
        {
            public MySetMemberBinder(string name, bool ignoreCase)
                : base(name, ignoreCase)
            {
            }

            public override DynamicMetaObject FallbackSetMember(DynamicMetaObject target, DynamicMetaObject value, DynamicMetaObject errorSuggestion)
            {
                return target;
            }
        }
    }


    Thanks in advance,
  3. UI for WPF is Visual Studio 2017 Ready
  4. Kammen
    Admin
    Kammen avatar
    312 posts

    Posted 16 Feb 2015 Link to this post

    Hello Serkan,

    Thank you for the interest in RadRichTextBox.

    If I understand correctly, the problem is that when you export a document that contains merge fields in the header/footer from RadRichTextBox to Docx, they are not resolved (the result is not correct).

    This is a bug in RadRichTextBox and the merge fields cannot be resolved. We will add this to our backlog but I cannot give you concrete time frame when we will be able to resolve it. Meanwhile you can track the status of this issue using this item in our Ideas & Feedback portal.

    Hope this answers your questions.

    Regards,
    Kammen
