Merged Column Group header problems

10 posts, 0 answers
  1. Jaesoon
    Jaesoon avatar
    51 posts
    Member since:
    Oct 2012

    Posted 21 Oct 2015 Link to this post

    I'm trying to get multi hierarchy column headers to work by using the following guide here: http://docs.telerik.com/devtools/silverlight/controls/radgridview/columns/column-groups



    However, after following the steps on Example 1, i cannot get the grid columns to show up as shown on the examples.



    I have tried updating my telerik project (from 2013 to 2015 version) to see if that fixed the issue but this still does not seem to work.



    My XAML is as follows:



    01.<telerik:RadGridView.ColumnGroups>
    02.    <telerik:GridViewColumnGroup
    03.        Name="BlankHeader"
    04.        Header="test head" />
    05.</telerik:RadGridView.ColumnGroups>
    06.
    07.<telerik:RadGridView.Columns>
    08.
    09.    <telerik:GridViewDataColumn
    10.        IsReadOnly="True"
    11.        MinWidth="200"
    12.        DataMemberBinding="{Binding UserName, Mode=OneWay}"
    13.        Header="Name"
    14.        ColumnGroupName="BlankHeader" />
    15.
    16.    <telerik:GridViewDataColumn
    17.        IsReadOnly="True"
    18.        MinWidth="200"
    19.        DataMemberBinding="{Binding TeamName, Mode=OneWay}"
    20.        Header="Team Name"
    21.        ColumnGroupName="BlankHeader" />



    However, im not seeing the header "test head" above "Name" and the "Team Name" column headers.



    Is there something else that i need to add or something that i've added previously that may be affecting this behaviour?





    Thanks

  2. Stefan X1
    Admin
    Stefan X1 avatar
    523 posts

    Posted 26 Oct 2015 Link to this post

    Hi Jaesoon,

    As I am not able to reproduce such behavior on my side, I am attaching a small demo application demonstrating the usage of ColumnGroups functionality. It is tested with latest Q3 2015 (2015.3.930) assemblies version.

    If it does not help, I would like to encourage you to modify the sample project as per your setup, and send it in a new support thread as an attachment, so we can review it on our side.

    Best Regards,
    Stefan X1
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  3. DevCraft banner
  4. Jaesoon
    Jaesoon avatar
    51 posts
    Member since:
    Oct 2012

    Posted 26 Oct 2015 in reply to Stefan X1 Link to this post

    Hi Stefan



     Thanks for the sample project,

     I'm having trouble building the project as it says the namespace name RadGridView and GridViewColumnGroup could not be found in the file "MainPage.g.i.cs" when trying to run this project on Visual Studio 2010.



    I've tried removing and re adding the DLLs and also cleaning and rebuilding to no avail.



    Any ideas how to get it to run?



    Thanks

  5. Jaesoon
    Jaesoon avatar
    51 posts
    Member since:
    Oct 2012

    Posted 26 Oct 2015 in reply to Jaesoon Link to this post

    Actually, just found out i had to unblock the dll before getting it to load properly,



    Thanks for the project, i'll see if i can get my project to work using this and get back to you.

  6. Jaesoon
    Jaesoon avatar
    51 posts
    Member since:
    Oct 2012

    Posted 29 Oct 2015 in reply to Stefan X1 Link to this post

    Hi Stefan



    I've found out that this problem was being caused by a styling that's been applied to our column headers.

    After removing the styling, i am able to get the merged group headers to show up.

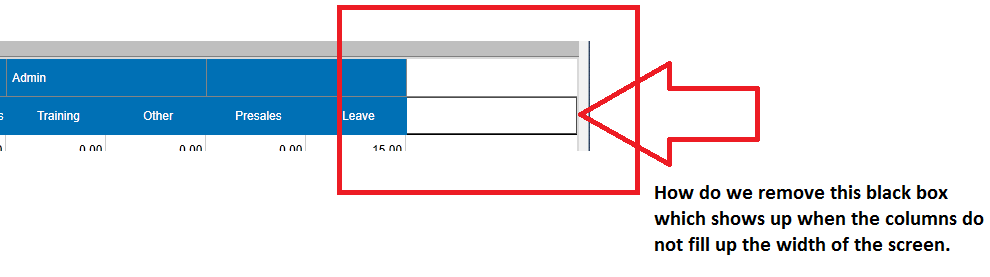

    Although removing the styling for the current column headers shows the grouped headers, is there a style that needs to be applied specifically for the grouped column headers to be shown if normal column headers have been formatted?

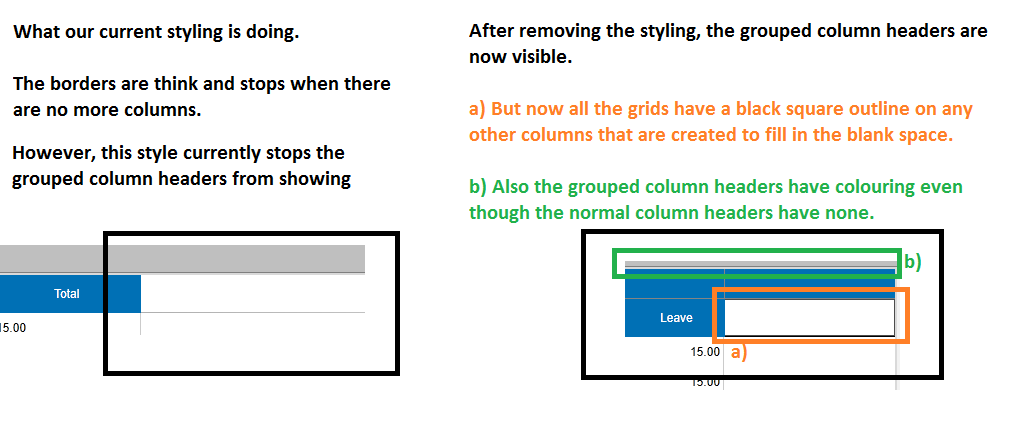

    The styles for the grouped column headers are as follows:

    001.    <Style
    002.        TargetType="telerik:GridViewHeaderRow">
    003.        <Setter
    004.            Property="Template"
    005.            Value="{StaticResource GridViewHeaderRowTemplate}" />
    006.        <Setter
    007.            Property="Background"
    008.            Value="{x:Null}" />
    009.        <Setter
    010.            Property="MinHeight"
    011.            Value="38" />
    012.        <Setter
    013.            Property="BorderBrush"
    014.            Value="{StaticResource text}" />
    015.        <Setter
    016.            Property="BorderThickness"
    017.            Value="0,0,0,1" />
    018.        <Setter
    019.            Property="VerticalContentAlignment"
    020.            Value="Stretch" />
    021.        <Setter
    022.            Property="HorizontalContentAlignment"
    023.            Value="Stretch" />
    024.        <Setter
    025.            Property="Padding"
    026.            Value="0" />
    027.    </Style>
    028.
    029.
    030.<ControlTemplate
    031.        x:Key="GridViewHeaderRowTemplate"
    032.        TargetType="telerik:GridViewHeaderRow">
    033.        <telerik:SelectiveScrollingGrid>
    034.            <telerik:SelectiveScrollingGrid.ColumnDefinitions>
    035.                <ColumnDefinition
    036.                    Width="Auto" />
    037.                <ColumnDefinition
    038.                    Width="Auto" />
    039.                <ColumnDefinition
    040.                    Width="Auto" />
    041.                <ColumnDefinition
    042.                    Width="*" />
    043.            </telerik:SelectiveScrollingGrid.ColumnDefinitions>
    044.            <Border
    045.                x:Name="PART_GridViewHeaderRowBorder"
    046.                Background="{TemplateBinding Background}"
    047.                BorderBrush="{TemplateBinding BorderBrush}"
    048.                BorderThickness="{TemplateBinding BorderThickness}"
    049.                Grid.ColumnSpan="4"
    050.                HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}"
    051.                Padding="{TemplateBinding Padding}"
    052.                VerticalAlignment="{TemplateBinding VerticalContentAlignment}">
    053.                <Border.OpacityMask>
    054.                    <LinearGradientBrush
    055.                        EndPoint="1,0.5"
    056.                        StartPoint="0,0.5">
    057.                        <GradientStop
    058.                            Offset="0"
    059.                            Color="#19000000" />
    060.                        <GradientStop
    061.                            Color="#19FFFFFF"
    062.                            Offset="1" />
    063.                        <GradientStop
    064.                            Color="#667A7A7A"
    065.                            Offset="0.5" />
    066.                    </LinearGradientBrush>
    067.                </Border.OpacityMask>
    068.            </Border>
    069.            <telerik:DataCellsPresenter
    070.                x:Name="PART_DataCellsPresenter"
    071.                Grid.Column="3" />
    072.            <Border
    073.                x:Name="PART_IndicatorPresenter"
    074.                BorderBrush="{TemplateBinding BorderBrush}"
    075.                BorderThickness="0,0,1,1"
    076.                telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical"
    077.                Visibility="{TemplateBinding RowIndicatorVisibility}"
    078.                Width="25">
    079.                <Border
    080.                    BorderBrush="{StaticResource GridView_HeaderInnerBorder}"
    081.                    BorderThickness="1"
    082.                    Background="{StaticResource GridView_HeaderBackground}" />
    083.            </Border>
    084.            <telerik:IndentPresenter
    085.                x:Name="PART_IndentPresenter"
    086.                Grid.Column="1"
    087.                ItemTemplate="{StaticResource GridViewHeaderIndentCellDataTemplate}"
    088.                IndentLevel="{TemplateBinding IndentLevel}"
    089.                MinHeight="{TemplateBinding MinHeight}"
    090.                telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical"
    091.                telerik:StyleManager.Theme="{StaticResource Theme}" />
    092.            <Border
    093.                x:Name="PART_HierarchyIndentPresenter"
    094.                BorderBrush="{TemplateBinding BorderBrush}"
    095.                BorderThickness="0,0,1,1"
    096.                Grid.Column="2"
    097.                telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical"
    098.                Visibility="{Binding HasHierarchy, Converter={StaticResource BooleanToVisibilityConverter}, RelativeSource={RelativeSource TemplatedParent}}"
    099.                Width="25">
    100.                <Border
    101.                    BorderBrush="{StaticResource GridView_HeaderInnerBorder}"
    102.                    BorderThickness="1"
    103.                    Background="{StaticResource GridView_HeaderBackground}" />
    104.            </Border>
    105.        </telerik:SelectiveScrollingGrid>
    106.    </ControlTemplate>

    107.
    108.<ControlTemplate
    109.        x:Key="GridViewRowTemplate"
    110.        TargetType="telerik:GridViewRow">
    111.        <Border
    112.            BorderBrush="{TemplateBinding BorderBrush}"
    113.            BorderThickness="{TemplateBinding BorderThickness}">
    114.            <VisualStateManager.VisualStateGroups>
    115.                <VisualStateGroup
    116.                    x:Name="CommonStates">
    117.                    <VisualState
    118.                        x:Name="Normal" />
    119.                    <VisualState
    120.                        x:Name="MouseOver">
    121.                        <Storyboard>
    122.                            <DoubleAnimation
    123.                                Duration="0"
    124.                                To="1"
    125.                                Storyboard.TargetProperty="(UIElement.Opacity)"
    126.                                Storyboard.TargetName="PART_DataCellsPresenter"
    127.                                d:IsOptimized="True" />
    128.                        </Storyboard>
    129.                    </VisualState>
    130.                    <VisualState
    131.                        x:Name="Selected">
    132.                        <Storyboard>
    133.                            <DoubleAnimation
    134.                                Duration="0"
    135.                                To="0.6"
    136.                                Storyboard.TargetProperty="(UIElement.Opacity)"
    137.                                Storyboard.TargetName="Background_Selected"
    138.                                d:IsOptimized="True" />
    139.                            <DoubleAnimation
    140.                                Duration="0"
    141.                                To="1"
    142.                                Storyboard.TargetProperty="(UIElement.Opacity)"
    143.                                Storyboard.TargetName="PART_DataCellsPresenter"
    144.                                d:IsOptimized="True" />
    145.                        </Storyboard>
    146.                    </VisualState>
    147.                </VisualStateGroup>
    148.            </VisualStateManager.VisualStateGroups>
    149.            <telerik:SelectiveScrollingGrid
    150.                x:Name="grid">
    151.                <telerik:SelectiveScrollingGrid.ColumnDefinitions>
    152.                    <ColumnDefinition
    153.                        Width="Auto" />
    154.                    <ColumnDefinition
    155.                        Width="Auto" />
    156.                    <ColumnDefinition
    157.                        Width="Auto" />
    158.                    <ColumnDefinition
    159.                        Width="*" />
    160.                </telerik:SelectiveScrollingGrid.ColumnDefinitions>
    161.                <telerik:SelectiveScrollingGrid.RowDefinitions>
    162.                    <RowDefinition
    163.                        Height="*" />
    164.                    <RowDefinition
    165.                        Height="Auto" />
    166.                    <RowDefinition
    167.                        Height="Auto" />
    168.                    <RowDefinition
    169.                        Height="Auto" />
    170.                </telerik:SelectiveScrollingGrid.RowDefinitions>
    171.
    172.                <Border
    173.                    x:Name="SelectionBackground"
    174.                    Background="{TemplateBinding Background}"
    175.                    Grid.ColumnSpan="3"
    176.                    Grid.Column="1"
    177.                    HorizontalAlignment="Stretch"
    178.                    Margin="{TemplateBinding Margin}"
    179.                    MinWidth="0"
    180.                    Padding="{TemplateBinding Padding}"
    181.                    telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical"
    182.                    VerticalAlignment="{TemplateBinding VerticalContentAlignment}" />
    183.                <Border
    184.                    x:Name="Background_Selected"
    185.                    BorderBrush="{StaticResource text}"
    186.                    Opacity="0"
    187.                    CornerRadius="1"
    188.                    BorderThickness="1"
    189.                    Grid.ColumnSpan="3"
    190.                    Grid.Column="1"
    191.                    HorizontalAlignment="Stretch"
    192.                    Margin="1,1,1,2"
    193.                    MinWidth="0"
    194.                    telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical">
    195.                    <Border
    196.                        Background="{StaticResource text}"
    197.                        Opacity="0.1"
    198.                        BorderThickness="0">
    199.                        <Border
    200.                            Background="#01FFFFFF"
    201.                            BorderThickness="0" />
    202.                    </Border>
    203.                </Border>
    204.
    205.                <telerik:GridViewToggleButton
    206.                    x:Name="PART_HierarchyExpandButton"
    207.                    Grid.Column="2"
    208.                    IsHitTestVisible="{Binding IsExpandable, RelativeSource={RelativeSource TemplatedParent}}"
    209.                    IsTabStop="{TemplateBinding IsTabStop}"
    210.                    IsChecked="{Binding IsExpanded, Mode=TwoWay, RelativeSource={RelativeSource TemplatedParent}}"
    211.                    Opacity="{Binding IsExpandable, Converter={StaticResource BooleanToOpacityConverter}, RelativeSource={RelativeSource TemplatedParent}}"
    212.                    telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical"
    213.                    telerik:StyleManager.Theme="{StaticResource Theme}"
    214.                    Visibility="{Binding HasHierarchy, Converter={StaticResource BooleanToVisibilityConverter}, RelativeSource={RelativeSource TemplatedParent}}"
    215.                    Width="25" />
    216.                <Border
    217.                    Grid.Column="2"
    218.                    telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical"
    219.                    Visibility="{Binding HasHierarchy, Converter={StaticResource BooleanToVisibilityConverter}, RelativeSource={RelativeSource TemplatedParent}}" />
    220.                <!-- Cell font color and opacity! -->
    221.                <telerik:DataCellsPresenter
    222.                    Opacity="1"
    223.                    x:Name="PART_DataCellsPresenter"
    224.                    Grid.Column="3"
    225.                    telerik:StyleManager.Theme="{StaticResource Theme}" />
    226.                <Border
    227.                    x:Name="PART_RowBorder"
    228.                    BorderBrush="{TemplateBinding HorizontalGridLinesBrush}"
    229.                    BorderThickness="{Binding HorizontalGridLinesWidth, ConverterParameter=Bottom, Converter={StaticResource GridLineWidthToThicknessConverter}, RelativeSource={RelativeSource TemplatedParent}}"
    230.                    Grid.ColumnSpan="4"
    231.                    Grid.Column="1"
    232.                    HorizontalAlignment="Stretch"
    233.                    MinWidth="0"
    234.                    Grid.RowSpan="4"
    235.                    telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical"
    236.                    VerticalAlignment="Bottom" />
    237.                <telerik:DetailsPresenter
    238.                    x:Name="PART_DetailsPresenter"
    239.                    Grid.ColumnSpan="2"
    240.                    Grid.Column="2"
    241.                    DetailsProvider="{TemplateBinding DetailsProvider}"
    242.                    HorizontalAlignment="Stretch"
    243.                    MaxWidth="30000"
    244.                    Grid.Row="1"
    245.                    telerik:StyleManager.Theme="{StaticResource Theme}" />
    246.                <telerik:IndentPresenter
    247.                    x:Name="PART_IndentPresenter"
    248.                    ItemTemplate="{StaticResource GridViewHeaderIndentCellDataTemplate}"
    249.                    Grid.Column="1"
    250.                    IndentLevel="{TemplateBinding IndentLevel}"
    251.                    Grid.RowSpan="4"
    252.                    telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical" />
    253.                <Border
    254.                    x:Name="PART_IndicatorPresenter"
    255.                    BorderBrush="{StaticResource ControlOuterBorder}"
    256.                    BorderThickness="0,0,1,1"
    257.                    Grid.Column="0"
    258.                    Grid.RowSpan="3"
    259.                    telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical"
    260.                    Visibility="{TemplateBinding RowIndicatorVisibility}"
    261.                    VerticalAlignment="Stretch"
    262.                    Width="25">
    263.                    <Border
    264.                        x:Name="NavigatorIndicatorBackground"
    265.                        BorderBrush="{StaticResource ControlInnerBorder}"
    266.                        BorderThickness="1"
    267.                        Background="{StaticResource GridView_RowIndicatorCellBackground}">
    268.                        <Grid>
    269.                            <Grid
    270.                                x:Name="NavigatorIndicator"
    271.                                HorizontalAlignment="Center"
    272.                                Height="11"
    273.                                Visibility="Collapsed"
    274.                                VerticalAlignment="Center"
    275.                                Width="11">
    276.                                <Path
    277.                                    Data="F1 M 32.0234,6.66669L 24.2923,0.0248413L 28.3697,0.0248413L 32,3.14362L 36.1492,6.70819L 32,10.2728L 28.4664,13.3085L 24.2923,13.3085L 32.0234,6.66669 Z "
    278.                                    Fill="{StaticResource GridView_NavigatorIndicatorBackground}"
    279.                                    HorizontalAlignment="Center"
    280.                                    Height="8"
    281.                                    Margin="0"
    282.                                    Stretch="Fill"
    283.                                    VerticalAlignment="Center"
    284.                                    Width="8" />
    285.                            </Grid>
    286.                            <Grid
    287.                                x:Name="EditIndicator"
    288.                                HorizontalAlignment="Center"
    289.                                Height="10"
    290.                                Visibility="Collapsed"
    291.                                VerticalAlignment="Center"
    292.                                Width="16">
    293.                                <Path
    294.                                    Data="M14,9 L15,9 15,10 14,10 z M1,9 L2,9 2,10 1,10 z M15,8 L16,8 16,9 15,9 z M0,8 L1,8 1,9 0,9 z M15,1 L16,1 16,2 15,2 z M0,1 L1,1 1,2 0,2 z M14,0 L15,0 15,1 14,1 z M1,0 L2,0 2,1 1,1 z"
    295.                                    Fill="{StaticResource GridView_EditIndicatorBackground1}"
    296.                                    Stretch="Fill" />
    297.                                <Path
    298.                                    Data="M0.99999994,6.9999995 L2,6.9999995 3,6.9999995 4,6.9999995 5,6.9999995 6,6.9999995 7,6.9999995 8,6.9999995 9,6.9999995 10,6.9999995 11,6.9999995 12,6.9999995 13,6.9999995 13,7.9999995 12,7.9999995 11,7.9999995 10,7.9999995 9,7.9999995 8,7.9999995 7,7.9999995 6,7.9999995 5,7.9999995 4,7.9999995 3,7.9999995 2,7.9999995 0.99999994,7.9999995 z M13,0.99999994 L14,0.99999994 14,1.9999999 14,2.9999995 14,3.9999995 14,4.9999995 14,5.9999995 14,6.9999995 13,6.9999995 13,5.9999995 13,4.9999995 13,3.9999995 13,2.9999995 13,1.9999999 z M0,0.99999994 L0.99999994,0.99999994 0.99999994,1.9999999 0.99999994,2.9999995 0.99999994,3.9999995 0.99999994,4.9999995 0.99999994,5.9999995 0.99999994,6.9999995 0,6.9999995 0,5.9999995 0,4.9999995 0,3.9999995 0,2.9999995 0,1.9999999 z M11,0 L12,0 13,0 13,0.99999994 12,0.99999994 11,0.99999994 10,0.99999994 9,0.99999994 8,0.99999994 7,0.99999994 6,0.99999994 5,0.99999994 4,0.99999994 3,0.99999994 2,0.99999994 0.99999994,0.99999994 0.99999994,2.3841858E-07 2,2.3841858E-07 3,2.3841858E-07 4,2.3841858E-07 5,2.3841858E-07 6,2.3841858E-07 7,2.3841858E-07 8,2.3841858E-07 9,2.3841858E-07 10,2.3841858E-07 z"
    299.                                    Fill="{StaticResource GridView_EditIndicatorBackground2}"
    300.                                    Margin="1"
    301.                                    Stretch="Fill" />
    302.                                <Path
    303.                                    Data="M2,9 L3,9 4,9 5,9 6,9 7,9 8,9 9,9 10,9 11,9 12,9 13,9 14,9 14,10 13,10 12,10 11,10 10,10 9,10 8,10 7,10 6,10 5,10 4,10 3,10 2,10 z M14,8 L15,8 15,9 14,9 z M1,8 L2,8 2,9 1,9 z M15,2 L16,2 16,3 16,4 16,5 16,6 16,7 16,8 15,8 15,7 15,6 15,5 15,4 15,3 z M3,2 L4,2 5,2 6,2 6,3 5,3 5,4 5,5 5,6 5,7 6,7 6,8 5,8 4,8 3,8 3,7 4,7 4,6 4,5 4,4 4,3 3,3 z M0,2 L1,2 1,3 1,4 1,5 1,6 1,7 1,8 0,8 0,7 0,6 0,5 0,4 0,3 z M14,1 L15,1 15,2 14,2 z M1,1 L2,1 2,2 1,2 z M2,0 L3,0 4,0 5,0 6,0 7,0 8,0 9,0 10,0 11,0 12,0 13,0 14,0 14,1 13,1 12,1 11,1 10,1 9,1 8,1 7,1 6,1 5,1 4,1 3,1 2,1 z"
    304.                                    Fill="{StaticResource GridView_EditIndicatorBackground3}"
    305.                                    Stretch="Fill" />
    306.                                <Path
    307.                                    Data="M4,0 L5,0 6,0 7,0 8,0 9,0 10,0 11,0 12,0 12,1 12,2 12,3 12,4 12,5.0000001 12,6 11,6 10,6 9,6 8,6 7,6 6,6 5,6 4,6 4,5.0000001 3,5.0000001 3,4 3,3 3,2 3,1 4,1 z M0,0 L1,0 1,1 2,1 2,2 2,3 2,4 2,5.0000001 1,5.0000001 1,6 0,6 0,5.0000001 0,4 0,3 0,2 0,1 z"
    308.                                    Fill="{StaticResource GridView_EditIndicatorBackground4}"
    309.                                    Margin="2"
    310.                                    Stretch="Fill" />
    311.                            </Grid>
    312.                            <Grid
    313.                                x:Name="ErrorIndicator"
    314.                                HorizontalAlignment="Center"
    315.                                Height="16"
    316.                                Visibility="Collapsed"
    317.                                VerticalAlignment="Center"
    318.                                Width="16">
    319.                                <Path
    320.                                    Data="M3,12.999999 L4,12.999999 5,12.999999 6,12.999999 7,12.999999 8,12.999999 9,12.999999 10,12.999999 11,12.999999 11,13.999999 10,13.999999 9,13.999999 8,13.999999 7,13.999999 6,13.999999 5,13.999999 4,13.999999 3,13.999999 z M11,11.999999 L12,11.999999 12,12.999999 11,12.999999 z M2.0000001,11.999999 L3,11.999999 3,12.999999 2.0000001,12.999999 z M12,10.999999 L13,10.999999 13,11.999999 12,11.999999 z M1,10.999999 L2.0000001,10.999999 2.0000001,11.999999 1,11.999999 z M13,2.9999992 L14,2.9999992 14,3.9999992 14,4.9999992 14,5.9999992 14,6.9999992 14,7.9999992 14,8.9999992 14,9.9999992 14,10.999999 13,10.999999 13,9.9999992 13,8.9999992 13,7.9999992 13,6.9999992 13,5.9999992 13,4.9999992 13,3.9999992 z M0,2.9999992 L1,2.9999992 1,3.9999992 1,4.9999992 1,5.9999992 1,6.9999992 1,7.9999992 1,8.9999992 1,9.9999992 1,10.999999 0,10.999999 0,9.9999992 0,8.9999992 0,7.9999992 0,6.9999992 0,5.9999992 0,4.9999992 0,3.9999992 z M12,1.9999999 L13,1.9999999 13,2.9999992 12,2.9999992 z M1,1.9999999 L2.0000001,1.9999999 2.0000001,2.9999992 1,2.9999992 z M11,0.99999994 L12,0.99999994 12,1.9999999 11,1.9999999 z M2.0000001,0.99999994 L2.9999998,0.99999994 2.9999998,1.9999999 2.0000001,1.9999999 z M2.9999998,0 L3.9999998,0 5,0 6,0 7,0 8,0 9,0 10,0 11,0 11,0.99999994 10,0.99999994 9,0.99999994 8,0.99999994 7,0.99999994 6,0.99999994 5,0.99999994 3.9999998,0.99999994 2.9999998,0.99999994 z"
    321.                                    Fill="{StaticResource GridView_ErrorIndicatorBackground1}"
    322.                                    Margin="1"
    323.                                    Stretch="Fill" />
    324.                                <Path
    325.                                    Data="M1.4901161E-07,8 L1.0000001,8 2.0000002,8 2.0000002,9 2.0000002,10 1.0000003,10 1.0000003,9 1.0000001,10 1.4901161E-07,10 1.4901161E-07,9 z M1.4901161E-07,0 L1.0000001,0 2.0000002,0 2.0000002,1 2.0000002,2 2.0000002,3 2.0000002,4.0000001 2.0000002,5 2.0000002,5.9999999 2.0000002,7 1.0000001,7 1.4901161E-07,7 1.4901161E-07,5.9999999 1.4901161E-07,5 1.4901161E-07,4.0000001 1.4901161E-07,3 1.4901161E-07,2 0,1 z"
    326.                                    Fill="{StaticResource GridView_ErrorIndicatorBackground2}"
    327.                                    Margin="7,3"
    328.                                    Stretch="Fill" />
    329.                                <Path
    330.                                    Data="M4,15 L5,15 6,15 7,15 8,15 9,15 10,15 11,15 12,15 12,16 11,16 10,16 9,16 8,16 7,16 6,16 5,16 4,16 z M12,14 L13,14 13,15 12,15 z M3,14 L4,14 4,15 3,15 z M13,13 L14,13 14,14 13,14 z M2,13 L3,13 3,14 2,14 z M14,12 L15,12 15,13 14,13 z M1,12 L2,12 2,13 1,13 z M7,11 L7,12 7,13 8,13 9,13 9,12 9,11 8,11 z M15,4 L16,4 16,5 16,6 16,7 16,8 16,9 16,10 16,11 16,12 15,12 15,11 15,10 15,9 15,8 15,7 15,6 15,5 z M0,4 L1,4 1,5 1,6 1,7 1,8 1,9 1,10 1,11 1,12 0,12 0,11 0,10 0,9 0,8 0,7 0,6 0,5 z M14,3 L15,3 15,4 14,4 z M7,3 L7,4 7,5 7,6 7,7 7,8 7,9 7,10 8,10 9,10 9,9 9,8 9,7 9,6 9,5 9,4 9,3 8,3 z M1,3 L2,3 2,4 1,4 z M13,2 L14,2 14,3 13,3 z M4,2 L5,2 6,2 7,2 8,2 9,2 10,2 11,2 12,2 12,3 13,3 13,4 14,4 14,5 14,6 14,7 14,8 14,9 14,10 14,11 14,12 13,12 13,13 12,13 12,14 11,14 10,14 9,14 8,14 7,14 6,14 5,14 4,14 4,13 3,13 3,12 2,12 2,11 2,10 2,9 2,8 2,7 2,6 2,5 2,4 3,4 3,3 4,3 z M2,2 L3,2 3,3 2,3 z M12,1 L13,1 13,2 12,2 z M3,1 L4,1 4,2 3,2 z M4,0 L5,0 6,0 7,0 8,0 9,0 10,0 11,0 12,0 12,1 11,1 10,1 9,1 8,1 7,1 6,1 5,1 4,1 z"
    331.                                    Fill="{StaticResource GridView_ErrorIndicatorBackground3}"
    332.                                    Stretch="Fill" />
    333.                            </Grid>
    334.                        </Grid>
    335.                    </Border>
    336.                </Border>
    337.            </telerik:SelectiveScrollingGrid>
    338.        </Border>
    339.    </ControlTemplate>

  7. Jaesoon
    Jaesoon avatar
    51 posts
    Member since:
    Oct 2012

    Posted 29 Oct 2015 in reply to Jaesoon Link to this post

    Sorry i cant find the edit button so i have to write a new post.



    The coding for styles is what we have currently, to style the column headers.

     Removing lines 3 to 5 (the StaticResource GridViewHeaderRowTemplate), removes formatting for our column headers which allows the grouped column headers to show up, but doing so will mess up our current formatting.

    I have attached a sample picture which roughly shows what i'm trying to achieve.



    Thanks for your help and please let me know if you need more information.



  8. Stefan X1
    Admin
    Stefan X1 avatar
    523 posts

    Posted 29 Oct 2015 Link to this post

    Hi Jaesoon,

    For styling ColumnGroupHeaders you need to apply a Style targeting CommonColumnHeader.
    You can take a look at the code snippet below:
    <Style TargetType="telerik:CommonColumnHeader">
        <Setter Property="Background" Value="Red" />
        <Setter Property="MinHeight" Value="38" />
        <Setter
        Property="BorderThickness" Value="0,0,0,1" />
        <Setter
        Property="VerticalContentAlignment" Value="Stretch" />
        <Setter
        Property="HorizontalContentAlignment"
        Value="Stretch" />
        <Setter Property="Padding" Value="0" />
    </Style>

    Can you please give it a try and let me know whether this was the customization you were trying to achieve?

    Additionally, you can take a look at the Styling Merged Column Headers topic.

    Regards,
    Stefan X1
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  9. Jaesoon
    Jaesoon avatar
    51 posts
    Member since:
    Oct 2012

    Posted 29 Oct 2015 in reply to Stefan X1 Link to this post

    Hi Stefan,



    Thanks for the snippet, i've got it to partially work so far.



    I've got a question regarding a style that we use:

    <telerik:DataCellsPresenter
        x:Name="PART_DataCellsPresenter"
        Grid.Column="3" />



    Why is it if ​we use this under the telerik:GridViewHeaderRow style template, the grouped column headers do not show up?

    I can get the styling i want if i remove the above styling, but removing this styling causes a black box to surround the column headers as displayed in the attachment.



    Is there a way to remove the black boxes shown on the attached file?



    The grid column styling (not the grouped column headers) is currently as follows:

    <Style
        TargetType="telerik:GridViewHeaderRow">
        <!--<Setter
            Property="Template"
            Value="{StaticResource GridViewHeaderRowTemplate}" />--> This has been commented out to show the grouped column headers.
        <Setter
            Property="Background"
            Value="{x:Null}" />
        <Setter
            Property="MinHeight"
            Value="38" />
        <Setter
            Property="BorderBrush"
            Value="{StaticResource text}" />
        <Setter
            Property="BorderThickness"
            Value="0,0,0,1" />
        <Setter
            Property="VerticalContentAlignment"
            Value="Stretch" />
        <Setter
            Property="HorizontalContentAlignment"
            Value="Stretch" />
        <Setter
            Property="Padding"
            Value="0" />
    </Style>



    Thanks

  10. Jaesoon
    Jaesoon avatar
    51 posts
    Member since:
    Oct 2012

    Posted 01 Nov 2015 in reply to Jaesoon Link to this post

    Its interesting to note, if i increase the "BorderThickness" value, the black box border gets thicker.

    However, setting it to 0 still gives an outline of the border.

    What is the control used to target this border line?

  11. Stefan X1
    Admin
    Stefan X1 avatar
    523 posts

    Posted 02 Nov 2015 Link to this post

    Hello Jaesoon,

    We already replied you in the support ticket you opened regarding this issue. In order to avoid double posting, I would kindly ask you to continue any further communication on this topic in it.

    Best Regards,
    Stefan X1
    Telerik
