Memory leaks when using radTooltipservice in RadTreeView

2 posts, 0 answers
  1. Shirly
    Shirly avatar
    4 posts
    Member since:
    Apr 2013

    Posted 21 Apr 2013 Link to this post

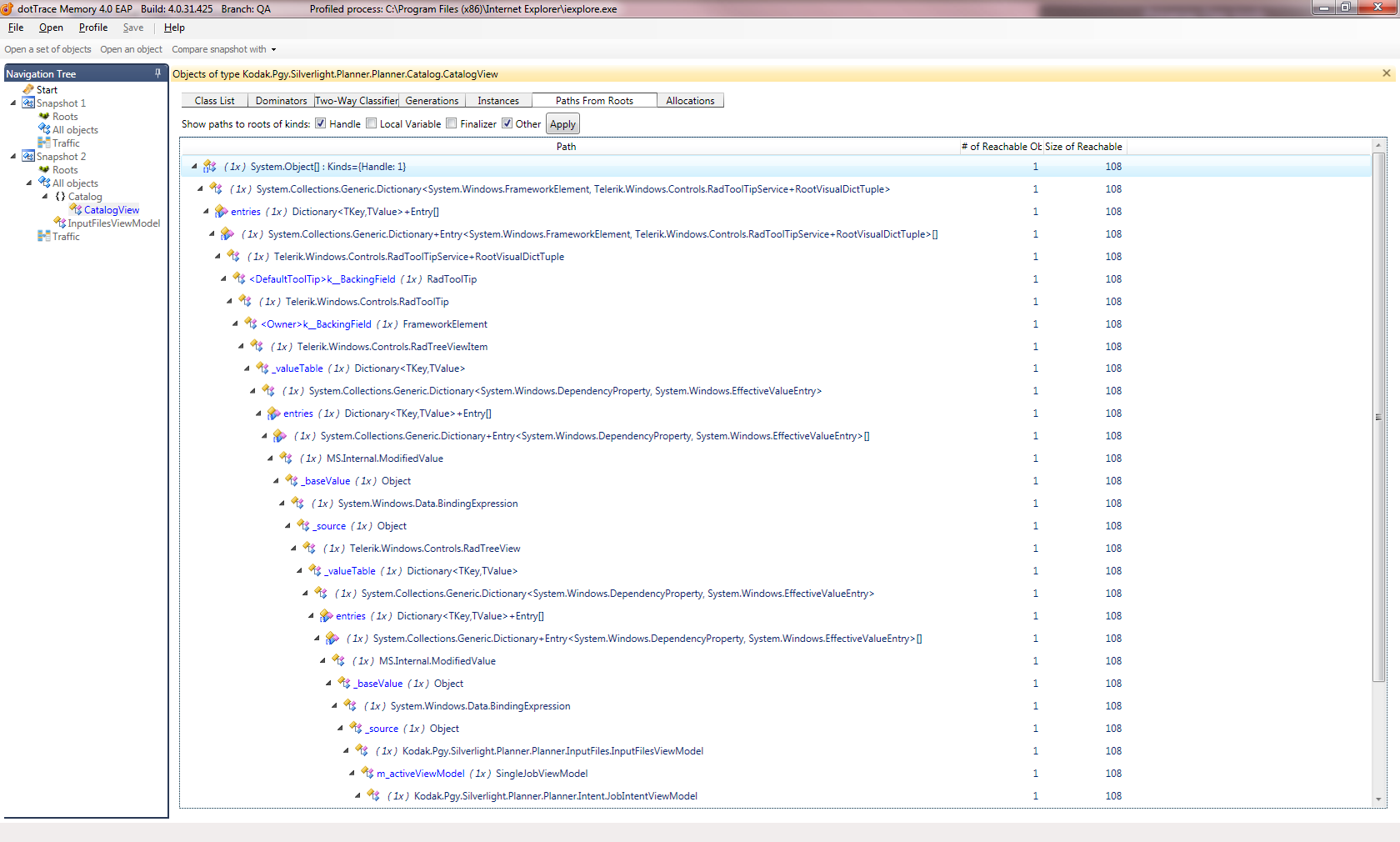

    I have added RadTooltipService to radTreeView, and have notices that there are memory leaks. I've used JustTrace and JetBrains profiler tools.

    follwong is the way i've used RadTooltipService:

    1. radTreeRow header Item dataTemplate: InputFile

    <DataTemplate x:Key="InputFileTooltipTemplate" >
           <Grid x:Name="FileInfo" Width="Auto" >
               <Grid.Resources>
                   <utils:ActualSizePropertyProxy Element="{Binding ElementName=FileInfo1}" x:Name="ActualSizeProxy"/>
               </Grid.Resources>
               <Grid.RowDefinitions>
                   <RowDefinition Height="Auto" />
                   <RowDefinition Height="Auto" />
               </Grid.RowDefinitions>

               <Grid x:Name="FileInfo1" Grid.Row="0" >
                   <Grid.ColumnDefinitions>
                       <ColumnDefinition Width="Auto"/>
                       <ColumnDefinition Width="20"/>
                       <ColumnDefinition Width="Auto"/>
                   </Grid.ColumnDefinitions>
                   <Rectangle x:Name="EmptyRectangle" Grid.Row="0" Grid.Column="0" Fill="{StaticResource ControlBackground_Disabled}" StrokeThickness="0" Visibility="{Binding Thumbnail, Converter={StaticResource IsNullToVisibilityConverter}, ConverterParameter=Negate}" Width="110"  Height="110"/>
                   <Image  x:Name="imageFile"   Source="{Binding Thumbnail, Converter={StaticResource ImageConverter}}" MaxWidth="110"  MaxHeight="110"/>
                   <TextBlock Grid.Column="2" Text="{Binding Name}"  Foreground="{StaticResource Selection1Brush}" Height="18"  HorizontalAlignment="Left" VerticalAlignment="Top" />
                   <StackPanel Grid.Column="2" VerticalAlignment="Bottom" Orientation="Vertical">
                       <StackPanel Orientation="Horizontal" >
                           <TextBlock  Text="{Binding Kind}"  Height="18"  Foreground="{StaticResource DefaultTextLightBrush}" VerticalAlignment="Bottom" Margin="0,24,0,0"  />
                           <TextBlock  Text="{Binding SizeDisplayString}"  Height="18"  Foreground="{StaticResource DefaultTextLightBrush}" VerticalAlignment="Bottom"   />
                       </StackPanel>
                       <StackPanel  Orientation="Horizontal" >
                           <TextBlock  Text="{Binding UploadDateTime}"  Height="18"  Foreground="{StaticResource DefaultTextLightBrush}"  />
                           <TextBlock  Text="{Binding Strings.InputFile_Uploaded, Source={StaticResource PlannerResourceWrapper}}"  Height="18"  Foreground="{StaticResource Secondary1Brush}"  />
                       </StackPanel>
                   </StackPanel>
               </Grid>
                </Grid>
       </DataTemplate>

    2.  radTreeRow child Item dataTemplate: Page

    <DataTemplate x:Key="PageTooltipTemplate">
            <Grid x:Name="PageInfo">
                <Grid.ColumnDefinitions>
                    <ColumnDefinition Width="Auto" MaxWidth="110"/>
                    <ColumnDefinition Width="20"/>
                    <ColumnDefinition Width="Auto"/>
                </Grid.ColumnDefinitions>
                <Grid.RowDefinitions>
                    <RowDefinition Height="Auto" MaxHeight="110"/>
                </Grid.RowDefinitions>

                <Rectangle x:Name="EmptyRectangle" Grid.Row="0" Grid.Column="0" Fill="{StaticResource ControlBackground_Disabled}" StrokeThickness="0" Visibility="{Binding Thumbnail, Converter={StaticResource IsNullToVisibilityConverter}, ConverterParameter=Negate}" Width="110"  Height="110"/>
                <Image  x:Name="imagePage"  Source="{Binding Thumbnail, Converter={StaticResource ImageConverter}}" MaxWidth="110"  MaxHeight="110" />

                <TextBlock  Text="{Binding Name}"  Foreground="{StaticResource Selection1Brush}" Height="18" Grid.Column="2" HorizontalAlignment="Left" VerticalAlignment="Top" />

                <StackPanel Grid.Column="2" HorizontalAlignment="Left" VerticalAlignment="Bottom" Orientation="Vertical" >
                    <StackPanel Orientation="Horizontal" >
                        <TextBlock  Text="{Binding Colors}"  Height="18"  Foreground="{StaticResource DefaultTextLightBrush}"  />
                        <TextBlock  Text="{Binding Strings.Page_Actual, Source={StaticResource PlannerResourceWrapper}}"  Height="18"  Foreground="{StaticResource Secondary1Brush}"  />
                    </StackPanel>

                    <StackPanel Orientation="Horizontal" >
                        <TextBlock  Text="{Binding NumOfAassignments,Converter={StaticResource PageAssignmentNumToStringConverter}}"  Height="18"  Foreground="{StaticResource DefaultTextLightBrush}"  />
                    </StackPanel>

                   </StackPanel>
            </Grid>
        </DataTemplate>

    3. RowItem Style for both items: inputfile and page

    <Style x:Key="ListInputFileTreeViewItemStyle" TargetType="telerik:RadTreeViewItem" BasedOn="{StaticResource DefaultRadTreeViewItemStyle}">
          <Setter Property="utils:StyleBinder.Binding">
              <Setter.Value>
                  <utils:StyleBinding Binding="{Binding UIState.IsExpanded, Mode=TwoWay}" Property="IsExpanded"/>
              </Setter.Value>
          </Setter>
          <Setter Property="telerik:RadToolTipService.ToolTipContentTemplate" Value="{StaticResource InputFileTooltipTemplate}" />
          <Setter Property="telerik:RadToolTipService.ToolTipContent" Value="{Binding}"/>
    </Style>
    <Style x:Key="ListPageTreeViewItemStyle" TargetType="telerik:RadTreeViewItem" BasedOn="{StaticResource DefaultRadTreeViewItemStyle}">
          <Setter Property="telerik:RadToolTipService.ToolTipContentTemplate" Value="{StaticResource PageTooltipTemplate}"/>
          <Setter Property="telerik:RadToolTipService.ToolTipContent" Value="{Binding}"/>
    </Style>

    hierarchical dataTemplate:

    <telerik:HierarchicalDataTemplate x:Key="ListInputFileTemplate"
                                        ItemsSource="{Binding DisplayPages}"
                                        ItemTemplate="{StaticResource ListPageTemplate}"
                                        ItemContainerStyle="{StaticResource ListPageTreeViewItemStyle}">
          <ContentControl Template="{StaticResource CommonInputFileHeaderTemplate}"/>
      </telerik:HierarchicalDataTemplate>

    RadTreeView

    <telerik:RadTreeView x:Name="ListTreeView"
                telerik:RadDragAndDropManager.AllowDrag="True"
                ScrollViewer.VerticalScrollBarVisibility="Visible"
                ScrollViewer.HorizontalScrollBarVisibility="Disabled"
                PreviewDragEnded="RadTreeView_PreviewDragEnded"
                DragEnded="RadTreeView_DragEnded"
                Style="{StaticResource CommonInputFilesTreeViewStyle}"
                ItemsSource="{Binding SortedInputFiles}"
                ItemTemplate="{StaticResource ListInputFileTemplate}"
                ItemContainerStyle="{StaticResource ListInputFileTreeViewItemStyle}" >
                <telerik:RadContextMenu.ContextMenu>
                    <telerik:RadContextMenu x:Name="InputFileContextMenu" EventName="MouseRightButtonUp"
                                            Placement="MousePoint"
                                            ItemsSource="{Binding InputFileMenuCommands, Converter={StaticResource RadMenuItemsConverter}}"/>
                </telerik:RadContextMenu.ContextMenu>

                   </telerik:RadTreeView>
    It's seems that even though the DataModel, and View doeb't exist any more the tooltip is still keeing them in memory by reference.
    I have tried to remove the use of radToolTipService and memory leaks where gone.
    I'm using VS2010 silverlight, Telerik.Windows.Controls version is : 2012.3.1129.1050 runtime version is: v4.0.30319

    Can you check why I'm having these memory leaks?
  2. Vladislav
    Admin
    Vladislav avatar
    276 posts

    Posted 23 Apr 2013 Link to this post

    Hello Shirly,

    Thank you for this report.
    We managed to narrow a memory leak within the RadTreeView control, caused by the RadContextMenu.
    It is logged here, where you can track its progress and vote for it.
    We however wasn't able to reproduce a memory leak specific to RadToolTip control used in the RadTreeView.
    Can you please review the attached project, where we located the memory leak and let us know if your scenario/project differs significantly from it. It will be best if you can send us a sample project demonstrating the memory leak with the RadToolTip control, in order to further investigate it at our side.

    Your Telerik points are updated accordingly.

    Greetings,
    Vladislav
    the Telerik team
