ListControl SelectedValue not working

25 posts, 0 answers
  1. Peter
    Peter avatar
    14 posts
    Member since:
    Apr 2009

    Posted 05 Apr 2011 Link to this post

    Hi All

    Hopefully I have missed something simple but I cannot seem to get SelectedValue to work in a databound list control.

    The scenario is that I have a ListControl which has been filled from a DataTable with the DisplayMember set to a Name and the ValueMember set to a Database Id.

    I programatically try to set the SelectedValue to a given Database Id, nothing happens, the selected value does not change, the ListControl selection point does not move, no events generated.

    The various SearchString functions are useless to me because they work on the DisplayMember not the ValueMember and I would have duplicate names in my list.

    I have tried writing my own routine to find the value manually and return an index, but I am also having problems with SelectedIndex not being set properly. This seems to work fine in simple scenarios but in a more complex scenario where the list is being changed and updated, it seems to stop working. As yet I cannot determine what is causing the problem with SelectedIndex but if I can get SelectedValue to work I do not have to worry about it.

    I am using the Q1 2011 controls

    Any feedback gratefully received.

    Peter


  2. Richard Slade
    Richard Slade avatar
    3000 posts
    Member since:
    May 2009

    Posted 06 Apr 2011 Link to this post

    Hello Peter,

    I think that this recent forum post will probably answer your questions.

    hope that helps
    Richard
  3. UI for WinForms is Visual Studio 2017 Ready
  4. Peter
    Peter avatar
    14 posts
    Member since:
    Apr 2009

    Posted 06 Apr 2011 Link to this post

    Richard

    Sorry my experience directly contradicts that post (I checked it before writing this post), setting the SelectedValue as described in the post does not work at all for me and using the SearchString functions does not work for me as I need to search on the Value not the DisplayMember.

    Regards

    Peter

  5. Richard Slade
    Richard Slade avatar
    3000 posts
    Member since:
    May 2009

    Posted 06 Apr 2011 Link to this post

    Hello,

    Here is a small sample (using the latest Q1 2011 release) for you to try in a new project using SelectedValue.

    Designer File

    partial class Form1
    {
        /// <summary>
        /// Required designer variable.
        /// </summary>
        private System.ComponentModel.IContainer components;
        /// <summary>
        /// Clean up any resources being used.
        /// </summary>
        /// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
        protected override void Dispose(bool disposing)
        {
            if (disposing && (components != null))
            {
                components.Dispose();
            }
            base.Dispose(disposing);
        }
        #region Windows Form Designer generated code
        /// <summary>
        /// Required method for Designer support - do not modify
        /// the contents of this method with the code editor.
        /// </summary>
        private void InitializeComponent()
        {
            this.radListControl1 = new Telerik.WinControls.UI.RadListControl();
            this.radButton1 = new Telerik.WinControls.UI.RadButton();
            this.radSpinEditor1 = new Telerik.WinControls.UI.RadSpinEditor();
            ((System.ComponentModel.ISupportInitialize)(this.radListControl1)).BeginInit();
            ((System.ComponentModel.ISupportInitialize)(this.radButton1)).BeginInit();
            ((System.ComponentModel.ISupportInitialize)(this.radSpinEditor1)).BeginInit();
            this.SuspendLayout();
            //
            // radListControl1
            //
            this.radListControl1.CaseSensitiveSort = true;
            this.radListControl1.ItemHeight = 18;
            this.radListControl1.Location = new System.Drawing.Point(13, 13);
            this.radListControl1.Name = "radListControl1";
            this.radListControl1.Size = new System.Drawing.Size(259, 237);
            this.radListControl1.TabIndex = 0;
            this.radListControl1.Text = "radListControl1";
            //
            // radButton1
            //
            this.radButton1.Location = new System.Drawing.Point(133, 274);
            this.radButton1.Name = "radButton1";
            this.radButton1.Size = new System.Drawing.Size(139, 20);
            this.radButton1.TabIndex = 1;
            this.radButton1.Text = "Select Value";
            this.radButton1.Click += new System.EventHandler(this.radButton1_Click);
            //
            // radSpinEditor1
            //
            this.radSpinEditor1.Location = new System.Drawing.Point(13, 274);
            this.radSpinEditor1.Maximum = new decimal(new int[] {
            10,
            0,
            0,
            0});
            this.radSpinEditor1.Minimum = new decimal(new int[] {
            1,
            0,
            0,
            0});
            this.radSpinEditor1.Name = "radSpinEditor1";
            //
            //
            //
            this.radSpinEditor1.RootElement.AutoSizeMode = Telerik.WinControls.RadAutoSizeMode.WrapAroundChildren;
            this.radSpinEditor1.ShowBorder = true;
            this.radSpinEditor1.Size = new System.Drawing.Size(100, 20);
            this.radSpinEditor1.TabIndex = 2;
            this.radSpinEditor1.TabStop = false;
            this.radSpinEditor1.Value = new decimal(new int[] {
            1,
            0,
            0,
            0});
            //
            // Form1
            //
            this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 13F);
            this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
            this.ClientSize = new System.Drawing.Size(284, 320);
            this.Controls.Add(this.radSpinEditor1);
            this.Controls.Add(this.radButton1);
            this.Controls.Add(this.radListControl1);
            this.Name = "Form1";
            this.Text = "Form1";
            ((System.ComponentModel.ISupportInitialize)(this.radListControl1)).EndInit();
            ((System.ComponentModel.ISupportInitialize)(this.radButton1)).EndInit();
            ((System.ComponentModel.ISupportInitialize)(this.radSpinEditor1)).EndInit();
            this.ResumeLayout(false);
            this.PerformLayout();
        }
        #endregion
        private Telerik.WinControls.UI.RadListControl radListControl1;
        private Telerik.WinControls.UI.RadButton radButton1;
        private Telerik.WinControls.UI.RadSpinEditor radSpinEditor1;
    }


    Form1.cs
    using System;
    using System.Collections.Generic;
    using System.ComponentModel;
    using System.Data;
    using System.Drawing;
    using System.Linq;
    using System.Text;
    using System.Windows.Forms;


        public partial class Form1 : Form
        {
            private int InitialValue = 3;

            public Form1()
            {
                InitializeComponent();

                this.radListControl1.DataSource = GetTable();
                this.radListControl1.DisplayMember = "Name";
                this.radListControl1.ValueMember = "Id";

                this.radListControl1.SelectedValue = InitialValue;
            }

            static DataTable GetTable()
            {
                DataTable table = new DataTable();
                table.Columns.Add("Id", typeof(int));
                table.Columns.Add("Name", typeof(string));

                table.Rows.Add(1, "Richard");
                table.Rows.Add(2, "Peter");
                table.Rows.Add(3, "Chris");
                table.Rows.Add(4, "Rob");
                table.Rows.Add(5, "Tom");
                table.Rows.Add(6, "Stewart");
                table.Rows.Add(7, "Leisl");
                table.Rows.Add(8, "Ester");
                table.Rows.Add(9, "John");
                table.Rows.Add(10, "Jacqui");
                return table;
            }

            private void radButton1_Click(object sender, EventArgs e)
            {

                this.radListControl1.SelectedValue = Convert.ToInt32(this.radSpinEditor1.Value);

            }

        }

    hope that helps
    Richard
  6. Peter
    Peter avatar
    14 posts
    Member since:
    Apr 2009

    Posted 07 Apr 2011 Link to this post

    Richard

    Thanks for taking the time to give me an example, although it did not solve my problem it did give me a working example to compare against my code to try and determine what was going wrong. First a quick description of what I am doing to set the scene (I am converting this application from winforms controls to Telerik):

    I have a list of items (the ListControl), when you select an item you are able to edit the item details in the form. If you select another item, any changes to the current item are updated before the new selection is made. Because the item details could also include the name being displayed in the list, the list is redrawn from the database and the new item the user selected is selected in the re-drawn list.

    The list redraw happens within the SelectedIndexChanged event and it is in this event that I try and set the selected value to the one the user has just clicked on before the list was re-drawn. This works perfectly in the winforms ListControl but it would seem that you cannot set either the SelectedValue or the SelectedIndex in the RadListControl while you are in a selected event, it does not return an error it just does not do anything.

    Now I know this, I can work around it and do the update it in a different way that does not involve setting the SelectedValue within the event.

    Thanks again

    Peter
  7. Richard Slade
    Richard Slade avatar
    3000 posts
    Member since:
    May 2009

    Posted 07 Apr 2011 Link to this post

    Hello Peter,

    If you could post a sample that demonstrates the issue, I'll be happy to take a look at it for you.
    Regards,
    Richard
  8. Jack
    Admin
    Jack avatar
    2335 posts

    Posted 08 Apr 2011 Link to this post

    Hi Peter,

    Yes, we found a similar issue related with the SelectedIndex/SelectedValue properties. However, we are not sure whether this is the same issue. Could you, please create a small sample project where the issue can be reproduced and send it to us? This will help me to investigate the case in detail and ensure that any potential issue will be addressed in our upcoming service pack. Thank you in advance.

    I am looking forward to your reply.

    All the best,
    Jack
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  9. Robert
    Robert avatar
    53 posts
    Member since:
    Feb 2010

    Posted 08 Apr 2011 Link to this post

    Hi,

    We have found some problem with SelectedValue property when using in DataBinding Mode
    I believe problem with BindingSource.
    When control loading with DataSource like table.Columns("id","name")
    And DisplayMember is name and ValueMember - id

    Then OnForm Load it seems like RadDropDownList control looses its BindingSource, but DataSource is still valid.
    So, when I set SelectedValue to any valid number referenced to its name, then RadDropDown behaves like it tries to set the value and change all other properties' values (SelectedIndex and Text and such), it takes some time (about several handreds milliseconds) to try, but then it still comes back to null values for all of them.

    Maybe the bindingSource is locked by some Telerik internal service?

    And the SelectedIndex in that case is equal to -1, even I don't set it to -1 After I set it manually to any valid number (say 0), the control initializes other properties, but dataBinding is failed anyway.

    So, it is bad, as two-ways binding is very common in case if you have DataSource like  table.Columns("id","name")

    I tried to recreate the same problem on very simple project, and it worked ok, but in larger project it doesn't.

    I could give you Remote Access to my PC, and you would try to see the issue, just drop me message to my email and time window when you're able to login.
  10. Robert
    Robert avatar
    53 posts
    Member since:
    Feb 2010

    Posted 08 Apr 2011 Link to this post

            private void Bind()
            {
                try  {
                    this.chop.DataBindings.Add("Text", bs[0], "DutyIssuer", false, DataSourceUpdateMode.OnPropertyChanged);
                } catch (Exception ex) { MessageBox.Show(ex.Message); }
                try {
                    this.chop.DataBindings.Add("SelectedValue", bs[0], "ChopId", false, DataSourceUpdateMode.OnPropertyChanged);
                } catch (Exception ex) { MessageBox.Show(ex.Message); }
                try {
                    this.dutyDate.DataBindings.Add("Value", bs[0], "DutyDate", false, DataSourceUpdateMode.OnPropertyChanged);
                } catch (Exception ex) { MessageBox.Show(ex.Message); }
            }

     * * *

            private void DutyPlace_Load(object sender, EventArgs e)
            {
                Domains.DutyPlace _d = (Domains.DutyPlace)d.Clone();
                chop.SelectedIndex = 0;
                bs.Clear();
                chop.DataBindings.Clear();
                dutyDate.DataBindings.Clear();
                bs.DataSource = typeof(Domains.DutyPlace);
                bs.Add(_d);
                d = _d;
                Bind();
            }

    chop - is RadDropDownList control.
    I even tried to clear all bindings OnLoad Form without success. SelectedValue is set to null afterall.

    Tried to change it from VS Debugger EditValue menu, it still keeps null value the way I described above.

    Help!
  11. Robert
    Robert avatar
    53 posts
    Member since:
    Feb 2010

    Posted 10 Apr 2011 Link to this post

    Also, seems like the control doesn't work properly with ContextManager.
    NotifyPropertyChanged("Id"); isn't served correctly.

    The SelectedValue, SelectedIndex and SelectedText Data Binding - is not implemented.

  12. Peter
    Admin
    Peter avatar
    1148 posts

    Posted 12 Apr 2011 Link to this post

    Hi Vitali,

    Thank you for writing.

    I was not able to reproduce this issue using a sample project. I attached my test project here. I suppose that your business object does not implement the INotifyPropertyChanged interface. Please, could you confirm this? Implementing this interface is a prerequisite in this scenario.

    I am looking forward to your reply.

    All the best,
    Peter
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  13. Robert
    Robert avatar
    53 posts
    Member since:
    Feb 2010

    Posted 12 Apr 2011 Link to this post

    The INotify... is implemented of course.
    The DataBinding is driving me really mad.

    Peter, do you know how to bind SelectedValue, SelectedIndex and Text properties all at once to a binding object.
    Something like the following:

                    radDropDown1.DataBindings.Add("Text", bs, "MyObjectText", false, DataSourceUpdateMode.OnPropertyChanged);
                    radDropDown1.DataBindings.Add("SelectedValue", bs, "MyObjectValue", false, DataSourceUpdateMode.OnPropertyChanged);
                    radDropDown1.DataBindings.Add("SelectedIndex", bs, "MyObjectIndex", false, DataSourceUpdateMode.OnPropertyChanged);

    and

    public class MyObject :INotify...
    {

            protected string text;
            public string MyObjectText {
                get { return text; }
                set {
                    text = value;
                    NotifyPropertyChanged("MyObjectText"); }
            }

            protected int myvalue;
            public int MyObjectValue {
                get { return myvalue; }
                set {
                    myvalue = value;
                    NotifyPropertyChanged("MyObjectValue "); }
            }

            protected int myindx;
            public string MyObjectIndex {
                get { return myindx; }
                set {
                    myindx= value;
                    NotifyPropertyChanged("MyObjectIndex"); }
            }


            public event PropertyChangedEventHandler PropertyChanged;
            private void NotifyPropertyChanged(String info)
            {
                if (PropertyChanged != null)
                {
                    PropertyChanged(this, new PropertyChangedEventArgs(info));
                }
            }
    }


    I tried to make 2 of the properties passive by commenting off NotifyPropertyChanged("MyObjectIndex");  without success.
    It works unpredictable.
    I can't make this construction workable.
    The alternative is to implement the schema manually by serving OnChange.... in code and assigning the property values manually.


    Help.
  14. Robert
    Robert avatar
    53 posts
    Member since:
    Feb 2010

    Posted 13 Apr 2011 Link to this post

    And there is a bug anyways.

    FormLoad Callback is done and the Form is not visualized yet, but the changing SelectedValue bound property in Data Source object at that stage doesn't make any changes on the control.
    But if SelectedIndex is used instead of SelectedValue - then it works ok.
    When the form, where the control is, loaded and Visualized, then binding works ok.
    Seems like RadDropDownList control is able to be manipulated completely, only after it's loaded and Visualized in the application.
    If it's not visble, then it's not 100% correct in acting with data binding on SelectedValue.
  15. Peter
    Admin
    Peter avatar
    1148 posts

    Posted 15 Apr 2011 Link to this post

    Hi,

    Thank you for sending me your code. Now I understand the issue. It appears that the Text property of RadDropDownList does not update properly via data binding. I added the issue in our bug tracking system and it we will address it in one of our upcoming releases.

    I have updated your Telerik points for bringing our attention on this.

    Should you have any other questions, do not hesitate to contact us.

    Kind regards,
    Peter
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  16. Armand
    Armand avatar
    7 posts
    Member since:
    Oct 2006

    Posted 30 Apr 2011 Link to this post

    I am experiencing the same error, using a bindingsource.
    A workaround is to set the bindingsource's position to the desired id (after binding the control)
    Sample

    Dim key As Int16 = AudioMeterBindingSource.Find("equipmentid", screeningaudioID)
    AudioMeterBindingSource.Position = key 'do not use selected value property of control

    Armand
  17. Robert
    Robert avatar
    53 posts
    Member since:
    Feb 2010

    Posted 30 Apr 2011 Link to this post

    Hi Armaund,

    I spent whole week to find a workaround without success.

    The best workaround is to get back to old fashion style - proceed with the native callbacks - OnIndexChanged and such.
    Even though it looks ugly in 21 Century, but .NET Currency Manager and ContextManager are dealing with the same native callbacks as well.
    It is the fastest solution in ya case, otherwise waiting for the upcomming bug fixes will stop ya work for ages.

    This bug behaves not stable.

    P.S. I beleive that ListControl and DropDownList are written by the same scenario in the part of data binding.
  18. Peter
    Admin
    Peter avatar
    1148 posts

    Posted 05 May 2011 Link to this post

    Hello,

    Vitali, thank you for sharing this information.

    Armand, I can confirm that there is not an easy workaround and the best way to resolve this for now is to proceed with the DropDown events, for example SelectedIndexChanged and SelectedValueChanged events.

    Do not hesitate to contact us if you have further questions.

    All the best,
    Peter
    the Telerik team
    Q1’11 SP1 of RadControls for WinForms is available for download; also available is the Q2'11 Roadmap for Telerik Windows Forms controls.
  19. Eric
    Eric avatar
    28 posts
    Member since:
    Nov 2007

    Posted 13 Jul 2015 Link to this post

    Hi,

     I am experiencing the same issue as described by Vitali.  That is, I have a RadDropDownListElement which has a DataTable as a DataSource.  I have set the DisplayMember and ValueMember.  When I add the following databinding (the class for "batch" implements INotifyPropertyChanged):

    periodComboBox.DataBindings.Add("SelectedValue", batch, "PeriodId", true, DataSourceUpdateMode.OnPropertyChanged);

    the dropDownList displays the correct value of batch.PeriodId at runtime.  However, if I change the value of the combobox through the UI, the SelectedIndexChanging, SelectedIndexChanged and SelectedValueChanged events are fired, but the batch.PeriodId property is never set.

    I tried putting the code for setting up the databindings in the form_Shown event to see if it was because of the timing of when the bindings are created, but the same behaviour occurred.

    So is this a bug that still exists and I have to use the workaround suggested by Vitali?  Or am I missing something?

    Thanks.

  20. Dess
    Admin
    Dess avatar
    1601 posts

    Posted 16 Jul 2015 Link to this post

    Hello Eric,

    Thank you for writing.

    Following the provided information I have tried to reproduce the issue you are facing with the latest version but without any success. When the RadDropDownList selection is changed the bound property for the custom class is updated respectively. Please have a look at the attached gif file illustrating the behavior on my end. Am I missing something? I have attached my sample project. Could you please specify the exact steps how to reproduce the problem so I can investigate the precise case? Thank you in advance.

    Alternatively, you can open a support ticket providing your project replicating the issue. Thus, we can make adequate analysis of the specific case and assist you further. Thank you in advance. I am looking forward to your reply.

    Regards,
    Dess
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  21. Eric
    Eric avatar
    28 posts
    Member since:
    Nov 2007

    Posted 16 Jul 2015 in reply to Dess Link to this post

    Hi Dess,



    Thanks for the reply and the sample code.  I see that your sample code works, and it is similar to mine, except that I am using a RadDropDownListElement object and you are using a RadDropDownList object.

    FYI, mine was added through the designer UI to a RadRibbonBarButtonGroup.  This RadRibbonBarButtonGroup is contained by another RadRibbonBarButtonGroup, which in turn is contained by a RadRibbonBarGroup, and finally contained by a RadRibbonBar.

    So it seems the behaviour of a RadDropDownList is different than a RadDropDownListElement, at least as far as I can see.

    Thanks,

    Eric.

  22. Eric
    Eric avatar
    28 posts
    Member since:
    Nov 2007

    Posted 16 Jul 2015 in reply to Dess Link to this post

    Hi Dess,

    Thanks for your reply and sample code.  I see that your code works, and it is similar to mine, except I am using a RadDropDownListElement and you are using a RadDropDownList.

    FYI, mine was added through the designer, and is contained by a RadRibbonBarButtonGroup.  This is subsequently contained by another RadRibbonBarButtonGroup, then a RadRibbonBarGroup, then a RadRibbonBar.

    So it seems the behaviour of the RadDropDownList is different than a RadDropDownListElement, at least as far as I can tell.

    Thanks,

    Eric.

  23. Dess
    Admin
    Dess avatar
    1601 posts

    Posted 17 Jul 2015 Link to this post

    Hello Eric,

    Thank you for writing back.

    The provided detailed information is greatly appreciated. I have logged it in our feedback portal. You can track its progress, subscribe for status changes and add your vote/comment to it on the following link - feedback item.

    I have also updated your Telerik points.

    The possible solution that I can suggest is to use a RadHostItem and use RadDropDownList:
    RadDropDownList ddl = new RadDropDownList();
    ddl.MinimumSize = new System.Drawing.Size(100, 20);
    RadHostItem host = new RadHostItem(ddl);
    host.MinSize = new Size(100, 20);
    this.radRibbonBarButtonGroup2.Items.Add(host);
    ddl.DataSource = dt;
    ddl.DisplayMember = "Name";
    ddl.ValueMember = "Id";
    ddl.DataBindings.Add("SelectedValue", student, "Id", true, DataSourceUpdateMode.OnPropertyChanged);

    I hope this information helps. If you have any additional questions, please let me know.

    Regards,
    Dess
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  24. Scott
    Scott avatar
    13 posts
    Member since:
    Dec 2015

    Posted 02 Sep Link to this post

    I am experiencing a problem that seems VERY related to this one.  I originally discovered this while chasing down binding and datasource theories on this problem.  I have now isolated it to the inability to write to the SelectedValue for the radDDL.

            private void radGridView1_RowsChanged(object sender, Telerik.WinControls.UI.GridViewCollectionChangedEventArgs e)
            {
                var tsd = (t_Estimates)this.t_EstimatesBindingSource.Current;
                if (tsd != null) { ServiceTyperadDropDownList.SelectedValue = tsd.ServiceType.Value; }
            }

    I have confirmed, that when the IF Conditional is executed, tsd.ServiceType.Value = 5.  After exiting, ServiceTyperadDropDownList.SelectedValue = null.

    I have several other radDDLs on the same form that work fine.  It is only this one.  I compared them, and could not identify any differences.  Additionally, this appears to only be a problem with the 1st record in the t_EstimatesBindingSource Entity dataset.

    Please advise.



    -Scott

  25. Robert
    Robert avatar
    53 posts
    Member since:
    Feb 2010

    Posted 03 Sep in reply to Peter Link to this post

    yep, I just left it away and use in simple scenario..
    even in some code parts I get the value in demand index in the table and set it as setIndex.. then selected value is set :)
  26. Dess
    Admin
    Dess avatar
    1601 posts

    Posted 06 Sep Link to this post

    Hello,

    Thank you for writing.

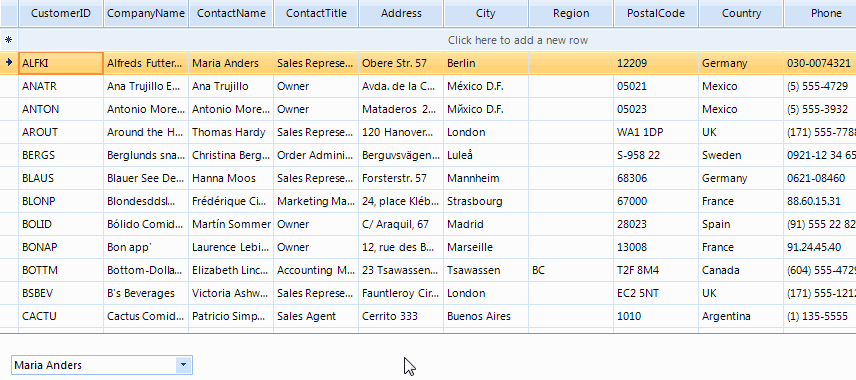

    The referred feedback item is related to using simple data binding. Setting directly the RadDropDownList.SelectedValue property is supposed to work as expected if the set value is correct considering the RadDropDownList.ValueMember. I have prepared a sample project for your reference. The selection in RadDropDownList is successfully changed when selecting a new row in te grid.

    I hope this information helps. Should you have further questions I would be glad to help.

    Regards,
    Dess
    Telerik by Progress
    Check out the Windows Forms project converter, which aids the conversion process from standard Windows Forms applications written in C# or VB to Telerik UI for WinForms.For more information check out this blog post and share your thoughts.
Back to Top
UI for WinForms is Visual Studio 2017 Ready
