Labels Overlapping with PlotArea

Thread is closed for posting
3 posts, 1 answers
  1. Ananth Godavari
    Ananth Godavari avatar
    2 posts
    Member since:
    Jan 2010

    Posted 08 May 2011 Link to this post

    Hi,

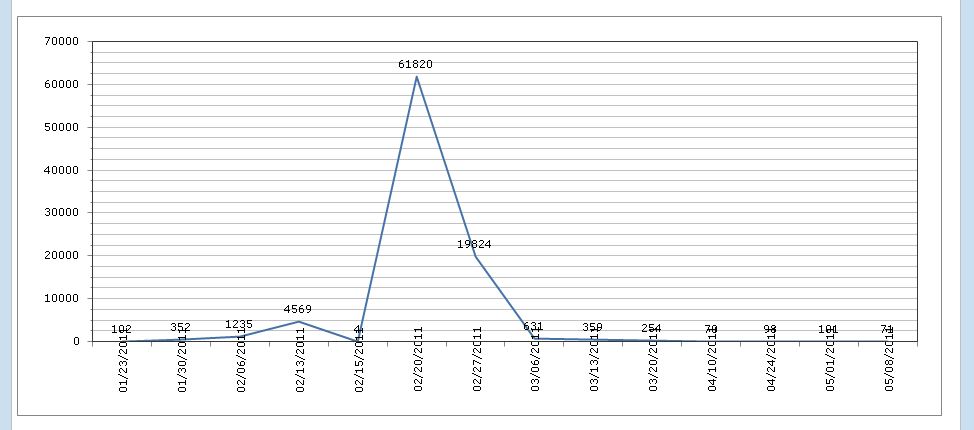

    I am trying out Telerik Controls for a potentially large projecy. As part of it, I am designing a line chart and made the x-axis rotation to -90, removed legend etc. The problem is the x-axis labels are overlapping the plot area and I can't seem to figure this out.

    Attached is the image.

    Please help.

    Thanks
    Ananth

    <telerik:RadChart ID="linkchart" runat="server" Height="400px" Skin="Office2007"
        Width="925px" DefaultType="Line" IntelligentLabelsEnabled="True">
        <Appearance>
            <Border Color="134, 134, 134" />
        </Appearance>
        <Series>
            <telerik:ChartSeries Name="Series 1" Type="Line">
                <Appearance>
                    <FillStyle FillType="Solid" MainColor="69, 115, 167">
                    </FillStyle>
                    <TextAppearance TextProperties-Color="Black">
                    </TextAppearance>
                    <Border Color="69, 115, 167" />
                </Appearance>
            </telerik:ChartSeries>
        </Series>
        <Legend Visible="False">
            <Appearance Dimensions-Margins="15%, 2%, 1px, 1px" Dimensions-Paddings="2px, 8px, 6px, 3px"
                Visible="False">
                <ItemTextAppearance TextProperties-Color="Black">
                </ItemTextAppearance>
                <ItemMarkerAppearance Figure="Square">
                </ItemMarkerAppearance>
            </Appearance>
        </Legend>
        <PlotArea>
            <XAxis>
                <Appearance Color="134, 134, 134" MajorTick-Color="134, 134, 134" LabelAppearance-RotationAngle="-90">
                    <MajorGridLines Color="134, 134, 134" Width="0" />
                    <LabelAppearance RotationAngle="-90">
                    </LabelAppearance>
                    <TextAppearance TextProperties-Color="Black" Position-AlignedPosition="None">
                    </TextAppearance>
                </Appearance>
                <AxisLabel>
                    <Appearance Position-AlignedPosition="Bottom">
                    </Appearance>
                    <TextBlock>
                        <Appearance TextProperties-Color="Black" Position-AlignedPosition="Bottom">
                        </Appearance>
                    </TextBlock>
                </AxisLabel>
            </XAxis>
            <YAxis>
                <Appearance Color="134, 134, 134" MajorTick-Color="134, 134, 134" MinorTick-Color="134, 134, 134">
                    <MajorGridLines Color="134, 134, 134" />
                    <MinorGridLines Color="134, 134, 134" />
                    <TextAppearance TextProperties-Color="Black">
                    </TextAppearance>
                </Appearance>
                <AxisLabel>
                    <TextBlock>
                        <Appearance TextProperties-Color="Black">
                        </Appearance>
                    </TextBlock>
                </AxisLabel>
            </YAxis>
            <Appearance Dimensions-Margins="25px, 25px, 75px, 75px">
                <FillStyle FillType="Solid" MainColor="">
                </FillStyle>
            </Appearance>
        </PlotArea>
        <ChartTitle Visible="False">
            <Appearance Visible="False">
                <FillStyle MainColor="">
                </FillStyle>
            </Appearance>
            <TextBlock>
                <Appearance TextProperties-Color="Black" TextProperties-Font="Arial, 18px">
                </Appearance>
            </TextBlock>
        </ChartTitle>
    </telerik:RadChart>
  2. Answer
    Jeremy
    Jeremy avatar
    96 posts
    Member since:
    Mar 2010

    Posted 08 May 2011 Link to this post

    RadChart1.PlotArea.XAxis.Appearance.LabelAppearance.Dimensions.Margins.Top = new Telerik.Charting.Styles.Unit(10);
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Ananth Godavari
    Ananth Godavari avatar
    2 posts
    Member since:
    Jan 2010

    Posted 09 May 2011 Link to this post

    Thanks Jeremy! it worked.

    Ananth
Back to Top
