Labels in x-axis and y-axis getting overlapped

2 posts, 0 answers
  1. rajan
    rajan avatar
    1 posts
    Member since:
    Feb 2015

    Posted 13 Feb 2015 Link to this post

    Hi support team,

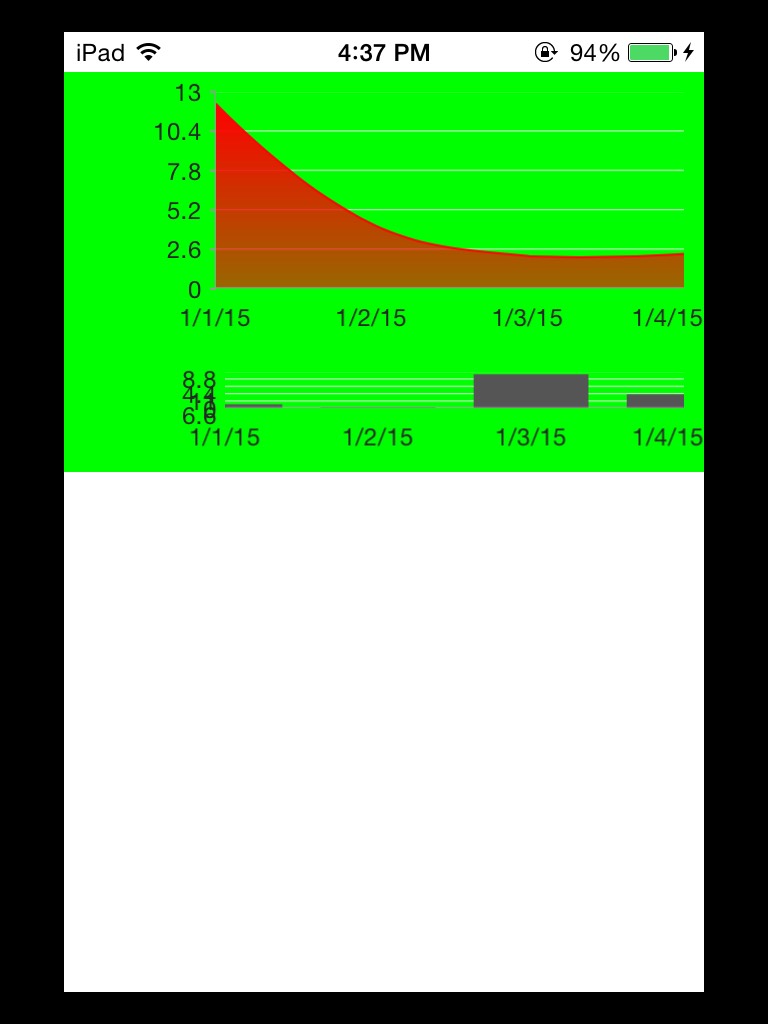

       I am in kind of stuck to finalise to use  telerik charting framework for iOS. When there are large number of data , the label of x-axis and y-axis gets overlapped.  There are few  thread for there platform , but did not find one for iOS. Can you please help me to figure out how to get rid of overlapping , or  set up label steps automatic.

    any help greatly accepted.
  2. Adrian
    Adrian avatar
    159 posts

    Posted 13 Feb 2015 Link to this post

    Hello Rajan,

    Thank you for contacting us.

    To avoid overlapping of your axis labels you should set the fitMode property of TKChartAxisLabelStyle to multiline. Please consider the code snippet below: = TKChartAxisLabelFitModeMultiline;

    If you need to change the tick interval of your axis you should use its majorTickInterval property. The code snippet below demonstrates how to change the tick interval of TKChartNumericAxis:
    TKChartNumericAxis *yAxis = (TKChartNumericAxis *)_chart.yAxis;
    yAxis.majorTickInterval = @10;

    I hope this helps. Should you have further questions, I will be glad to assist you.
