Kendo Area Chart showing incorrect chart

4 posts, 0 answers
  1. parag
    parag avatar
    3 posts
    Member since:
    Apr 2016

    Posted 20 Apr Link to this post

    Hi,

    I am using kendo chart to visualize some data.

    The data looks like below:



    my Kendo Code/chart code looks like below:

    {
       "timestamp": 1454664601000,
       "strategyId": 14,
       "count": 6
     }

    And here is the Kendo Javascript code to render the chart.

    var messageRateData = new kendo.data.DataSource({
                    transport: {
                        read: {
                            url: "content/shared/message-rate-details.json",
                            dataType: "json"
                        }
                    },
                    sort: {
            field: "timestamp",
            dir: "asc"
            },
            group: {
                        field: "strategyId"
                    }
                });

    $("#chart10").kendoChart({
                dataSource: messageRateData,
                title: {
                    text: "Message Rate Details in 10 min interval"
                },
                legend: {
                    position: "top"
                },
        series: [{
                            type: "area",
                stack: true,
                field: "count",
                name: "StrategyId #= group.value #"
                        }],
        valueAxis: {
                    labels: {
                        format: "{0}"
                    },
                    line: {
                        visible: false
                    }
                },
         categoryAxis: {
                    field: "timestamp",
            type: "date",
            labels: {
                        format: "hh:mm:ss"
                        }
                },
                tooltip: {
                    visible: true,
                    format: "{0}"
        }
    });

    However to my utter surprise I find that the data points is not displayed correctly for the first data-point. i.e. "03:00:01" for the given StrategyId.

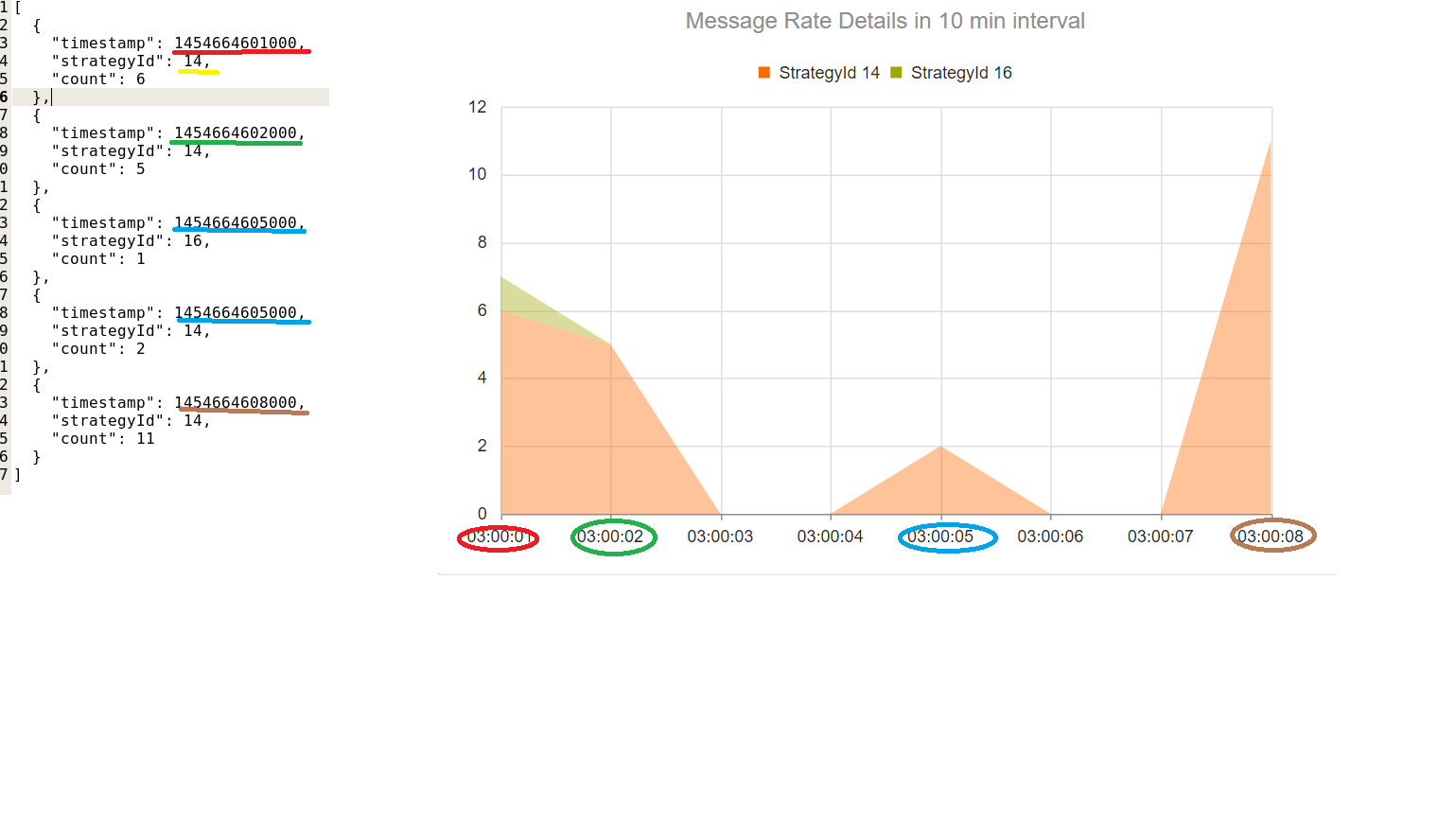

    Please find the screen shots below. Here the data and the plot is attached in the pic. the data point at timestamp : 1454664605000 (i.e. 03:00:05) should render two bars/areas (for strategyId 14 and 16), however it seems to be shifted to earlier time.

    Ideally for timestamp :03:00:05, I should see two plots/bars for StrategyId 14 and StrategyId 16, however It seems to be shifted to earlier time viz "03:00:01 and 03:00:02 .





    Any help/corrections/work around would be greatly appreciated.

  2. EZ
    EZ avatar
    60 posts
    Member since:
    May 2015

    Posted 20 Apr in reply to parag Link to this post

    Does it help if you tell the dataSource via schema that the timestamp field is a date?



    var messageRateData = new kendo.data.DataSource({
        transport: {
            read: {
                url: "content/shared/message-rate-details.json",
                dataType: "json"
            }
        },
        sort: {
            field: "timestamp",
            dir: "asc"
        },
        group: {
            field: "strategyId"
        },
        schema: {
            model: {
                fields: {
                    Timestamp: {
                        type: "date"
                    }
                }
            }
        }
    });
