Item Label Overlapping

8 posts, 0 answers
  1. saurabh(GV433015)
    saurabh(GV433015) avatar
    13 posts
    Member since:
    Sep 2010

    Posted 18 Mar 2011 Link to this post

    Hi Team,

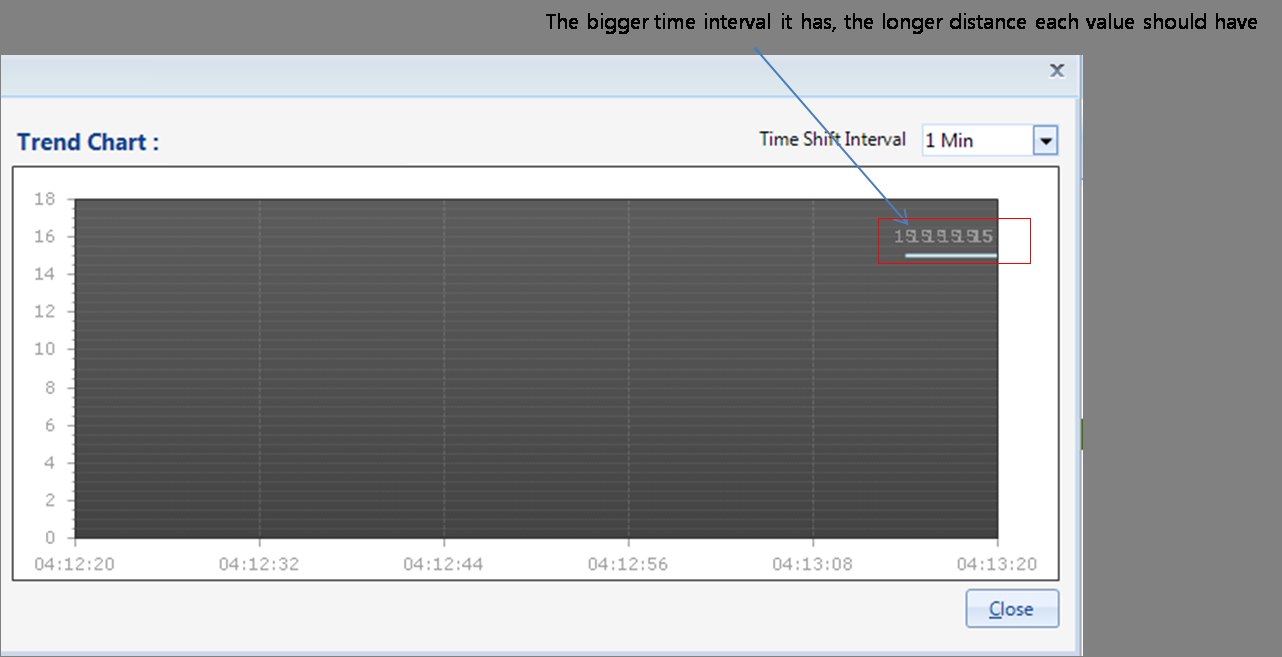

    I m facing problem of Item Label overlapping. i m drawing series item on particulate time interval.
    Chart is updating after every 10 sec.Kindly refer attachment.
    Please Help me out fr this.

    Thanks and Regards,
    Saurabh dubey
  2. Missing user
    Missing user avatar

    Posted 23 Mar 2011 Link to this post

    Hi saurabh,

    You can set the LayoutMode of the XAxis to Inside and the RadChart.Dock property to None. This will position the XAxis labels inside the plot area and keep the size of the plot area when the window size is changed, so that the labels will not overlap.
    radChart1.PlotArea.XAxis.LayoutMode = ChartAxisLayoutMode.Inside;
    radChart1.Dock = DockStyle.None;

    Kind regards,
    Polina
    the Telerik team
  3. UI for WinForms is Visual Studio 2017 Ready
  4. saurabh(GV433015)
    saurabh(GV433015) avatar
    13 posts
    Member since:
    Sep 2010

    Posted 29 Mar 2011 Link to this post

    Hi Polina,

    Thanks for your reply, but still my problem not solved.
    As my form and chat size is fixed so it is overlapping.
    kindly provide some other solution. Can we Draw value Up and Down of the Line in alternative sequence?


    Thanks and Regards,
    Saurabh dubey
  5. Missing user
    Missing user avatar

    Posted 31 Mar 2011 Link to this post

    Hello saurabh,

    You can try to set the RadChart.IntelligentLabelsEnabled to true. The Intelligent Labels feature of RadChart automatically re-aligns labels making each labeled value stand out clearly.

    I hope this helps.

    Greetings,
    Polina
    the Telerik team
  6. saurabh(GV433015)
    saurabh(GV433015) avatar
    13 posts
    Member since:
    Sep 2010

    Posted 04 Apr 2011 Link to this post

    Hi Polina,

    Thanks for your reply,

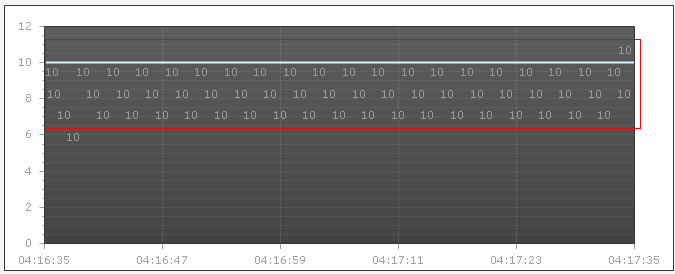

    I did changes according to your suggestion,Still its not looks what i want. Kindly refer the attachment.
    Please provide me some other solution if any.

    Thanks and Regards
    Saurabh
  7. Missing user
    Missing user avatar

    Posted 07 Apr 2011 Link to this post

    Hi saurabh,

    The IntelligentLabelsEnabled resolves the overlapping issue, however due to the fact that your chart is very busy (many data points in very small space), the resulting label positioning looks a bit akward. Unfortunately RadChart does not expose additional positiong API that would allow you to customize the labels location in this scenario. You can try to manually hide specific series item labels on the ItemDataBound event in order to reduce the label clutter.


    Kind regards,
    Polina
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  8. Alfonsina
    Alfonsina avatar
    13 posts
    Member since:
    May 2012

    Posted 05 Jul 2012 Link to this post

    Hallo Polina,

    I would like to know how I use the Intelligent Labels in a RadChart. My lablels are overlapping in the Radchart.

    Thanks very much,

    kind regards,

    Alfonsina

  9. Evgenia
    Admin
    Evgenia avatar
    1406 posts

    Posted 09 Jul 2012 Link to this post

    Hello Saurabh,

     You may check this online demo where the Intelligent Labels feature is shown in action.

    Regards,
    Evgenia
    the Telerik team
