Issue with RibbonBar

2 posts, 0 answers
  1. Saikiran
    Saikiran avatar
    7 posts
    Member since:
    May 2011

    Posted 24 May 2011 Link to this post

    I am not able to set the height of RadRibbon Bar in Winforms.

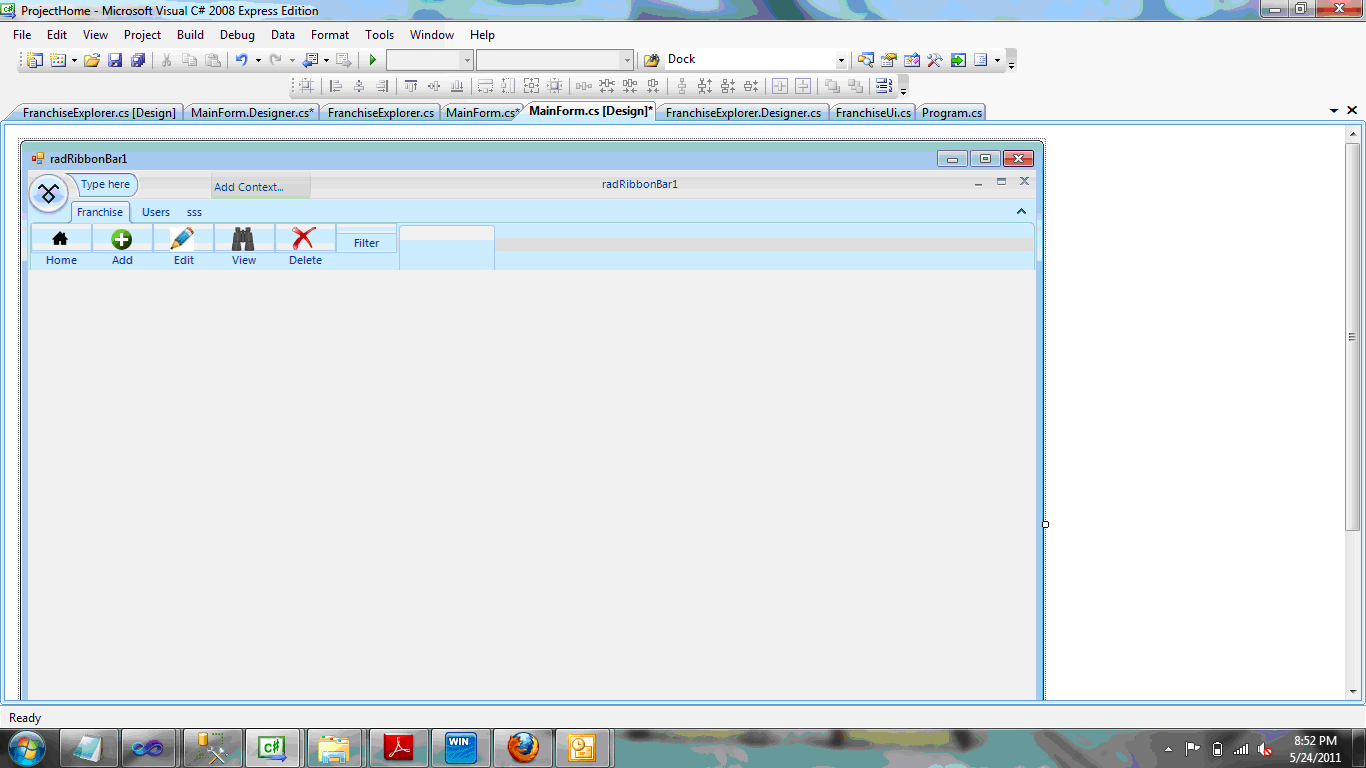

    Please review the attached file.

    When I set the Min Size/Max Size properties under root element, the border is getting truncated.

    Can anyone help me on this.

    you can reach me at saikiran@mediennetworks.com


    Thanks

    Kiran

  2. Peter
    Admin
    Peter avatar
    1148 posts

    Posted 25 May 2011 Link to this post

    Hello Saikiran,

    Thank you for the writing and for the provided screenshot.

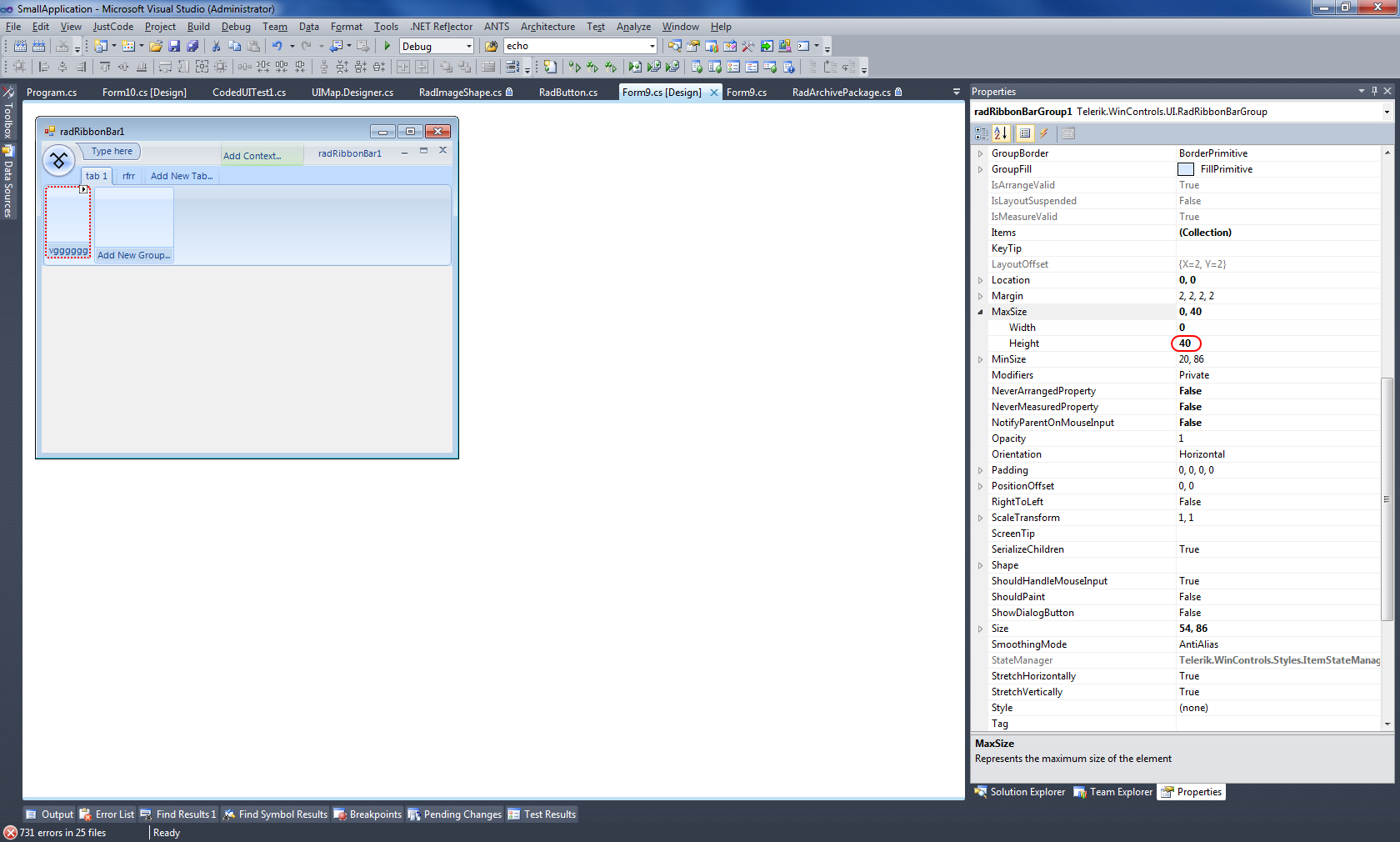

    The size of the RadRibbonBar control is calculated according to rules which are described in Microsoft Office 2007 UI Design Guidelines. The size of the area containing the groups is determined by the group with the biggest height (but not more than 60 pixels). If you want to set a smaller height of the RibbonBar, you should set  the Maximum Size of the groups. Please refer to the attached screenshot.

    I hope this helps.

    All the best,
    Peter
    the Telerik team
    Q1’11 SP1 of RadControls for WinForms is available for download; also available is the Q2'11 Roadmap for Telerik Windows Forms controls.
