Issue in displaying properly the Line Chart Programmatically

Thread is closed for posting
2 posts, 0 answers
  1. Vipin
    Vipin avatar
    1 posts
    Member since:
    Sep 2012

    Posted 26 Sep 2012 Link to this post

    I want to display Line Chart Programmatically. I do not want to display anything on X-Axis. I want to display some integer values on Y-Axis. By using the below code Line chart is getting displayed but some series are not fully getting displayed.

    I am using dataTable (dt) to bind the chart.
    Below are the two different approaches.

    With first approach, i am getting the series in chart, but which is not using full length of x-axis irrespective of series item data for each series.

    With second approach, i am not able to view the series in the chart. In order to resolve the issue with first approach, i also tried this second approach.

    if (dt != null && dt.Rows.Count > 0)
        //First approach STARTS
        RadChartBiddingLineGraph.DefaultType = Telerik.Charting.ChartSeriesType.Line;
        RadChartBiddingLineGraph.PlotArea.YAxis.AutoScale = false;
        RadChartBiddingLineGraph.PlotArea.YAxis.AddRange(Convert.ToInt32(dt.Rows[0][3]), Convert.ToInt32(dt.Rows[0][4]), 10);
        RadChartBiddingLineGraph.DataGroupColumn = "Hotel";
        RadChartBiddingLineGraph.DataManager.ValuesYColumns = new String[] { "RateValue" };
        RadChartBiddingLineGraph.DataSource = dt;
        foreach (Telerik.Charting.ChartSeries series in RadChartBiddingLineGraph.Series)
            series.Appearance.LabelAppearance.Visible = false;
            RadChartBiddingLineGraph.PlotArea.XAxis.Appearance.LabelAppearance.Visible = false;
        //First approach ENDS
        //Second approach STARTS
        DataTable dt2 = new DataTable();
        // Get the distinct records. HERE dt1 is the table in which there are all records(which are retrieved from SP)
        dt2 = dt.DefaultView.ToTable(true, dt.Columns[0].ColumnName);
        int s = 0;
        RadChartBiddingLineGraph.PlotArea.YAxis.AutoScale = false;
        RadChartBiddingLineGraph.PlotArea.YAxis.AddRange(120, 185, 5);
        foreach (DataRow item in dt2.Rows) //dt2 is the datatable in if have now distinct AuctionInviteIDs
            //just get the data on basis of AuctionInviteId
            //if want the result in datatable
            DataTable dtFilteredTable = (from a in dt.AsEnumerable()
                                         where a.Field<Int32>("AuctionInviteID").Equals(item["AuctionInviteID"])
                                         select a).CopyToDataTable();
            ChartSeries chartSeries = new ChartSeries();
            chartSeries.Name = s.ToString();
            chartSeries.Type = ChartSeriesType.Line;
            foreach (DataRow item2 in dtFilteredTable.Rows)
            s = s + 1;
        RadChartBiddingLineGraph.DataGroupColumn = "Hotel";
        RadChartBiddingLineGraph.DataSource = dt;
        foreach (Telerik.Charting.ChartSeries series in RadChartBiddingLineGraph.Series)
            series.Appearance.LabelAppearance.Visible = false;
            RadChartBiddingLineGraph.PlotArea.XAxis.Appearance.LabelAppearance.Visible = false;
        //Second approach ENDS

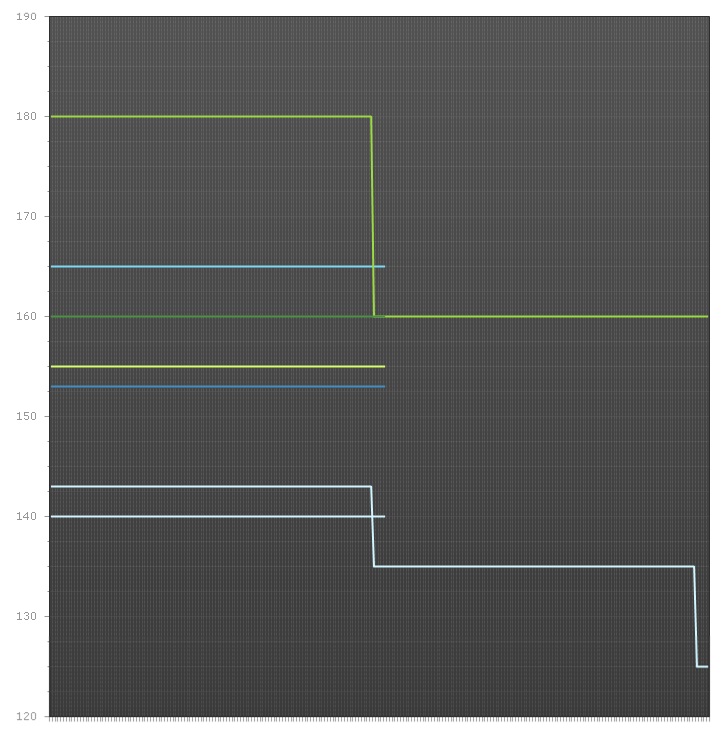

    With first approach, i am getting the graph "Result.jpg" as in the attachment, which is not using the full length of x-axis for each series.

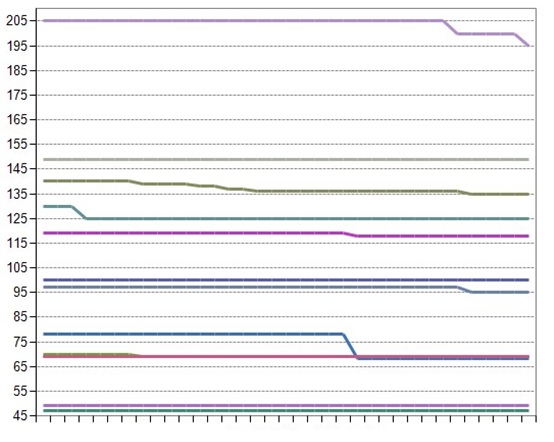

    I need the graph to be displayed as in "Approach-1.jpg" attachment, which uses the full length of x-axis for each series.

    Your help would be appreciated.

  2. Peshito
    Peshito avatar
    493 posts

    Posted 01 Oct 2012 Link to this post


    If I understand you correctly the issue you have is related with the X-Aaxis range as shown in the Result.jpg image. I tried to reproduce the issue using a sample data table and the information provided but with no avail. In order to provide you with an appropriate solution, could you attach a sample runnable project isolating the issue. As this is a forum post you can use a third party web site to upload and share the example.
