IsSnapToItemsEnabled and IsSnapToGridEnabled

2 posts, 0 answers
  1. B
    B avatar
    74 posts
    Member since:
    Jul 2011

    Posted 23 Jul 2015 Link to this post


    When IsSnapToItemsEnabled and IsSnapToGridEnabled are both true (the default setting), it's not possible to snap to the grid line right after an item line.

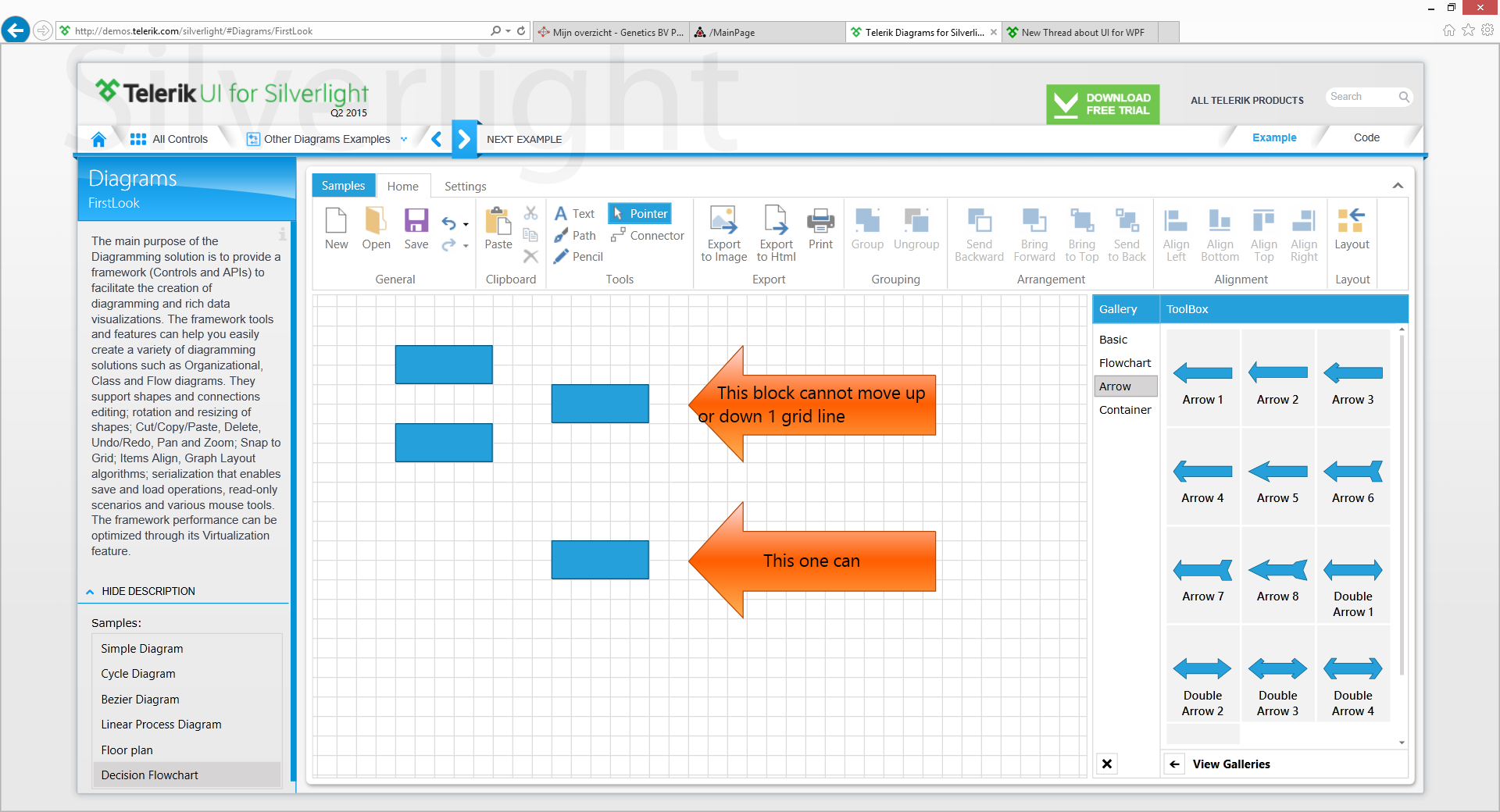

    Don't know if this is intentional, but it makes it difficult to move everything by 1 grid line when all the nodes are spaced with 2 grid lines in between.. See screenshot to see what I mean.




  2. Milena
    Milena avatar
    192 posts

    Posted 24 Jul 2015 Link to this post

    Hello Bayram,

    You are right - when the IsSnapToItemsEnabled  is set to true the items are snapped while dragging operation is executed. If you don't need this functionality you can set the property to false.

    In addition, the SnappingEngine exposes two virtual methods which you can override in your application to customize the default snap to items behavior. You can see more info in the section SnappingEngine in Align and Snap help article.

    I hope this information helps.
