Is it possible to create a chart like this?

4 posts, 0 answers
  1. Brian
    Brian avatar
    73 posts
    Member since:
    Sep 2010

    Posted 10 Nov 2011 Link to this post

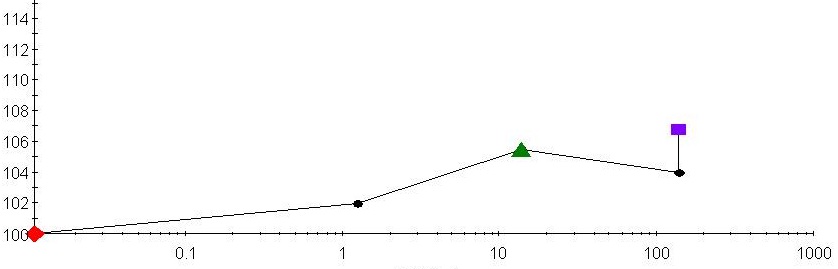

    Is it possible to create a chart similar to the attached image?  I can't have an actual X axis that spans 0-1000 b/c the first point will then never be shown.  Needs to be spread similar to the attached image.

    Thanks.
  2. Evgenia
    Admin
    Evgenia avatar
    1406 posts

    Posted 15 Nov 2011 Link to this post

    Hello Brian,

    A similar scenario is demonstrated in our help topic together with a source code provided. Some words about it - you'll need to use the MVVM pattern to achieve this. For example all your PointMarks which DataPoint is below 102 will have a Red Fill and Diamond Shape. All that have YValue betweeen 102 and 105 for example will be with Black Fill and Circle Shape and etc.

    All the best,
    Evgenia
    the Telerik team

    Explore the entire Telerik portfolio by downloading the Ultimate Collection trial package. Get it now >>

  3. DevCraft banner
  4. Brian
    Brian avatar
    73 posts
    Member since:
    Sep 2010

    Posted 16 Feb 2012 Link to this post

    I don't think the suggested help topic is similar to my chart at all.  Please revisit the attached image and check out how our X axis needs to be set up.  The issue is not differing colors in different areas, it's charting the values against an X axis that is not correctly proportioned.  We need the axis to increment by different amounts (i.e. 0.1, then 1, then 10, then 100).
  5. Evgenia
    Admin
    Evgenia avatar
    1406 posts

    Posted 20 Feb 2012 Link to this post

    Hello Brian,

    You can have such Axis by using our Logarithmic Scale as shown in our demo with source code provided. However currently this is not supported for XAxis, only YAxis.
    We are sorry for the inconvenience caused.

    Kind regards,
    Evgenia
    the Telerik team
