Is it possible to change the position of the axes ?

4 posts, 0 answers
  1. Gerard
    Gerard avatar
    16 posts
    Member since:
    Mar 2016

    Posted 11 Mar Link to this post

    Hello,

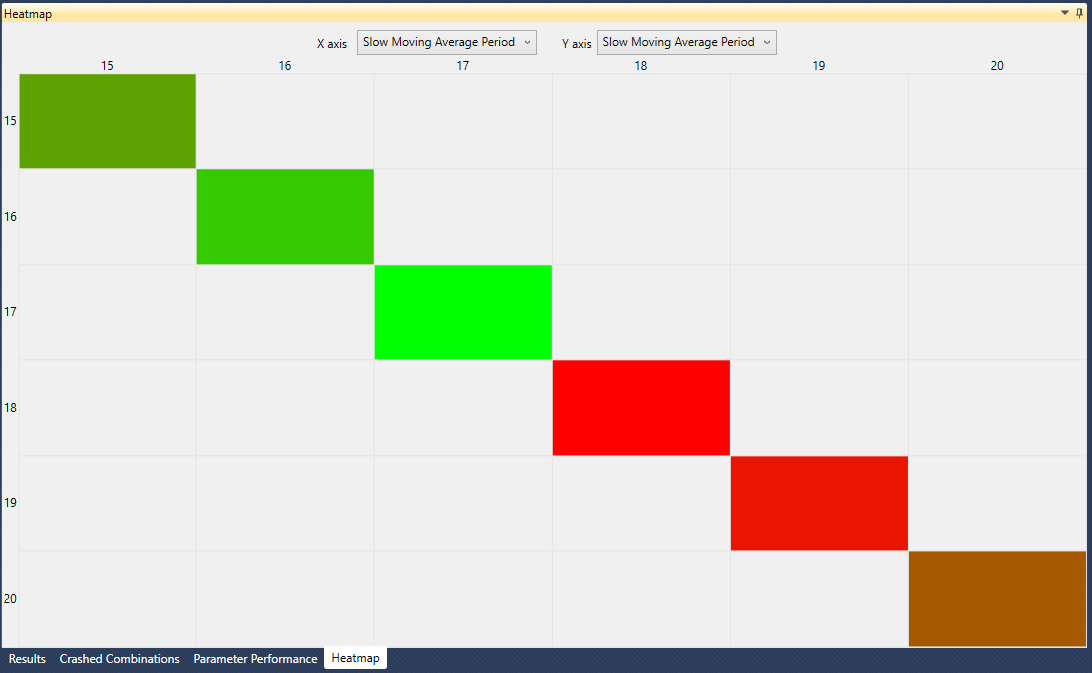

    It could be possible to represent X axis and Y axis into bottom side and right hand, respectively?

    <telerik:RadHeatMap x:Name="radHeatMap" ShowToolTips="True" CellBorderThickness="1" CellBorderColor="#FFE4E4E4">
        <telerik:RadHeatMap.Definition>
            <telerik:CategoricalDefinition ItemsSource="{Binding Path=HeatMapSeries}" RowGroupMemberPath="Z" ColumnGroupMemberPath="X" ValuePath="Y" Colorizer="{StaticResource HeatMapValueGradientColorizer}" />
        </telerik:RadHeatMap.Definition>
    </telerik:RadHeatMap>



    Regards,

    Gerard.

  2. Martin
    Admin
    Martin avatar
    1101 posts

    Posted 15 Mar Link to this post

    Hello Gerard,

    In order to change the heatmap columns and rows position you can use the RadHeatMap ColumnHeaderSettings and RowHeaderSettings properties and their LabelsPanelPosition property.
    <telerik:RadHeatMap.ColumnHeaderSettings>
        <telerik:HeatMapColumnHeaderSettings LabelsPanelPosition="Bottom" />
    </telerik:RadHeatMap.ColumnHeaderSettings>

    I hope this helps.

    Regards,
    Martin
    Telerik
    Do you need help with upgrading your AJAX, WPF or WinForms project? Check the Telerik API Analyzer and share your thoughts.
  3. UI for WPF is Visual Studio 2017 Ready
  4. Gerard
    Gerard avatar
    16 posts
    Member since:
    Mar 2016

    Posted 21 Mar Link to this post

    Perfect, Thank you very much.
    Perfect, Thank you very much.
    Perfect, Thank you very much.
    Perfect, Thank you very much.
    Perfect, Thank you very much.
    Perfect, Thank you very much.
    Perfect, Thank you very much.
    Perfect, Thank you very much
    Perfect, Thank you very much
    Perfect, Thank you very much
    Perfect, Thank you very much

    Perfect, axes repositioned.

    Thank you very much.

    Regards,
    Gerard.

  5. Gerard
    Gerard avatar
    16 posts
    Member since:
    Mar 2016

    Posted 21 Mar in reply to Martin Link to this post

    Martin said:Hello Gerard,

    In order to change the heatmap columns and rows position you can use the RadHeatMap ColumnHeaderSettings and RowHeaderSettings properties and their LabelsPanelPosition property.
    <telerik:RadHeatMap.ColumnHeaderSettings>
        <telerik:HeatMapColumnHeaderSettings LabelsPanelPosition="Bottom" />
    </telerik:RadHeatMap.ColumnHeaderSettings>

    I hope this helps.

    Regards,
    Martin
    Telerik
    Do you need help with upgrading your AJAX, WPF or WinForms project? Check the Telerik API Analyzer and share your thoughts.

    Perfect, axes repositioned,

    Thank you very much.



    Regards,

    Gerard.
