Increase in group name width

13 posts, 0 answers
  1. Pavan Vadlamudi
    Pavan Vadlamudi avatar
    4 posts
    Member since:
    May 2010

    Posted 10 Jun 2010 Link to this post

    I am newbie to telerik controls.  I am currently using RadScheduler control, how do i increase the width of Group by cell name (See the attachment) and see my code below.

    <telerik:RadScheduler ID="RadScheduler1" runat="server"
          DataSourceID="SQLDSAppointmentList"
    DataKeyField="ID"
    DataStartField="StartDate" DataEndField="EndDate"
    DataSubjectField="Description"
     Skin="Outlook"
    GroupBy ="Inspectors"
     GroupingDirection ="Vertical"
    SelectedView="MonthView">


            <ResourceTypes>
                <telerik:ResourceType DataSourceID="SQLDSInspectorList"
                        ForeignKeyField="InspectorID" KeyField="InspectorListID" Name="Inspectors"
                        TextField="InspectorName" />
                    <telerik:ResourceType DataSourceID="SQLDSInspectionTaskList"
                        ForeignKeyField="InspectionTaskTypeID" KeyField="ReferenceTypeDetailsID" Name="InspectionTaskTypes"
                        TextField="Name" />

            </ResourceTypes>

        </telerik:RadScheduler>
        </div><br />
        <div>
            <asp:Button ID="ButtonAddNonInspectionTaskTypeList" runat ="server" Text ="Add Non-InspectionTask" />
        </div>
        <asp:SqlDataSource
            ID="SQLDSInspectorList"
            runat="server"
            ConnectionString="<%$ ConnectionStrings:SQLConnectionString %>"
             SelectCommand ="SELECT IL.InspectorListID ,IL.UserInfo_tp_Title AS InspectorName
                    FROM RSS.InspectorList IL WHERE IL.InspectorListID = 14"
            >
        </asp:SqlDataSource>
        <asp:SqlDataSource ID="SQLDSInspectionTaskList" runat ="server"
             ConnectionString ="<%$ ConnectionStrings:SQLConnectionString %>"
              SelectCommand ="SELECT
     RTD.ReferenceTypeDetailsID
     ,RTD.Name
    FROM RSS.ReferenceTypeDetails RTD
    INNER JOIN RSS.ReferenceTypes RT
    ON RT.ReferenceTypeID = RTD.ReferenceTypeID
    WHERE RT.Name = 'InspectionTaskTypes'"></asp:SqlDataSource>
        <asp:SqlDataSource ID="SQLDSAppointmentList" runat ="server"
          ConnectionString ="<%$ ConnectionStrings:SQLConnectionString %>"
           SelectCommand ="SELECT [ID]
          ,[StartDate]
          ,[EndDate]
          ,[InspectorID]
          ,[InspectionTaskTypeID]
          ,[Description]
      FROM vw_InspectionTaskAppointmentsAll">
    </asp:SqlDataSource>

  2. T. Tsonev
    Admin
    T. Tsonev avatar
    2770 posts

    Posted 10 Jun 2010 Link to this post

    Hi Pavan,

    Thank you for the detailed problem description. You should try setting the RowHeaderWidth property. Using pixels works best.

    <telerik:RadScheduler ... RowHeaderWidth="150px" />

    I hope this helps.

    Sincerely yours,
    Tsvetomir Tsonev
    the Telerik team

    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items.
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Pavan Vadlamudi
    Pavan Vadlamudi avatar
    4 posts
    Member since:
    May 2010

    Posted 10 Jun 2010 Link to this post

    Hi Tsonev,

    thanks for the response, i tried that property as you suggested but no luck no change in its appearence.    I am also using AppointmentDataBound event (please see code below) i dont think that will impact the width of group name or is it?
    Private Sub RadScheduler1_AppointmentDataBound(ByVal sender As Object, ByVal e As Telerik.Web.UI.SchedulerEventArgs) Handles RadScheduler1.AppointmentDataBound
            If e.Appointment.Resources.GetResourceByType("InspectionTaskTypes") <> Nothing Then

                Select Case e.Appointment.Resources.GetResourceByType("InspectionTaskTypes").Text

                    Case "case 1"
                        e.Appointment.CssClass = "rsCategoryDarkGreen"
                        Exit Select
                    Case "case 2"
                        e.Appointment.CssClass = "rsCategoryDarkGreen"
                        Exit Select
                    Case "case 3"
                        e.Appointment.CssClass = "rsCategoryDarkGreen"
                        Exit Select
                    Case "case 4"
                        e.Appointment.CssClass = "rsCategoryDarkRed"
                        Exit Select
                    Case Else
                        Exit Select
                End Select

            End If
        End Sub
        <telerik:RadScheduler ID="RadScheduler1" runat="server"
          DataSourceID="SQLDSAppointmentList"
    DataKeyField="ID"
    DataStartField="StartDate" DataEndField="EndDate"
    DataSubjectField="Description"
     Skin="Outlook"
    GroupBy ="Inspectors"
     GroupingDirection ="Vertical"
    SelectedView="MonthView" RowHeaderWidth="200px">
    ....
    </telerik:RadScheduler>

    any help appritiated

    Thanks,
  5. Peter
    Admin
    Peter avatar
    6637 posts

    Posted 10 Jun 2010 Link to this post

    Hi Pavan,

    It looks like RowHeaderWidth does not work for Month view. I will log the issue, but meanwhile you can use the following css workaround:

    .rsVerticalHeaderTable
       {
           width: 200px !important;
       }


    Greetings,
    Peter
    the Telerik team

    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items.
  6. Pavan Vadlamudi
    Pavan Vadlamudi avatar
    4 posts
    Member since:
    May 2010

    Posted 11 Jun 2010 Link to this post

    Thanks Peter,

    That definitely increased the width of Group name cell aligned to right doesn’t display full name.   Even if you change text-align property to left it crops letters.  After hit and miss the following CSS fixed the issue.



    .rsMainHeader div

            {WIDTH: 150px !important; TEXT-ALIGN: left !important;}



    Issue is now resolved and thanks for all your help.

  7. maurizio brusini
    maurizio brusini avatar
    10 posts
    Member since:
    Oct 2009

    Posted 19 Apr Link to this post

    Hi i have same problem, i guess your solution could work, just a question..WHERE shd i apply :

    .rsMainHeader div
            {WIDTH: 150px !important; TEXT-ALIGN: left !important;}



    Thank

    Maurizio Brusini

  8. Ivan Danchev
    Admin
    Ivan Danchev avatar
    829 posts

    Posted 20 Apr Link to this post

    Hello Maurizio,

    This is a standard  CSS rule so you can add it inside the "styles" tags in your page markup:
    <style type="text/css">
        .rsMainHeader div {
            width: 150px !important;
            text-align: left !important;
        }
    </style>

    Regards,
    Ivan Danchev
    Telerik
    Do you need help with upgrading your ASP.NET AJAX, WPF or WinForms projects? Check the Telerik API Analyzer and share your thoughts.
  9. maurizio brusini
    maurizio brusini avatar
    10 posts
    Member since:
    Oct 2009

    Posted 21 Apr in reply to Ivan Danchev Link to this post

    Yes Ivan, what i dont know is the connection from .rsMainHeader and the RadSchedular.

    Notice that i dont use Appointment so i cant write code like example above.

    best regards

    Maurizio

  10. Ivan Danchev
    Admin
    Ivan Danchev avatar
    829 posts

    Posted 22 Apr Link to this post

    Hello Maurizio,

    The "rsMainHeader" is the class of the tr element shown in this screenshot. It appears if you set the Scheduler's GroupingDirection to vertical. You can see it in our Resource Grouping demo.

    Regards,
    Ivan Danchev
    Telerik
    Do you need help with upgrading your ASP.NET AJAX, WPF or WinForms projects? Check the Telerik API Analyzer and share your thoughts.
  11. maurizio brusini
    maurizio brusini avatar
    10 posts
    Member since:
    Oct 2009

    Posted 27 Apr in reply to Ivan Danchev Link to this post

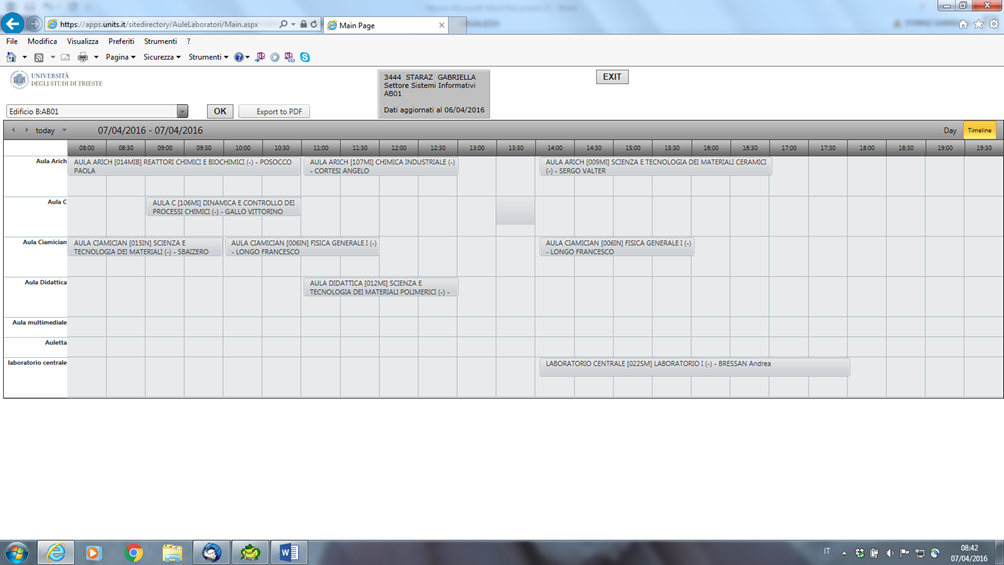

    Hi Ivan, ty for your explanation but i still dont know where apply "rsMainHeader".

    Follow my simple RadSchedular.

     <telerik:RadScheduler ID="RadScheduler1" runat="server" Skin="Office2010Black" RenderMode="Lightweight"
                AppointmentStyleMode="Default"
                DataSourceID="ObjSked"
                DataKeyField="cod_edificio"
                DataStartField="dal" DataEndField="al"
                DataSubjectField="evento"
                WorkWeekStart = "DayOfWeek.Monday"
                WorkWeekEnd = "DayOfWeek.Saturday"
                ShowAllDayRow="False"
                HoursPanelTimeFormat="HH:mm"
                TimeLabelRowSpan ="1"
                OverflowBehavior="Auto"
                DayEndTime="20:30:00"
                FirstDayOfWeek="Monday"
                ShowFooter="False"
                AllowDelete="False" AllowEdit="False" AllowInsert="False"
                WeekView-UserSelectable="false" DayView-UserSelectable="TRUE"
                Culture="it-IT"
                MonthView-UserSelectable="false"
                TimelineView-UserSelectable="true"
                TimelineView-NumberOfSlots="24"
                TimelineView-SlotDuration="00:30:00"
                TimelineView-TimeLabelSpan="1"
                RowHeaderWidth="100px"
                RowHeight="30px"
                TimelineView-ColumnHeaderDateFormat="HH:mm"
                TimelineView-StartTime="08:00:00"
                TimelineView-GroupBy="Aule"
                TimelineView-GroupingDirection="Vertical"
                AgendaView-UserSelectable="false" DayView-GroupBy="Aule"
                WorkDayEndTime="20:30:00" Height="" Font-Size="X-Small">

                <AdvancedForm Modal="True"></AdvancedForm>

               <ResourceTypes>
                    <telerik:ResourceType KeyField="cod_ris_fissa" Name="Aule" TextField="des_ris_fissa" ForeignKeyField="cod_ris_fissa"
                       DataSourceID="ObjectDataSource1"></telerik:ResourceType>
                </ResourceTypes>
         </telerik:RadScheduler>



          Is it. so where apply that css class?

         thanks

       Best regards

        Maurizio Brusini



  12. Ivan Danchev
    Admin
    Ivan Danchev avatar
    829 posts

    Posted 28 Apr Link to this post

    Hello Maurizio,

    I am not sure I understand your question correctly. The "rsMainHeader" class is added automatically to the tr elements if vertical grouping direction is set (as I've shown in the screenshot in my previous reply). I see that you have already enabled vertical grouping for the TimelineView (by setting the TimelineView-GroupingDirection="Vertical" property), so you have to do the same for the other views you are using, the DayView for example: DayView-GroupingDirection="Vertical". You don't need to add the class yourself, you just have to add the CSS rule.

    Regards,
    Ivan Danchev
    Telerik
    Do you need help with upgrading your ASP.NET AJAX, WPF or WinForms projects? Check the Telerik API Analyzer and share your thoughts.
  13. maurizio brusini
    maurizio brusini avatar
    10 posts
    Member since:
    Oct 2009

    Posted 02 May in reply to Ivan Danchev Link to this post

    Oh i finally understand what u mean, sorry for my poor english.

    Anyway if so in my case "text-align:left !important" DONT work. Is opposite the text is right aligned. take a look to the attached file.

    best regards

    Maurizio

  14. Ivan Danchev
    Admin
    Ivan Danchev avatar
    829 posts

    Posted 03 May Link to this post

    Hello Maurizio,

    Are you applying any other similar CSS rules, because if the text-align style is not being applied this could indicate other rules might be overriding it. Could you inspect the element with class rsMainHeader in the browser's developer tools and check whether the two styles (width and text-align) are applied and then overridden by other styles?

    Regards,
    Ivan Danchev
    Telerik
    Do you need help with upgrading your ASP.NET AJAX, WPF or WinForms projects? Check the Telerik API Analyzer and share your thoughts.
