Images Cut out

4 posts, 1 answers
  1. JJ Loubser
    JJ Loubser avatar
    42 posts
    Member since:
    Jul 2009

    Posted 14 Jul 2011 Link to this post

    My style is the same as in the demo:  http://demos.telerik.com/silverlight/#CoverFlow/DataBindin

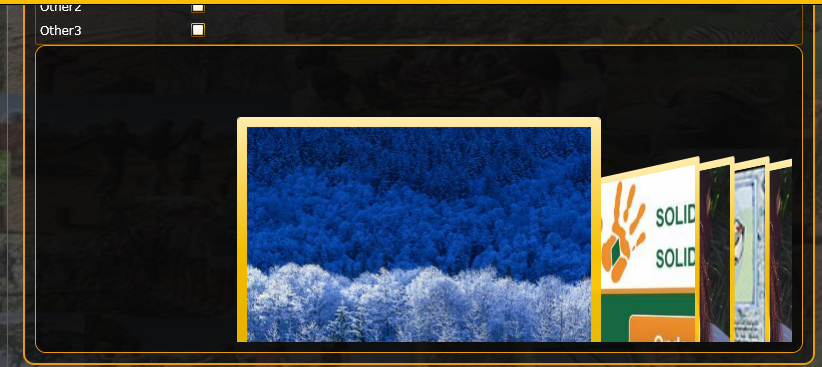

    images are cut out from buttom see picture:
    my code:

     <telerik:RadCoverFlow
                                                                                                            x:Name="CoverFlowAccommodationPhotos"
                                                                                                            DataContext="{Binding VenueAccommodationPhoto}"
                                                                                                            Loaded="CoverFlowAccommodationPhotos_Loaded"
                                                                                                            OffsetY="100"
                                                                                                            VerticalAlignment="Center"
                                                                                                            CameraViewpoint="Center"
                                                                                                            ItemScale="0.7"
                                                                                                            RotationY="60"
                                                                                                            ReflectionHeight="0.2"
                                                                                                            ReflectionOpacity="2"
                                                                                                            DistanceBetweenItems="35"
                                                                                                            DistanceFromSelectedItem="-30"
                                                                                                            ItemContainerStyle="{StaticResource   RadCoverFlowItemContainerStyle}"
                                                                                                            FlowDirection="LeftToRight"
                                                                                                            IsReflectionEnabled="False"
                                                                                                            MinWidth="746" MaxWidth="746"
                                                                                                            MouseWheel="CoverFlowAccommodationPhotos_MouseWheel"
                                                                                                            MouseMove="CoverFlowAccommodationPhotos_MouseMove"
                                                                                                                >
    I have to make the Height about 800 to see the hole pictures, but the open space on top is to big, what am I missing?
  2. JJ Loubser
    JJ Loubser avatar
    42 posts
    Member since:
    Jul 2009

    Posted 14 Jul 2011 Link to this post

    Sorry code behind that load the images from the BO Server object:

    public void loadCoverFlowAccommodationPhotos(RadCoverFlow RadCoverFlow_)
            {
                Business.Supplier.VenueAccommodationPhotoECL Images_ = (Business.Supplier.VenueAccommodationPhotoECL)RadCoverFlow_.DataContext;
                    RadCoverFlow_.Items.Clear();

                    if (Images_ != null && Images_.Count > 0)
                    {

                        foreach (Business.Supplier.VenueAccommodationPhotoEC Image_ in Images_)
                        {
                            string newFileName = Image_.AccommodationPhotoName;

                            if (newFileName.Length > 0)
                            {
                                Uri urL = new Uri(this.RadUploadLayout.UploadServiceUrl, UriKind.RelativeOrAbsolute);

                                System.Uri sourceOriginalWay = new Uri(HtmlPage.Document.DocumentUri, urL.ToString());
                                string server = sourceOriginalWay.ToString();
                                server = server.Replace("RadUploadHandler.ashx", "");

                                string imageURL = server.ToString() +
                                     "" + RadUploadLayout.TargetFolder + "/" + newFileName;

                                Image img = new Image();
                                BitmapImage bmp = new BitmapImage(new Uri(imageURL, UriKind.RelativeOrAbsolute));
                                img.ImageFailed += this.NewImage_ImageFailed;
                                img.Source = bmp;
                                img.Margin = new Thickness(0);
                                img.Stretch = System.Windows.Media.Stretch.Uniform;
                                img.Name = "AccommodationPhoto" + Image_.OfferingVenueAccommodationPhotoID.ToString();
                                img.Tag = Image_.OfferingVenueAccommodationPhotoID;
                                img.MinHeight = 345;
                                img.MaxHeight = 345;
                                img.MinWidth = 345;
                                img.MaxWidth = 345;
                                img.DataContext = Image_;

                                RadCoverFlow_.Items.Add(img);

                            }

                        }

                    }
            }


  3. DevCraft banner
  4. Answer
    Dani
    Admin
    Dani avatar
    848 posts

    Posted 18 Jul 2011 Link to this post

    Hi,

    Please, try removing the OffsetY property that is currently set to 100px.


    All the best,
    Dani
    the Telerik team

    Register for the Q2 2011 What's New Webinar Week. Mark your calendar for the week starting July 18th and book your seat for a walk through of all the exciting stuff we will ship with the new release!

  5. JJ Loubser
    JJ Loubser avatar
    42 posts
    Member since:
    Jul 2009

    Posted 19 Jul 2011 Link to this post

    worked thanks
