Image Clipping on Split Button DropDown and menus

4 posts, 0 answers
  1. Damon
    Damon avatar
    5 posts
    Member since:
    Jul 2012

    Posted 02 Mar 2012 Link to this post

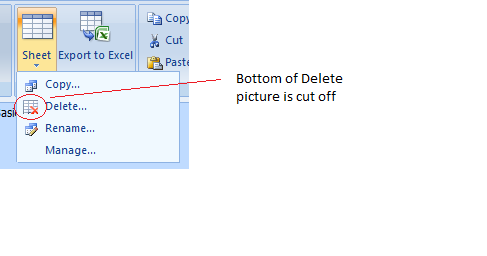

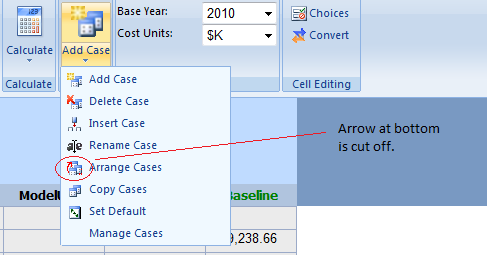

    I noticed that on my menu dropdowns and split button dropdowns certain icons/images seem to get cut off if they have anything in their bottom area.  The images are 16x16 as specified in documentation and to Microsoft standards.  You can see it in the attached images. I'll attach the original icons/images as well so you can see their size. Is this as designed? Bug? What should I do?
  2. Kate
    Admin
    Kate avatar
    1898 posts

    Posted 07 Mar 2012 Link to this post

    Hello Damon,

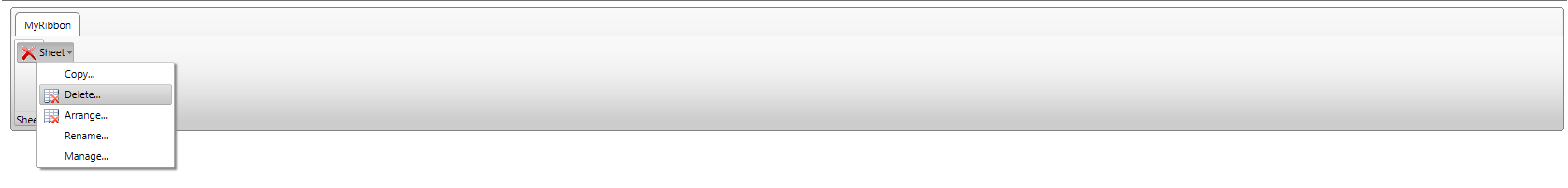

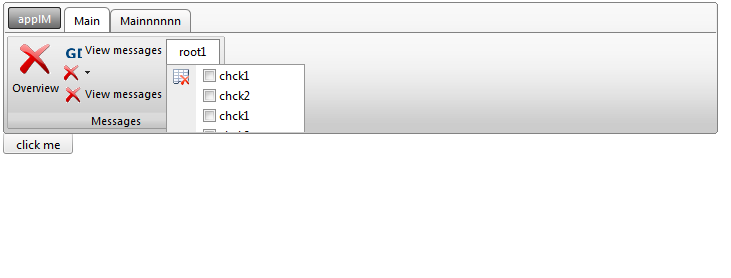

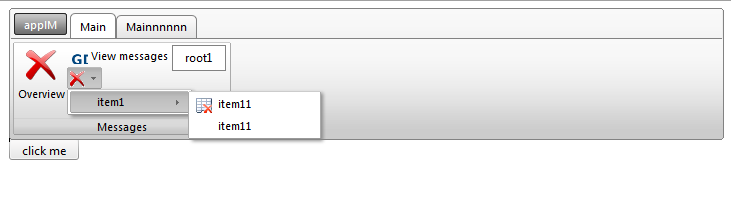

    I tested your scenario with one of the images that you provided but I am not able to get the appearance that you do (you can refer to the attached images). Can you please provide the markup of the RadRibbonBar that you are using as well as clarify the version of the controls?

    Greetings,
    Kate
    the Telerik team
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now.
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Damon
    Damon avatar
    5 posts
    Member since:
    Jul 2012

    Posted 07 Mar 2012 Link to this post

    I'm using RAD Controls for ASP.Net Ajax Q3 2011 (file version 2011.3.1115.35)

    The issue seems to be with compatibility mode. :( If I run this in non compatibility mode it does not clip the image.

    Here is the xml file I use to load the ribbon with:
    <RibbonBar Width="100%" Skin="Office2007"
      <Tab Text="MyRibbon"
        <Group Text="Sheet"
          <SplitButton Size="Large" Text="Sheet" Value="CopySheet" ToolTip="Copy Current Sheet"
            <Button size="Medium" text="Copy..."></Button
            <Button size="Medium" text="Delete..." ImageUrl="Images/SheetDelete.png"></Button>
            <Button size="Medium" text="Arrange..." ImageUrl="Images/ArrangeCases.png"></Button>
            <Button size="Medium" text="Rename..."></Button
            <Button size="Medium" text="Manage..."></Button
          </SplitButton
        </Group
      </Tab
    </RibbonBar>
    aspx file:
    <head runat="server">
        <title>Untitled Page</title>
    </head>
    <body>
        <form id="form1" runat="server">
        <div>
            <telerik:RadScriptManager ID="mymanager" runat="server">
              <Scripts>
                <asp:ScriptReference Assembly="Telerik.Web.UI" Name="Telerik.Web.UI.Common.Core.js"></asp:ScriptReference>
                <asp:ScriptReference Assembly="Telerik.Web.UI" Name="Telerik.Web.UI.Common.jQuery.js"></asp:ScriptReference>
                <asp:ScriptReference Assembly="Telerik.Web.UI" Name="Telerik.Web.UI.Common.jQueryInclude.js"></asp:ScriptReference>
             </Scripts>
           </telerik:RadScriptManager>
           <telerik:RadRibbonBar EnableViewState="false" ID="SpreadRibbon" runat="server" ImageRenderingMode="Dual" style="z-index:1000"></telerik:RadRibbonBar>

        </div>
        </form>
    </body>
    </html>

    Code Behind VB:
    Partial Class _Default
        Inherits System.Web.UI.Page

        Protected Sub SpreadRibbon_Init(ByVal sender As Object, ByVal e As System.EventArgs) Handles SpreadRibbon.Init
            Me.SpreadRibbon.LoadContentFile("MyRibbon.xml")
        End Sub
    End Class
  5. Kate
    Admin
    Kate avatar
    1898 posts

    Posted 15 Mar 2012 Link to this post

    Hi Damon,

    I tested your code and indeed the issue occurs with the 2011.3.1115.35 version of the Telerik controls. However, after upgrading to the latest one - 2012.1.215.35 - the image render as expected and the issue not longer persists.

    All the best,
    Kate
    the Telerik team
